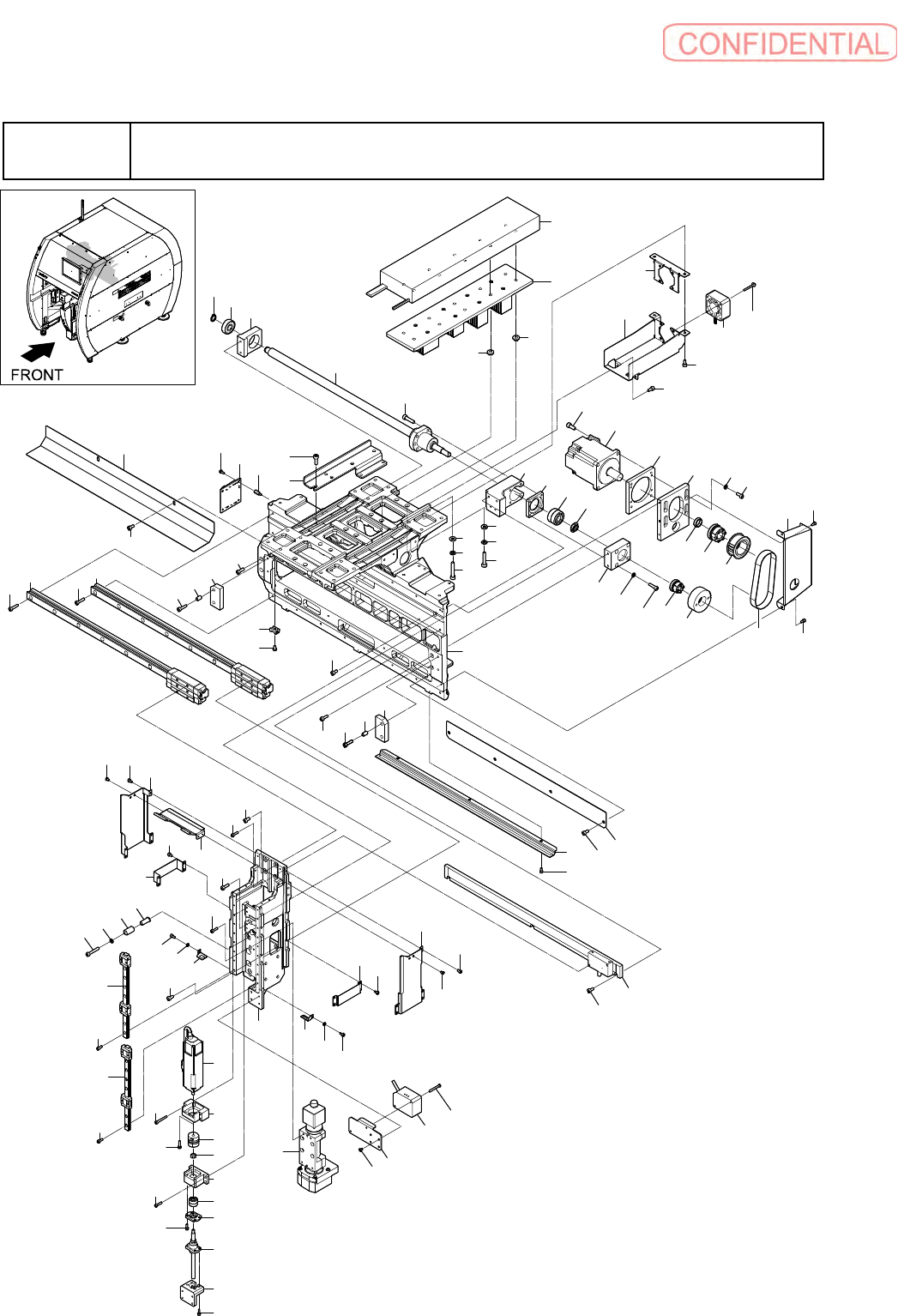

A-4 A1 X フレーム ASSY 左 X f r am e a ss y - L eft ｲﾗｽﾄ 番号 Ref.No. 部品コード Parts Code 部品名 Parts Name Serial No. 個数 Q'ty 備考 Remarks 同期 Repl. 1 X- 2586 - 586 -2 ﾋ - ﾄｼﾝｸ ASSY HEA T SINK ASSY 1 2 1- 492 - 149 - 11 ﾊﾟﾙｽ ﾓ - ﾀ…

100%1 / 204
A-3
A1
X
フレーム
ASSY
左
X frame assy - Left
22
56
50
46
63
66
48
23
65
66
10
49
70
24
45
28
11
53
68
8
27
29
55
40
14
20
12
59
59
19
13
26
55
66
64
24
38
39
3
63
58
84
77
84
65
57
63
65
30
71
74
25
72
74
25
66
48
23
52
61
63
42
35
54
59
78
84
76
83
84
47
59
67
82
83
81
85
73
36
37
60
60
16
16
32
18
43
31
15
33
7
21
63
6
63
61
60
62
61
17
34
60
5
80
79
59
54
41
83
66
63
61
10
9
2
51
44
69
1
4
63
75
A-4
A1
X
フレーム
ASSY
左
X frame assy - Left
ｲﾗｽﾄ番号
Ref.No.
部品コード
Parts Code
部品名
Parts Name
Serial
No.
個数
Q'ty
備考
Remarks
同期
Repl.
1 X-2586-586-2
ﾋ
-
ﾄｼﾝｸ
ASSY
HEATSINK ASSY
1
2 1-492-149-11
ﾊﾟﾙｽ
ﾓ
-
ﾀ
ﾄﾞﾗｲﾊﾞ
(AU9284N1)
DRIVER, PULSE MOTOR
1
3 1-492-200-21
FAN ASSY (Y
ｼﾞｸ
) L
FAN ASSY (Y)
1
4 1-492-231-23
ﾓ
-
ﾀ
ASSY (Y) L
MOTOR ASSY (Y)
1
5 1-492-235-23
ﾓ
-
ﾀ
ASSY (Z) L
MOTOR ASSY (Z)
1
6 1-492-237-23
ｽｹ
-
ﾙ
ASSY (X) L
SCALE ASSY (X)
1
7 1-492-245-11
ｷﾊﾞﾝ
ｶﾒﾗ
ﾕﾆﾂﾄ
(TS-479-100)
UNIT,CAMERA PC BOARD(TS-479-*)
1
8 1-855-265-11
ｻ
-
ﾎﾞ
ﾓ
-
ﾀ
(HG-KR23)
MOTOR, SERVO (HG-KR23)
1
9 2-580-592-01
SCREW, +PSW M3X8
SCREW, +PSW M3X8
4
10 4-454-731-01
ﾘﾆｱ
ﾛ
-
ﾗ
-
ｳｴｲ
(MXSG15C1R440)
LINEAR ROLLERWAY
(MXSG15C1R440)
1
11 4-454-733-01
ｱﾝｷﾞﾕﾗ
ﾍﾞｱﾘﾝｸﾞ
(7000)
BEARING (7000), ANGULAR
1
12 4-454-734-01
ﾀｲﾐﾝｸﾞ
ﾍﾞﾙﾄ
(275-EV5GT-12)
BELT (275-EV5GT-12), TIMING
1
13 4-454-735-01
ﾒｶ
ﾛﾂｸ
(MC-8-19)
LOCK (MC-8-19), MECHANICAL
1
14 4-454-736-01
ﾒｶ
ﾛﾂｸ
(MC-14-26)
LOCK (MC-14-26), MECHANICAL
1
15 4-454-738-01
ｱﾝｷﾞﾕﾗ
ﾍﾞｱﾘﾝｸﾞ
(MTA06-15)
BEARING (MTA06-15), ANGULAR
1
16 4-454-739-02
ﾘﾆｱｳｴｲ
(MLC9C2R180)
LINEAR WAY (MLC9C2R180)
2
17 4-454-740-01
ﾎﾞ
-
ﾙ
ﾈｼﾞ
(BLK0606S-3G1)
SCREW (BLK0606S-3G1), BALL
1
18 4-454-741-01
ｶﾂﾌﾟﾘﾝｸﾞ
(SFC-010SA2-5B-5B)
COUPLING (SFC-010SA2-5B-5B)
1
19 4-454-946-01
X
ﾌﾟ
-
ﾘ
X PULLEY
1
20 4-454-947-01
X
ｸﾄﾞｳ
ﾌﾟ
-
ﾘ
-
PULLEY, X DRIVING
1
21 4-455-207-02
ｸﾞﾘｽ
ｶﾊﾞ
- (X, A)
GREASE COVER (X, A)
1
22 4-455-208-02
ｸﾞﾘｽ
ｶﾊﾞ
- (X, B)
GREASE COVER (X, B)
1
23 4-455-209-02
ｽﾄﾂﾊﾟ
- (X, S)
STOPPER (X, S)
2
24 4-455-210-01
ﾀﾞﾝﾈﾂ
ｶﾗ
-
COLLAR, HEAT INSULATING
10
25 4-455-211-01
ﾀﾞﾝﾈﾂ
ﾜﾂｼﾔ
WASHER, HEAT INSULATING
10
26 4-455-238-12
ﾍﾞｱﾘﾝｸﾞ
ﾎﾙﾀﾞ
- (X, F)
BEARING HOLDER (X, F)
1
27 4-455-239-01
ﾓ
-
ﾀ
-
ﾌﾞﾗｹﾂﾄ
(X)
MOTOR BRACKET (X)
1
28 4-455-241-01
ﾍﾞｱﾘﾝｸﾞ
ｵｻｴ
(X)
BEARING RETAINER (X)
1
29 4-455-242-02
ﾃﾝｼﾖﾝ
ﾌﾟﾚ
-
ﾄ
(X)
TENSION PLATE (X)
1
A-5
A1
X
フレーム
ASSY
左
X frame assy - Left
ｲﾗｽﾄ番号
Ref.No.
部品コード
Parts Code
部品名
Parts Name
Serial
No.
個数
Q'ty
備考
Remarks
同期
Repl.
30 4-455-248-04
X
ﾌﾚ
-
ﾑ
(L)
X FRAME (L)
1
31 4-455-277-02
ﾍﾞｱﾘﾝｸﾞ
ﾎﾙﾀﾞ
- Z
HOLDER (Z), BEARING
1
32 4-455-279-02
ﾓ
-
ﾀ
-
ﾌﾞﾗｹﾂﾄ
BRACKET, MOTOR
1
33 4-455-283-02
ﾍﾞｱﾘﾝｸﾞ
ｵｻｴ
RETAINER, BEARING
1
34 4-455-284-01
ﾅﾂﾄ
ﾎﾙﾀﾞ
- (Z)
HOLDER, NUT (Z)
1
35 4-455-285-03
Z
ﾌﾚ
-
ﾑ
(L)
Z FRAME (L)
1
36 4-455-293-01
Z
ｳﾚﾀﾝ
ｽﾄﾂﾊﾟ
-
URETHANE STOPPER, Z
4
37 4-455-294-01
Z
ｽﾄﾂﾊﾟ
-
ｶﾗ
-
COLLAR, Z STOPPER
4
38 4-455-668-01
FAN
ﾌﾞﾗｹﾂﾄ
FAN, BRACKET
1
39 4-455-670-02
FAN
ﾀﾞｸﾄ
FAN, DUCT
1
40 4-461-729-01
ｶﾗ
- (FWSSB-D17-V14-T5)
COLLAR (FWSSB-D17-V14-T5)
1
41 4-461-775-01
ｸﾞﾘｽ
ｶﾊﾞ
- (LZ, L)
COVER (LZ, L), GREASE
1
42 4-461-776-01
ｸﾞﾘｽ
ｶﾊﾞ
- (LZ, R)COVER (LZ, R),
GREASE
1
43 4-463-629-01
ﾍﾞｱﾘﾝｸﾞ
ﾅﾂﾄ
(Z)
NUT (Z), BEARING
1
44 4-466-199-01
ｹ
-
ﾌﾞﾙ
ｶﾞｲﾄﾞ
ｱ
-
ﾑ
(L)
ARM , CABLE GUIDE (L)
1
45 4-467-281-01
ﾎﾞ
-
ﾙﾈｼﾞ
ﾅﾂﾄ
ﾎﾙﾀﾞ
- (X, L)
BALL SCREW NUT HOLDER (X, L)
1
46 4-467-284-01
ﾍﾞｱﾘﾝｸﾞ
ﾎﾙﾀﾞ
- (X, S)
BEARING HOLDER (X, S)
1
47 4-467-686-01
ｸﾞﾘ
-
ｽ
ｶﾊﾞ
- (X, BT)
GREASE COVER (X, BT)
1
48 4-467-695-01
ｽﾄﾂﾊﾟ
-
ｶﾗ
- (X)
COLLAR (X), STOPPER
4
49 4-468-933-01
ﾎﾞ
-
ﾙ
ﾈｼﾞ
(SDA1520)
SCREW (SDA1520), BALL
1
50 4-700-061-01
ﾍﾞｱﾘﾝｸﾞ
(6000ZZ)
BEARING (6000ZZ)
1
51 4-705-584-11
ｽﾍﾟ
-
ｻ
(SQ-10)
SPACER (SQ-10)
4
52 4-706-151-11
ﾊｲｾﾝﾄﾞﾒ
(KR5G5)
CLAMP (KR5G5)
1
53 4-761-803-11
ﾌｱｲﾝ
U
ﾅﾂﾄ
(
ｼﾖﾘ
ｱﾘ
) (FU00SS)
NUT, FINE U (TREATMENT HAVE)
1
54 7-623-208-22
SW 3,TYPE 2
SW 3,TYPE 2
2
55 7-623-210-22
SW 4,TYPE 2
SW 4,TYPE 2
8
56 7-624-198-21
C
ｶﾞﾀ
ﾄﾒﾜ
10 (
ｼﾞｸ
ﾖｳ
)
STOP RING 10, TYPE C
1
57 7-682-160-01
+P 4X6
SCREW +P 4X6
1
58 7-682-954-01
+PSW 3X25
SCREW +PSW 3X25
4
59 7-683-403-04
6
ｶｸｱﾅﾂｷﾎﾞﾙﾄ
3X6
BOLT,HEXAGON SOCKET 3X6
9
