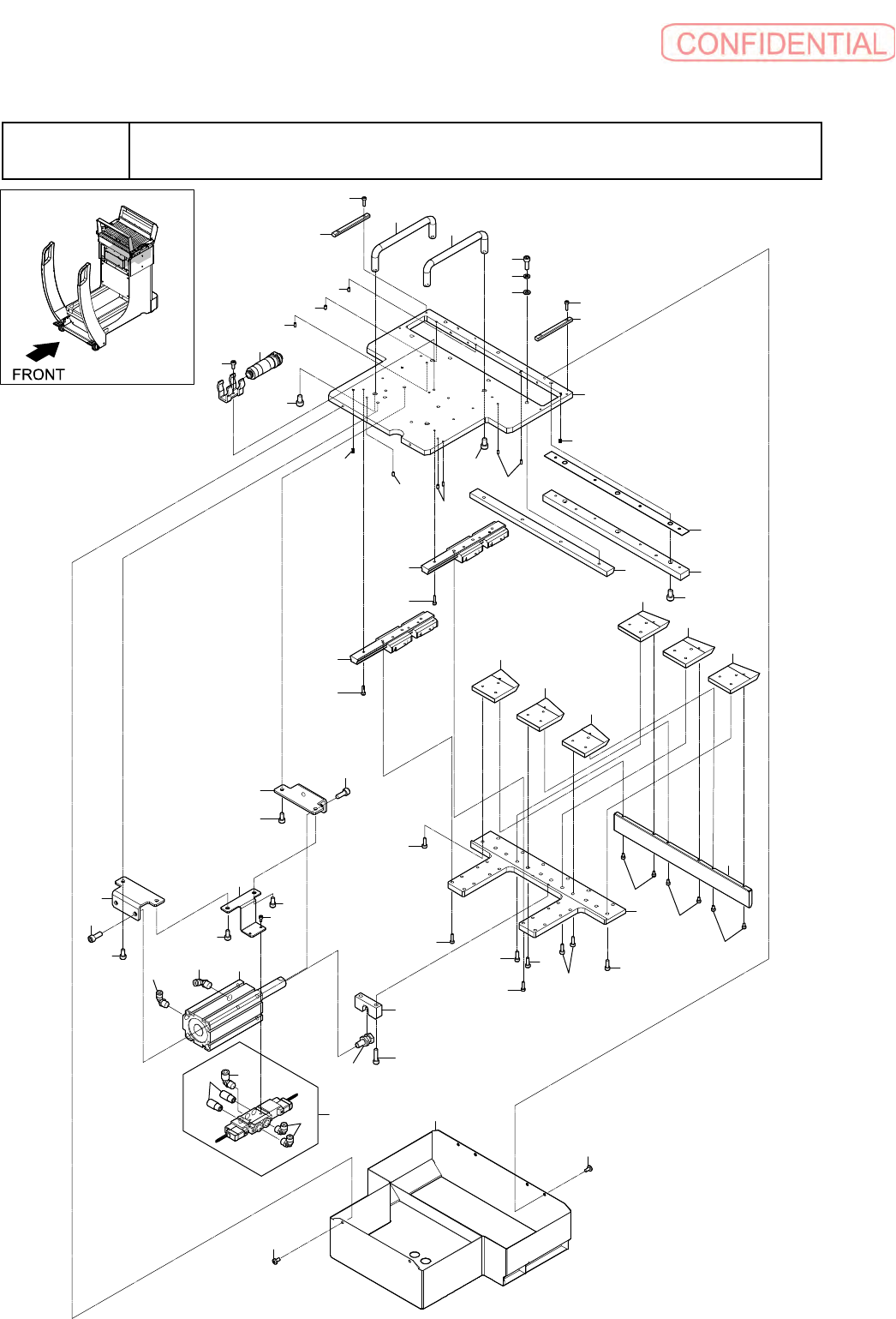

A-110
A42
カッターユニット
Cutter unit
28
3
20
4
4
4
23
29
34
4
3
32
26
36
28
20
18
4
21
14
34
17
4
4
22
28
8
22
10
30
28
15
33
19
30
30
30
16
27
27
27
30
28
31
31
27
31
31
28
4
34
35
11
6
6
7
5
6
2
2
12
24
1
35
10
8
8
13
9
9
9
A-111
A42
カッターユニット
Cutter unit
ｲﾗｽﾄ番号
Ref.No.
部品コード
Parts Code
部品名
Parts Name
Serial
No.
個数
Q'ty
備考
Remarks
同期
Repl.
1 1-492-169-11
ｿﾚﾉｲﾄﾞ
ﾊﾞﾙﾌﾞ
ASSY (CUTTER)
SOLENOID VALVE ASSY (CUTTER)
1
2 3-093-497-01
ｼﾞﾕｳｼﾞ
ｱﾅﾂｷ
ﾄﾗｽ
ｺﾈｼﾞ
(M4X8)
SCREW (M4X8), HOLE TRUSS
4
3 3-215-222-01
ﾏﾙﾎﾞｳ
ﾄﾂﾃ
(A-1042-C-4)
HANDLE (A-1042-C-4), SHAFT
2
4 4-000-028-11
ﾍｲｺｳ
ﾋﾟﾝ
(
ﾌｱｲ
3M6X6)
PIN (DIA. 3M6X6), PARALLEL
10
5 4-426-151-01
ｻｲﾚﾝｻ
(AN10-01)
SILENCER (AN10-01)
2
6 4-447-092-01
ｴﾙﾎﾞ
ﾕﾆｵﾝ
(KQ2L04-01NS)
UNION (KQ2L04-01NS), ELBOW
4
7 4-447-092-11
ｴﾙﾎﾞ
ﾕﾆｵﾝ
(KQ2L06-01NS)
UNION (KQ2L06-01NS), ELBOW
1
8 4-453-456-01
ｼﾀ
ﾊﾞ
EDGE, LOWER
3
9 4-453-456-11
ｼﾀ
ﾊﾞ
EDGE, LOWER
3
10 4-453-457-01
ｼﾘﾝﾀﾞ
ﾌﾞﾗｹﾂﾄ
BRACKET, CYLINDER
1
11 4-453-458-01
ﾃﾞﾝｼﾞ
ﾍﾞﾝ
ﾌﾞﾗｹﾂﾄ
BRACKET, ELECTROMAGNETIC
VALVE
1
12 4-453-459-01
ｶﾊﾞ
- (
ｶﾂﾀ
-
ﾕﾆﾂﾄ
)
COVER, CUTTER UNIT
1
13 4-453-460-01
ｶﾊﾞ
- (
ｼﾀ
ﾊﾞ
)
COVER, LOWER EDGE
1
14 4-453-461-01
ｳﾜ
ﾊﾞ
UPPER, EDGE
1
15 4-453-462-01
ｺﾈｸｼﾖﾝ
ﾌﾞﾛﾂｸ
BLOCK, CONNECTION
1
16 4-453-463-01
ｽﾗｲﾄﾞ
ﾍﾞ
-
ｽ
(
ｼﾀﾊﾞ
)
SLIDE BASE, LOWER EDGE
1
17 4-453-464-01
ｼﾀ
ﾊﾞ
ｶﾞｲﾄﾞ
GUIDE, LOWER EDGE
1
18 4-453-465-01
ﾍﾞ
-
ｽ
(
ｶﾂﾀ
-
ﾕﾆﾂﾄ
)
BASE, CUTTER UNIT
1
19 4-453-466-01
ﾌﾛ
-
ﾃｲﾝｸﾞ
ｼﾞﾖｲﾝﾄ
FLOATING JOINT
1
20 4-453-467-01
ｻﾎﾟ
-
ﾄ
ﾌﾞﾛﾂｸ
SUPPORT BLOCK
2
21
4-453-468-01
ｼﾑ
(
ｳﾜ
ﾊﾞ
) (T0.50)
SHIM, EDGE UPPER (T0.50)
1
使用している厚さで選定
4-453-468-11
ｼﾑ
(
ｳﾜ
ﾊﾞ
) (T0.45)
SHIM, EDGE UPPER (T0.45)
1
4-453-468-21
ｼﾑ
(
ｳﾜ
ﾊﾞ
) (T0.55)
SHIM, EDGE UPPER (T0.55)
1
4-453-468-31
ｼﾑ
(
ｳﾜ
ﾊﾞ
) (T0.20)SHIM, EDGE
UPPER (T0.20)
1
4-453-468-41
ｼﾑ
(
ｳﾜ
ﾊﾞ
) (T0.35)
SHIM, EDGE UPPER (T0.35)
1
22 4-453-559-01
LM
ｶﾞｲﾄﾞ
(SRS15MUUE)
LM GUIDE (SRS15MUUE)
2
23 4-453-560-01
ｲﾝﾗｲﾝ
ﾌｲﾙﾀ
(FSL200-66-B)
FILTER (FSL200-66-B), INLINE
1
24 4-476-170-01
ｸｳｱﾂ
ｼﾘﾝﾀﾞ
(RDQA40-60)
AIR CYLINDER (RDQA40-60)
1
25 4-476-169-01
ｼﾘﾝﾀﾞ
ﾌﾞﾗｹﾂﾄ
R
BRACKET R, CYLINDER
1
A-112
A42
カッターユニット
Cutter unit
ｲﾗｽﾄ番号
Ref.No.
部品コード
Parts Code
部品名
Parts Name
Serial
No.
個数
Q'ty
備考
Remarks
同期
Repl.
26 7-623-212-22
SW 5,TYPE 2
SW 5,TYPE 2
4
27 7-683-402-04
6
ｶｸｱﾅﾂｷﾎﾞﾙﾄ
3X5
BOLT,HEXAGON SOCKET 3X5
8
28 7-683-406-04
6
ｶｸｱﾅﾂｷﾎﾞﾙﾄ
3X12
BOLT,HEXAGON SOCKET 3X12
28
29 7-683-419-04
6
ｶｸｱﾅﾂｷﾎﾞﾙﾄ
4X8
BOLT,HEXAGON SOCKET 4X8
2
30 7-683-421-04
6
ｶｸｱﾅﾂｷﾎﾞﾙﾄ
4X12
BOLT,HEXAGON SOCKET 4X12
18
31 7-683-435-04
6
ｶｸｱﾅﾂｷﾎﾞﾙﾄ
5X10
BOLT,HEXAGON SOCKET 5X10
4
32 7-683-438-04
6
ｶｸｱﾅﾂｷﾎﾞﾙﾄ
5X16
BOLT,HEXAGON SOCKET 5X16
4
33 7-683-440-04
6
ｶｸｱﾅﾂｷﾎﾞﾙﾄ
5X20
BOLT,HEXAGON SOCKET 5X20
2
34 7-683-452-04
6
ｶｸｱﾅﾂｷﾎﾞﾙﾄ
6X10
BOLT,HEXAGON SOCKET 6X10
7
35 7-683-455-04
6
ｶｸｱﾅﾂｷﾎﾞﾙﾄ
6X16
BOLT,HEXAGON SOCKET 6X16
4
36 7-688-005-11
W 5, MIDDLE
W 5, MIDDLE
4
7-630-003-47
ﾎﾟﾘｳﾚﾀﾝﾁﾕ
-
ﾌﾞ
(TU0425B-100-X3)
TUBE (TU0425B-100-X3)
485
7-632-385-50
ﾎﾟﾘｳﾚﾀﾝ
ﾁﾕ
-
ﾌﾞ
(TU0604B)4X6X20M
TUBE, POLYURETHAN (TU0604B)
240
