SI-H1000_PL_2nd - 第135页

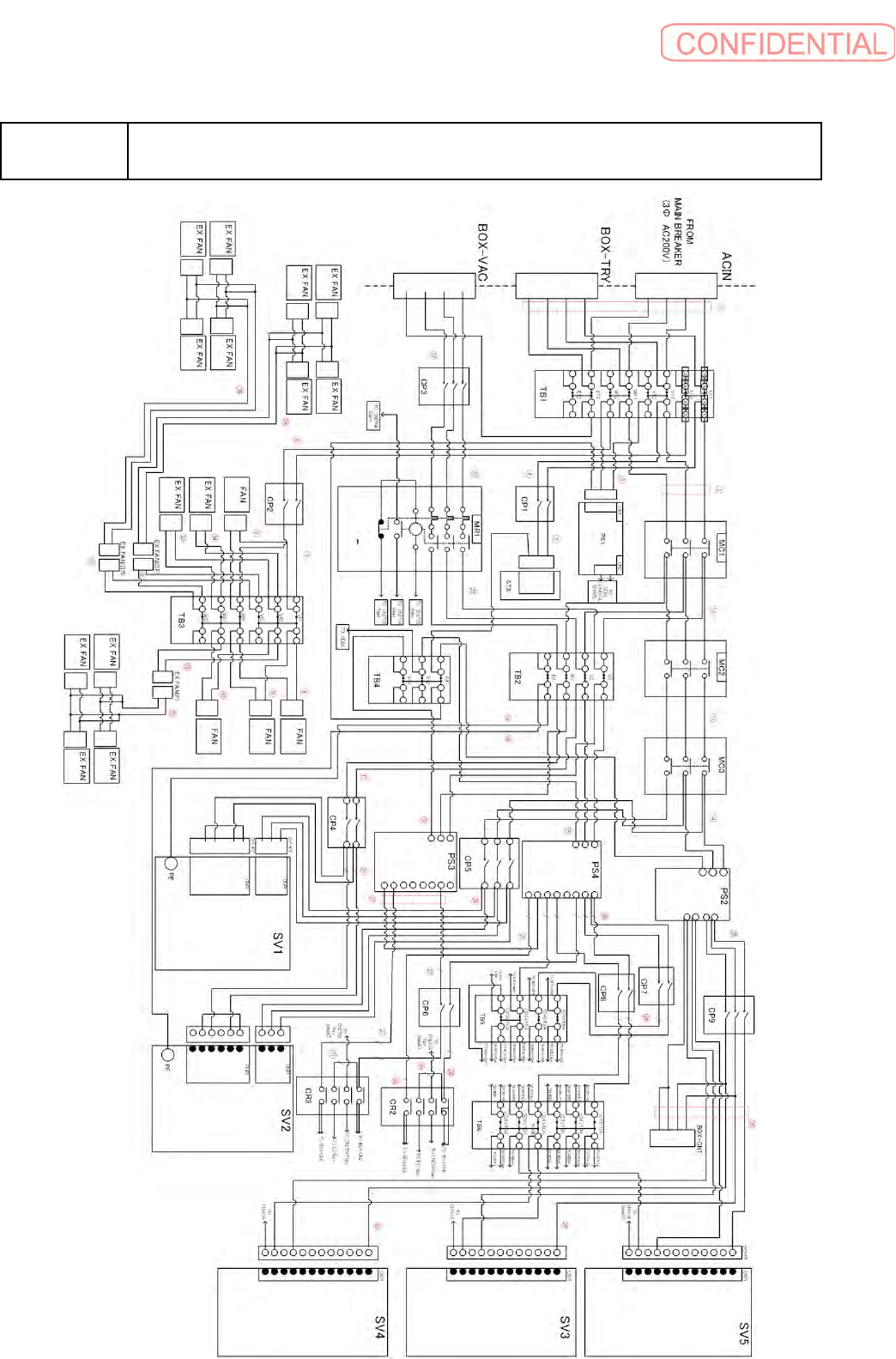

B-3 B2 電装 BOX 配線 -1 Electrical box w iring diagram - 1
B-2
B1
主電源・タッチパネル配線図
Main power supply wiring diagram
ｲﾗｽﾄ番号
Ref.No.
部品コード
Parts Code
部品名
Parts Name
Serial
No.
個数
Q'ty
備考
Remarks
同期
Repl.
1 1-969-124-12
ﾊ
-
ﾈｽ
(PCXGA-TPXGA)
HARNESS (PCXGA-TPXGA)
1
2 1-969-125-11
ﾊ
-
ﾈｽ
(PC232C-TP232C)
HARNESS (PC232C-TP232C)
1
3 1-969-123-11
ﾊ
-
ﾈｽ
(LCDPW1-LCDPW2)
HARNESS (LCDPW1-LCDPW2)
1
4
1-969-357-12
ﾊ
-
ﾈｽ
(MAIN POWER1)
HARNESS (MAIN POWER1)
1 200V
1-969-361-11
ﾊ
-
ﾈｽ
(MAIN POWER UL/CE TB-NF)
HARNESS(MAINPOWER UL/CE TB-
NF)
1 208-430V
5 1-966-605-12
ｻ
-
ｼﾞ
ﾌﾟﾛﾃｸﾀ
ﾊ
-
ﾈｽ
HARNESS, SURGE PROTECTOR
1
6
1-969-358-13
ﾊ
-
ﾈｽ
(MAIN POWER2)
HARNESS (MAIN POWER2)
1 200V
1-969-364-11
ﾊ
-
ﾈｽ
(MAIN POWER UL/CE T-MB)
HARNESS(MAIN POWER UL/CE T-
MB)
1 208-430V
7 1-969-359-12
ﾊ
-
ﾈｽ
(MAIN POWER3)
HARNESS (MAIN POWER3)
1
8 1-969-363-11
ﾊ
-
ﾈｽ
(MAIN POWER UL/CE CB-T)
HARNESS(MAIN POWER UL/CE CB-
T)
1 208-430V ONLY
9 1-969-362-11
ﾊ
-
ﾈｽ
(MAIN POWER UL/CE NF-CB)
HARNESS(MAINPOWER UL/CE NF-
CB)
1 208-430V ONLY
10
1-523-276-11
ﾉ
-
ﾌﾕ
-
ｽﾞ
ｼﾔﾀﾞﾝｷ
(NF100-SRU 15A)
BREAKER, NO FUSE
1
1-523-276-21
ﾉ
-
ﾌﾕ
-
ｽﾞ
ｼﾔﾀﾞﾝｷ
(NF100-SRU 20A)
BREAKER, NO FUSE
1
B-3
B2
電装
BOX
配線
-1
Electrical box wiring diagram - 1
B-4
B2
電装
BOX
配線
-1
Electrical box wiring diagram - 1
ｲﾗｽﾄ番号
Ref.No.
部品コード
Parts Code
部品名
Parts Name
Serial
No.
個数
Q'ty
備考
Remarks
同期
Repl.
1 1-969-065-12
ﾊ
-
ﾈｽ
(ACIN-TB1)
HARNESS
1
2 1-969-066-12
ﾊ
-
ﾈｽ
(TB1-MC1)
HARNESS
1
3 1-969-067-12
ﾊ
-
ﾈｽ
(TB1-PS1)
HARNESS
1
4 1-969-068-13
ﾊ
-
ﾈｽ
(TB1-CP1)
HARNESS
1
5 1-969-069-12
ﾊ
-
ﾈｽ
(CP1-ATX)
HARNESS
1
6 1-969-070-13
ﾊ
-
ﾈｽ
(TB1-CP2)
HARNESS
1
7 1-969-071-13
ﾊ
-
ﾈｽ
(CP2-TB3)
HARNESS
1
8 1-969-072-12
ﾊ
-
ﾈｽ
(TB3-FAN1)
HARNESS
1
9 1-969-072-22
ﾊ
-
ﾈｽ
(TB3-FAN2)
HARNESS
1
10 1-969-072-32
ﾊ
-
ﾈｽ
(TB3-FAN3)
HARNESS
1
11 1-969-072-42
ﾊ
-
ﾈｽ
(TB3-FAN4)
HARNESS
1
12 1-969-073-12
ﾊ
-
ﾈｽ
(MC1-MC2, TB2)
HARNESS
1
13 1-969-074-11
ﾊ
-
ﾈｽ
(MC2-MC3)
HARNESS
1
14 1-969-691-11
HARNESS (MC3-PS2, CP5)
HARNESS (MC3-PS2, CP5)
1
15 1-969-063-12
ﾊ
-
ﾈｽ
(TB2-PS4)
HARNESS
1
16 1-969-689-11
HARNESS (TB2-PS3)
HARNESS (TB2-PS3)
1
17 1-969-064-12
ﾊ
-
ﾈｽ
(TB2-CP4)
HARNESS
1
18 1-969-077-12
ﾊ
-
ﾈｽ
(TB2-SV1)
HARNESS
1
19 1-969-077-22
ﾊ
-
ﾈｽ
(TB2-SV2)
HARNESS
1
20 1-969-078-12
ﾊ
-
ﾈｽ
(CP5-SV1, SV2)
HARNESS
1
21 1-969-079-12
ﾊ
-
ﾈｽ
(CP4-SV1, SV2)
HARNESS
1
22 1-969-080-13
ﾊ
-
ﾈｽ
(TB2-MR1)
HARNESS
1
23 1-969-081-13
ﾊ
-
ﾈｽ
(MR1-CP3)
HARNESS
1
24 1-969-092-12
ﾊ
-
ﾈｽ
(CP3-VAC)
HARNESS
1
25 1-969-690-11
HARNESS (PS2-CP9)
HARNESS (PS2-CP9)
1
26 1-969-094-13
ﾊ
-
ﾈｽ
(CP9-SV3, 4, 5)
HARNESS
1
27 1-969-777-11
HARNESS (PS3, 4-CP6, CR3)
HARNESS (PS3, 4-CP6, CR3)
1
28 1-969-778-11
HARNESS (PS4-CP6,7,8,CR2,TB5)
HARNESS (PS4-CP6,7,8,CR2,TB5)
1
29 1-969-711-11
HARNESS (CP7, 8-TB5, 6)
HARNESS (CP7, 8-TB5, 6)
1
30 1-969-798-11
HARNESS (CR2 2-4)
HARNESS (CR2 2-4)
1
