SI-H1000_PL_2nd - 第194页
C-6 C2 ヘッド 部配管 図 Head p ipe diagram
C-5
C1
全体配管図
Pipe diagram
ｲﾗｽﾄ番号
Ref.No.
部品コード
Parts Code
部品名
Parts Name
Serial
No.
個数
Q'ty
備考
Remarks
同期
Repl.
31 4-447-248-61
ﾊ
-
ﾌ
ﾕﾆｵﾝ
(KQ2H12-02AS)
UNION (KQ2H12-02AS), HALF
1
32 4-447-250-11
ｲｹｲ
ｽﾄﾚ
-
ﾄ
(KQ2H06-08A)
STRAIGHT (KQ2H06-08A)
6
33 4-453-569-01
ﾌﾟﾗｸﾞ
(CYP025-08B29449)
PLUG (CYP025-08B29449)
4
34 4-454-729-01
ﾃﾞﾕｱﾙ
ﾛﾂﾄﾞ
ｼﾘﾝﾀﾞ
(CXSM32-100)
CYLINDER(CXSM32-100), DUAL
ROD
4
35 4-454-742-01
ｻｲﾚﾝｻ
(ANA1-03)
SILENCER (ANA1-03)
1
36 4-454-743-01
ｽﾋﾟ
-
ﾄﾞ
ｺﾝﾄﾛ
-
ﾗ
(AS2201F-01-06SA
CONTROLLER (AS2201F-01-06SA)
4
37 4-455-483-01
ｽﾄﾘ
-
ﾄ
ｴﾙﾎﾞ
(3/8)
ELBOW (3/8), STREET
1
38 4-457-358-01
ﾒｶﾆｶﾙ
ﾊﾞﾙﾌﾞ
(MVP63-J)
VALVE (MVP63-J), MECHANICAL
2
39 4-458-430-01
ｴｱ
ｺﾝﾋﾞﾈ
-
ｼﾖﾝ
(AC30D-02DG-R-A)
AIRCOMBINATION(AC30D-02DG-R-
A)
1
40 4-460-696-01
ｼﾘﾝﾀﾞ
(CJ2D16-150A)
CYLINDER (CJ2D16-150A)
2
41 4-462-965-01
ﾏｲｸﾛ
ｶﾌﾟﾗ
(MC-04SHB)
COUPLER (MC-04SHB), MICRO
2
42 4-463-167-01
ｻｲﾚﾝｻ
(AN05-M5)
SILENCER (AN05-M5)
2
43 4-701-316-01
ｽﾄﾘ
-
ﾄ
ｴﾙﾎﾞ
ELBOW, STREET
1
44 4-702-324-11
ﾎ
-
ｽ
ｴﾙﾎﾞ
(M-5HL-6)
ELBO (M-5HL-6), HOSE
4
45 4-703-607-02
ﾊｲ
ｶﾌﾟﾗ
- (20PM)
COUPLER, HIGH (20PM)
1
46 4-703-619-01
ﾊｲ
ｶﾌﾟﾗ
- (20SH)
SOCKET
1
47 4-705-238-11
ﾏﾆﾎ
-
ﾙﾄﾞ
(KM11-08-12-10)
MANIFOLD (KM11-08-12-10)
1
48 4-707-030-21
ﾊｲｶﾝﾖｳ
ﾃ
-
ﾊﾟ
-
ｽｸﾘﾕ
-
ﾌﾟﾗｸﾞ
(MSWT2)
PLUG, TAPER SCREW (MSWT2)
2
49 4-719-971-01
ﾂｷﾞﾃ
ﾆﾂﾌﾟﾙ
(KQ2N06-99)
NIPPLE, JOINT (KQ2N06-99)
4
C-6
C2

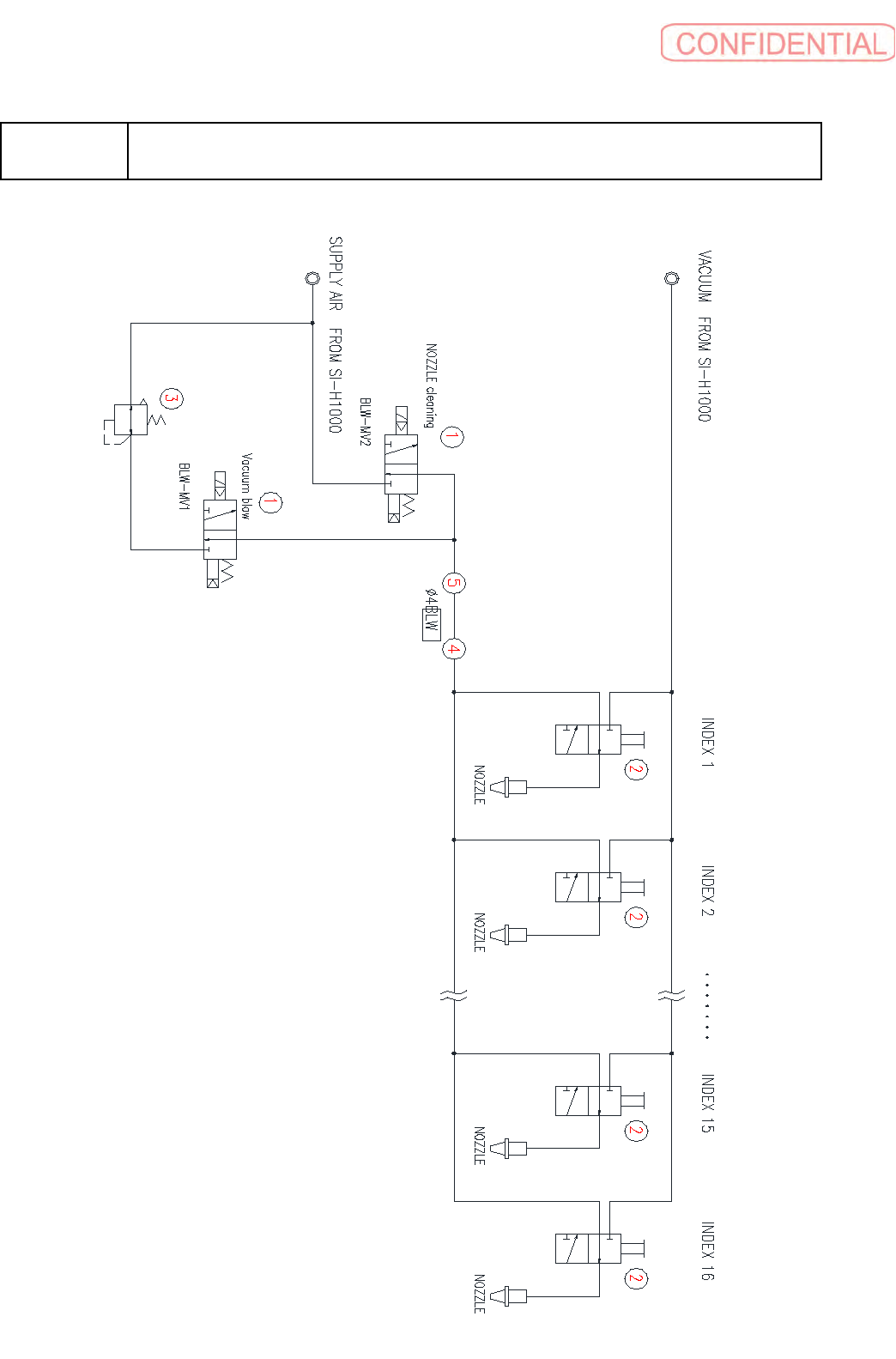

ヘッド部配管図
Head pipe diagram
C-7
C2
ヘッド部配管図
Head pipe diagram
ｲﾗｽﾄ番号
Ref.No.
部品コード
Parts Code
部品名
Parts Name
Serial
No.
個数
Q'ty
備考
Remarks
同期
Repl.
1 1-492-166-12
ｿﾚﾉｲﾄﾞ
ﾊﾞﾙﾌﾞ
ASSY (BLW)
SOLENOID VALVE ASSY (BLW)
1
2 4-454-752-01
ﾒｶﾆｶﾙ
ﾊﾞﾙﾌﾞ
MECHANICAL VALVE
16
3 4-458-768-01
ｹﾞﾝｱﾂﾍﾞﾝ
(MR001)
DECOMPRESSION VALVE (MR001)
1
4 4-702-269-01
ﾎ
-
ｽ
ﾆﾂﾌﾟﾙ
(M-5H-4)
NIPPLE (M-5H-4), HOSE
1
5 4-702-324-01
ﾎ
-
ｽ
ｴﾙﾎﾞ
(M-5HL-4)
ELBO (M-5HL-4), HOSE
1
