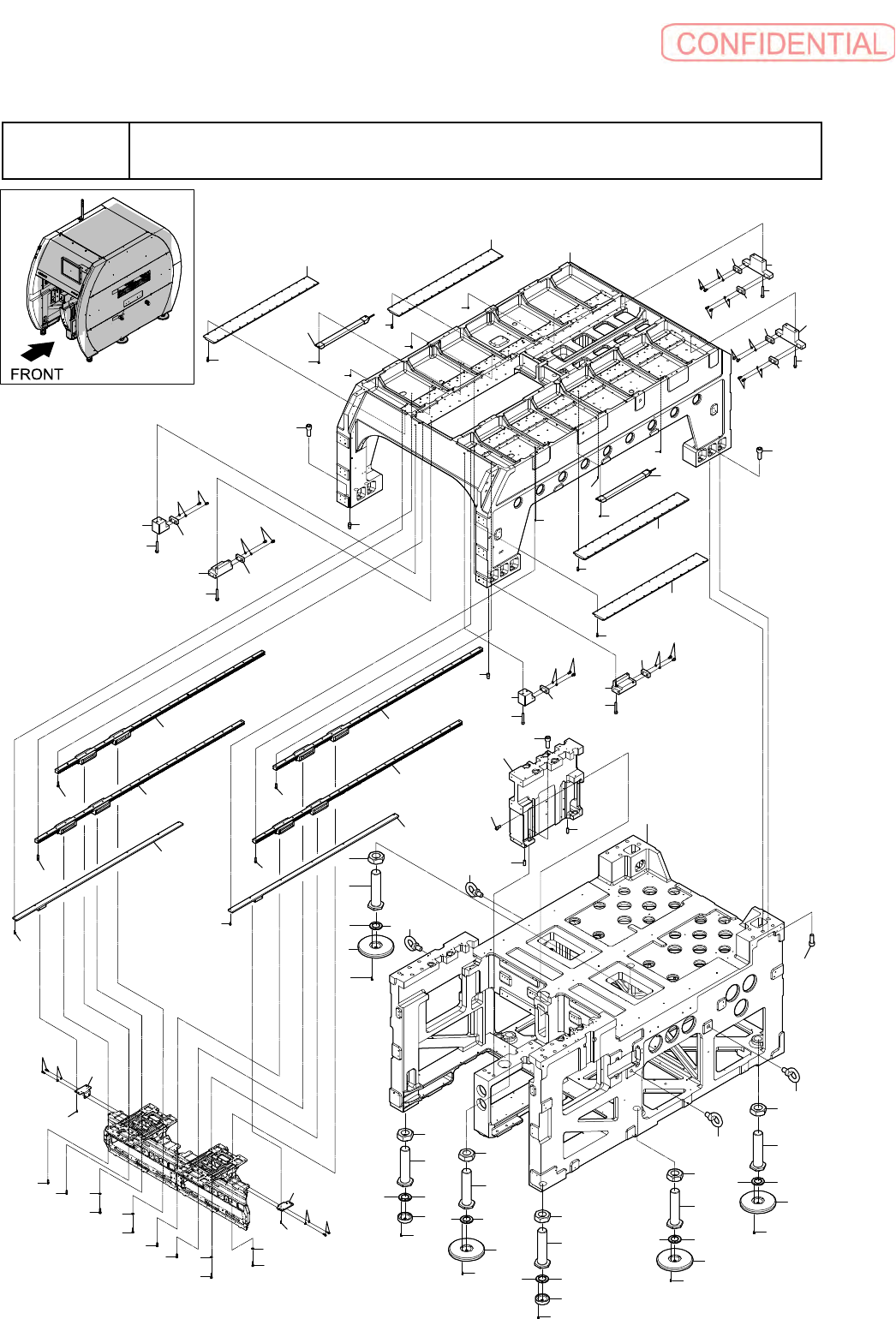

A-14
A4
架台
ASSY-1
Base frame assy - 1
36
26
24
24
27
27
35
35
13
33
18
15
19
28
33
28
28
18
35
35
27
24
36
23
27
24
35
35
27
24
36
13
28
28
19
28
14
18
18
33
33
24
27
36
25
35
27
24
22
29
20
20
16
7
3
5
1
3
2
4
7
8
13
7
4
2
33
1
5
4
2
33
1
5
4
2
33
1
5
4
2
33
6
5
4
2
33
6
5
7
20
34
20
17
31
34
34
31
32
37
21
30
33
33
34
38
34
38
33
33
38
38
34
34
30
21
37
32
34
36
13
10
12
11
11
35
23
27
24
9
26
36
25
A-15
A4
架台
ASSY-1
Base frame assy - 1
ｲﾗｽﾄ番号
Ref.No.
部品コード
Parts Code
部品名
Parts Name
Serial
No.
個数
Q'ty
備考
Remarks
同期
Repl.
1 4-455-513-01
ﾊﾟﾂﾄﾞ
(L)
PAD (L)
4
2 4-455-514-01
ｽﾀﾝﾄﾞ
ﾎﾞﾙﾄ
STAND BOLT
6
3 4-455-516-01
ﾘﾝｸﾞ
(
ﾊﾟﾂﾄﾞ
)
RING (PAD)
12
4 4-455-517-01
ﾅﾂﾄ
(M42), 3
ｼﾕ
NUT (M42), TYPE 3
6
5 4-706-724-31
ﾛﾂｶｸ
ｱﾅﾂｷ
ﾎﾞﾙﾄ
(M3X10)
BOLT (M3X10), HEXAGON SOCKET
24
6 4-455-515-01
ﾊﾟﾂﾄﾞ
(S)
PAD (S)
2
7 2-659-164-01
ｱｲﾎﾞﾙﾄ
(M20)
EYEBOLT (M20)
4
8 4-455-490-04
ｶﾀﾞｲ
STAND
1
9 4-455-491-03
ﾒｲﾝ
ﾌﾚ
-
ﾑ
MAIN FRAME
1
10 4-455-492-04
ｾﾝﾀ
-
ﾌﾞﾛﾂｸ
CENTER BLOCK
1
11 4-707-927-01
ﾍｲｺｳ
ﾋﾟﾝ
(A10X30)
PIN (A10X30), PARALLEL
2
12 4-716-148-05
ﾛﾂｶｸ
ｱﾅﾂｷ
ﾎﾞﾙﾄ
(M8X20 SUS)
BOLT (M8X20 SUS), SOCKET
2
13 4-716-151-05
ﾛﾂｶｸ
ｱﾅﾂｷ
ﾎﾞﾙﾄ
(M16X40 SUS)
BOLT (M16X40 SUS), SOCKET
24
14 1-492-198-11
LED ASSY (
ｷﾅｲ
ｼﾖｳﾒｲ
) R
LED ASSY (INNER LIGHT)
1
15 1-492-198-21
LED ASSY (
ｷﾅｲ
ｼﾖｳﾒｲ
) L
LED ASSY (INNER LIGHT)
1
16 1-492-236-14
ｽｹ
-
ﾙ
ASSY (Y) R
SCALE ASSY (Y)
1
17 1-492-236-24
ｽｹ
-
ﾙ
ASSY (Y) L
SCALE ASSY (Y)
1
18 1-855-269-11
ﾘﾆｱ
ｺﾃｲｼ
(LM-H3S50-672-92C0)
MOTOR, LINEAR
4
19 2-580-593-01
ﾈｼﾞ
+PSW M3X8
SCREW, +PSW M3X8
8
20 4-454-730-02
LM
ｶﾞｲﾄﾞ
(SHS20LV2UUC1E)
LM GUIDE (SHS20LV2UUC1E)
4
21 4-455-276-01
Y
ｽｹ
-
ﾙ
ｾﾝｻ
-
ﾌﾞﾗｹﾂﾄ
BRACKET, Y SCALE SENSOR
2
22 4-455-403-11
Y
ｽﾄﾂﾊﾟ
-
ﾌﾞﾗｹﾂﾄ
FR
BRACKET (FR), Y STOPPER
2
23 4-455-404-01
Y
ｽﾄﾂﾊﾟ
-
ﾌﾞﾗｹﾂﾄ
RR
BRACKET (RR), Y STOPPER
2
24 4-455-405-01
ｽﾄﾂﾊﾟ
-
STOPPER
8
25 4-455-407-03
Y
ｽﾄﾂﾊﾟ
- FR
ｺｳｿｸ
Y STOPPER (FR), HI SPEED HEAD
2
26 4-455-493-01
ﾀﾞｲﾔ
ﾋﾟﾝ
DIAMOND PIN
1
27 4-458-991-01
ｶﾗ
- (8-6-3), Y
ｼﾞｸ
COLLAR (8-6-3), Y AXIS
16
28 4-705-547-31
ﾍｲｺｳ
ﾋﾟﾝ
(A4X8)
PIN, PARALLEL (A4X8)
6
29 4-720-203-01
ｼﾞｸﾞ
ﾖｳ
ｲﾁｷﾞﾒ
ﾋﾟﾝ
(JPDPA10-14)
PIN, TOOL POSITIONING
1
30 7-683-403-04
6
ｶｸｱﾅﾂｷﾎﾞﾙﾄ
3X6
BOLT,HEXAGON SOCKET 3X6
4
A-16
A4
架台
ASSY-1
Base frame assy - 1
ｲﾗｽﾄ番号
Ref.No.
部品コード
Parts Code
部品名
Parts Name
Serial
No.
個数
Q'ty
備考
Remarks
同期
Repl.
31 7-683-419-04
6
ｶｸｱﾅﾂｷﾎﾞﾙﾄ
4X8
BOLT,HEXAGON SOCKET 4X8
14
32 7-683-421-04
6
ｶｸｱﾅﾂｷﾎﾞﾙﾄ
4X12
BOLT,HEXAGON SOCKET 4X12
4
33 7-683-437-04
6
ｶｸｱﾅﾂｷﾎﾞﾙﾄ
5X14
BOLT,HEXAGON SOCKET 5X14
136
34 7-683-440-04
6
ｶｸｱﾅﾂｷﾎﾞﾙﾄ
5X20
BOLT,HEXAGON SOCKET 5X20
100
35 7-683-452-04
6
ｶｸｱﾅﾂｷﾎﾞﾙﾄ
6X10
BOLT,HEXAGON SOCKET 6X10
16
36 7-683-479-04
6
ｶｸｱﾅﾂｷﾎﾞﾙﾄ
8X50
BOLT,HEXAGON SOCKET 8X50
12
37 7-688-004-11
W 4, MIDDLE
W 4, MIDDLE
4
38 7-688-005-11
W 5, MIDDLE
W 5, MIDDLE
8
