A- 39 A12 ヘッド ASSY -3 Head assy - 3 ｲﾗｽﾄ 番号 Ref.No. 部品コード Parts Code 部品名 Parts Name Serial No. 個数 Q'ty 備考 Remarks 同期 Repl. 1 1- 492 - 238 - 11 ﾋﾞ - ﾑ ｾﾝｻ - (EX- 11 B ) BEAM SENSOR (EX - 11 B ) 2 2 1- 755 - 677 - 11 …

100%1 / 204

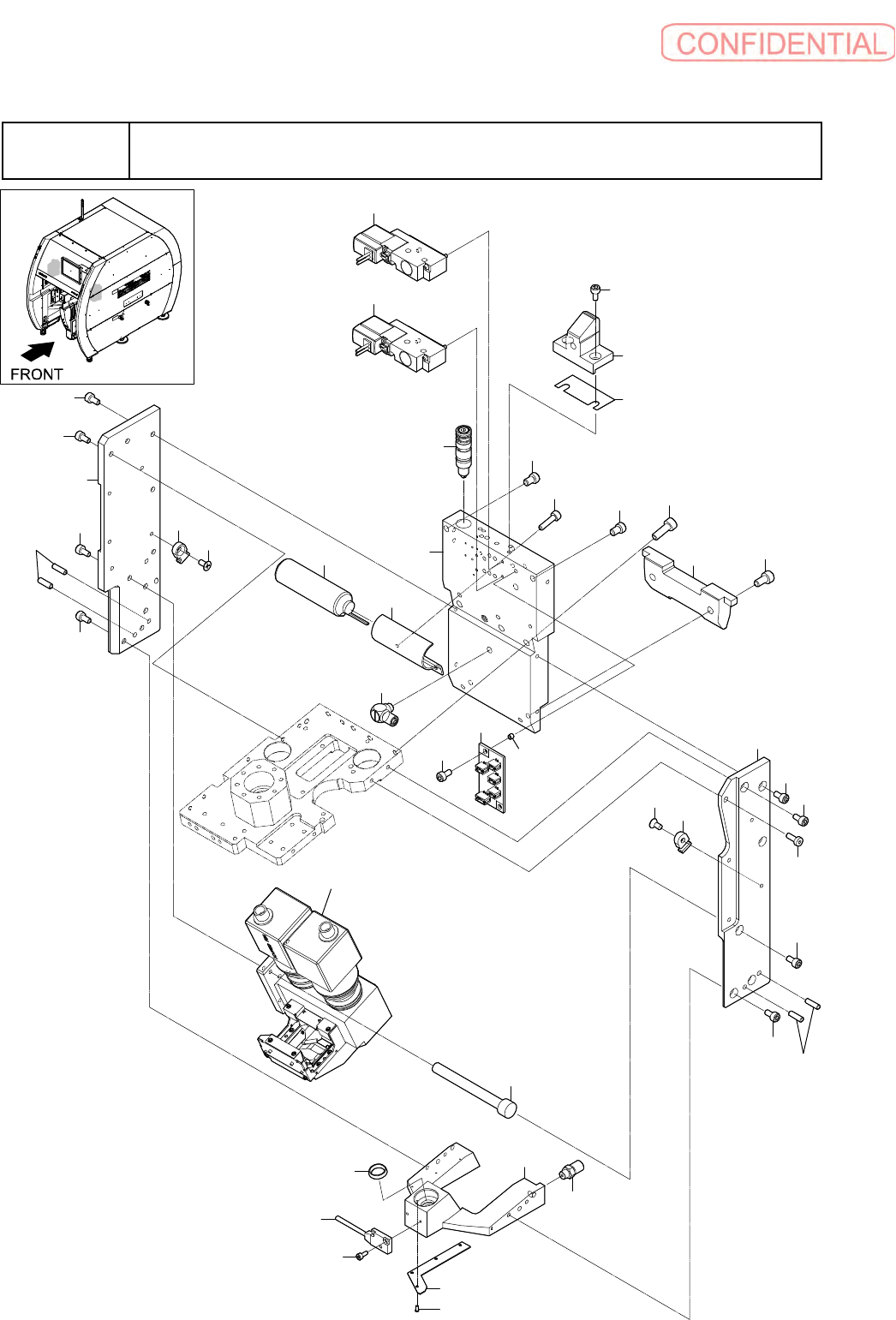

A-38
A12
ヘッド
ASSY-3
Head assy - 3
19
32
28
23
22
22
9
10
29
20
15
6
3
2
2
28
28
18
12
28
24
14
27
26
4
28
30
27
31
21
1
7
8
16
25
14
13
24
17
28
28
5
28
11
28
A-39
A12
ヘッド
ASSY-3
Head assy - 3
ｲﾗｽﾄ番号
Ref.No.
部品コード
Parts Code
部品名
Parts Name
Serial
No.
個数
Q'ty
備考
Remarks
同期
Repl.
1 1-492-238-11
ﾋﾞ
-
ﾑ
ｾﾝｻ
- (EX-11B)
BEAM SENSOR (EX-11B)
2
2 1-755-677-11
ｿﾚﾉｲﾄﾞ
(VQZ115R-5G1-CP-X44)
SOLENOID (VQZ115R-5G1-CP-X44)
2
3 1-853-255-11
ﾊﾞﾂﾃﾘ
(CP-XA0156E-P05)
BATTERY (CP-XA0156E-P05)
1
4 1-895-367-11
ﾊﾞﾂｸｱﾂﾌﾟ
ﾓﾆﾀ
-
ﾎﾞ
-
ﾄﾞ
BOARD, BACKUP MONITORING
1
5 4-454-723-01
ﾃｲﾄｳ
ﾛﾂｶｸ
ｱﾅﾂｷ
ﾎﾞﾙﾄ
(M3X8)
LOW HEAD SCREW (M3X8)
1
6 4-458-314-01
ﾊﾞﾂﾃﾘ
-
ｸﾘﾂﾌﾟ
BATTERY CLIP
1
7 4-458-495-02
ﾊｲｾﾝ
ｶﾊﾞ
-
COVER, WIRING
1
8 7-627-551-18
ｾｲﾐﾂﾈｼﾞ
+P 1.4X2.0, TYPE 1
SCREW,PRECISION +P 1.4X2
4
9 7-683-406-04
6
ｶｸｱﾅﾂｷﾎﾞﾙﾄ
3X12
BOLT,HEXAGON SOCKET 3X12
2
10 7-683-421-04
6
ｶｸｱﾅﾂｷﾎﾞﾙﾄ
4X12
BOLT,HEXAGON SOCKET 4X12
3
11 7-683-480-24
6
ｶｸ
ｱﾅﾂｷ
ﾎﾞﾙﾄ
2X5
BOLT, HEXAGON SOCKET 2X5
4
12 7-683-405-04
6
ｶｸｱﾅﾂｷﾎﾞﾙﾄ
3X10
BOLT,HEXAGON SOCKET 3X10
5
13 1-845-163-11
ｲﾄﾞｳ
ｶﾒﾗ
ﾕﾆﾂﾄ
(MX-155-100)
UNIT, CAMERA MOVE (MX-155-100)
1
14 3-703-360-51
ﾍｲｺｳﾋﾟﾝ
(
ﾌｱｲ
3X8)
PIN, PARALLEL (DIA. 3X8)
4
15 4-453-950-01
ﾍﾂﾄﾞﾌﾞ
ﾍﾞ
-
ｽ
ﾌﾟﾚ
-
ﾄ
PLATE, HEAD BASE
1
16 4-453-951-01
ﾎﾞﾄﾑ
ﾌﾟﾚ
-
ﾄ
PLATE, BOTTOM
1
17 4-453-952-01
ｻｲﾄﾞ
ﾌﾟﾚ
-
ﾄ
(1)
PLATE (1), SIDE
1
18 4-453-953-01
ｻｲﾄﾞ
ﾌﾟﾚ
-
ﾄ
(2)
PLATE (2), SIDE
1
19 4-453-994-01
ｸﾗﾝﾌﾟ
ﾌﾞﾛﾂｸ
BLOCK, CLAMP
1
20 4-453-997-01
ﾍﾂﾄﾞｶﾞﾜ
ｺﾃｲ
ﾌﾞﾛﾂｸ
HEAD FIXING BLOCK
1
21 4-454-074-01
ﾐﾆ
Y
ﾊﾟﾂｷﾝ
(MYA-8)
MINIATURE Y PACKING MYA-8
1
22 4-457-781-01
ｽﾄﾂﾊﾟ
-
ﾋﾟﾝ
STOPPER PIN
2
23 4-458-768-01
ｹﾞﾝｱﾂﾍﾞﾝ
(MR001)
DECOMPRESSION VALVE (MR001)
1
24 4-701-529-01
ﾀｲﾏｳﾝﾄ
(MB1)
TIE MOUNT (MB1)
2
25 4-702-269-01
ﾎ
-
ｽ
ﾆﾂﾌﾟﾙ
(M-5H-4)
NIPPLE (M-5H-4), HOSE
1
26 4-702-324-01
ﾎ
-
ｽ
ｴﾙﾎﾞ
(M-5HL-4)
ELBO (M-5HL-4), HOSE
1
27 7-682-247-04
+K 3X6
SCREW +K 3X6
2
28 7-683-403-04
6
ｶｸｱﾅﾂｷﾎﾞﾙﾄ
3X6
BOLT,HEXAGON SOCKET 3X6
14
29 7-683-419-04
6
ｶｸｱﾅﾂｷﾎﾞﾙﾄ
4X8
BOLT,HEXAGON SOCKET 4X8
2
30 4-454-032-01
ｷﾞｱﾖｳ
ｽﾍﾟ
-
ｻ
-
SPACER, GEAR
7
A-40
A12
ヘッド
ASSY-3
Head assy - 3
ｲﾗｽﾄ番号
Ref.No.
部品コード
Parts Code
部品名
Parts Name
Serial
No.
個数
Q'ty
備考
Remarks
同期
Repl.
31 4-472-629-01
ﾎｷﾖｳﾖｳ
ｼﾔﾌﾄ
SHAFT, REINFORCE
1
32
4-465-277-01
ﾍﾂﾄﾞ
ｸﾗﾝﾌﾟ
ﾌﾞﾛﾂｸ
ｼﾑ
(T0.1)
HEAD CLAMP BLOCK SHIM (T0.1)
1
4-465-277-11
ﾍﾂﾄﾞ
ｸﾗﾝﾌﾟ
ﾌﾞﾛﾂｸ
ｼﾑ
(T0.2)
HEAD CLAMP BLOCK SHIM (T0.2)
2
4-465-277-21
ﾍﾂﾄﾞ
ｸﾗﾝﾌﾟ
ﾌﾞﾛﾂｸ
ｼﾑ
(T0.5)
HEAD CLAMP BLOCK SHIM (T0.5)
1
