A- 64 A20 搬送レーン 3 Conveyor lane - 3 ｲﾗｽﾄ 番号 Ref.No. 部品コード Parts Code 部品名 Parts Name Serial No. 個数 Q'ty 備考 Remarks 同期 Repl. 30 4- 455 - 706 - 01 ｶﾊﾞ - ﾊ - ﾈｽ COVER HARNESS 2 31 4- 454 - 504 - 01 ｱｲﾄﾞﾗ - (AS- 5A39A) A…

100%1 / 204
A-63
A20
搬送レーン
3
Conveyor lane - 3
ｲﾗｽﾄ番号
Ref.No.
部品コード
Parts Code
部品名
Parts Name
Serial
No.
個数
Q'ty
備考
Remarks
同期
Repl.
1 4-454-297-02
ﾚ
-
ﾙ
ﾌﾟﾚ
-
ﾄ
(L2)
PLATE (L2), RAIL
1
2 4-454-322-01
ｷﾊﾞﾝ
ｵｻｴ
(
ｽﾗｲﾄﾞ
ｼﾀ
L)
RETAINER (SLIDE LOWER L)
1
3 4-454-519-01
ﾎﾞ
-
ﾙ
ﾌﾟﾗﾝｼﾞﾔ
(SBP5)
SOLENOID (SBP5), BALL
2
4 4-454-323-01
ｷﾊﾞﾝ
ｵｻｴ
(
ｽﾗｲﾄﾞ
ｳｴ
L)
RETAINER (SLIDE UPPER L),BOARD
1
5 4-454-319-01
ﾀﾞﾝﾂｷ
ﾋﾟﾝ
PIN, STEP
6
6 4-454-322-11
ｷﾊﾞﾝ
ｵｻｴ
(
ｽﾗｲﾄﾞ
ｼﾀ
R)
RETAINER (SLIDE LOWER R)
1
7 4-454-519-01
ﾎﾞ
-
ﾙ
ﾌﾟﾗﾝｼﾞﾔ
(SBP5)
SOLENOID (SBP5), BALL
2
8 4-454-323-11
ｷﾊﾞﾝ
ｵｻｴ
(
ｽﾗｲﾄﾞ
ｳｴ
R)
RETAINER (SLIDE UPPER
R),BOARD
1
9 4-454-319-01
ﾀﾞﾝﾂｷ
ﾋﾟﾝ
PIN, STEP
6
10 4-454-325-01
ｾﾝｻ
ﾌﾞﾗｹﾂﾄ
(LR)
BRACKET (LR), SENSOR
2
11 4-454-326-01
ｾﾝｻ
ﾌﾞﾗｹﾂﾄ
(C)
BRACKET (C), SENSOR
1
12 3-282-481-31
ｺﾞｸ
ﾃｲﾄｳ
ﾎﾞﾙﾄ
(CBSA3-6)
BOLT (CBSA3-6)
6
13 1-492-207-11
ﾌｱｲﾊﾞ
ｾﾝｻ
(FT-AL05)
SENSOR, FIBER (FT-AL05)
3
14 4-454-511-01
ﾌﾟ
-
ﾘ
(P30-2GT) A
PULLEY (P30-2GT) (A)
6
15 4-453-832-01
ﾍﾞｱﾘﾝｸﾞ
(6804ZZ)
BEARING (6804ZZ)
2
16 4-485-068-02
ﾎｷﾖｳ
ﾌﾞﾗｹﾂﾄ
(3R-C)
BRACKET (3R-C), REINFORCEMENT
1
17 4-453-825-01
ﾀｲﾐﾝｸﾞ
ﾌﾟ
-
ﾘ
(P1110-012-1) D
PULLEY (P1110-012-1) (D)
2
18 2-679-468-01
ｺﾞｸ
ﾃｲﾄｳ
ﾎﾞﾙﾄ
(CBSTS3-10)
BOLT (CBSTS3-10)
8
19 4-454-327-01
ﾅﾂﾄ
ﾊｳｼﾞﾝｸﾞ
HOUSING, NUT
2
20 2-022-680-11
C
ｶﾞﾀ
ﾄﾒﾜ
(STWS20)
RING, C TYPE RETAINING (STWS*)
2
21 4-454-505-01
ｱｲﾄﾞﾗ
- (AS-5A40) B
IDLER (AS-5A40) (B)
2
22 4-718-724-05
ﾛﾂｶｸ
ﾅﾂﾄ
(1
ｼﾕ
) (M4X0.7 SUS)
NUT(1TYPE),HEXAGON(M4X0.7
SUS)
4
23 4-454-512-01
ﾌﾟ
-
ﾘ
(P30-2GTX2) B
PULLEY (P30-2GTX2) (B)
2
24 4-454-500-01
ｼﾘﾝﾀﾞ
(CDUJB8-11-DCP6468P)
CYLINDER (CDUJB8-11-DCP6468P)
4
25 4-447-052-11
ﾊ
-
ﾌ
ﾕﾆｵﾝ
(KQ2H02-M3G)
UNION (KQ2H02-M3G), HALF
8
26 4-454-324-01
ｼﾘﾝﾀﾞ
ｼﾞﾖｲﾝﾄ
JOINT, CYLINDER
4
27 4-454-328-01
ｸﾗﾝﾌﾟ
ｽﾄﾂﾊﾟ
STOPPER, CLAMP
4
28 4-453-829-01
ﾀｲﾐﾝｸﾞ
ﾍﾞﾙﾄ
(162-2GT-3)
BELT (162-2GT-3), TIMING
2
29 4-454-501-01
ｶﾞｲﾄﾞ
(LWLG9C1R52BS1EB09)
GUIDE (LWLG9C1R52BS1EB09)
4
A-64
A20
搬送レーン
3
Conveyor lane - 3
ｲﾗｽﾄ番号
Ref.No.
部品コード
Parts Code
部品名
Parts Name
Serial
No.
個数
Q'ty
備考
Remarks
同期
Repl.
30 4-455-706-01
ｶﾊﾞ
-
ﾊ
-
ﾈｽ
COVER HARNESS
2
31 4-454-504-01
ｱｲﾄﾞﾗ
- (AS-5A39A) A
IDLER (AS-5A39A) (A)
4
32 4-454-360-01
ｸﾗﾝﾌﾟ
ﾌﾟﾚ
-
ﾄ
(0.5)
PLATE (0.5), CLAMP
2
33 4-454-361-01
ｸﾗﾝﾌﾟ
ｼﾞﾖｲﾝﾄ
(L)
JOINT (L), CLAMP
2
34 4-454-361-11
ｸﾗﾝﾌﾟ
ｼﾞﾖｲﾝﾄ
(R)
JOINT (R), CLAMP
2
35 4-701-529-01
ﾀｲﾏｳﾝﾄ
(MB1)
TIE MOUNT (MB1)
8
36 7-683-402-04
6
ｶｸｱﾅﾂｷﾎﾞﾙﾄ
3X5
BOLT,HEXAGON SOCKET 3X5
28
37 7-683-403-04
6
ｶｸｱﾅﾂｷﾎﾞﾙﾄ
3X6
BOLT,HEXAGON SOCKET 3X6
16
38 7-683-404-04
6
ｶｸｱﾅﾂｷﾎﾞﾙﾄ
3X8
BOLT,HEXAGON SOCKET 3X8
8
39 7-682-248-09
+K 3X8
SCREW +K 3X8
8
40 7-683-421-04
6
ｶｸｱﾅﾂｷﾎﾞﾙﾄ
4X12
BOLT,HEXAGON SOCKET 4X12
16
41 4-706-151-11
ﾊｲｾﾝﾄﾞﾒ
(KR5G5)
CLAMP (KR5G5)
1
42 4-702-261-02
ﾛﾂｶｸ
ｱﾅﾂｷ
ｻﾗ
ﾎﾞﾙﾄ
(M3X6)
BOLT, HEXAGON SOCKET (M3X6)
6
43 2-595-270-01
HOLDER, WIRE
HOLDER, WIRE
6
44 7-682-247-09
+K 3X6
SCREW +K 3X6
12
45 4-454-762-01
ﾍｲｺｳ
ｷ
- (K03008)
KEY (K03008), PARALLEL
2
46 4-459-595-01
ﾀｲﾐﾝｸﾞ
ﾍﾞﾙﾄ
(1110-2GT-2)
BELT (1110-2GT-2), TIMING
2

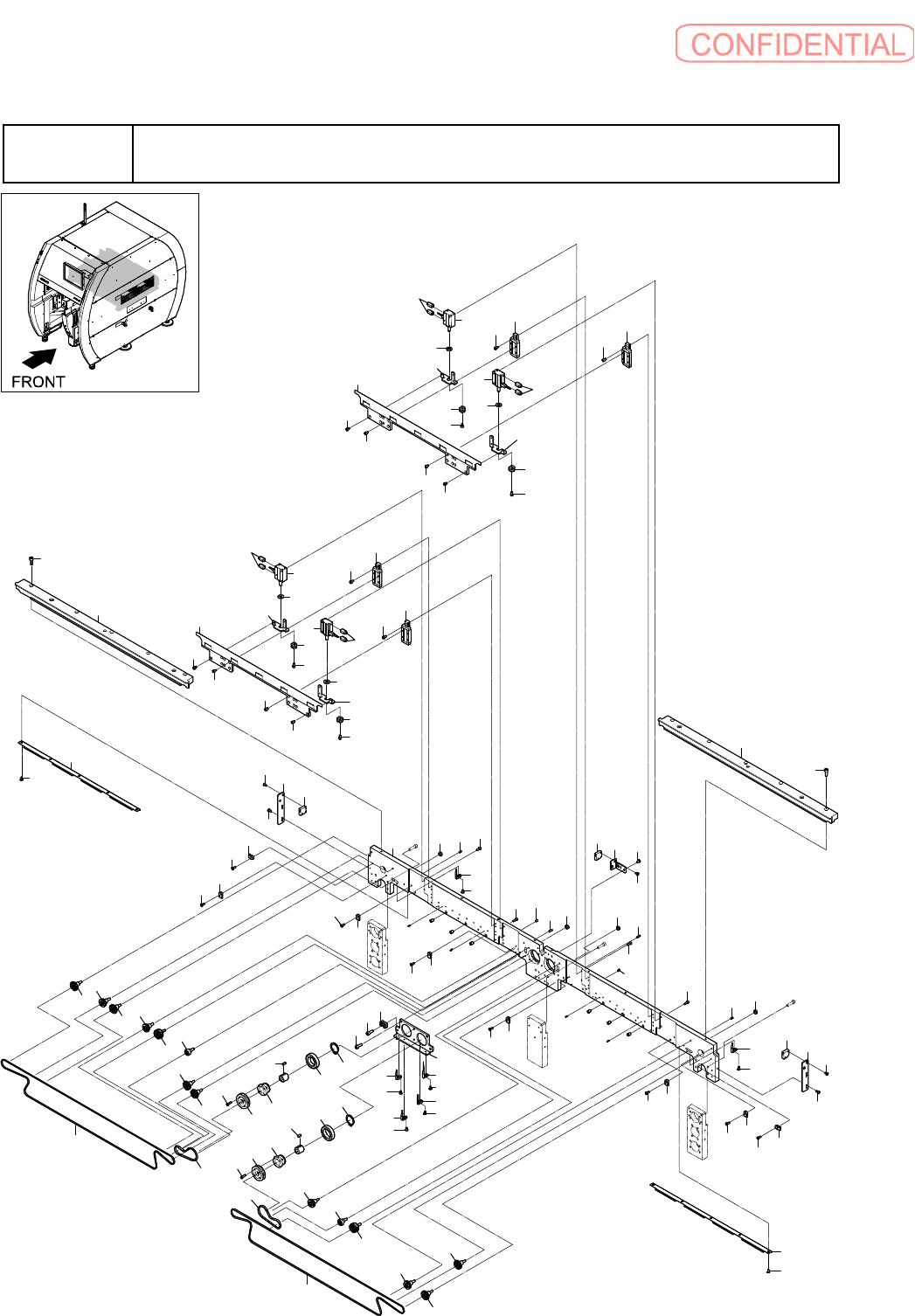

A-65
A21
搬送レーン
4
Conveyor lane - 4
7
7
25
25
14
16
7
7
11
21
10
12
38
8
13
33
31
29
36
9
34
37
36
37
37
36
37
36
11
21
25
42
42
14
25
7
16
7
10
12
8
13
38
24
34
24
34
24
34
24
34
24
34
24
6
35
4
5
36
37
23
37
15
39
33
33
40
39
15
15
40
33
36
33
39
15
37
39
1
5
4
35
37
23
24
34
24
34
6
5
41
6
35
31
3
30
30
30
30
32
19
28
26
30
26
27
20
17
19
32
17
32
22
18
30
30
30
20
17
27
19
32
18
20
17
32
22
18
32
22
2
31
22
32
20
28
19
32
18
