A- 68 A 22 コンベア モータ部 C onvey or m otor 21 3 3 21 7 21 21 1 1 13 12 14 9 22 21 8 6 20 8 22 19 15 16 15 16 19 19 13 12 14 19 14 12 13 19 14 12 13 13 19 15 1 18 17 3 5 10 10 7 21 3 3 43 43 50 50 41 41 40 42 44 45 44 45 48 4…
A-67
A21
搬送レーン
4
Conveyor lane - 4
ｲﾗｽﾄ番号
Ref.No.
部品コード
Parts Code
部品名
Parts Name
Serial
No.
個数
Q'ty
備考
Remarks
同期
Repl.
30 7-683-402-04
6
ｶｸｱﾅﾂｷﾎﾞﾙﾄ
3X5
BOLT,HEXAGON SOCKET 3X5
28
31 7-683-421-04
6
ｶｸｱﾅﾂｷﾎﾞﾙﾄ
4X12
BOLT,HEXAGON SOCKET 4X12
16
32 7-683-403-04
6
ｶｸｱﾅﾂｷﾎﾞﾙﾄ
3X6
BOLT,HEXAGON SOCKET 3X6
16
33 7-683-404-04
6
ｶｸｱﾅﾂｷﾎﾞﾙﾄ
3X8
BOLT,HEXAGON SOCKET 3X8
8
34 7-682-248-09
+K 3X8
SCREW +K 3X8
8
35 4-702-261-02
ﾛﾂｶｸ
ｱﾅﾂｷ
ｻﾗ
ﾎﾞﾙﾄ
(M3X6)
BOLT, HEXAGON SOCKET (M3X6)
6
36 2-595-270-01
HOLDER, WIRE
HOLDER, WIRE
6
37 7-682-247-09
+K 3X6
SCREW +K 3X6
12
38 4-454-762-01
ﾍｲｺｳ
ｷ
- (K03008)
KEY (K03008), PARALLEL
2
39 4-293-429-01
ﾍｲｺｳ
ﾋﾟﾝ
(
ﾌｱｲ
3X5)
PIN (DIA. 3X5), PARALLEL
4
40 4-454-549-01
ﾍｲｺｳ
ﾋﾟﾝ
(B3X8)
PIN (B3X8), PARALLEL
2
41 4-454-326-02
ｾﾝｻ
ﾌﾞﾗｹﾂﾄ
(CF)
BRACKET (CF), SENSOR
1
42 4-459-595-01
ﾀｲﾐﾝｸﾞ
ﾍﾞﾙﾄ
(1110-2GT-2)
BELT (1110-2GT-2), TIMING
2

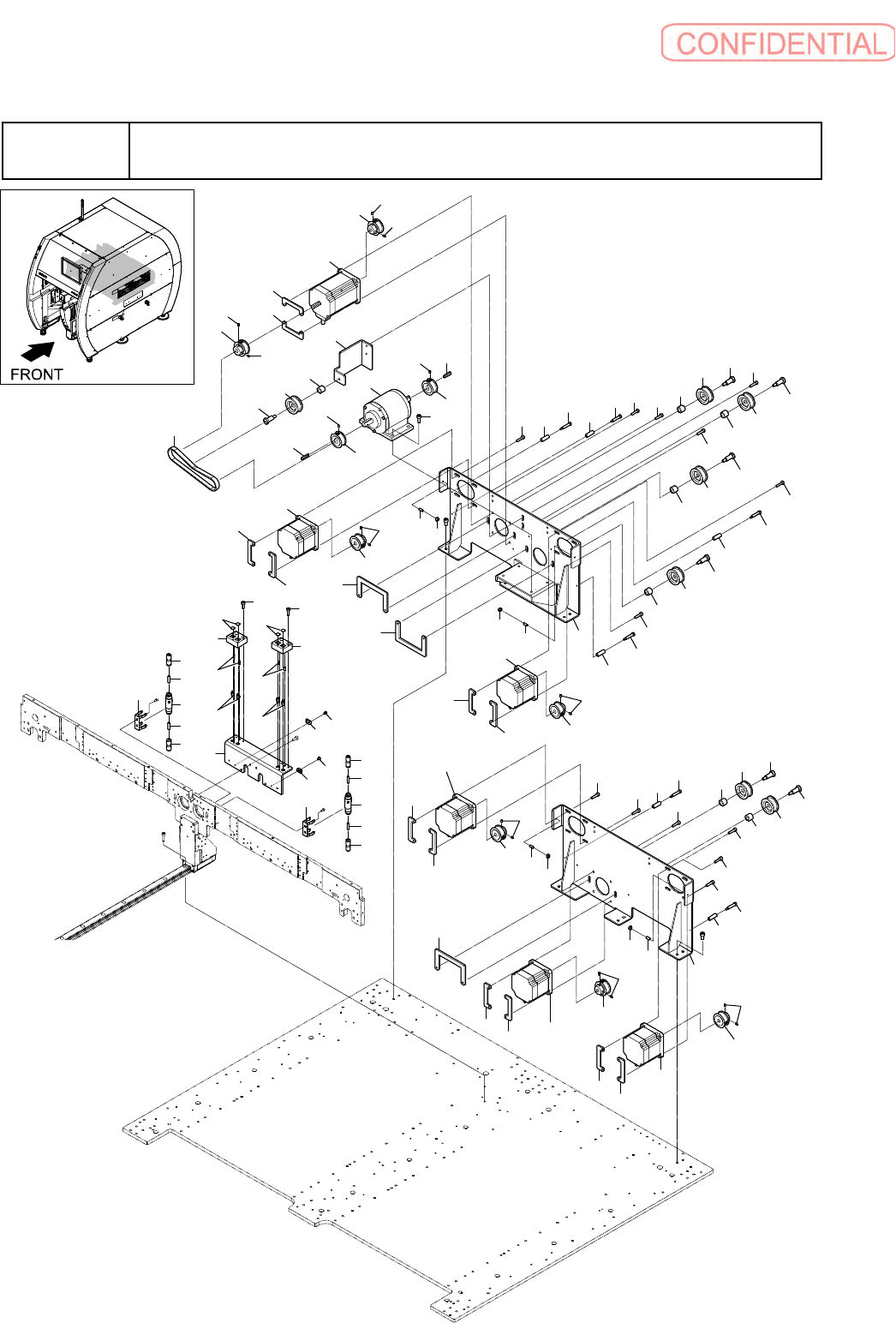

A-68
A22
コンベア モータ部
Conveyor motor
21
3
3
21
7
21
21
11
13
12
14
9
22
21
8
6
20
8
22
19
15
16
15
16
19
19
13
12
14
19
14
12
13
19
14
12
13
13
19
15
1
18
17
3
5
10
10
7
21
3
3
43
43
50
50
41
41
40
42
44
45
44
45
48
49
47
49
48
28
27
27
26
27
27
24
29
38
37
35
23
38
29
33
34
36
36
36
32
30
31
30
32
36
34
33
36
36
35
37
29
38
27
25
27
31
46
39
48
49
47
49
48
46
40
42
18
17
21
7
3
16
12
14
15
16
19
21
7
2
4
A-69
A22
コンベア モータ部
Conveyor motor
ｲﾗｽﾄ番号
Ref.No.
部品コード
Parts Code
部品名
Parts Name
Serial
No.
個数
Q'ty
備考
Remarks
同期
Repl.
1 4-454-261-01
ﾓ
-
ﾀ
ﾌﾞﾗｹﾂﾄ
(L)
BRACKET (L), MOTOR
1
2 1-492-228-11
ﾓ
-
ﾀ
ASSY (
ﾊﾊﾞﾁﾖｳ
2)
MOTOR ASSY
1
3 4-454-289-01
ﾓ
-
ﾀ
ｲﾀ
ﾅﾂﾄ
NUT, MOTOR PLATE
6
4 1-492-230-12
ﾌﾞﾚ
-
ｷ
ｸﾗﾂﾁ
ASSY
BRAKE CLUTCH ASSY
1
5 1-492-218-32
ﾓ
-
ﾀ
ASSY (
ｺﾝﾍﾞｱ
3)
MOTOR ASSY
1
6 1-492-218-42
ﾓ
-
ﾀ
ASSY (
ｺﾝﾍﾞｱ
4)
MOTOR ASSY
1
7 4-453-822-01
ﾀｲﾐﾝｸﾞ
ﾌﾟ
-
ﾘ
(P1110-009-1) A
PULLEY (P1110-009-1) (A)
4
8 4-453-824-01
ﾀｲﾐﾝｸﾞ
ﾌﾟ
-
ﾘ
(P1110-011-1) C
PULLEY (P1110-011-1) (C)
2
9 4-453-828-01
ﾀｲﾐﾝｸﾞ
ﾍﾞﾙﾄ
(318-3GT-9)
BELT (318-3GT-9), TIMING
1
10 4-454-293-01
ｱｲﾄﾞﾗ
-
ﾊﾞﾝ
ﾅﾂﾄ
NUT, IDLER PLATE
2
11 4-454-263-01
ｱｲﾄﾞﾗ
-
ﾌﾞﾗｹﾂﾄ
BRACKET, IDLER
1
12 4-453-830-01
ﾌﾗﾝｼﾞﾂｷ
ﾌﾟ
-
ﾘ
-
ｱｲﾄﾞﾗ
- (FIP1130)
IDLER (FIP1130), FLANGE PULLEY
5
13 4-454-295-01
ｶﾗ
- (
ﾌｱｲ
13-
ﾌｱｲ
8.2-L10.5)
COLLAR (DIA.13 DIA.8.2-L10.5)
5
14 4-454-294-01
ｱｲﾄﾞﾗ
-
ｼﾔﾌﾄ
SHAFT, IDLER
5
15 4-454-367-01
ｱｲﾄﾞﾗ
ｶﾗ
- (
ﾌｱｲ
7)
COLLAR (DIA.7), IDLER
4
16 4-454-516-01
ﾎﾞﾙﾄ
(TSB4.5-20)
BOLT (TSB4.5-20)
4
17 4-718-724-05
ﾛﾂｶｸ
ﾅﾂﾄ
(1
ｼﾕ
) (M4X0.7 SUS)
NUT(1TYPE),HEXAGON(M4X0.7
SUS)
2
18 4-718-767-03
ﾛﾂｶｸ
ｱﾅﾂｷ
ﾄﾒﾈｼﾞ
(M4X10 SUS)
SET-SCREW (M4X10 SUS), HEAD
2
19 7-683-423-04
6
ｶｸｱﾅﾂｷ
ﾎﾞﾙﾄ
4X16
BOLT,HEXAGON SOCKET 4X16
14
20 7-683-436-04
6
ｶｸｱﾅﾂｷﾎﾞﾙﾄ
5X12
BOLT,HEXAGON SOCKET 5X12
4
21 4-718-766-02
ﾛﾂｶｸ
ｱﾅﾂｷ
ﾄﾒﾈｼﾞ
(M3X5 SUS)
SET-SCREW (M3X5 SUS), HEAD
10
22 4-453-820-01
ﾍｲｺｳ
ｷ
- (K04020)
KEY (K04020), PARALLEL
2
23 4-454-262-01
ﾓ
-
ﾀ
ﾌﾞﾗｹﾂﾄ
(R)
BRACKET (R), MOTOR
1
24 1-492-218-12
ﾓ
-
ﾀ
ASSY (
ｺﾝﾍﾞｱ
1)
MOTOR ASSY
1
25 1-492-218-21
ﾓ
-
ﾀ
ASSY (
ｺﾝﾍﾞｱ
2)
MOTOR ASSY
1
26 1-492-227-11
ﾓ
-
ﾀ
ASSY (
ﾊﾊﾞﾁﾖｳ
1)
MOTOR ASSY
1
27 4-454-289-01
ﾓ
-
ﾀ
ｲﾀ
ﾅﾂﾄ
NUT, MOTOR PLATE
6
28 4-454-293-01
ｱｲﾄﾞﾗ
-
ﾊﾞﾝ
ﾅﾂﾄ
NUT, IDLER PLATE
1
29 4-453-822-01
ﾀｲﾐﾝｸﾞ
ﾌﾟ
-
ﾘ
(P1110-009-1) A
PULLEY (P1110-009-1) (A)
3
