5.2.6 Recommended Installation Scenarios
5.2.6.1 Local Database
Usually the system configuration "Local Database" is for a small manufacturing facility with one ore two
production lines. An assumption for the configuration is that the SIPLACE Pro database is also installed
locally. The Setup Center GUI is directly connected to the local SIPLACE Pro and local Setup Center
Database and manages the setup verification for the stations connected via the SIPLACE LAN.
This scenario can also be used, if a step-by-step introduction is helpful. Then it may also helpful to omit
the "Forced Setup Verification" activation and to start with the unforced setup verification. After a definite
time the forced setup verification can be activated at station and Setup Center.
System components and configurations
Recommended Installation Scenarios System configuration
Installation Manual SIPLACE Setup Center V3.0
21
5.2.6.2 Central Database

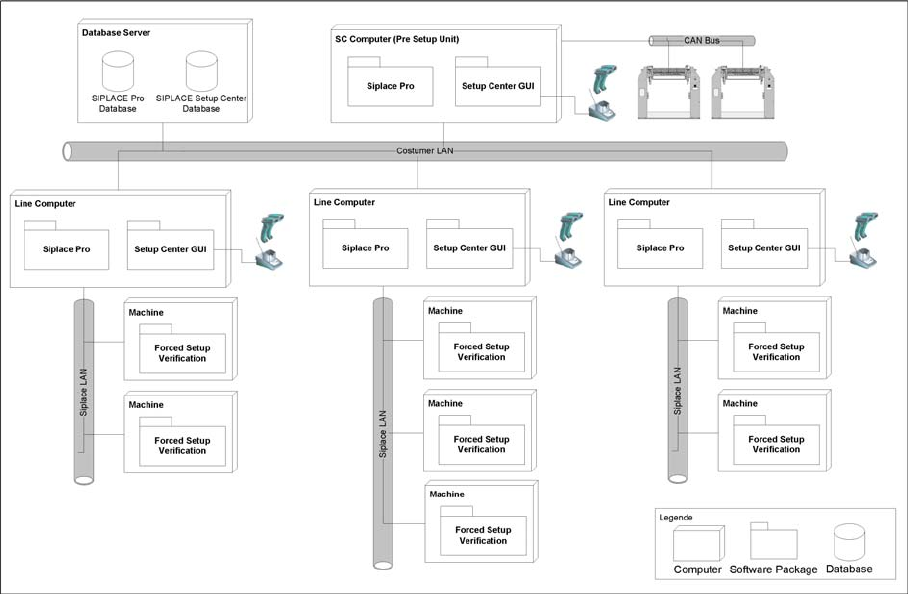

5-1: System configuration Central Database
Usually the system configuration "Central Database" is for manufacturing facility with more than one
production line. Prerequisites for the configuration is
the SIPLACE Pro database is also installed centrally, or
the SIPALCE EDM product is deployed, or
a pre setup area with Setup Center is planned, or
packaging units often moves between different placement lines.
The Setup Center GUIs are connected to the local SIPLACE Pro and to the central Setup Center
Database. The docking stations are connected via CAN-Bus to the SC Computer. The pre setup unit is
the reason, why a central Setup Center Database is necessary.
