Installation Setup Center Software Installation Installation Manual SIPLACE Setup Center V3.0 47 6.3 Sof tware Inst allation 6.3.1 Setup Center The following steps have to be performed to install the r equired system com…

Installation

Hardware Installation Optional: Docking Station

46 Installation Manual SIPLACE Setup Center V3.0

X Connect to the compressed air supply.

X Set the pressure reducer on the pneumatic connection (external) to 5.5 bar.

X Switch off the power supply and connect the CAN Bus cable to the device.

X Switch on the power supply.

X You will find a control lamp on the front of the device. This will shine when power is correctly supplied

to the device.

6.2.4.5 Firmware download for docking station

X Setup Center can update the firmware of your docking station.

To learn how to update the firmware of your docking station, please refer to the chapter "Docking

Station Firmware Download" in the Online Help Setup Center 3.0.

DANGER:

Never cover the air discharge opening in the integrated fan and the ventilation slits on the side

of the device!

Covering these could lead to overheating and destruction of the power pack.

DANGER:

Make sure that nobody is using the connected component trolley when you switch the power on.

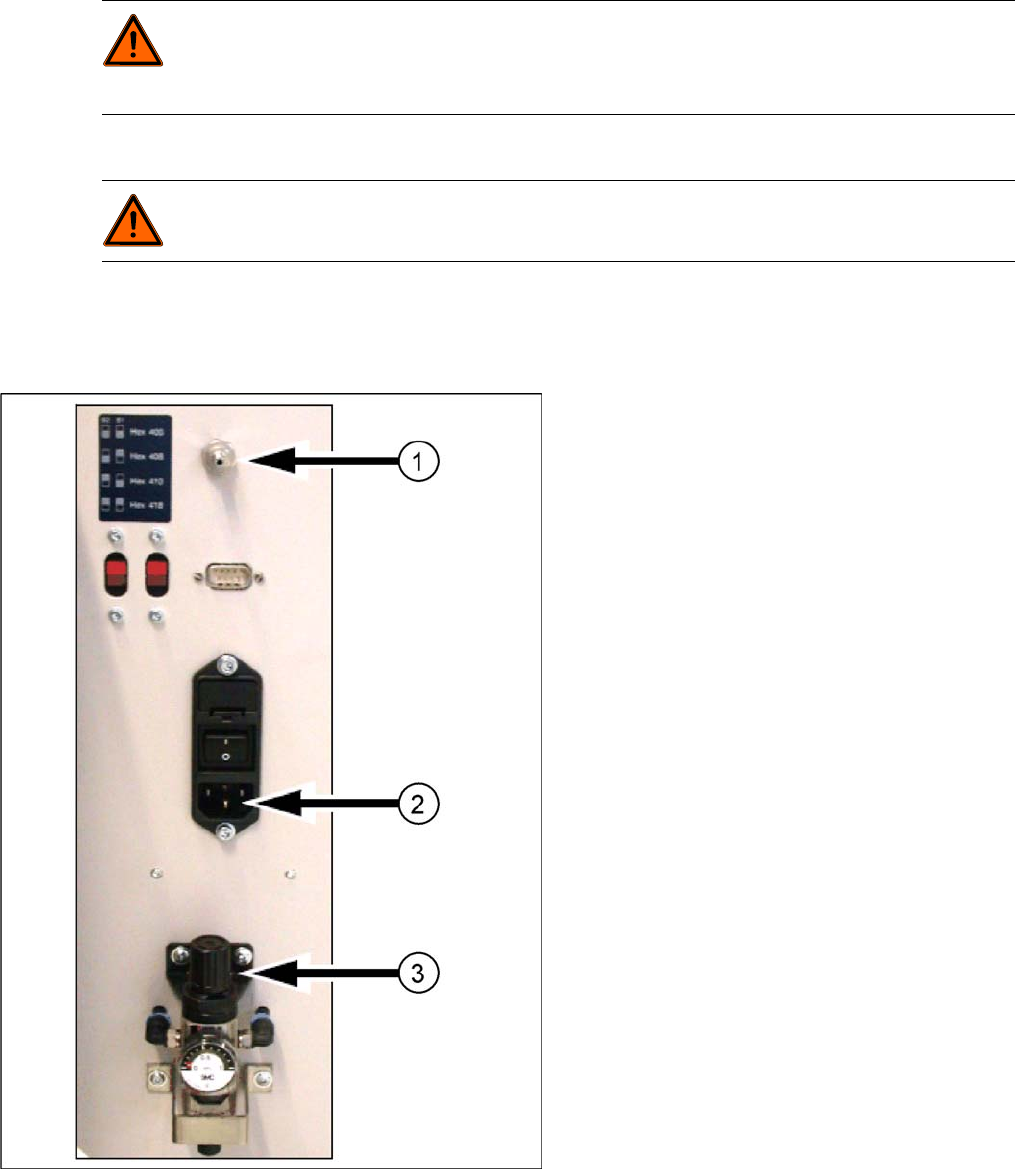

6-12: Docking station: compressed air and power supplies

Legend:

1. Compressed Air Connection

2. Power Connection

3. Set Compressed Air

Installation

Setup Center Software Installation

Installation Manual SIPLACE Setup Center V3.0

6.3 Software Installation

6.3.1 Setup Center

The following steps have to be performed to install the required system components on the specific

computer:

1. General settings, steps that are identical for all setup types

2. Setup types, the following setup types can be selected:

– SIPLACE Setup Center GUI

– SIPLACE Setup Center Database

– SIPLACE Setup Center Complete

6.3.1.1 General Settings

These steps are identical for all setup types. The subsequent steps only differ once you have selected

the setup type you require.

Run through the following steps to start the installation and then refer to the relevant section for your

specific setup type.

Step 1

X Insert the SIPLACE Setup Center installation CD into the CD-ROM drive. The installation routine

starts automatically.

X You can also start the installation by running the

Setup.exe

program located in the root directory on

the installation CD.

X This starts the user-controlled installation of SIPLACE Setup Center; you are prompted to select the

installation language.

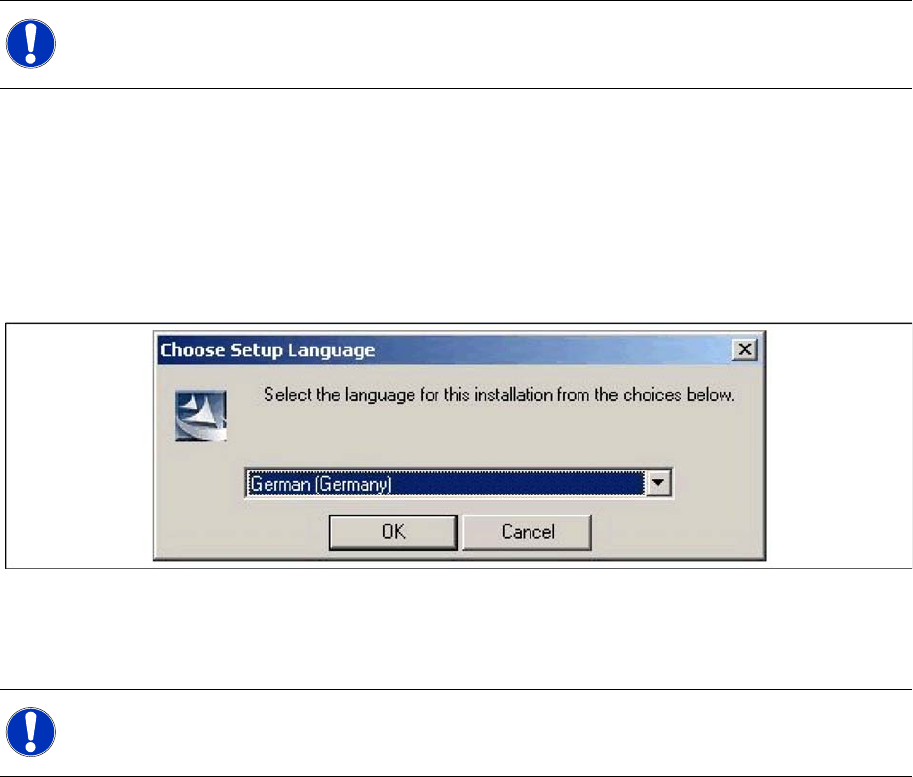

6-13: "Choose setup language" dialog box

X Select the language you want.

X Click OK.

Step 2

X The InstallShield Wizard will guide you through the program setup process.

NOTE:

You require administrator rights for the installation procedure!

NOTE:

This decision only relates to the language used during the installation routine!

Installation

Software Installation Setup Center

48 Installation Manual SIPLACE Setup Center V3.0

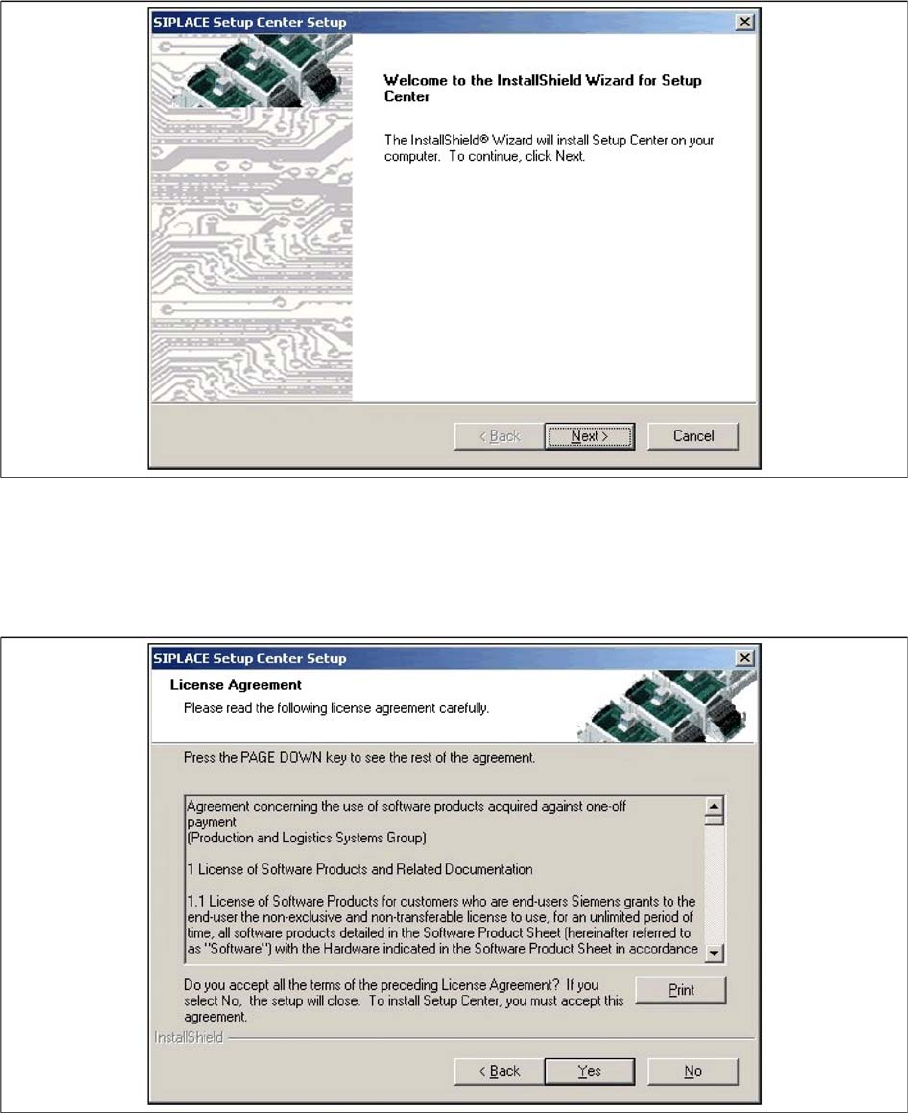

6-14: InstallShield Wizard box for SIPLACE Setup Center

X Click Next.

Step 3

X Read the license agreement of Siemens AG relating to use of this software.

6-15: "Software License Agreement" dialog box

X The installation routine continues if you click the Yes button to accept the license agreement.

X Click No to cancel the installation.

X Click Print to print the License Agreement on the default printer of the PC.

Step 4

X Enter your User Name and Company Name in the Customer Information dialog box. Both boxes

must be filled in before the installation process can be continued.
