4-4 4 Lubrication points 2.2.2 Y -axis guide and ball screw Y -axis lubrication points Grease nipples for Y -axis guide Grease nipples for Y -axis guide Grease gun: Manual lubrication: Grease nipple for Y -axis ball scre…
4-3
4
Lubrication points
2.2 Each axis

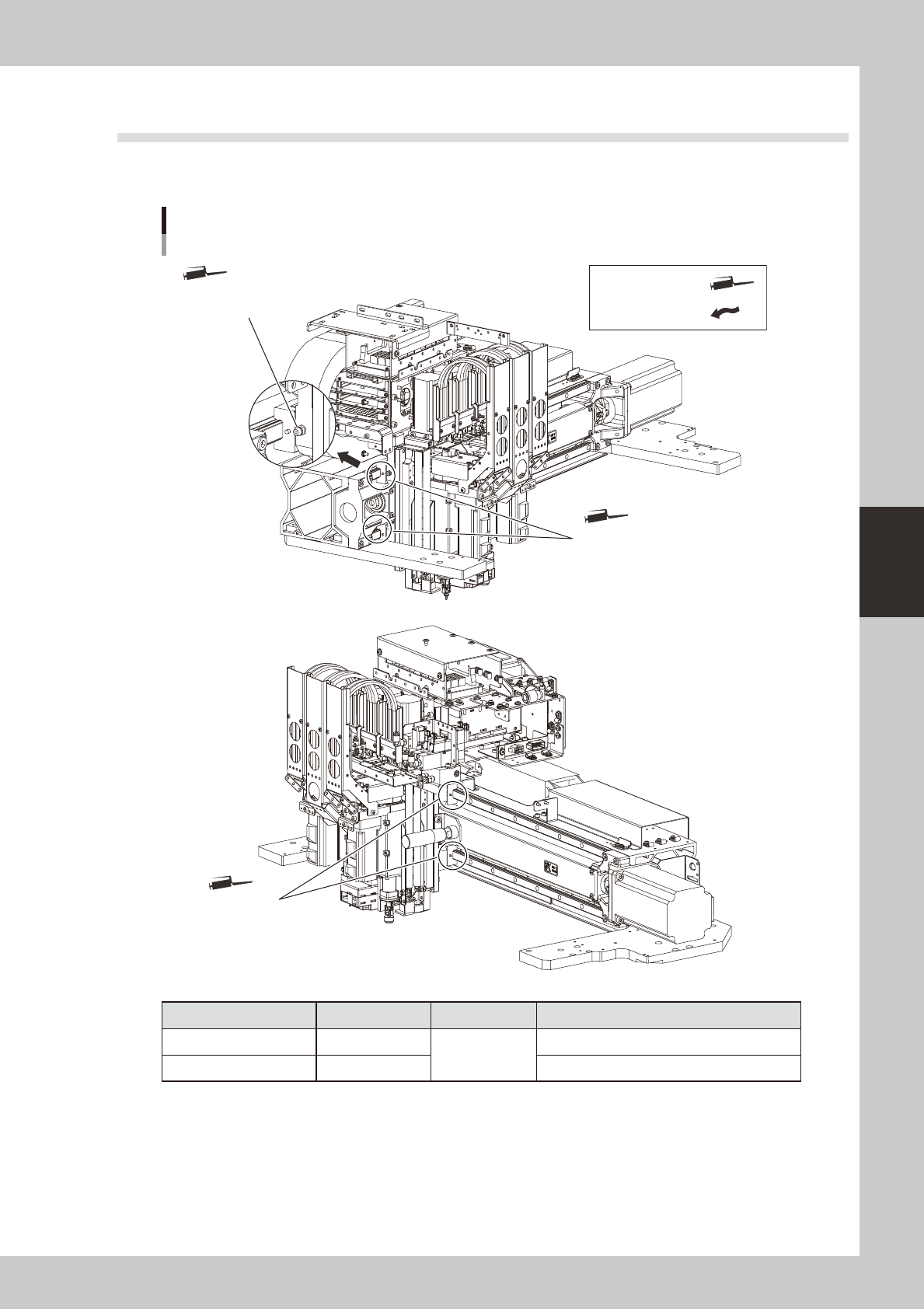

2.2.1 X-axis guide and ball screw
X-axis guide
X-axis guide
X-axis lubrication points (Example of V2 head)
Guide and ball screw
Grease nipples (small) 2 places
Grease nipples (small) 2 places
Grease gun:
Manual lubrication:
X-axis ball screw
Grease nipples (large) 1 place
53402-N8-00
Lubrication section Lubrication point Interval Procedure
Guide 4
Once every
monthly
Grease gun: Bent type nozzle
Ball screw 1 Grease gun: Standard nozzle
4-4
4
Lubrication points

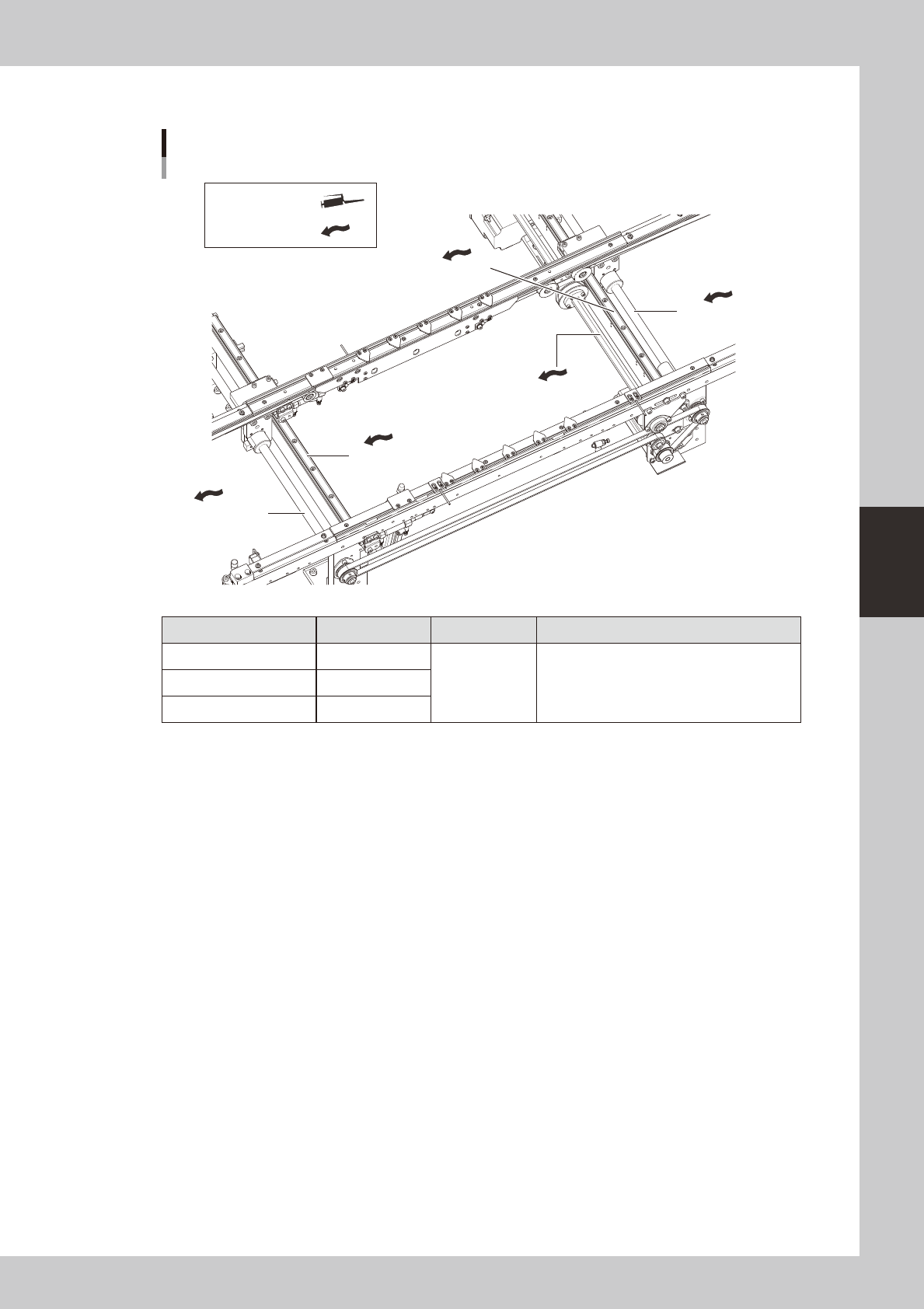

2.2.2 Y-axis guide and ball screw
Y-axis lubrication points
Grease nipples for
Y-axis guide
Grease nipples for
Y-axis guide
Grease gun:
Manual lubrication:
Grease nipple for Y-axis
ball screw
Rear view
53403-N8-00
Lubrication section Lubrication point Interval Procedure
Guide 2
Once every
monthly
Grease gun: Standard nozzle
Ball screw 1
4-5
4
Lubrication points

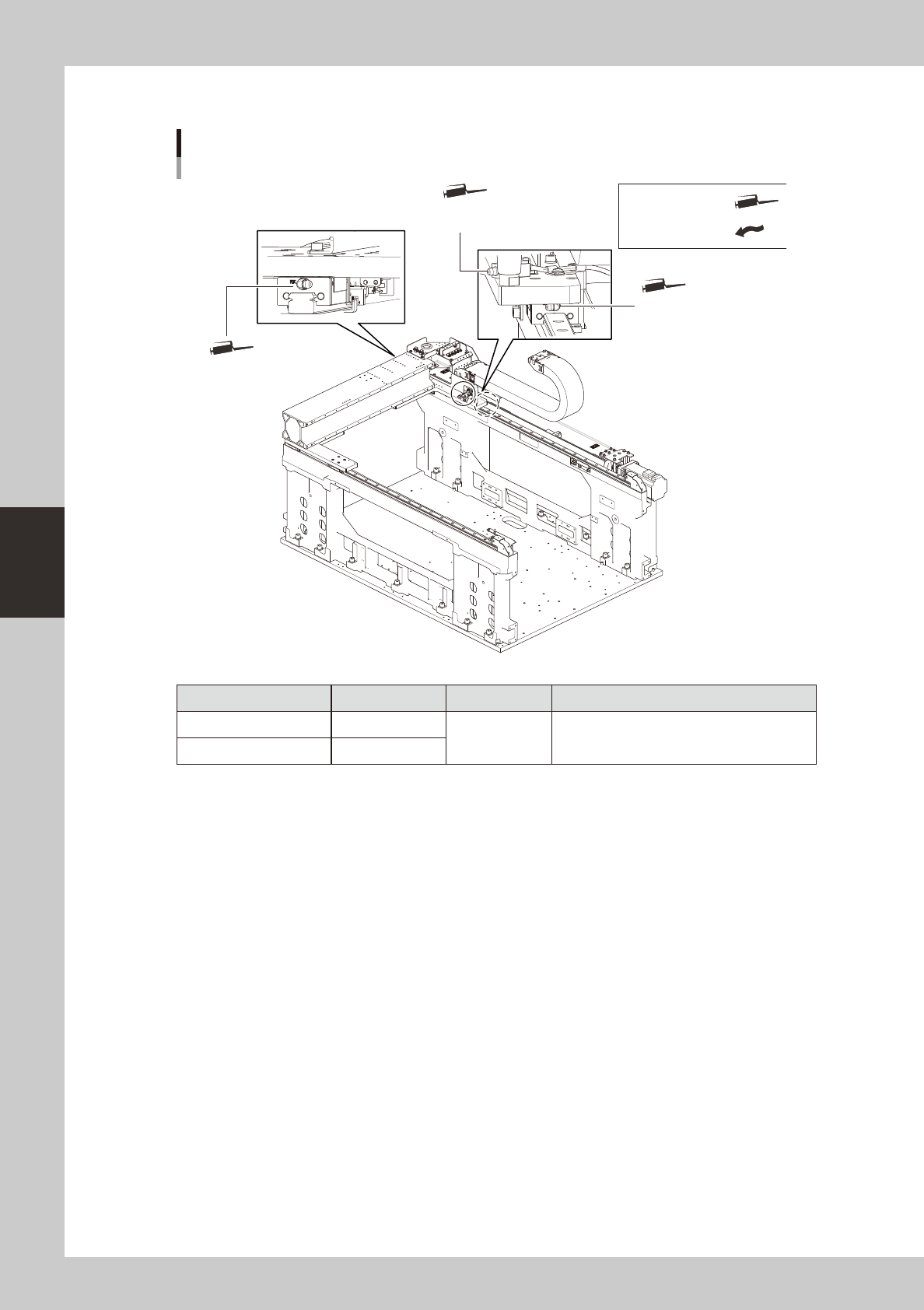

2.2.3 W-axis guide and ball screw
W-axis lubrication points
W-axis guide
W-axis guide
W-axis ball screw
W-axis hexagon spline
Grease gun:
Manual lubrication:
W-axis ball screw
53404-N8-00
Lubrication section Lubrication point Interval Procedure
Guide 2
Once every
monthly
Manual lubricationBall screw 2
Hexagon spline 1
