Brief Description Tools and Equipment Required Gantry Carrier Plate for SX1/SX2 [0 3012160-xx] 82 Gantry Modularity Portalmodularität
Brief Description
Gantry Carrier Plate for SX1/SX2 [03012160-xx] Tools and Equipment Required
Gantry Modularity Portalmodularität 81
2.3 Tools and Equipment Required
▪ Gantry lift [00519813-xx]
▪ Torque wrench (2 – 25 Nm) [00376625-xx]
▪ Loctite 241 [02101037-xx]
▪ Prepared case (plastic case with foam insert) containing the following:
CAUTION
TÜV (Technical Control Board)
The gantry lift must be tested by the TÜV (Technical Control Board) every two years.
Prepared case
The case is configured differently depending on the ma-
chine type
1. Trailing cable protective foil
2. Buffer stop (2x)
3. Trailing cable mount
4. Pneumatic hose plug (4x)
Brief Description
Tools and Equipment Required Gantry Carrier Plate for SX1/SX2 [03012160-xx]
82 Gantry Modularity Portalmodularität
Fitting the Gantry
SIPLACE SX "Prepared" Requirements
Gantry Modularity Portalmodularität 83
3 Fitting the Gantry
3.1 Requirements
3.1.1 SIPLACE SX "Prepared"
NOTICE
This manual describes the upgrading of gantry 2 at location 2. The assembly of gantry 1 is iden-
tical.
NOTICE
When upgrading gantry 1 (master gantry) at location 1, component board mapping must be per-
formed after the assembly.
The SIPLACE SX must be in the delivery state "Pre-
pared".

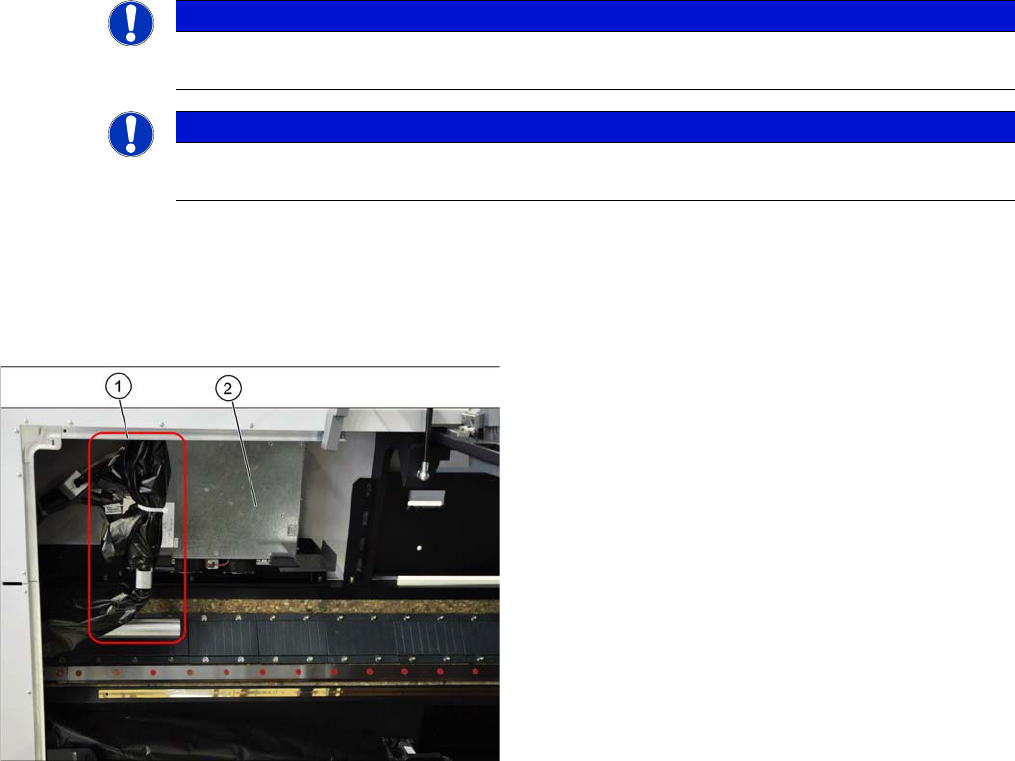

This can be recognized by the presence of a trailing cable
(1) and the control unit for the main axes (Gantry Control
Unit (2)). This applies for the SIPLACE SX+ machine, in
order to retrofit gantry 1 at location 1 or for the SIPLACE
SX1 "Prepared", in order to retrofit gantry 2 at location 2.
The trailing cable is packed in a black plastic case and is
fixed at the side (1).
If this is not the case, your machine will need to be retro-
fitted accordingly. Contact your SIPLACE Service team
for details.
