Fitting the Gantry
SIPLACE SX "Prepared" Requirements
Gantry Modularity Portalmodularität 83
3 Fitting the Gantry
3.1 Requirements
3.1.1 SIPLACE SX "Prepared"
NOTICE
This manual describes the upgrading of gantry 2 at location 2. The assembly of gantry 1 is iden-
tical.
NOTICE
When upgrading gantry 1 (master gantry) at location 1, component board mapping must be per-
formed after the assembly.
The SIPLACE SX must be in the delivery state "Pre-
pared".

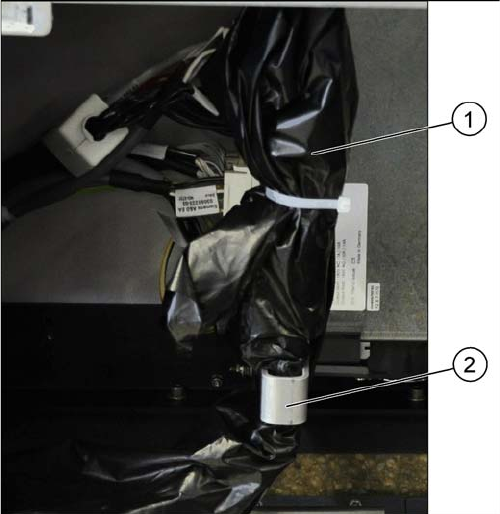

This can be recognized by the presence of a trailing cable
(1) and the control unit for the main axes (Gantry Control
Unit (2)). This applies for the SIPLACE SX+ machine, in
order to retrofit gantry 1 at location 1 or for the SIPLACE
SX1 "Prepared", in order to retrofit gantry 2 at location 2.
The trailing cable is packed in a black plastic case and is
fixed at the side (1).
If this is not the case, your machine will need to be retro-
fitted accordingly. Contact your SIPLACE Service team
for details.
Fitting the Gantry
Preparations at the Machine Removing the End Position Buffer
84 Gantry Modularity Portalmodularität
3.2 Preparations at the Machine
Overview
3.2.1 Removing the End Position Buffer
The long end position buffers must be fitted in SIPLACE SX1 machines with one gantry. These buffers
need to be removed and replaced with the short end position buffers in SIPLACE SX2 machines with
two gantries.

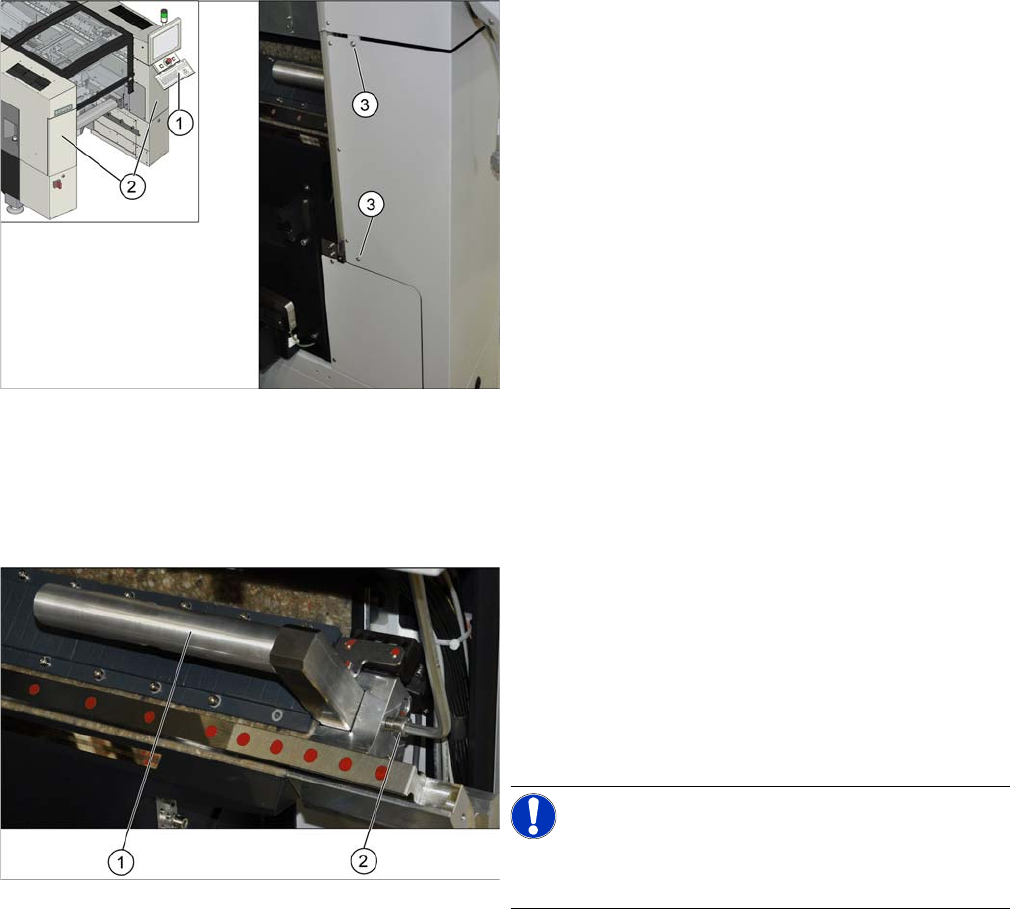

► Open the protective cover and move the component
trolley out of the machine.
► Remove the keyboard (1).
► Loosen the two screws (3) fastening the side covers
(2) on the right and left.
► Open the two covers (2).
Remove the two long end position buffers. After fitting the
second gantry, fit the two short end position buffers in
place of the long ones.
► Loosen the fastening screw (2) on the long end posi-
tion buffer (1).
► Remove the two end position buffers from the right
and left sides.
NOTICE!
Keep the two long end position buffers in the "Prepared"
case for fitting back into place later on.
Fitting the Gantry
Preparing the Trailing Cable Preparations at the Machine
Gantry Modularity Portalmodularität 85
3.2.2 Preparing the Trailing Cable
Overview
The trailing cable (1) is packed in a black plastic case and
fixed to a holder (2).
