Fitting the Gantry
Preparations at the Machine Removing the End Position Buffer
84 Gantry Modularity Portalmodularität
3.2 Preparations at the Machine
Overview
3.2.1 Removing the End Position Buffer
The long end position buffers must be fitted in SIPLACE SX1 machines with one gantry. These buffers
need to be removed and replaced with the short end position buffers in SIPLACE SX2 machines with
two gantries.
► Open the protective cover and move the component
trolley out of the machine.
► Remove the keyboard (1).
► Loosen the two screws (3) fastening the side covers
(2) on the right and left.
► Open the two covers (2).
Remove the two long end position buffers. After fitting the
second gantry, fit the two short end position buffers in
place of the long ones.
► Loosen the fastening screw (2) on the long end posi-
tion buffer (1).
► Remove the two end position buffers from the right
and left sides.
NOTICE!
Keep the two long end position buffers in the "Prepared"
case for fitting back into place later on.
Fitting the Gantry
Preparing the Trailing Cable Preparations at the Machine
Gantry Modularity Portalmodularität 85
3.2.2 Preparing the Trailing Cable
Overview
The trailing cable (1) is packed in a black plastic case and
fixed to a holder (2).
Fitting the Gantry
Preparations at the Machine Preparing the Trailing Cable
86 Gantry Modularity Portalmodularität

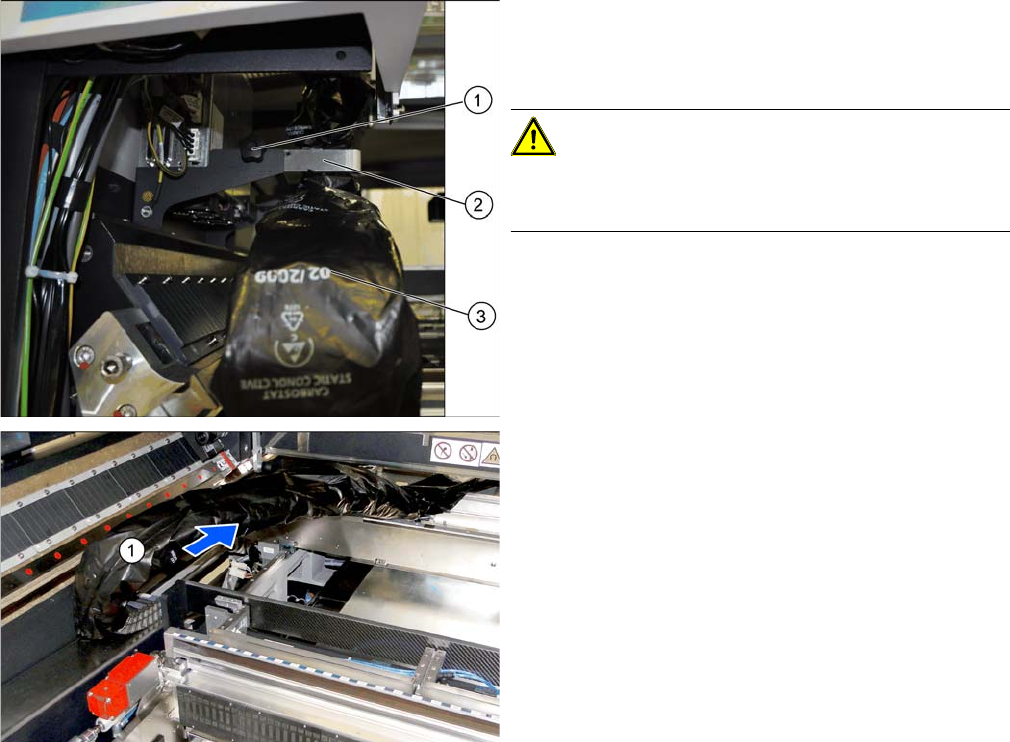

Loosening the trailing cable
► Loose the fixture screw (1) on the holder (2).
► Carefully disconnect the trailing cable (3) from its
holder.
CAUTION!
Take care when handling the trailing cable!
Take care not to damage the foil or the trailing cable.
► Place the holder and the fixture screw in the "Pre-
pared case" for fitting back into place later on.
► Take the trailing cable (1) and place it carefully to-
wards the front, into the machine.
