5 3-monthly C&P20 P2/M3 Clean / lubricate the Z-axis linear guide 6 min 3 / 5 Refer to safety instructions in user manual before commencing Maintenance NOTICE! ESD guidelines are to be followed Tool: T7, T21-T23, T47…
5 3-monthly C&P20 P2/M3 Clean / lubricate the Z-axis linear guide 6 min 2 / 5
Refer to safety instructions in user manual before commencing Maintenance
NOTICE! ESD guidelines are to be followed Tool:
T7, T21-T23, T47, T77, T96-T98
Wear Part: Consumables:
C10, C22
www.asm-smt.com

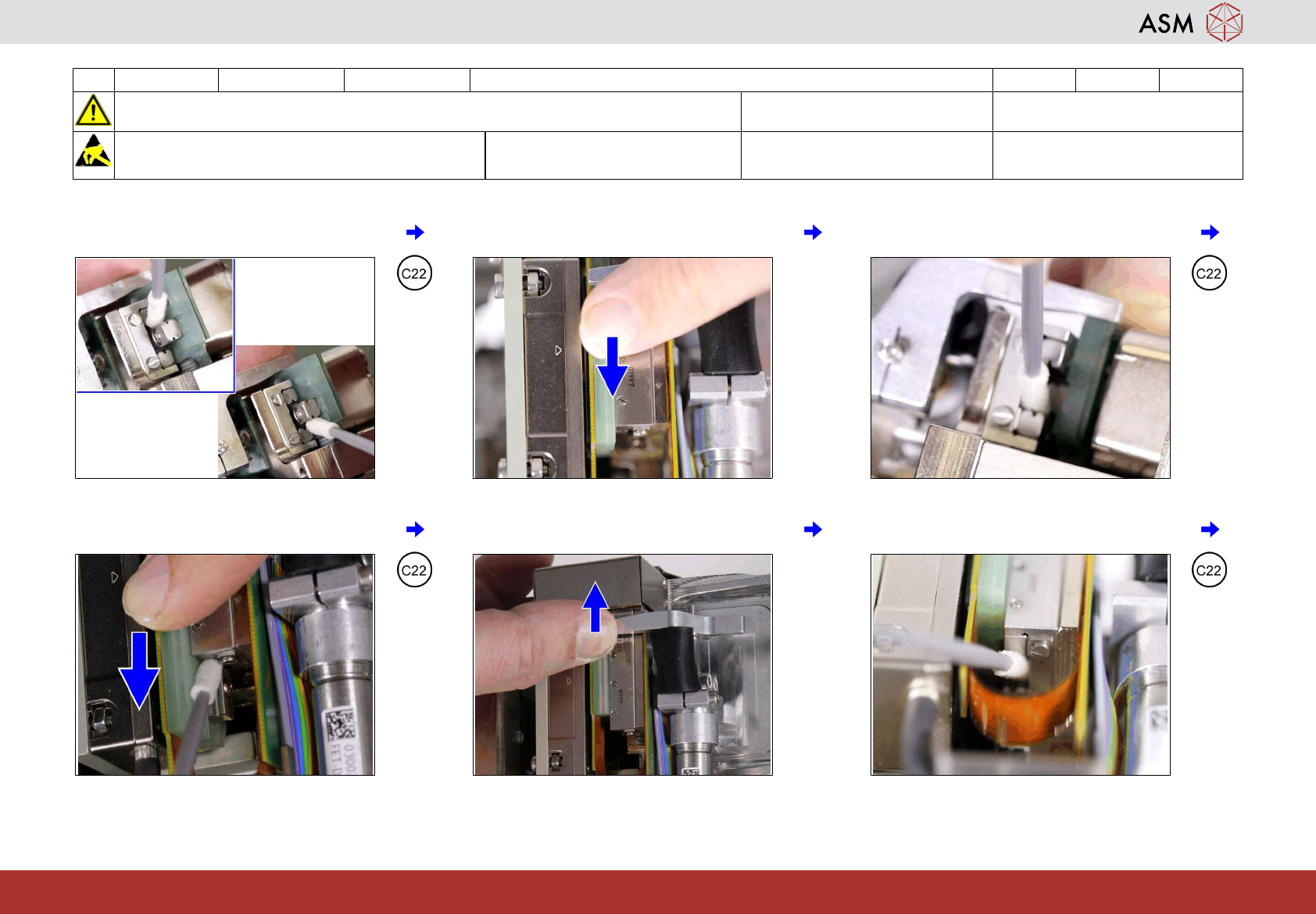

7 Dry clean the guide rail on both sides at
the bottom.
8 Move the Z-axis into the head and hold it
there.
9 Dry clean the carriage on both sides at the
bottom.
10 Keep the Z-axis in the head and clean the
guide rail at the top.
11 Move the Z-axis out of the head and hold
it there.
12 Dry clean the carriage at the top.
5 3-monthly C&P20 P2/M3 Clean / lubricate the Z-axis linear guide 6 min 3 / 5
Refer to safety instructions in user manual before commencing Maintenance
NOTICE! ESD guidelines are to be followed Tool:
T7, T21-T23, T47, T77, T96-T98
Wear Part: Consumables:
C10, C22
www.asm-smt.com

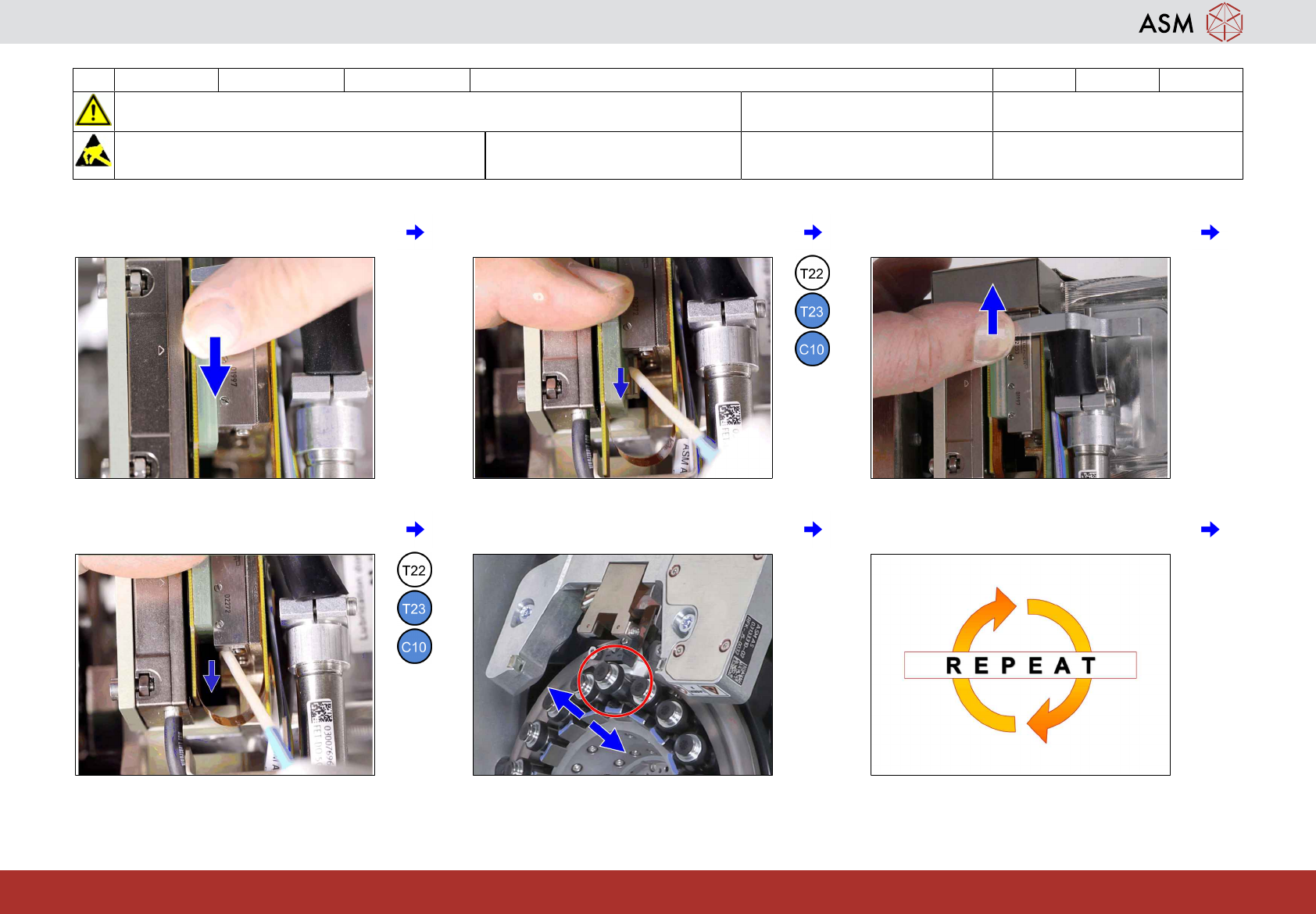

13 Move the Z-axis into the head and hold it
there.
14 Apply 1 x 4 μl with a slight motion to the
guide rail at the top.
15 Move the Z-axis out of the head and hold
it there.
16 Apply 1 x 4 μl with a slight motion to the
carriage at the top.
17 Move the Z-axis 5 times up and down. 18 Repeat steps 13 to 17 one more time.
5 3-monthly C&P20 P2/M3 Clean / lubricate the Z-axis linear guide 6 min 4 / 5
Refer to safety instructions in user manual before commencing Maintenance
NOTICE! ESD guidelines are to be followed Tool:
T7, T21-T23, T47, T77, T96-T98
Wear Part: Consumables:
C10, C22
www.asm-smt.com

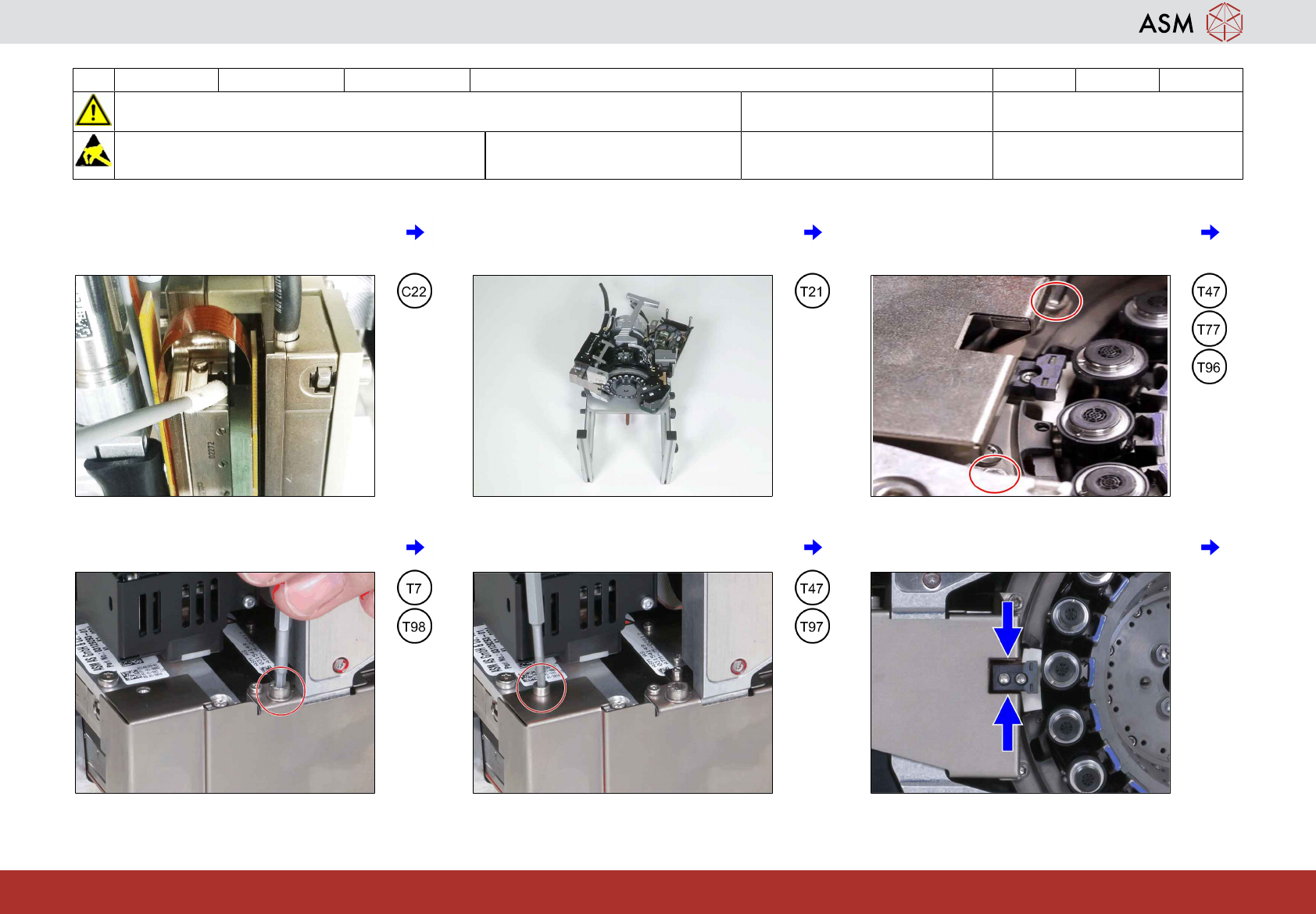

19 Dry clean the top of the z-axis from any re-
maining grease
20 Turn the head right side up and put the
headstand flat on the table.
21 Align the cover plate to the Z-axis and
tighten the 2 screws with a torque of 0.6
Nm.
22 Tighten the long screw at the side with a
torque of 1.30 Nm.
23 Tighten the short screw at the side with a
torque of 0.9 Nm.
24 Check the Z-axis is moving without touch-
ing the cover plate.
