00198596-02_JC_3M_C - 第27页
7 3-monthly C&P20 P2/M3 Clean / lubricate the DP drive bearing 4 min 1 / 3 Refer to safety instructions in user manual before commencing Maintenance NOTICE! ESD guidelines are to be followed Tool: T21, T22, T24 Wear …
www.asm-smt.com

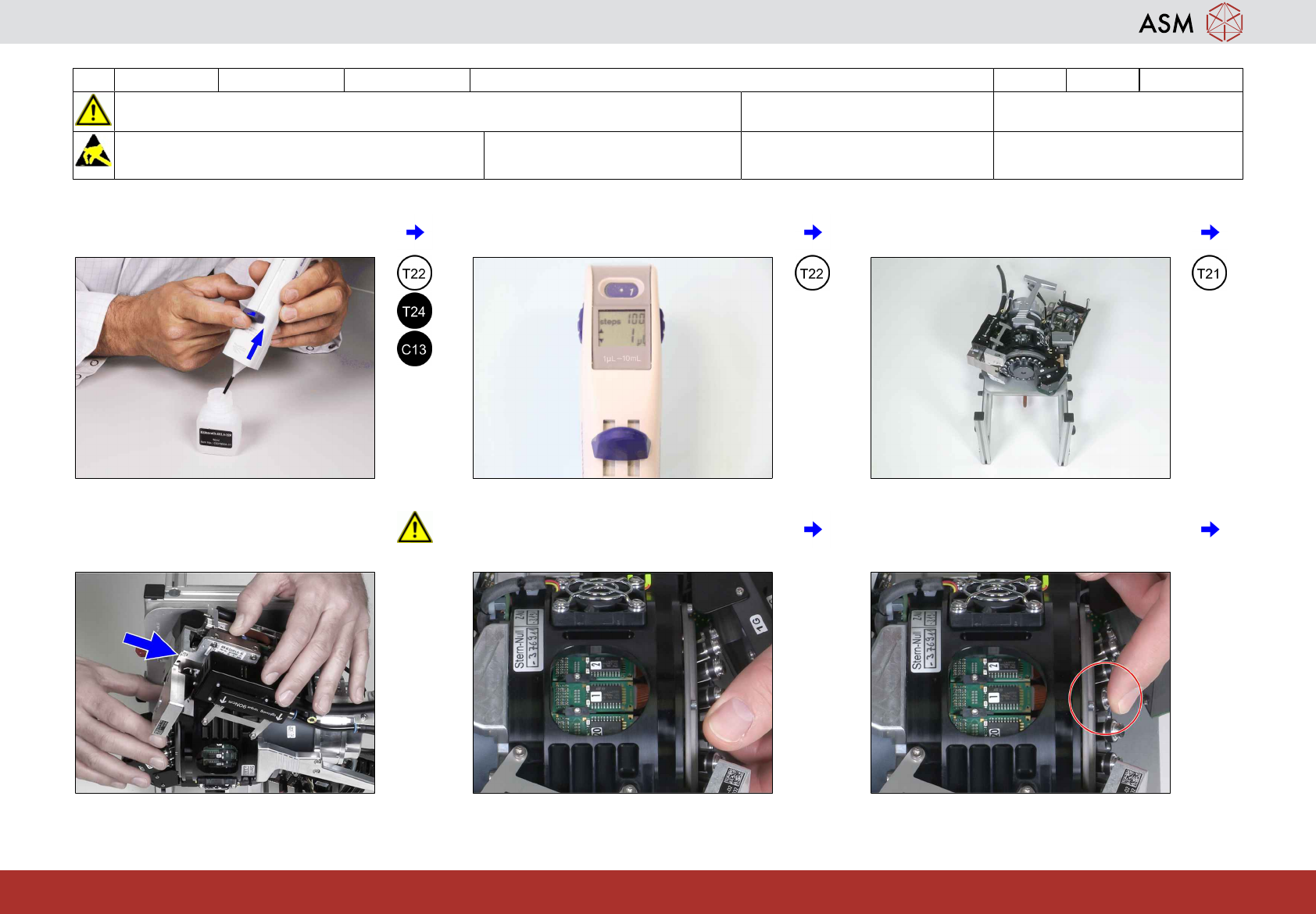

7 3-monthly C&P20 P2/M3 Clean / lubricate the DP drive bearing 4 min 1 / 3
Refer to safety instructions in user manual before commencing Maintenance
NOTICE! ESD guidelines are to be followed Tool:
T21, T22, T24
Wear Part: Consumables:
C13, C22
www.asm-smt.com
1 Prepare the multipette. See appendix
"Prepare the multipette".
2 Turn the wheel and adjust 1 µl. 3 Turn the head right side up and put the
head stand flat on the table.
4 Ensure the Z-Axis is moved into the head
before turning the star as otherwise the Z-
Axis jaw can be damaged.
5 Turn the star until segment 1 is in the ser-
vice window.
6 Push in the segment and hold it there.
7 3-monthly C&P20 P2/M3 Clean / lubricate the DP drive bearing 4 min 2 / 3
Refer to safety instructions in user manual before commencing Maintenance
NOTICE! ESD guidelines are to be followed Tool:
T21, T22, T24
Wear Part: Consumables:
C13, C22
www.asm-smt.com
7 Clean the drive bearing and release the
segment.
8 Turn the star to the next segment. 9 Repeat step 6 to 8 for each segment.
10 Turn the star until segment 1 is in the ser-
vice window.
11 Push in the segment and hold it there. 12 Apply 1 x 1 μl to the gap of the bearing.
