00198596-02_JC_3M_C - 第30页
www.asm-smt.com
7 3-monthly C&P20 P2/M3 Clean / lubricate the DP drive bearing 4 min 3 / 3
Refer to safety instructions in user manual before commencing Maintenance
NOTICE! ESD guidelines are to be followed Tool:
T21, T22, T24
Wear Part: Consumables:
C13, C22
www.asm-smt.com

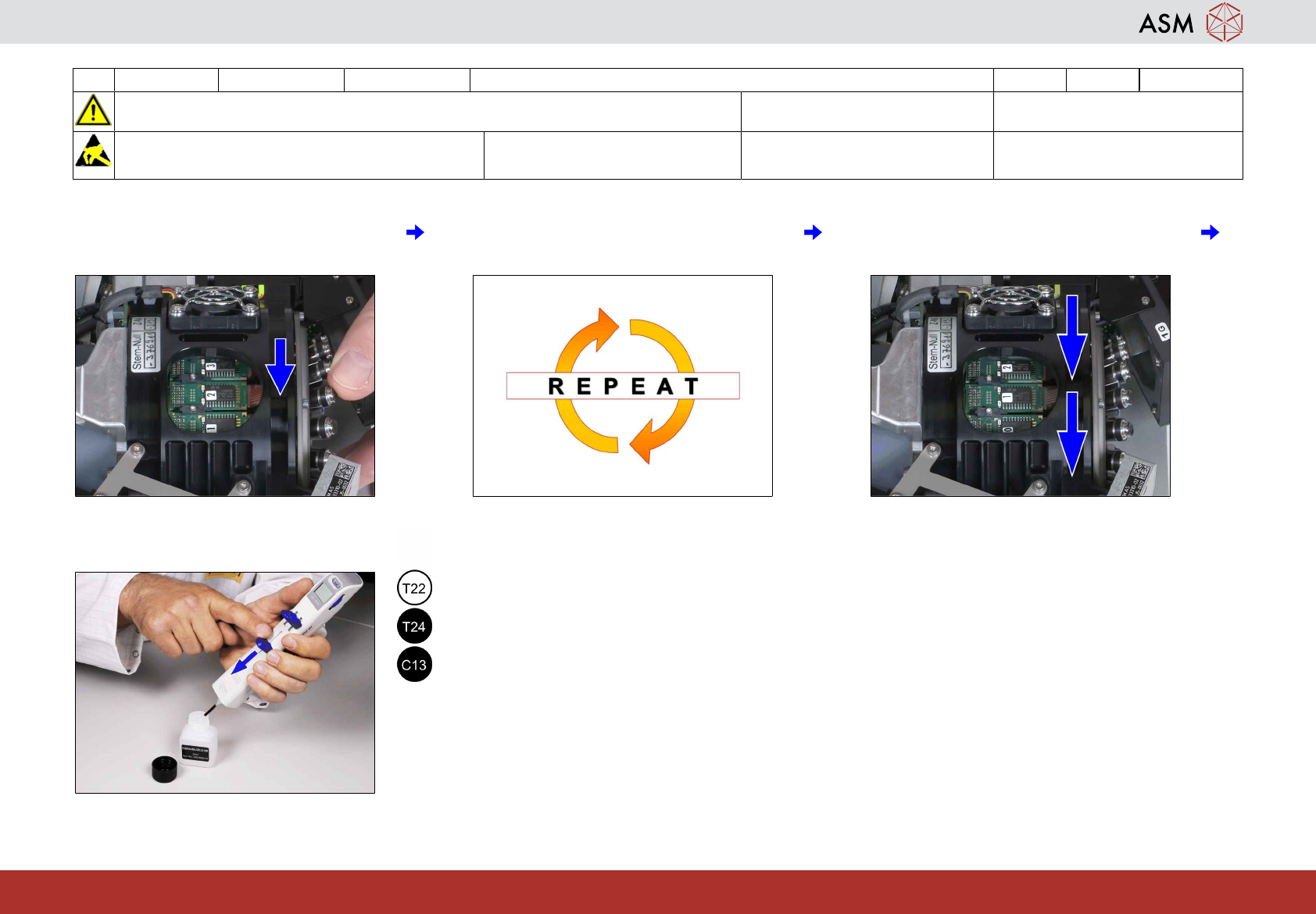

13 Turn the star to the next segment. 14 Repeat step 11 to 13 for each segment. 15 When segment 1 is in the service window
again turn the star 3 full rotations to dis-
tribute the oil.
16 Clean up the multipette. See appendix
"Clean up the mulipette".
www.asm-smt.com
8 3-monthly C&P20 P2/M3 Clean / lubricate the race way and clean the Z-axis jaw and light barrier 6 min 1 / 5
Refer to safety instructions in user manual before commencing Maintenance
NOTICE! ESD guidelines are to be followed Tool:
T21, T22, T40, T41
Wear Part: Consumables:
C5, C15, C22
www.asm-smt.com

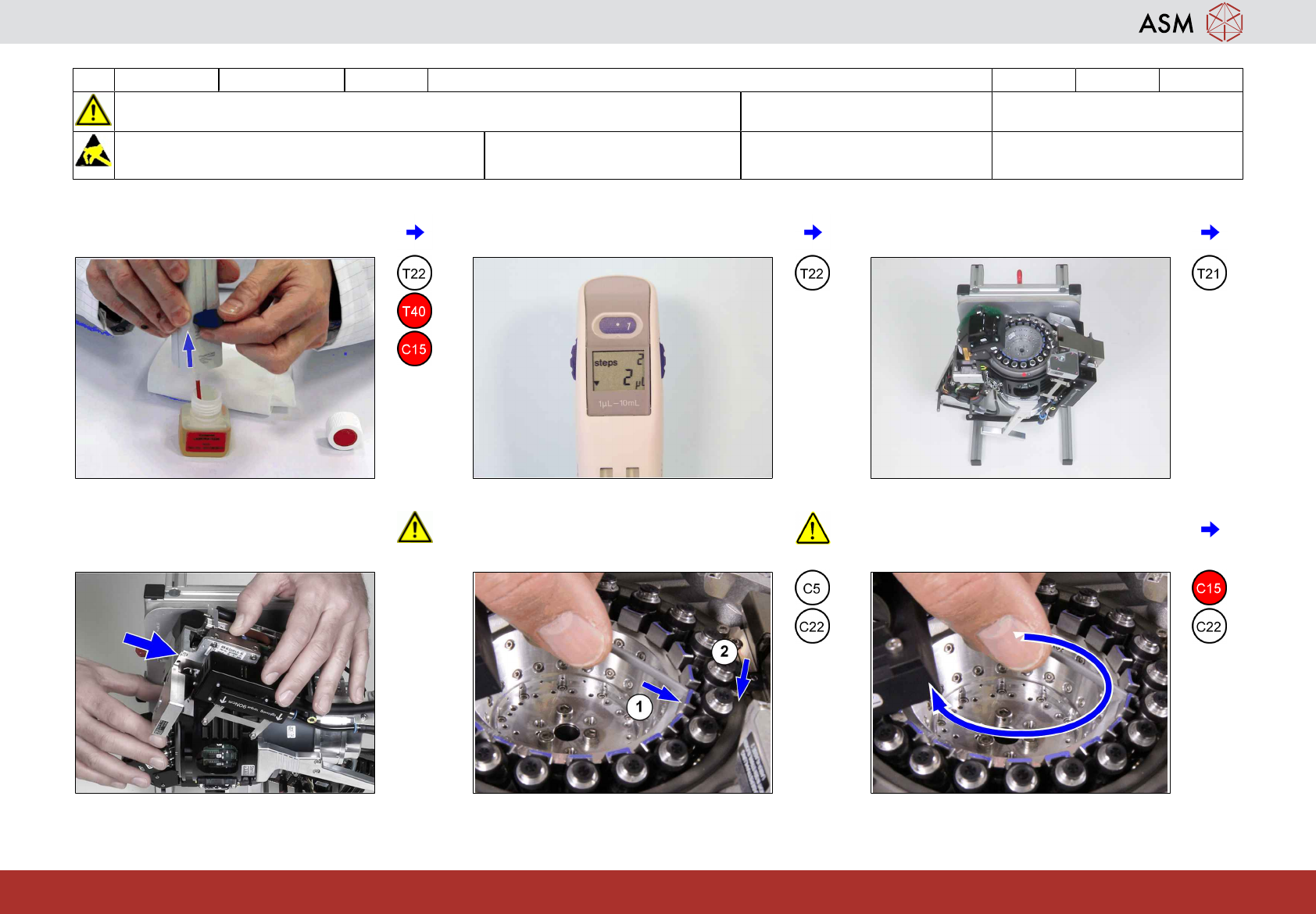

1 Prepare the multipette. See appendix
"Prepare the multipette".
2 Turn the wheel and adjust 2 µl. 3 Put the head stand in the upright position
and turn the head upside down.
4 Ensure the Z-Axis is moved into the head
before turning the star as otherwise the Z-
Axis jaw can be damaged.
5 Insert a new slightly moistened cleaning
stick between 2 segments (1) so it touches
the raceway (2).
6 Turn the star one full rotation as shown in
the picture pulling the cleaning stick over
the whole race way.
