8 3-monthly C&P20 P2/M3 Clean / lubricate the race way and clean the Z-axis jaw and light barrier 6 min 3 / 5 Refer to safety instructions in user manual before commencing Maintenance NOTICE! ESD guidelines are to be…
8 3-monthly C&P20 P2/M3 Clean / lubricate the race way and clean the Z-axis jaw and light barrier 6 min 2 / 5
Refer to safety instructions in user manual before commencing Maintenance
NOTICE! ESD guidelines are to be followed Tool:
T21, T22, T40, T41
Wear Part: Consumables:
C5, C15, C22
www.asm-smt.com
7 Turn the cleaning stick by 180° and insert
it again between 2 segments so the tip
touches the raceway.
8 Turn the star one full rotation as shown in
the picture pulling the cleaning stick over
the whole race way.
9 Check the cleaning stick for contamina-
tion.
10 If not OK repeat step 5 to 9. 11 If Ok proceed with next step. 12 Apply 3 x 2 µl slightly shifted on both sides
at the top of a new cleaning stick.
8 3-monthly C&P20 P2/M3 Clean / lubricate the race way and clean the Z-axis jaw and light barrier 6 min 3 / 5
Refer to safety instructions in user manual before commencing Maintenance
NOTICE! ESD guidelines are to be followed Tool:
T21, T22, T40, T41
Wear Part: Consumables:
C5, C15, C22
www.asm-smt.com
13 Insert the lubricated cleaning stick
between 2 segments (1) so the tip touches
the raceway (2).
14 Lubricate the raceway without moving the
cleaning stick through the Z-axis jaw.
15 Turn the star one full rotation as shown in
the picture pulling the cleaning stick over
the whole race way.
16 Turn the cleaning stick by 180° and insert
it again between 2 segments so the tip
touches the raceway.
17 Turn the star one full rotation as shown in
the picture pulling the cleaning stick over
the whole race way.
18 Turn the star for five full rotations to dis-
tribute the oil evenly on the raceway.
8 3-monthly C&P20 P2/M3 Clean / lubricate the race way and clean the Z-axis jaw and light barrier 6 min 4 / 5
Refer to safety instructions in user manual before commencing Maintenance
NOTICE! ESD guidelines are to be followed Tool:
T21, T22, T40, T41
Wear Part: Consumables:
C5, C15, C22
www.asm-smt.com

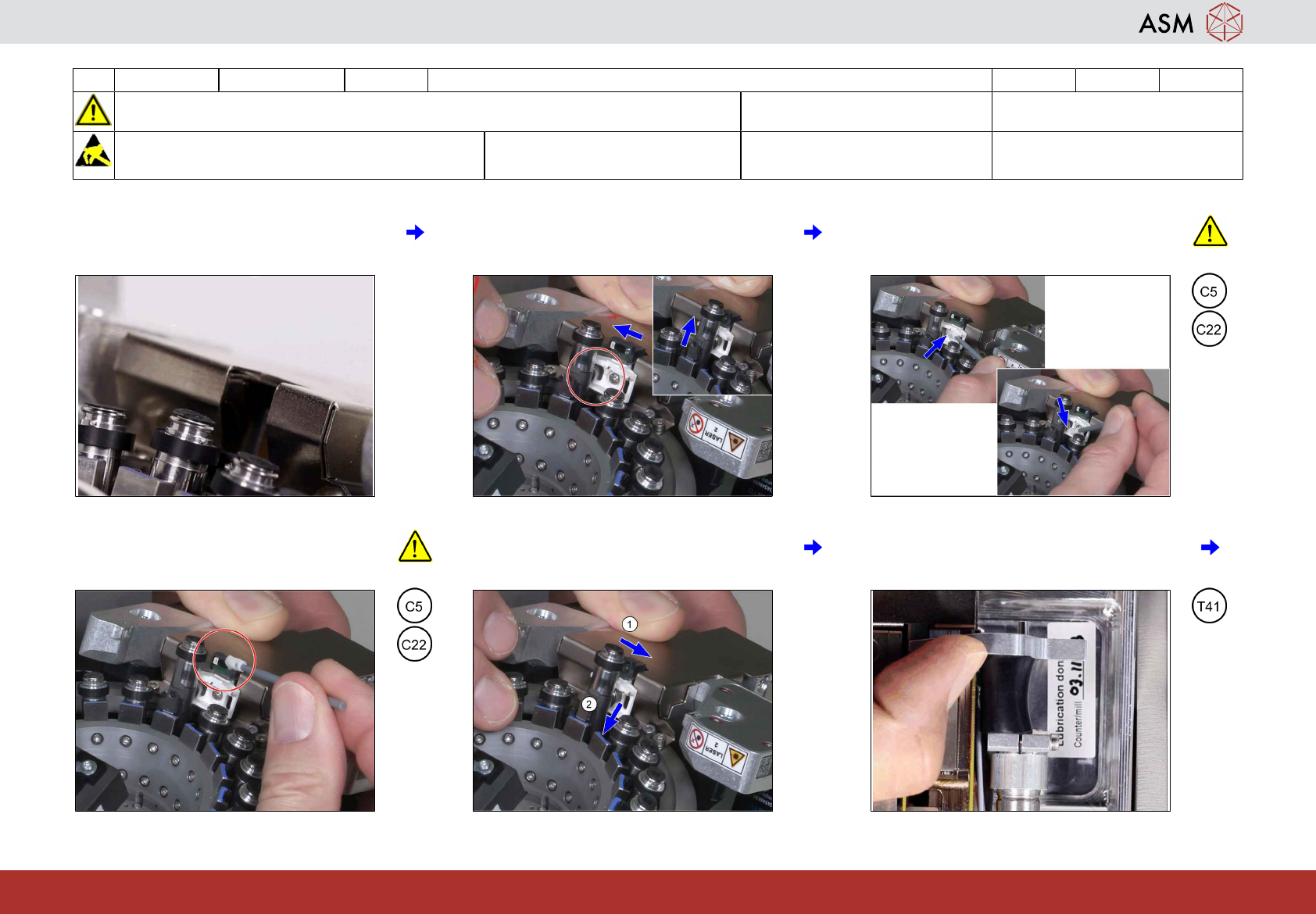

19 Move the star until a segment is in the Z-
axis jaw.
20 Move the Z-axis out of the head and move
the star carefully to the side until the bear-
ing is on the edge of the Z-axis jaw.
21 Clean the Z-axis jaw on both top and bot-
tom position using a slightly moistened
cleaning stick.
22 Clean the Z-axis light barrier using a
slightly moistened cleaning stick.
23 Move the star carefully back (1) until the
DP bearing is in the jaw again and move
in the Z-axis (2).
24 Remove the black rubber hose.
