9 3-monthly C&P20 P2/M3 Clean the DP deflection area 2 min 1 / 1 Refer to safety instructions in user manual before commencing Maintenance NOTICE! ESD guidelines are to be followed Tool: T21 Wear Part: Consumables: C…

www.asm-smt.com

9 3-monthly C&P20 P2/M3 Clean the DP deflection area 2 min 1 / 1

Refer to safety instructions in user manual before commencing Maintenance

NOTICE! ESD guidelines are to be followed Tool:

T21

Wear Part: Consumables:

C5, C22

www.asm-smt.com

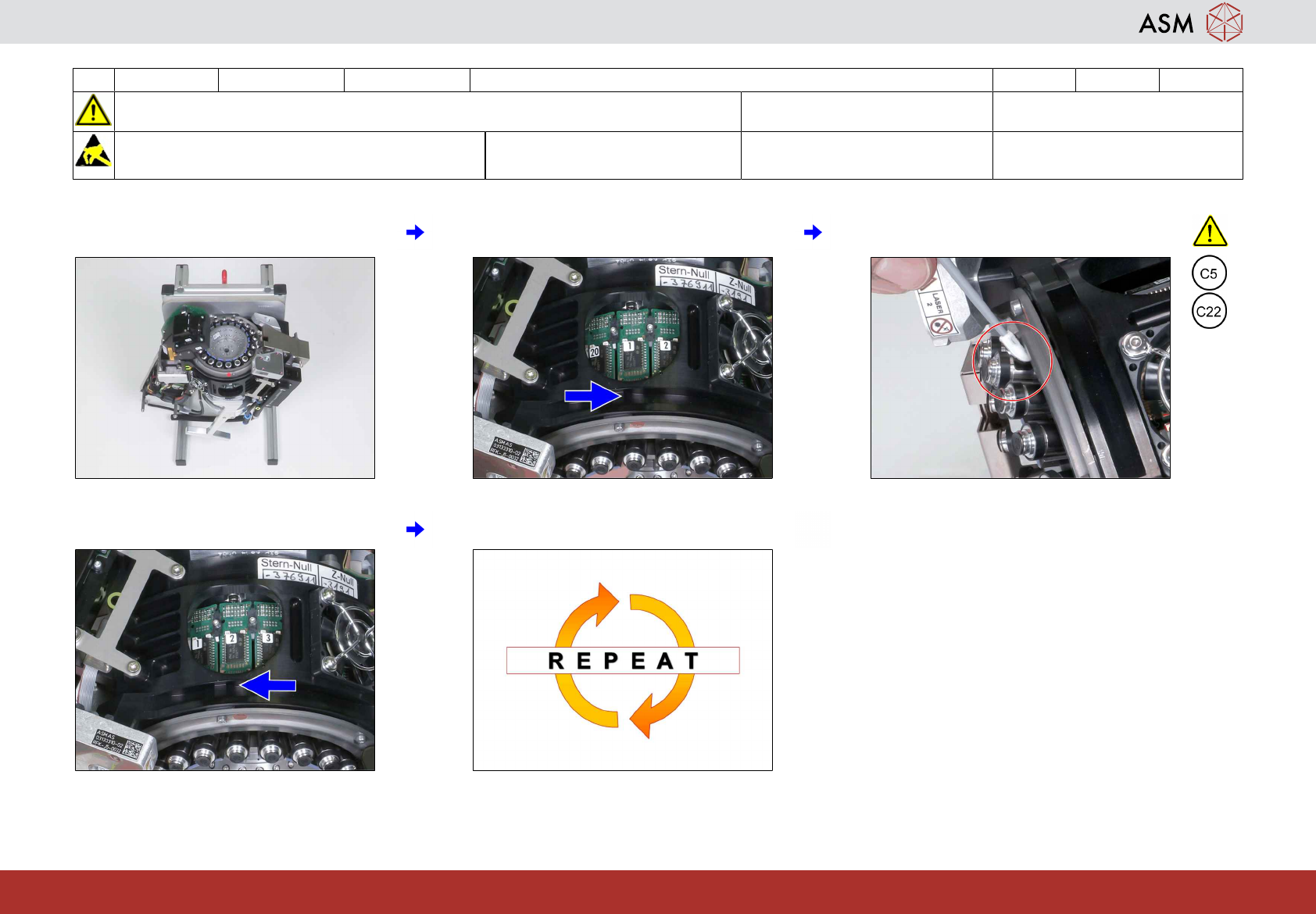

1 Turn the head right side up and put the

head stand flat on the table.

2 Rotate segment 1 to the service window

and align it with the service mark.

3 Clean the deflection area using a slightly

moistened cleaning stick.

4 Turn the star to the next segment. 5 Repeat step 3 to 4 for each segment.
