15 3-monthly C&P20 P2/M3 Appendix: Maintain the holding circuit 35 min 2 / 2 Refer to safety instructions in user manual before commencing Maintenance NOTICE! ESD guidelines are to be followed Tool: T22, T38, T57, T9…

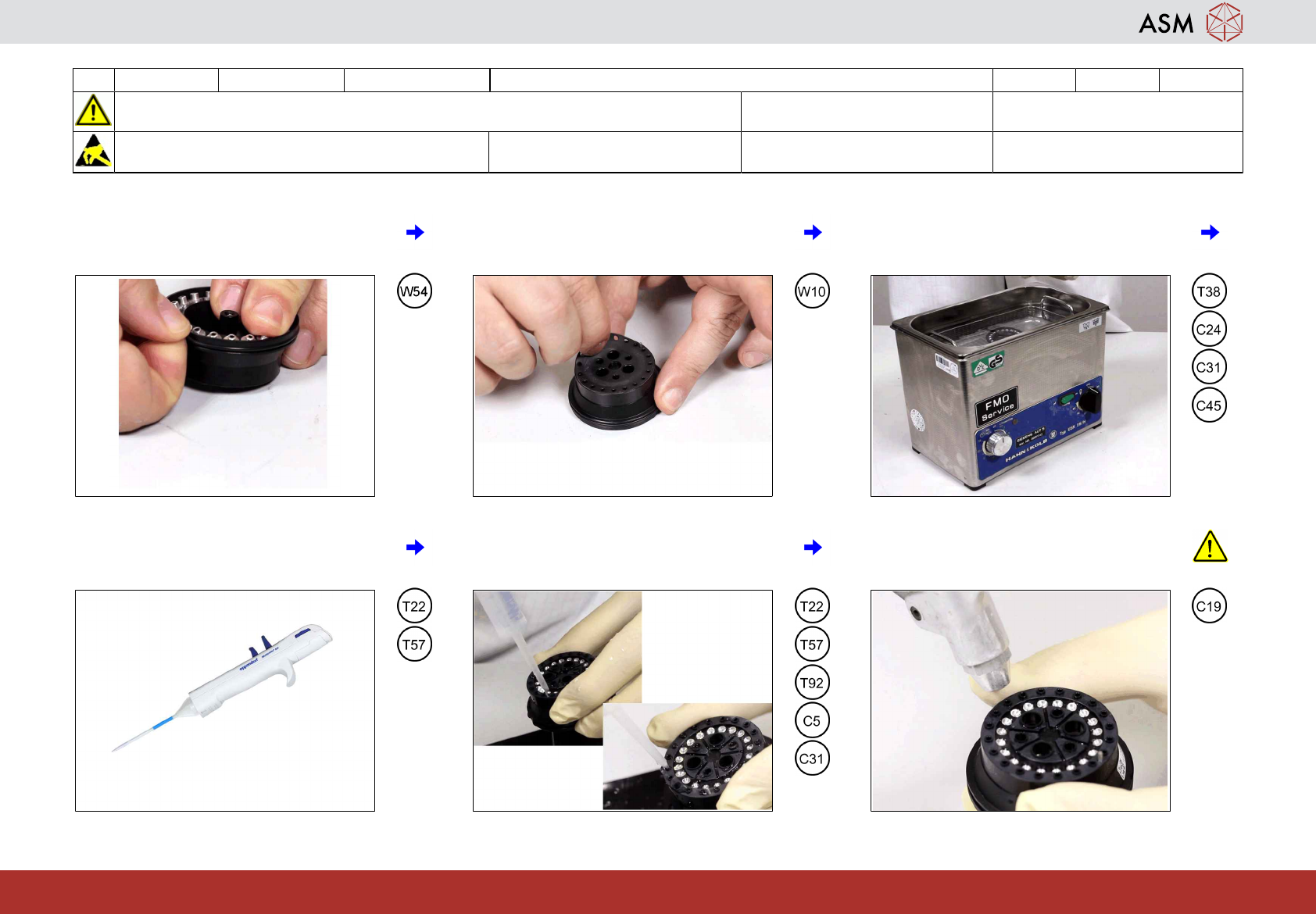

15 3-monthly C&P20 P2/M3 Appendix: Maintain the holding circuit 35 min 1 / 2
Refer to safety instructions in user manual before commencing Maintenance
NOTICE! ESD guidelines are to be followed Tool:
T22, T38, T57, T92
Wear Part:
W10, W54
Consumables:
C5, C19, C24, C31, C45
www.asm-smt.com
1 Remove the O-ring from the holding cir-
cuit.
2 Remove the seal from the holding circuit. 3 Put the holding circuit into the ultrasonic
bath. Cleaning liquid = 5% C24 and 95%
C45, temp = 50°C, time = 30min.
4 Prepare the multipette. See appendix
"Prepare the multipette".
5 When finished rinse the holding circuit
from below starting with the inner venturi
holes
6 Dry the venturi holes of the holding circuit.
Note: Ensure to keep a distance and be
careful not to hit the index pin.

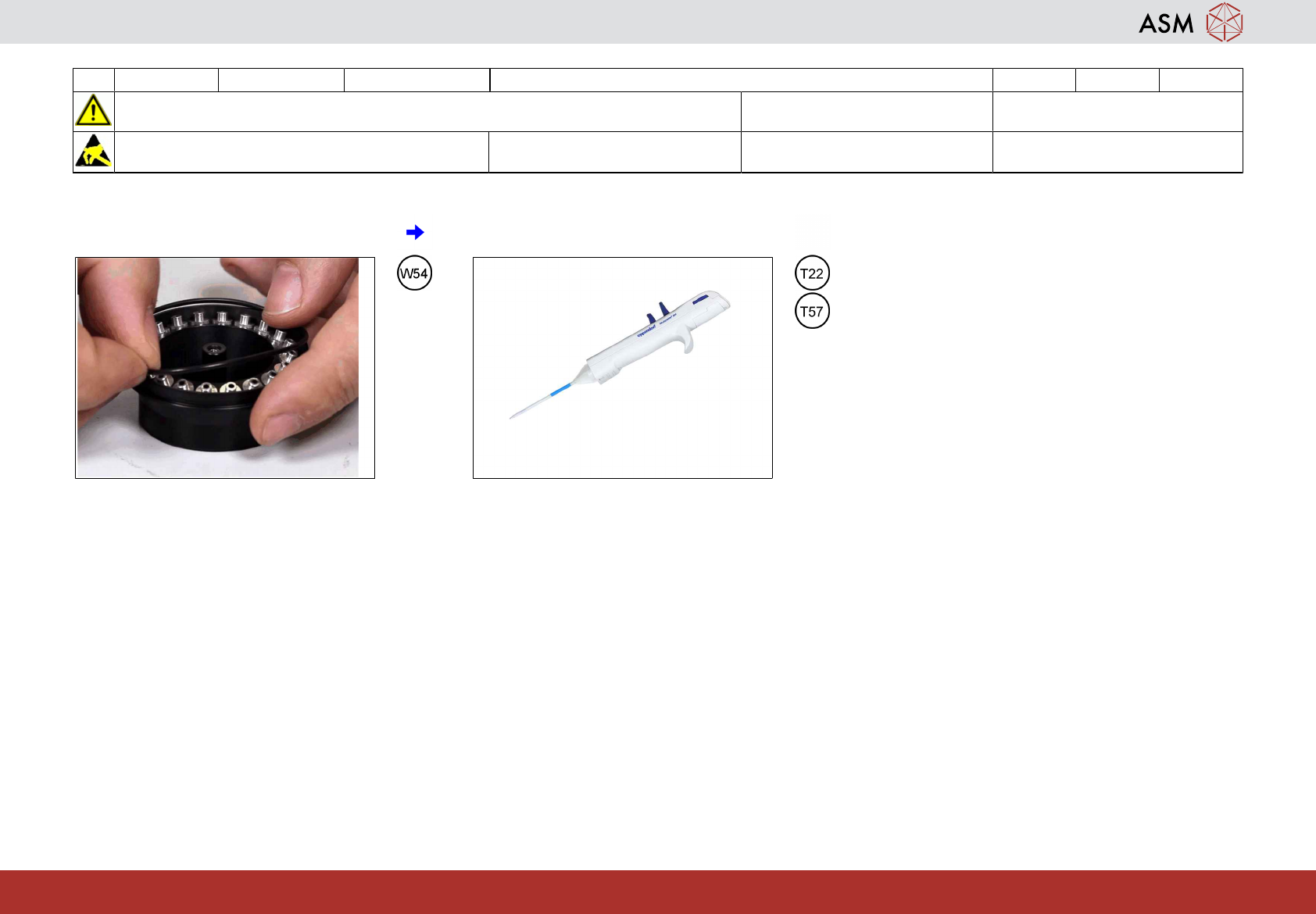

15 3-monthly C&P20 P2/M3 Appendix: Maintain the holding circuit 35 min 2 / 2
Refer to safety instructions in user manual before commencing Maintenance
NOTICE! ESD guidelines are to be followed Tool:
T22, T38, T57, T92
Wear Part:
W10, W54
Consumables:
C5, C19, C24, C31, C45
www.asm-smt.com
7 Insert the O-ring at the holding circuit. 8 Clean-up the multipette. See "Appendix:
Clean-up the multipette".
16 3-monthly C&P20 P2/M3 Appendix: Maintain the aperture ring 35 min 1 / 2
Refer to safety instructions in user manual before commencing Maintenance
NOTICE! ESD guidelines are to be followed Tool:
T22, T53, T57, T92
Wear Part:
W14, W27
Consumables:
C5, C11, C19, C31
www.asm-smt.com
1 Remove the O-ring from the aperture ring. 2 Remove the seal from the aperture ring. 3 Put the aperture ring for about 30 min into
a jar filled with isopropanol.
4 Prepare the multipette. See appendix
"Prepare the multipette".
5 When finished rinse the aperture ring from
below starting with the inner holes.
6 Dry the aperture ring holes. Note: Be
careful not to hit the index pin.
