17 3-monthly C&P20 P2/M3 Appendix: Prepare the multipette 5 min 2 / 3 Refer to safety instructions in user manual before commencing Maintenance NOTICE! ESD guidelines are to be followed Tool: T22, T23 Wear Part: Cons…
17 3-monthly C&P20 P2/M3 Appendix: Prepare the multipette 5 min 1 / 3
Refer to safety instructions in user manual before commencing Maintenance
NOTICE! ESD guidelines are to be followed Tool:
T22, T23
Wear Part: Consumables:
C3, C10
www.asm-smt.com
1 The following description is made by way
of example with blue oil and combitip. For
the oil and combitip to be used, see the in-
dividual task.
2 Prepare multipette V2. For multipette V1
proceed with Step 9.
3 Push down the filling lever and keep it
there.
4 Push the application lever and press the
needed combitip onto the mulitipette until
it engages.
5 Release the lever and turn the wheel to
the volume required for the task.
6 Check the expiration date of lubricant at
the back of the flask and fill-up the multi-
pette.
17 3-monthly C&P20 P2/M3 Appendix: Prepare the multipette 5 min 2 / 3
Refer to safety instructions in user manual before commencing Maintenance
NOTICE! ESD guidelines are to be followed Tool:
T22, T23
Wear Part: Consumables:
C3, C10
www.asm-smt.com
7 Clean the combitip outside from contamin-
ation.
8 Push the application lever till oil comes out
and wipe of the tip of the combitip.
9 Prepare multipette V1.
10 Push down the filling lever and keep it
there.
11 Push the locking and press the needed
combitip onto the mulitipette until it en-
gages.
12 Release the lever and turn the wheel to
the volume required for the task.
17 3-monthly C&P20 P2/M3 Appendix: Prepare the multipette 5 min 3 / 3
Refer to safety instructions in user manual before commencing Maintenance
NOTICE! ESD guidelines are to be followed Tool:
T22, T23
Wear Part: Consumables:
C3, C10
www.asm-smt.com

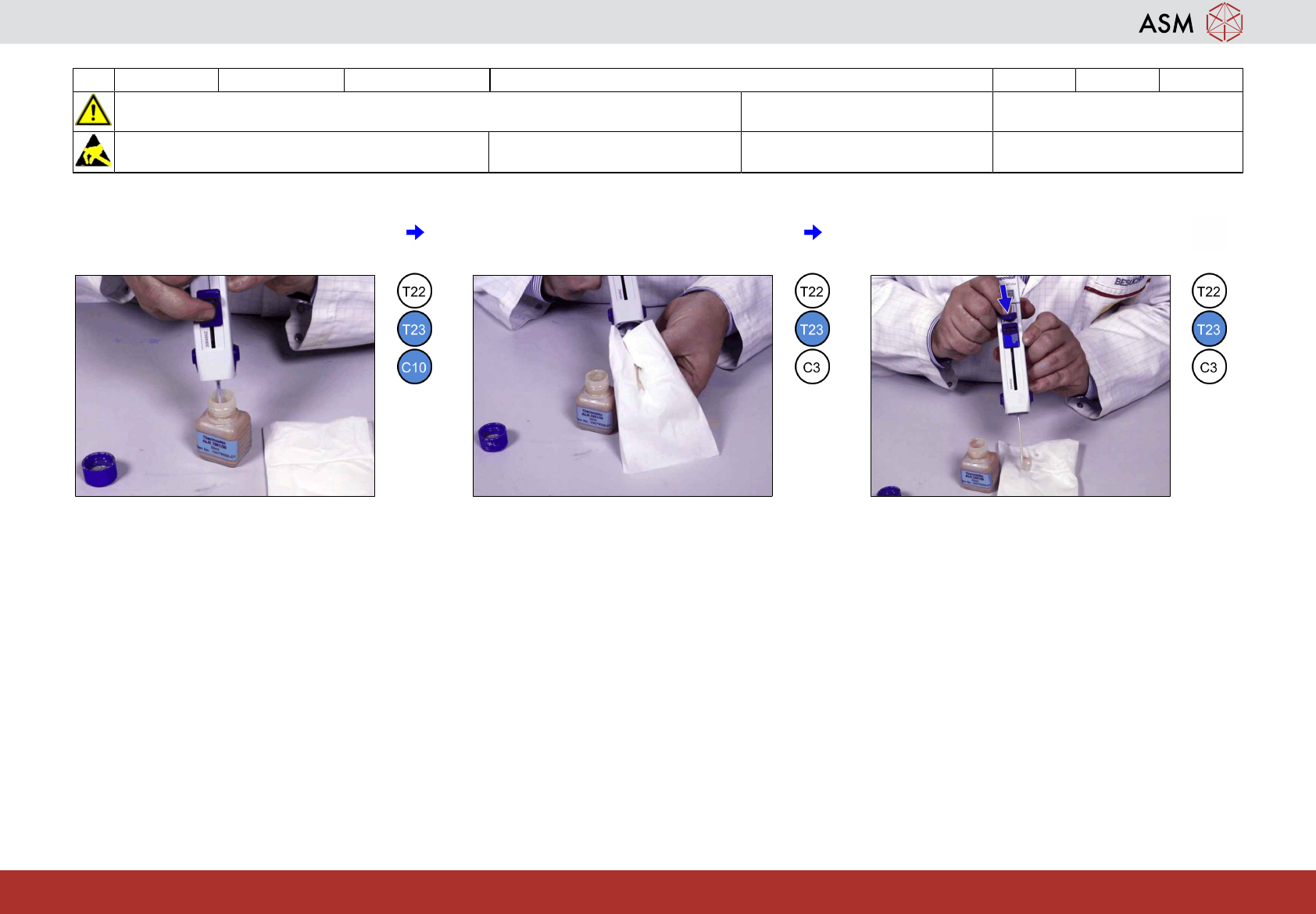

13 Check the expiration date of lubricant at
the back of the flask and fill-up the multi-
pette.
14 Clean the combitip outside from contamin-
ation.
15 Push the application lever till oil comes out
and wipe of the tip of the combitip.
