17 3-monthly C&P20 P2/M3 Appendix: Prepare the multipette 5 min 3 / 3
Refer to safety instructions in user manual before commencing Maintenance
NOTICE! ESD guidelines are to be followed Tool:
T22, T23
Wear Part: Consumables:
C3, C10
www.asm-smt.com
13 Check the expiration date of lubricant at
the back of the flask and fill-up the multi-
pette.
14 Clean the combitip outside from contamin-
ation.
15 Push the application lever till oil comes out
and wipe of the tip of the combitip.
www.asm-smt.com

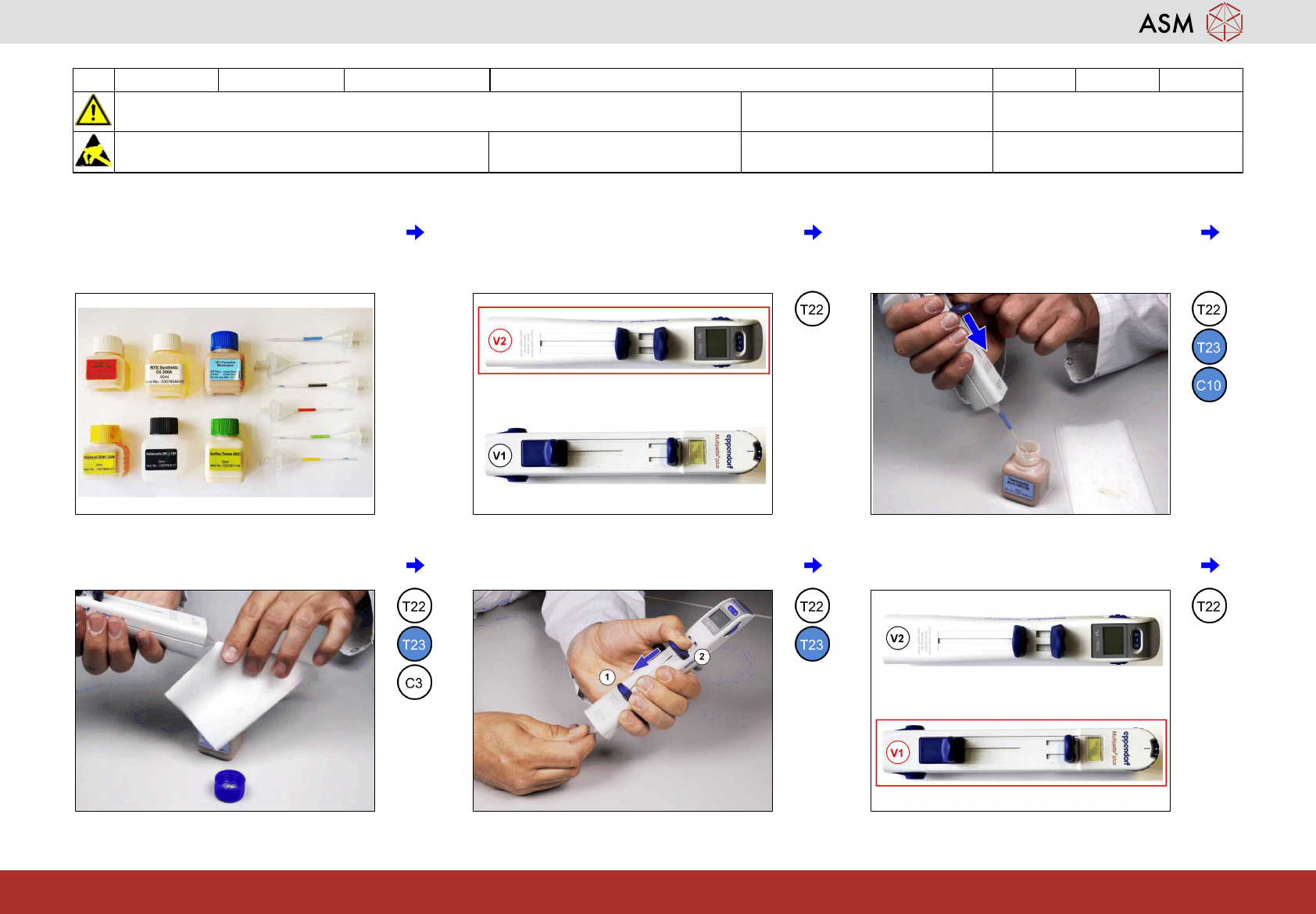

18 3-monthly C&P20 P2/M3 Appendix: Clean-up the multipette 5 min 1 / 2
Refer to safety instructions in user manual before commencing Maintenance
NOTICE! ESD guidelines are to be followed Tool:
T22, T23
Wear Part: Consumables:
C3, C10
www.asm-smt.com
1 The following description is made by way
of example with blue oil and combitip. For
the oil and combitip to be used, see the in-
dividual task.
2 Clean-up the multipette V2. For multipette
V1 proceed with Step 6.
3 Push down the filling lever to empty the
combitip of any remaining lubricant.
4 Clean the combitip outside from contamin-
ation.
5 Push the application lever to remove the
combitip from the multipette.
6 Clean-up the multipette V1.
