1 3-monthly C&P20 P2/M3 Mount the C&P20 P2/M3 head 1 min 1 / 1
Refer to safety instructions in user manual before commencing Maintenance!
NOTICE! ESD guidelines are to be followed! Tool:
T7, T8, T9, T21, T95
Wear Part: Consumables:
www.asm-smt.com

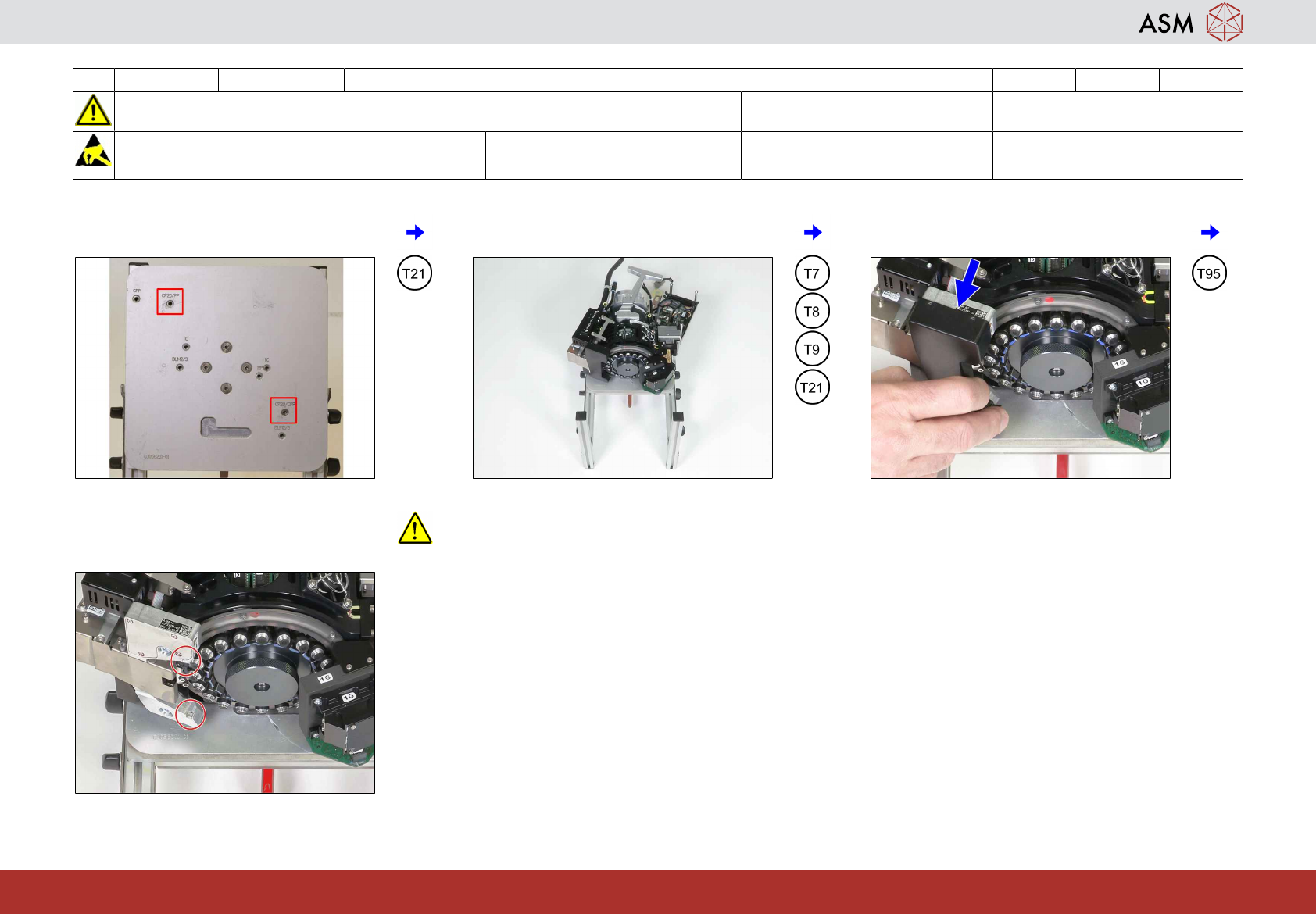

1 Use the marked screw holes. 2 Mount the head at the headstand with a
torque of 2,70 Nm.
3 Remove the component sensor protection.
4 ATTENTION: Work carefully close to the
component sensor as the glass of the
prism can easily be damaged!
