1.3.6 Release History
Document
ASM ProcessLens Single-lane
Service manual
Edition Changes
03/2020 New chapter “4 Machine - Calibrations”
1.3.7 SIPLACE on the World Wide Web (WWW)
Log into our SIPLACE
®
homepage at http://www.asm-smt.com.
The different sections contain information about our products, services and contact persons.
In addition, registered customers can also access the SIPLACE User Group. Here you can call up
special information about our solder paste inspection systems e.g.
● Technical documentation,
● Technical information,
● Spare parts lists etc.
1.4 Staff Qualifications and Training
Qualified or adequately trained personnel means that these people are familiar with the setting up,
operation and maintenance of automatic solder paste inspection systems and add-on devices and
are suitably qualified, e.g.:
● Have been trained, instructed or authorized to switch on and off, isolate, earth and identify
electrical circuits and system components in accordance with normal safety standards.
● Have been trained or instructed in the upkeep and use of appropriate safety equipment in
accordance with normal safety standards.
● Have received first aid training.
ASM ProcessLens Single-lane 03/2020 Edition
14
1.5 Abbreviations
PA Inspection area
ESD Electrostatic sensitive device
EMC Electromagnetic compatibility
SC Single conveyor
PCB Board
ASM ProcessLens Single-lane 03/2020 Edition
15
2 General

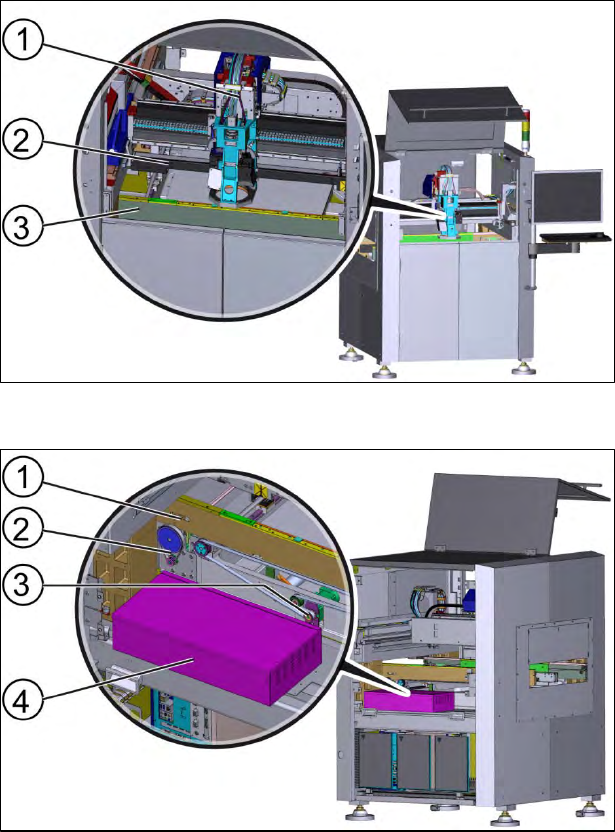

Key:
1) Optical head
2) Stopper and sensors
rail
3) Front Conveyor
Figure 2-1: Machine overview
Figure 2-2: Machine overview
Key:
1) Rear conveyor
2) Conveyor motor
3) Motor for the width
adjustment
4) TSP400
The ASM ProcessLens is an inline solder paste inspection machine which visually inspects 100%
of paste deposits on any given product in 3D and 2D and compares them to their expected volume,
X and Y position, area, mean height and shape.
It also checks for bridging between adjacent pads and coplanarity failures for a group of pads
belonging to the same component.
This visual control is based on the stencil's Gerber data which contains all the apertures, their
shape, size, orientation and position as well as the stencil thickness.
The ASM ProcessLens saves all measurement data on its hard drive. ASM ProcessLens also
measures the warpage of each PCB during the inspection and uses this data to keep the images in
sharp focus by adjusting the height of the Z-axis accordingly. The evolution and history of the
printing process can be visualized through the SPC (Statistical Process Control) package delivered
with the machine.
ASM ProcessLens together with ASM ProcessEngine is a product called ASM ProcessExpert
which provides monitoring, analyzing, correcting and improving the printing process automatically.
For detailed information about the ASM ProcessLens solder inspection machine see also the
operating manual.
