3.16 Changing the motor for the width adjustment
Requirements:
● Machine is switched off.
● Lifting table plate is dismantled.
Key:
1) Tension ring
2) Screw A
3) Screw B (2 x)
4) Width adjustment belt
5) Motor
Figure 3-51: Motor of the width adjustment
1. Unscrew the screw A (2) to loosen the tension ring (1).
2. Unscrew the screw B (2 x) using an Allen key size 3.0
Key:
1) Connectors for the width
adjustment motor
2) TSP400
Figure 3-52: TSP400
3. Disconnect the connectors of the TSP400.
4. Replace the motor.
5. Connect the connectors to the TSP400.
6. Tighten the screws.
7. Go to section 3.16.1 Check system test to check the function.
ASM ProcessLens Single-lane 03/2020 Edition
47
Installation
Follow the removal instructions in reverse order for installation.
3.16.1 Check system test
Requirement:
● Machine is switched on.

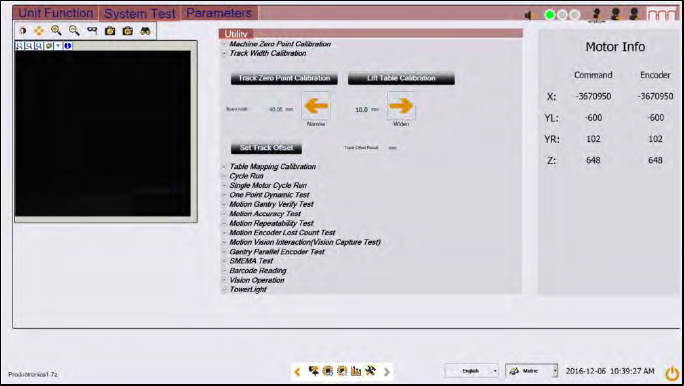

Figure 3-53: Diagnostic page
1. Open the Diagnostic page.
2. Go to the tab "System Test"
3. Click on the button "Track zero point calibration"
4. A message will indicate that the calibration was successful.
5. Go to the tab Unit function.
6. Proceed to the conveyer section and press the buttons "Track Home".
7. On screen messages will confirm the successful function test.
8. If the conveyor system does not move or any fault message occurs, the conveyor system
needs to be adjusted.
ASM ProcessLens Single-lane 03/2020 Edition
48
3.17 Changing the motor of the lifting table
Requirement:
● Machine is switched off.
Key:
1) Screw (4 x)
2) Motor of the lifting table plate
3) Lifting table plate
Figure 3-54: Lifting plate
1. Unscrew the screws (1) off the lifting table plate (3) using an Allen key size 5.0.
2. Remove the lifting table plate (3).
3. Disconnect all connectors from the TSP400.
Key:
1) Screw (3 x)
Figure 3-55: Lifting table motor
4. Unscrew the screws (1) off the lifting table motor using an Allen key size 5.0.
