ASM ProcessLens Single-lane 03/2020 Edition
48
3.17 Changing the motor of the lifting table
Requirement:
● Machine is switched off.
Key:
1) Screw (4 x)
2) Motor of the lifting table plate
3) Lifting table plate
Figure 3-54: Lifting plate
1. Unscrew the screws (1) off the lifting table plate (3) using an Allen key size 5.0.
2. Remove the lifting table plate (3).
3. Disconnect all connectors from the TSP400.
Key:
1) Screw (3 x)
Figure 3-55: Lifting table motor
4. Unscrew the screws (1) off the lifting table motor using an Allen key size 5.0.
ASM ProcessLens Single-lane 03/2020 Edition
49
Key:
1) Stopper screw
2) Cam
3) Screw A
Figure 3-56: Lifting table motor
5. Unscrew screw A (3) from the cam using an Allen key size 5.0
6. Remove the motor.
3.17.1 Replace the motor of the lifting table
Requirements:
● Machine is switched off.
● The motor of the lifting table is dismantled.
● The lifting table plate is dismantled.
1. Position the lifting table motor.
2. Connect the connectors at the TSP400.
Key:
1) Stopper screw
2) Cam
3) Screw A
Figure 3-57: Lifting table motor
3. Put the cam (2) in the right position so that the cam hits the stopper screw (1). Fasten the
screw of the cam using an Allen key size 5.0.
NOTICE
Positioning of the cam
The cam must be in the position as shown in the picture when the screw is tightened. It
ASM ProcessLens Single-lane 03/2020 Edition
50
must hit the stopper screw.

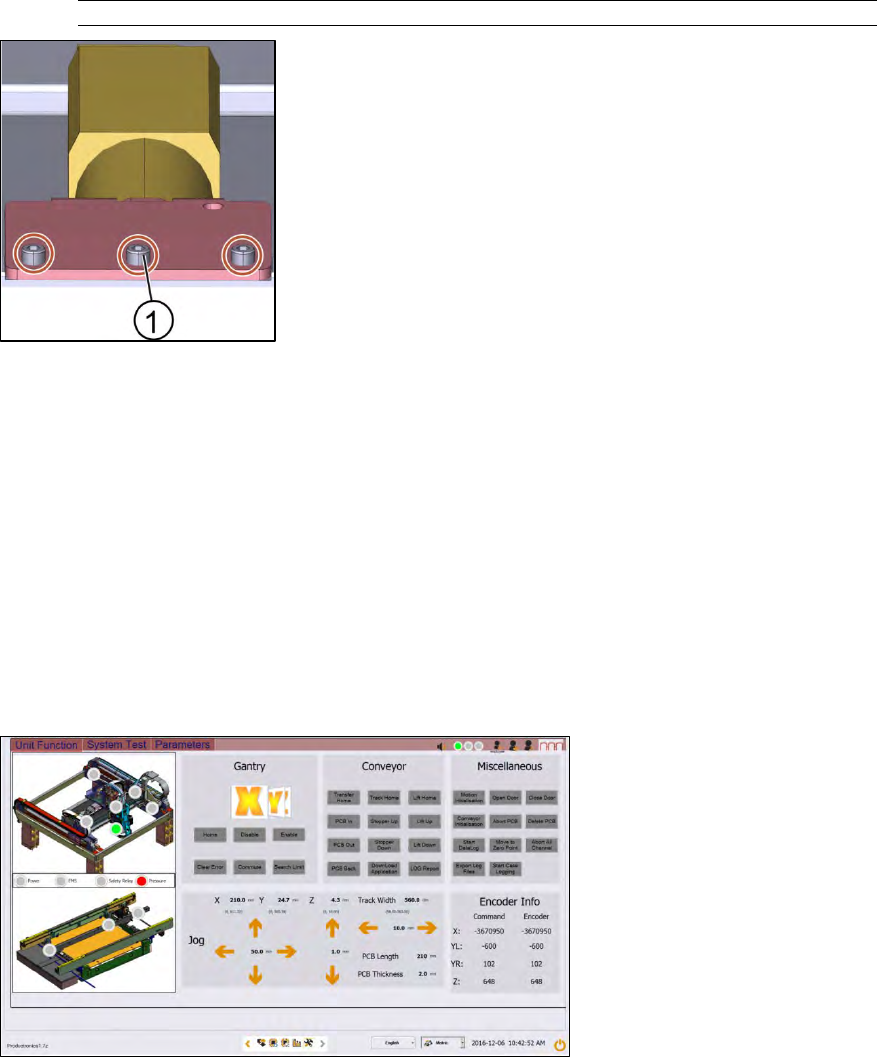

Key:
1) Screw (3 x)
Figure 3-58: Lifting table motor
4. Fasten the screws (1) of the conveyor motor using an Allen key size 5.0.
5. Put the lifting table plate back on.
6. Fasten the four screws of the lifting table plate using an Allen key size 5.
7. Check the function of the table go to section 3.17.2 Check the function of the motor of the lifting
table.
3.17.2 Check the function of the motor of the lifting table
Requirement:
● Machine is switched on.
Figure 3-59: Diagnostic page
1. Go to the diagnostic pages.
2. Click on the tab "Unit Function".
3. Click on the buttons "Lift Home", "Lift Up" and "Lift Down".
4. If the conveyor system does not move or any fault messages occur see troubleshooting.
