ASM ProcessLens Single-lane 03/2020 Edition
49
Key:
1) Stopper screw
2) Cam
3) Screw A
Figure 3-56: Lifting table motor
5. Unscrew screw A (3) from the cam using an Allen key size 5.0
6. Remove the motor.
3.17.1 Replace the motor of the lifting table
Requirements:
● Machine is switched off.
● The motor of the lifting table is dismantled.
● The lifting table plate is dismantled.
1. Position the lifting table motor.
2. Connect the connectors at the TSP400.
Key:
1) Stopper screw
2) Cam
3) Screw A
Figure 3-57: Lifting table motor
3. Put the cam (2) in the right position so that the cam hits the stopper screw (1). Fasten the
screw of the cam using an Allen key size 5.0.
NOTICE
Positioning of the cam
The cam must be in the position as shown in the picture when the screw is tightened. It
ASM ProcessLens Single-lane 03/2020 Edition
50
must hit the stopper screw.
Key:
1) Screw (3 x)
Figure 3-58: Lifting table motor
4. Fasten the screws (1) of the conveyor motor using an Allen key size 5.0.
5. Put the lifting table plate back on.
6. Fasten the four screws of the lifting table plate using an Allen key size 5.
7. Check the function of the table go to section 3.17.2 Check the function of the motor of the lifting
table.
3.17.2 Check the function of the motor of the lifting table
Requirement:
● Machine is switched on.
Figure 3-59: Diagnostic page
1. Go to the diagnostic pages.
2. Click on the tab "Unit Function".
3. Click on the buttons "Lift Home", "Lift Up" and "Lift Down".
4. If the conveyor system does not move or any fault messages occur see troubleshooting.
ASM ProcessLens Single-lane 03/2020 Edition
51
3.18 Changing the spare parts of the stopper and sensors rail
The stopper and sensors rail consists of these following spare parts:
● Input sensor
● Sonar sensor
● Stopper
● Output sensor
3.18.1 Changing the sensors of the stopper and sensors rail
Key:
1) Stopper and sensors rail

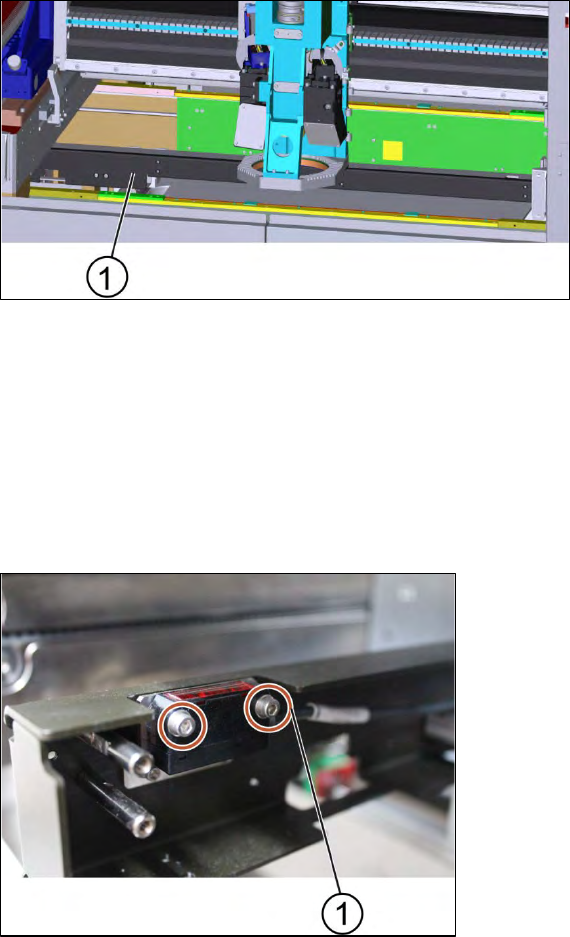

Figure 3-60: Stopper unit
Requirement:
● Machine is switched off.
1. Remove the cover of the stopper and sensors rail by unscrewing 10 x screws using an Allen
key size 2.0 (small screws).
2. Furthermore unscrew 4 x screws using an Allen key size 2.5 (large screws).
3. The cover is removed.
Key:
1) Screw (2 x)
Figure 3-61: Sensor
4. Unscrew the screws to remove the input sensor, sonar sensor or output senor using an Allen
key size 2.0.
5. Change the sensors and tighten the screws (2 x).
6. Put the cover back onto the stopper and sensors rail and tighten the screws (14 x).
