ASM ProcessLens Single-lane 03/2020 Edition
53
3.19 Changing the TSP400
3.19.1 Removing the TSP400
Key:
1) TSP400
Figure 3-63: TSP400
Requirement:
● Machine is switched off.
1. Disconnect all connectors of the board.
2. Unscrew all screws (16) using an T shaped Allen key size 2.5.
3. Remove the circuit board.
3.19.2 Replacing the TSP400
Requirement:
● Machine is shut off.
● TSP400 is dismantled.
1. Place the new TSP400 into the box.
2. Tighten the screws (16 x).
ASM ProcessLens Single-lane 03/2020 Edition
54
Key:
1) Switches
2) TSP400
Figure 3-64: Switch at TSP400
3. Check whether the switches on the circuit board are in the right "ON" or "OFF" position.
Number Position of the switch (ON/OFF)
1 OFF
2 OFF
3 OFF
4 OFF
5 ON
6 ON
7 OFF
8 ON
Table 3-3: Position of the switch at the TSP400
Key:
1) Jumper
Figure 3-65: Jumpers at TSP400
4. Check that the jumpers are in place as shown in the picture above.
ASM ProcessLens Single-lane 03/2020 Edition
55

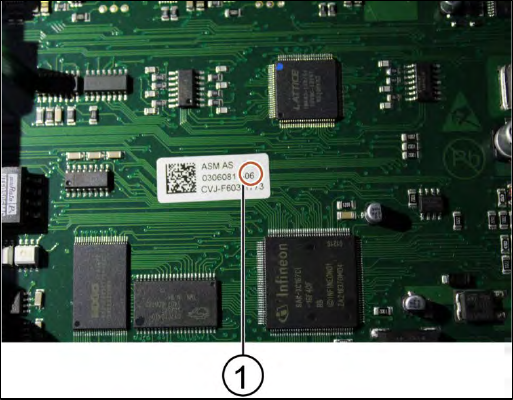

Key:
1) TSP400 version number
Figure 3-66: TSP400 version number
5. Check that the Version of the circuit board is of number 6 and above. See label.
Installation
Follow the removal instructions in section “Removing the TSP400” in reverse order for installation.
