ASM ProcessLens Single-lane 03/2020 Edition
66

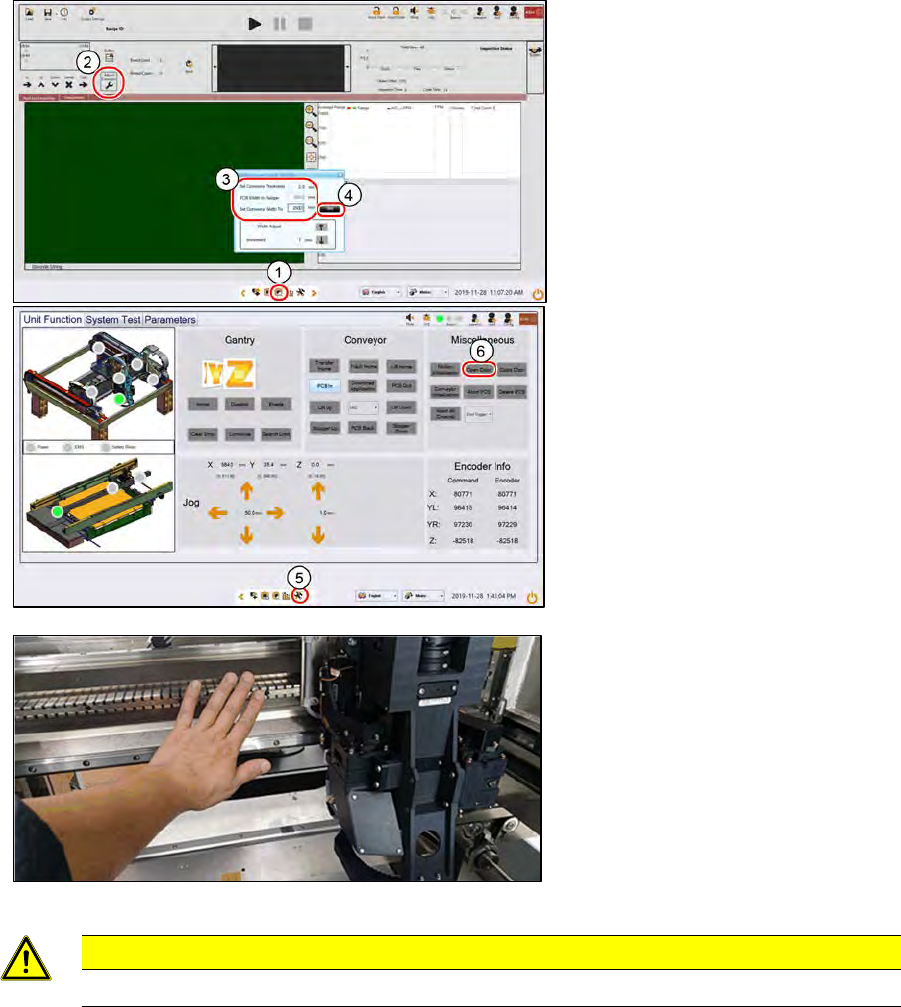

Step 2
1.
Go to Inspection Page.
2.
Click Adjust Conveyor.
3.
Set the following;
● Thickness, 4mm.
● Width, 250mm
4.
Click Set.
5.
Click Diagnostic Page.
6.
At Miscellaneous, click Open
Door.
7.
Push the gantry to the back
CAUTION
Do not push on the camera module. Remove all supporting pins.
ASM ProcessLens Single-lane 03/2020 Edition
67

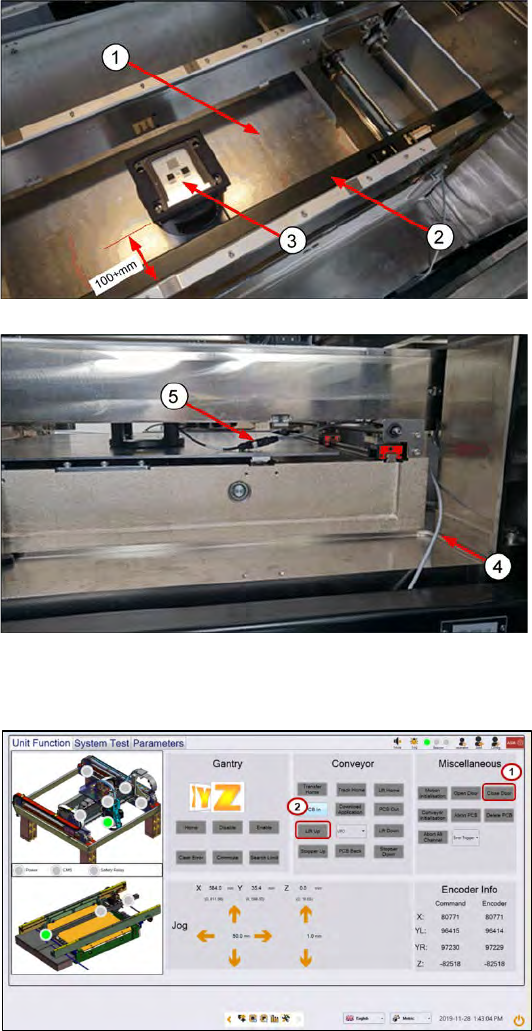

Step 3
1.
Clean the lift table of any debris.
2.
Pull the sensor bar towards the
front conveyor.
3.
Place the target on the table in
the middle of the conveyor about
100+mm away from the front
conveyor´s edge. Align the target
parallel to the conveyor.
4.
Loop the lighting cable from the
right of the lift table through the
gap and over the conveyor ball
screw as shown. This will prevent
the cable from getting crushed
when the lift table is raised.
5.
Connect the lighting cable from
the machine to the target.
Step 4
1.
Close the machine cover. Click
Close Door to lock the cover.
2.
Click Lift Up to lift up the Lifting
Table.
ASM ProcessLens Single-lane 03/2020 Edition
68

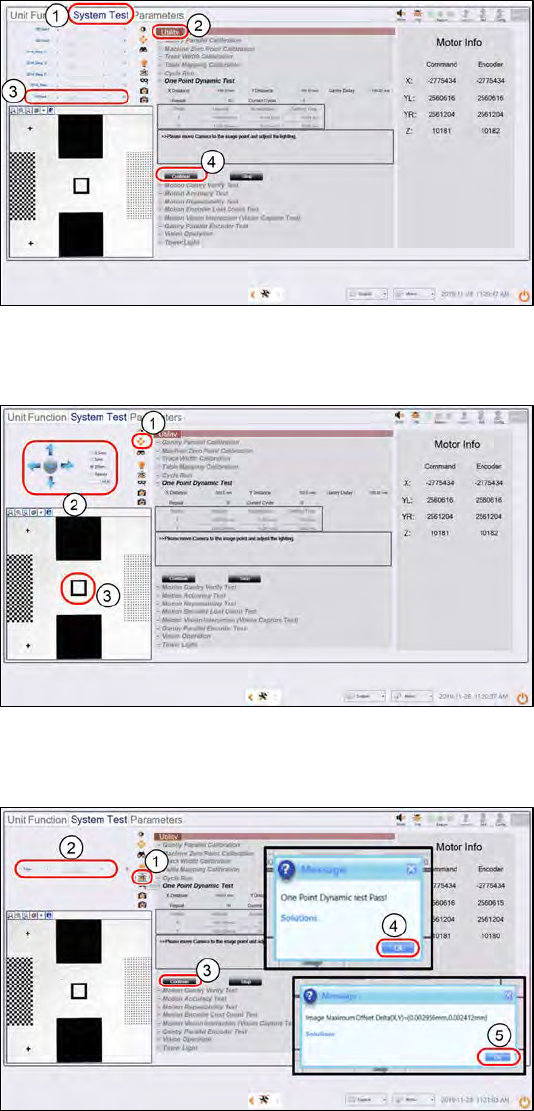

Step 5
1.
Click System Test.
2.
At Utility, select One Point
Dynamic Test.
3.
At the Lighting Box menu, set
Back light to 25 and all other
lighting values to 0.
4.
Click Continue.
Step 6
1.
Click on Jogging.
2.
Click on the directional arrows to
jog the camera over to the target
until the square target comes into
view.
3.
Click the centre of the square
target. The camera centres the
FOV to the square target.
Step 7
1.
Click on Focus icon.
2.
Set value between 50 ~ 60 till
image is clear.
3.
Click Continue. One Point
Dynamic test starts.
4.
Test will end estimate 65sec, click
Ok.
5.
The results are displayed.
The offset from the target should
be ≤ 10μm in both X and Y
directions. Click Ok.
