Check the contents of the top.dev file:
1. Open up the top.dev file using a text
editor.
2. Change the Expect Height to be the same
as that stated in the target´s certificate. The
Expect Height must be equal to the
calibrated height in µm stated in the
certificate.
3. In this example, change the Expect Height
to the height of the target 119.8µm as stated
in the certificate.
ASM ProcessLens Single-lane 03/2020 Edition
83

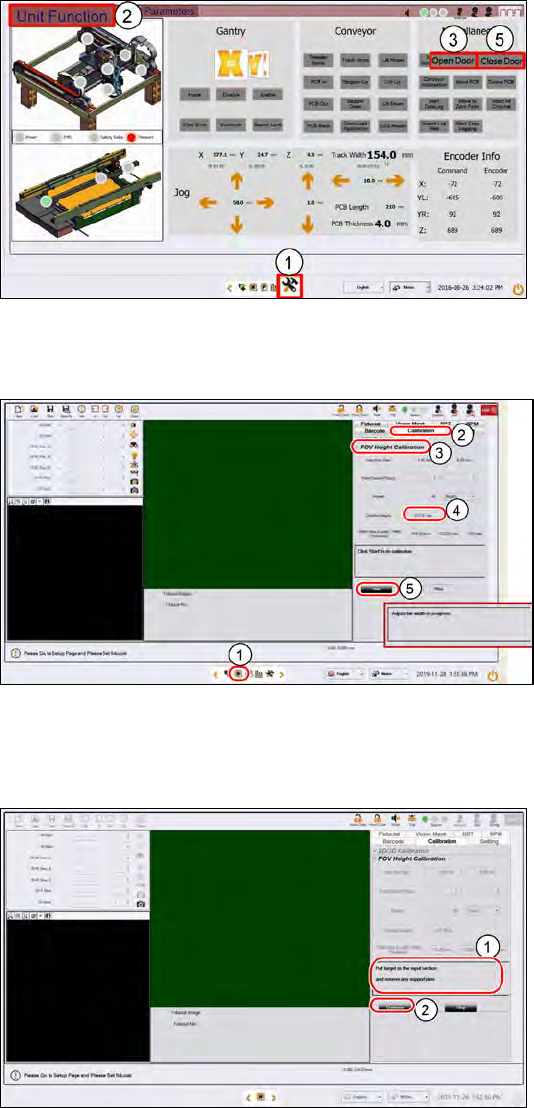

Step 2
1.
Go to the DiagnosticPage.
2.
Click Unit Function.
3.
At Miscellaneous, click Open
Door.
4.
Open the cover, remove all
support pins.
5.
Close the cover. Click Close
Door to lock the cover
Step 3
1.
Click on the Teach page.
2.
Click on Calibration.
3.
Click on FOV Height Calibration.
4.
Input the target´s Certified
height.
5.
Select Start.
The conveyor adjusts to the
width
of the target fixture.
(If there are support pins on
the
conveyor, open the cover and
remove them now.)
Step 4
1.
Place the target on the input
section.
2.
Click Continue.
The target loads to the inspection
section and the camera moves to
the centre of the target.
ASM ProcessLens Single-lane 03/2020 Edition
84
Step 5
1.
Click on the centre of the target.
The FOV centres to the target.
2.
Click Continue. ProcessLens
adjusts the lighting, then starts the
teach process.
3.
After 11.5 minutes, a "FOV
Height Calibration
succeeds!" message pops up.
4.
Click OK.
Step 6
1.
Select Verify.
2.
Click Start.
3.
Click Yes to the next message as
the target is still on the conveyor.
NOTICE
If the calibration fails, stop the process. Remove the target and inspect the target under a
microscope for foreign material. Remove any foreign material with a clean, dry, soft hair
Step 7
1.
Click on the center of the target.
The FOV center’s to the target.
2.
Click Continue. ProcessLens
adjusts the lighting, and then
starts the verification process.
3.
A "
FOV Height Verification
succeeds!" message pops up.
Click OK.
