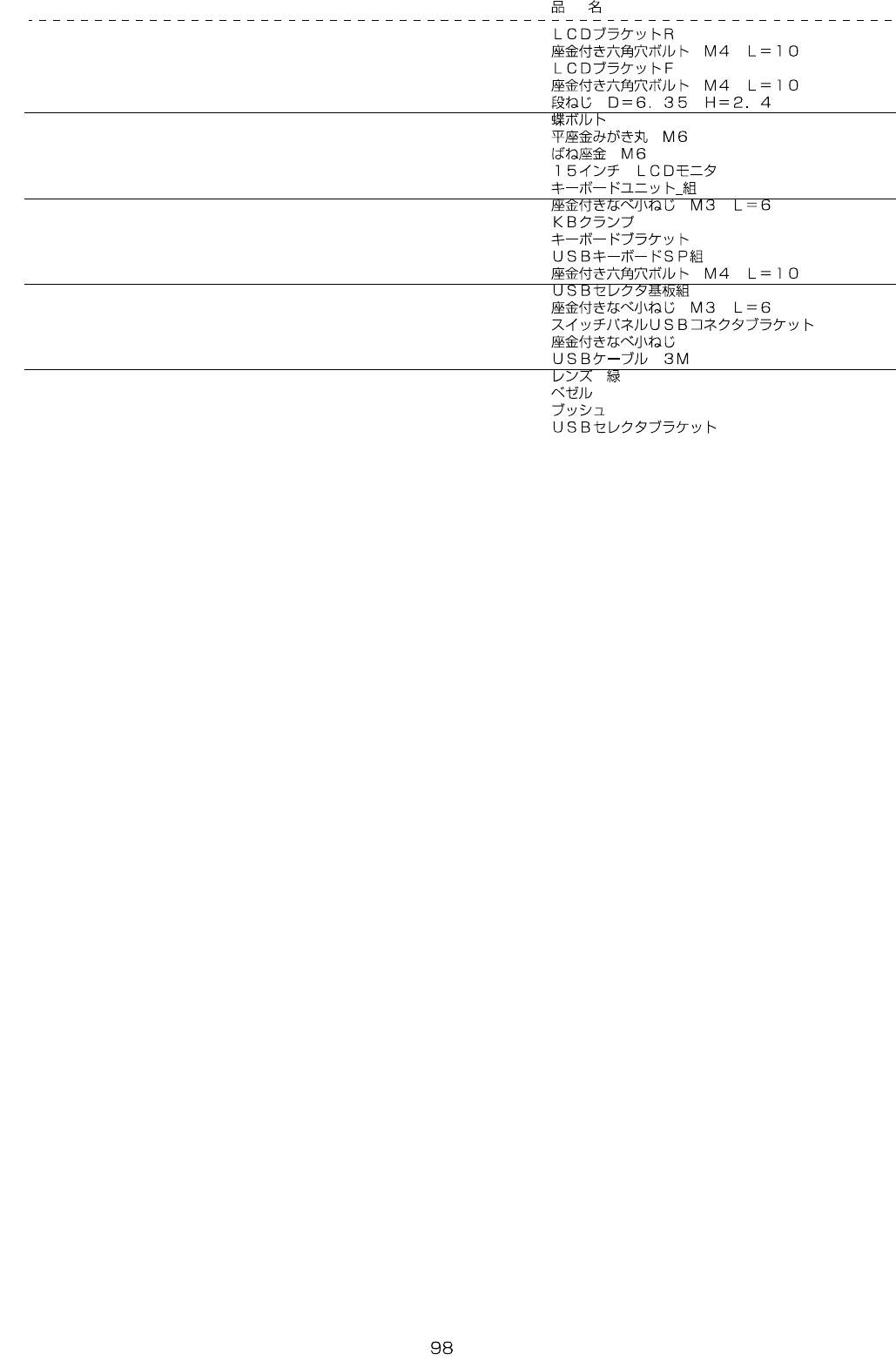

49.REARMONITORCOMPONENTS

- -

REF.NO NOTE PARTNO DESCRIPTION Qty

1 400-47171 LCDBRACKETR 1

2 SL-6041092-TN SCREWM4L=10 4

3 400-47170 LCDBRACKETF 1

4 SL-6041092-TN SCREWM4L=10 4

5 SD-0640246-SP HINGESCREWD=6.35H=2.4 2

6 161-87007 WINGBOLT 1

7 WP-0641601-SC WASHERM6 1

8 WS-0610002-KN SPRINGWASHERM6 1

9 401-58158 15INCHLCDMONITOR 1

10 401-47627 ASM_KEYBOARD_UNIT 1

11 SL-4030691-SC SCREWM3L=6 (2)

12 401-23713 KBCLAMP (1)

13 401-36976 KB_BRACKET (1)

14 401-23194 USBKEYBOARDSPASM (1)

15 SL-6041092-TN SCREWM4L=10 2

16 401-41515 USBSELECTPCBASM 1

17 SL-4030691-SC SCREWM3L=6 4

18 401-47142 SWITCH_PANEL_USB_CONN_BR 1

19 SL-4021091-SC SCREWM2L=10 2

20 401-48260 USBCABLE3M 1

21 HA-0055300-10 LENSGREEN 2

22 HA-0055300-2A BEZEL 2

23 E5348-033-100 CABLEPROTECTOR106MM 0.16

24 401-47576 USB_SELECTOR_BR 1

- -

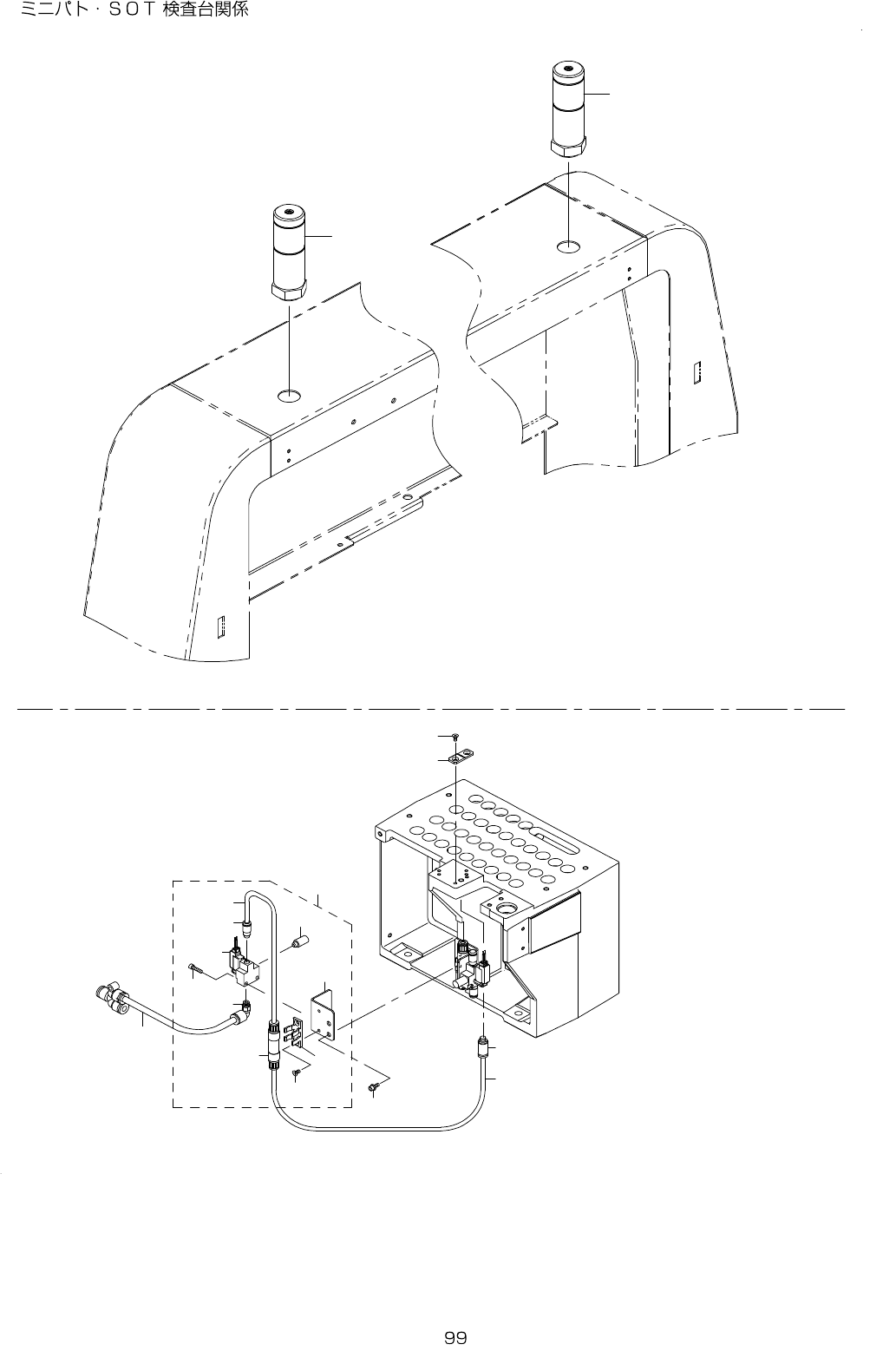

50.MINIPAT&SOTCHECKTABLECOMPONENTS

1 7

1 6

1 5

1 0

1 1

1 3

1 2

1 4
