- - 52. CONVEYORE XTENTIONCOM PONENTS

- -

REF.NO NOTE PARTNO DESCRIPTION Qty

1 400-27209 FCSPWBASM(FORFCS) 1

2 400-11454 GLASSPWB(FORMNVC) (1)

3 400-18223 JIGPWBBASE(FORCHIP) (1)

4 400-27196 DRAWINGPAPER (1)

5 400-34082 FCSPOSITIONINGSEAL 1

6 400-20304 FCSJIGCHIPB 2

7 400-27147 SILICONSHEET 96

8 E2101-998-000 JIGNOZZLEA(V001) 1

9 400-27210 FCSCARRYINGCASE 1

10 400-66810 INNERPACKAGEA 1

11 400-66811 INNERPACKAGEB 1

12 400-27198 MENDINGTAPE 1

13 400-27316 FCSJIFCHIPCASE 1

14 400-27312 FCSJIGCHIPHOLDER (1)

15 400-27313 INNERA (2)

16 400-27314 INNERB (1)

17 400-27315 INNERC (2)

18 400-27410 INNERD (1)

19 400-11453 CALPIECEG 2

20

#01

400-71544 FCSOPERATIONMANUAL(ST) 1

21

#02

400-71545 FCSOPERATIONMANUAL(JE) 1

22

#03

400-71546 FCSOPERATIONMANUAL(CH) 1

23 400-01344 NOZZLEASSEMBLY506 1

24 400-66812 CUSHIONA 1

25 400-66813 CUSHIONB 1

26 400-27235 TRAYSEE 1

27 400-46647 JIGNOZZLELNC 1

- -

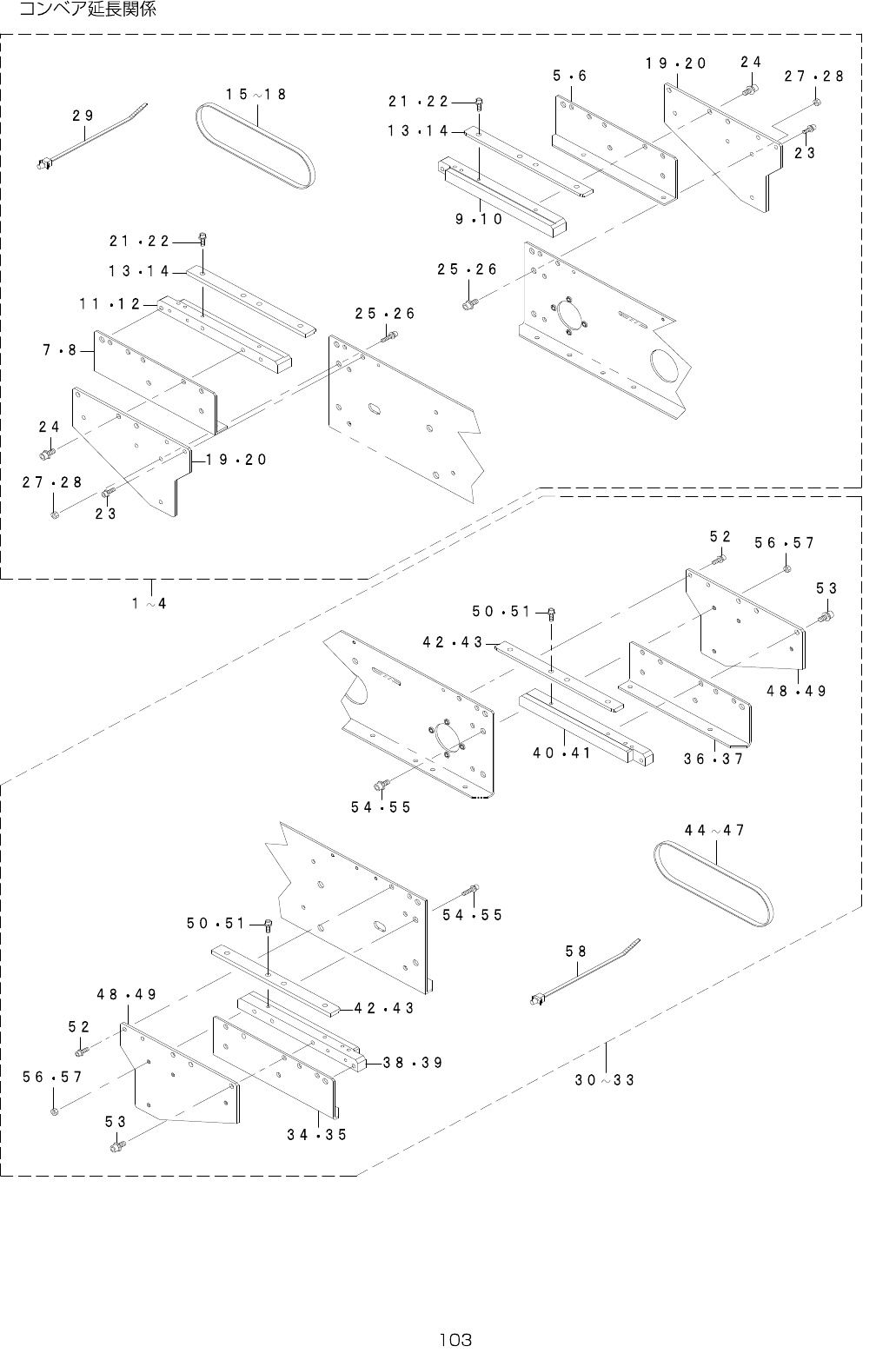

52.CONVEYOREXTENTIONCOMPONENTS

- -

REF.NO NOTE PARTNO DESCRIPTION Qty

1

#01

401-14918 CONVEYOREXTENSION150M_ASM_L 1

2

#02

401-14919 CONVEYOREXTENSION250M_ASM_L 1

3

#03

401-52996 CONVEYOREXTENSION150L_ASM_L 1

4

#04

401-14921 CONVEYOREXTENSION250L_ASM_L 1

5

#05

400-11053 RAILPLATEF(150) (1)

6

#06

400-11060 RAILPLATEF(250) (1)

7

#05

400-11054 RAILPLATER(150) (1)

8

#06

400-11061 RAILPLATER(250) (1)

9

#05

400-11055 RAILF(150) (1)

10

#06

400-11062 RAILF(250) (1)

11

#05

400-11056 RAILR(150) (1)

12

#06

400-11063 RAILR(250) (1)

13

#05

400-11057 PWBGUIDEEX(150) (2)

14

#06

400-11064 PWBGUIDEEX(250) (2)

15

#01

401-14731 CONVEYOR_BELT_M_EX150 (2)

16

#02

401-14732 CONVEYOR_BELT_M_EX250 (2)

17

#03

400-11058 CONVEYORBELTEX(150) (2)

18

#04

400-11065 CONVEYORBELTEX(250) (2)

19

#05

400-11072 JOINTPLATEF(150) (2)

20

#06

401-40931 JOINT_PLATE_250 (2)

21

#05

SL-6031092-TN SCREW (6)

22

#06

SL-6031092-TN SCREW (8)

23 SL-6031092-TN SCREW (4)

24 SL-6041292-TN SCREWM4L=12 (6)

25

#05

SL-6041092-TN SCREWM4L=10 (8)

26

#06

SL-6041092-TN SCREWM4L=10 (12)

27

#05

NM-6040002-SN NUTM4X0.7TYPE2 (8)

28

#06

NM-6040002-SN NUTM4X0.7TYPE2 (12)

29 HX-0044000-00 CABLEBAND (5)

30

#07

401-14935 CONVEYOREXTENSION150M_ASM_R 1

31

#08

401-14936 CONVEYOREXTENSION250M_ASM_R 1

32

#09

401-14937 CONVEYOREXTENSION150L_ASM_R 1

33

#10

401-14938 CONVEYOREXTENSION250L_ASM_R 1

34

#11

400-11053 RAILPLATEF(150) (1)

35

#12

400-11060 RAILPLATEF(250) (1)

36

#11

400-11054 RAILPLATER(150) (1)

37

#12

400-11061 RAILPLATER(250) (1)

38

#11

400-11055 RAILF(150) (1)

39

#12

400-11062 RAILF(250) (1)

40

#11

400-11056 RAILR(150) (1)

41

#12

400-11063 RAILR(250) (1)

42

#11

400-11057 PWBGUIDEEX(150) (2)

43

#12

400-11064 PWBGUIDEEX(250) (2)

44

#07

401-14731 CONVEYOR_BELT_M_EX150 (2)

45

#08

401-14732 CONVEYOR_BELT_M_EX250 (2)

46

#09

400-11058 CONVEYORBELTEX(150) (2)

47

#10

400-11065 CONVEYORBELTEX(250) (2)

48

#11

400-11072 JOINTPLATEF(150) (2)

49

#12

401-40931 JOINT_PLATE_250 (2)

50

#11

SL-6031092-TN SCREW (6)

51

#12

SL-6031092-TN SCREW (8)

52 SL-6031092-TN SCREW (4)

53 SL-6041292-TN SCREWM4L=12 (6)

54

#11

SL-6041092-TN SCREWM4L=10 (8)

55

#12

SL-6041092-TN SCREWM4L=10 (12)

56

#11

NM-6040002-SN NUTM4X0.7TYPE2 (8)

57

#12

NM-6040002-SN NUTM4X0.7TYPE2 (12)

58 HX-0044000-00 CABLEBAND (5)
