- - REF.NO NOTE PARTNO DESCRIPTION Qty 1 #01 400-45523 FLU XERCYLUNITPLASM 1 2 #02 400-99143 FLU XERCYLBANKUNITPLASM 1 3 #01 400-42180 FLU XERCYLINDERUNITASM (1) 4 #02 400-97610 F LUXERCYL…
- -
55.FLUXERSUPPLYDEVICECOMPONENTS
3 6
1 0
2 4
2 0
1 1
9
2 5
3 4
3 4
3 4
3 5
6
5
2 2
2 4
1 9
1 9
8
1 8
1 2
7
1 6
1 7
1 9
1 4
1 5
1 8
1 2
1 3
2 1
2 3
3 1
3 2
3 0
2 7
3 4
3 4
2 8
3 3
3 0
2 6
2 7
2 9
8 4
8 5
3 7
5 0
7 4
4 9
7 3
6 3
7 5
7 7
9 2
7 0
6 9
6 8
7 5
7 6
8 2
5 3
6 4
6 5
5 6
5 5
5 4
7 1
7 2
6 7
6 6
6 2
6 1
6 0
5 9
5 7
5 8
5 1
5 2
8 9
8 8
8 7
8 6
4 6
4 7
4 5
4 4
4 3
4 2
4 1
4 0
3 9
3 8
4 8
9 1
9 0
8 3
8 07 8
7 9
8 1
- -
REF.NO NOTE PARTNO DESCRIPTION Qty
1
#01
400-45523 FLUXERCYLUNITPLASM 1
2
#02
400-99143 FLUXERCYLBANKUNITPLASM 1
3
#01
400-42180 FLUXERCYLINDERUNITASM (1)
4
#02
400-97610 FLUXERCYLINDERBANKUNITASM (1)
5 EA-9500B02-00 CABLEBAND150 (1)
6 400-44050 FLUXERCYLUNIT (1)
7 400-44094 FLUXCONTAINERCOVER (1)
8 400-44093 FLUXCONTAINER (1)
9 400-50208 SLIDINGPLATEASM (1)
10 400-50212 LINEARSLIDE (1)
11 400-50262 BASEPLATEASM (1)
12 400-50209 RIGHTLEVERHOLDERASM (1)
13 400-50550 TERMINALSTRIP (1)
14 400-50215 CYL.SCREWM3-8 (2)
15 400-50217 LENSSCREWM3-6BN1593 (2)
16 400-50211 SOLENOIDVALVE (1)
17 400-50551 SVCABLEASM (1)
18 400-50214 CYL.SCREWM3-6 (8)
19 400-50216 SUNKSCREWM4-12BN21 (6)
20 400-50549 REEDSWITCH (2)
21 400-50210 LEFTLEVERHOLDERASM (1)
22 EA-9500B01-00 CABLEBAND (1)
23 400-66695 FLUXSCRAPER (1)
24 400-50485 RUBBERCAP (2)
25
#01
400-94966 FLUXERBASEASM 1
26
#01
400-44084 BASEFRAMERIB (1)
27
#01
400-94738 FLUXERFRAME (2)
28
#01
SL-6041492-TN SCREW (1)
29
#01
SM-6051602-TN SCREW (4)
30
#01
SL-6042092-TN SCREWM4L=20 (4)
31
#01
HX-0029400-00 FIXEDBASE (1)
32
#01
SM-4040801-SC SCREWM4X0.7L=8 (1)
33
#01
SL-6062092-TN SCREWM6L=20 (4)
34
#01
SM-6041202-TN SCREWM4X0.7L=12 (8)
35
#01
400-94737 FLUXERBASE (1)
36 SL-6042092-TN SCREWM4L=20 4
37
#03
400-94938 FLUXERBASEASMM 1
38
#03
400-93954 ADJUSTPIN (1)
39
#03
400-94909 ADJUSTPINBR (1)
40
#03
SL-6040892-TN SCREWM4L=8 (4)
41
#03
400-93960 FLUXERSTUD (4)
42
#03
400-93958 NUTM8P1 (4)
43
#03
400-94910 STCLAMPBRM (1)
44
#03
SL-6040892-TN SCREWM4L=8 (4)
45
#03
E1214-726-000 STCLAMP (1)
46
#03
E1109-723-000 LOCKHOLDER (1)
47
#03
SL-4040881-SC SCREWM4L=8 (4)
48
#03
400-93959 FLUXERBASE (1)
49
#03
SL-6041642-TN SCREW (1)
50 SL-6041492-TN SCREW 4
51 HX-0029400-00 FIXEDBASE 4
52 SM-4040601-SC SCREWM4X0.7L=6 4
53
#04
400-94943 FLUXERBASEASME 1
54
#04
400-94487 STCLAMPBRE (1)
55
#04
SL-6040892-TN SCREWM4L=8 (4)
56
#04
E1214-726-000 STCLAMP (1)
57
#04
400-93955 FLUXERBASEE (1)
58
#04
400-93957 XSTOPPERBR (1)
59
#04
PH-0400062-C0 PARALLELPINTYPEB4X6 (1)
60
#04
SL-6030592-TN SCREWM3L=5 (2)
61
#04
400-77518 SLIDERAIL (2)
62
#04
SM-3031052-TN SCREWM3L=10 (14)
63
#04
ST-1030651-SN TAPPINGSCREWD=3L=6 (2)
64
#04
E1109-723-000 LOCKHOLDER (1)
65
#04
SL-4040881-SC SCREWM4L=8 (4)
66
#04
400-78576 RAILCAP (2)
67
#04
SM-1031201-SC SCREWM3X0.5L=12 (2)
68
#04
400-77519 PLUNGERPLATE (2)
69
#04
400-77520 YSTOPPERPLATE (2)
70
#04
SL-6051092-TN SCREWM5L=10 (4)
71
#04
400-93956 FLUXERSTUDE (4)
72
#04
400-93958 NUTM8P1 (4)
73
#04
SL-6041642-TN SCREW (1)
74 SL-6041492-TN SCREW 4
75 HX-0029400-00 FIXEDBASE 2
76 SM-4040601-SC SCREWM4X0.7L=6 1
77 SM-4030601-SC SCREWM3X0.5L=6 1
78 400-44090 FLUXERPLATE120/200 1
79 400-44165 JIGPLATASM 1
80 400-44091 FLUXERPLATE30/50/70/100 1
81
#02
HX-0024500-00 CABLECLAMP 4
82
#02
SM-4040601-SC SCREWM4X0.7L=6 4
83 PJ-3010400-04 REDUCER 1
84
#01
PJ-3080600-03 UNIONY 1
85
#01
BT-0600400-EC URETHANETUBEBLUE6X4 0.5
86
#02
PJ-0320090-05 NIPPLE 2
87
#02
PJ-3030600-01 STRAIGHTUNION 2
88
#02
BT-0600400-EC URETHANETUBEBLUE6X4 4
89 BT-0400251-EA URETHANETUBEBLUE4X2.5 4
90 EA-9500B01-00 CABLEBAND 16
91 EA-9500B02-00 CABLEBAND150 20
92 PJ-3050600-04 TEE 1
- -

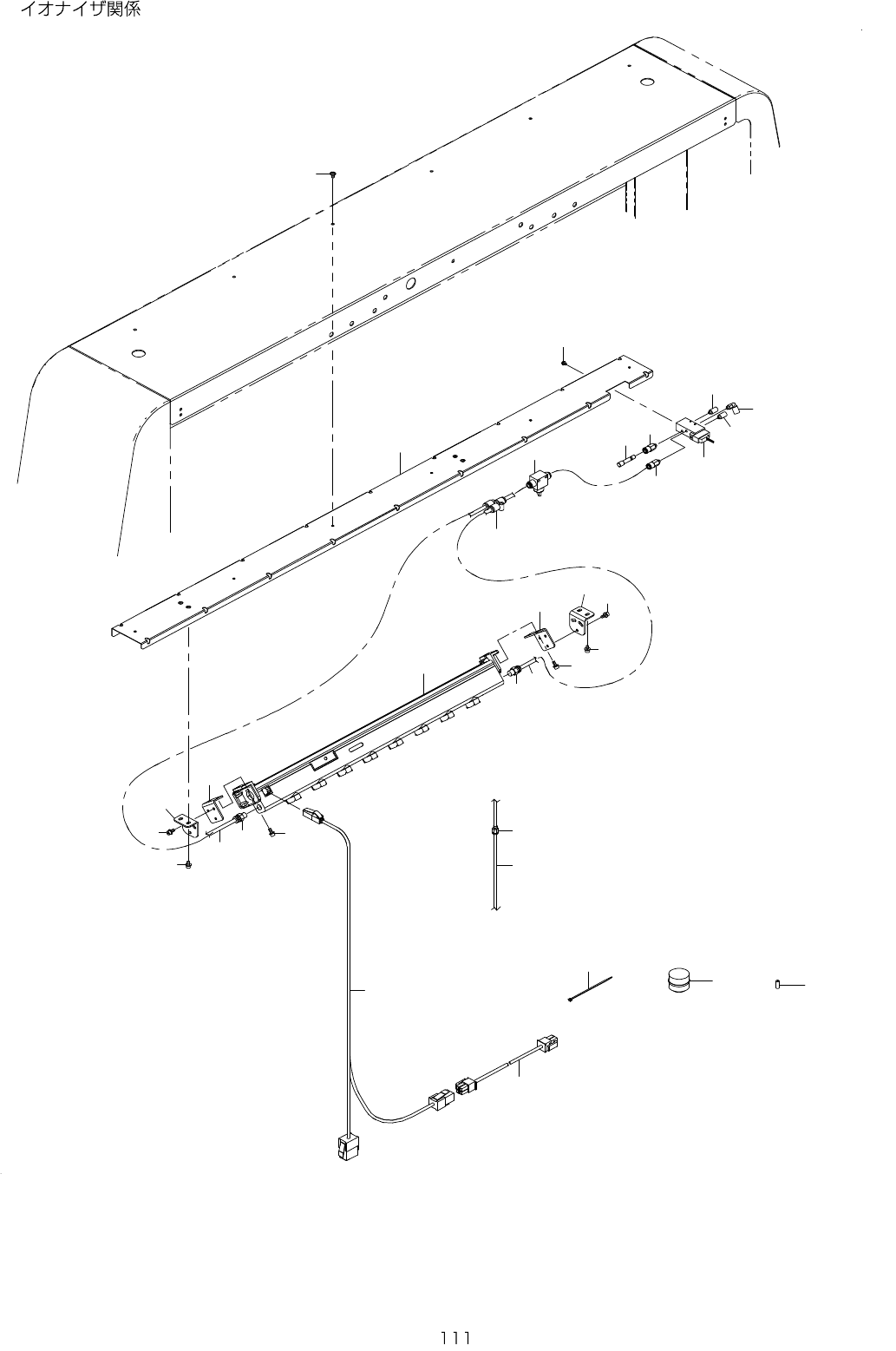

56.IONIZERCOMPONENTS
7
6
1 3
1 0
4
9
2
9
1 1
1 4
1 5
1 2
5
9
4
1 1
2 2
1 0
2
9
2 2
2 0
2 3
1 9
1 9
1 6
1 7
1 7
1 8
3
2 1
8
1
2 4
