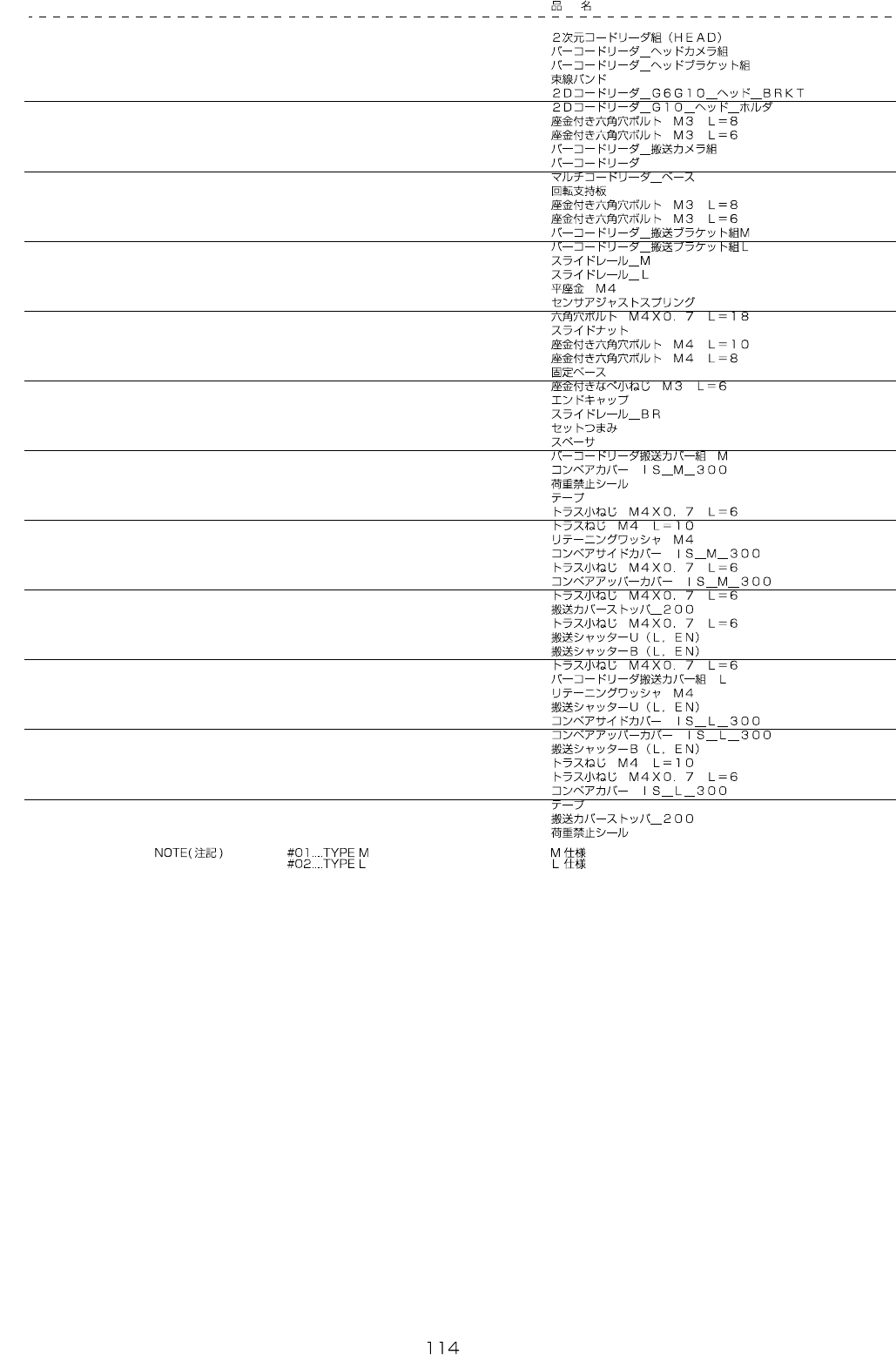

- - 58. ROTARYTYPE SOLDERTRANSFER UNIT

- -

REF.NO NOTE PARTNO DESCRIPTION Qty

#01

401-22928 2DCODEREADERASMHEAD 1

2 401-40671 BCRD_HEAD_CAMERA_ASM (1)

3 401-40672 BCRD_HEAD_BR_ASM (1)

4 EA-9500B01-00 CABLEBAND (1)

5 401-41016 2DCR_G6G10_H_BRKT (1)

6 401-41017 2DCR_G10_H_HOLDER (1)

7 SL-6030892-TN SCREWM3L=8 (2)

8 SL-6030692-TN SCREWM3L=6 (2)

9 401-40667 BCRD_CONV_CAMERA_ASM 1

10 401-39312 BARCODEREADER (1)

11 401-40930 MCR_BASE (1)

12 400-28300 ROTARYSUPPORTPLATE (1)

13 SL-6030892-TN SCREWM3L=8 (2)

14 SL-6030692-TN SCREWM3L=6 (2)

#01

401-40668 BCRD_CONV_BR_ASM_M 1

#02

401-40669 BCRD_CONV_BR_ASM_L 1

#01

401-11844 SLIDE_RAIL_M (1)

#02

401-11851 SLIDE_RAIL_L (1)

19 WP-0430801-SC WASHERM4 (4)

20 400-00912 SENSORADJUSTSPRING (2)

21 SM-6041802-TN SCREWM4X0.7L=18 (2)

22 400-28302 SLIDENUT (9)

23 SL-6041092-TN SCREWM4L=10 (4)

24 SL-6040892-TN SCREWM4L=8 (2)

25 HX-0029400-00 FIXEDBASE (3)

26 SL-4030691-SC SCREWM3L=6 (3)

27 400-28301 ENDCAP (2)

28 401-40929 SLIDE_RAIL_BR (2)

29 G6518-880-000 SETPICK-UP (1)

30 400-58815 SPACER (1)

#01

401-47645 BCRD_CONV_COVER_ASM_M 1

32 401-47183 CONVEYORCOVERISM300 (1)

33 E5721-729-000 LABEL (1)

34 400-01490 TAPE (1.5)

35 SM-0040601-SC SCREWM4X0.7L=6 (2)

36 SM-0041001-SC SCREWM4L=10 (2)

37 400-98346 RETAININGWASHERM4 (2)

38 401-47184 CONVEYORSIDECOVERISM300 (1)

39 SM-0040601-SC SCREWM4X0.7L=6 (4)

40 401-47185 CONVEYORUPPERCOVERISM300 (1)

41 SM-0040601-SC SCREWM4X0.7L=6 (2)

42 401-47192 CONVEYOR_COVER_STOPPER_200 (1)

43 SM-0040601-SC SCREWM4X0.7L=6 (2)

44 400-01484 CONVEYORSHUTTERU(L,EN) (1)

45 400-01485 CONVEYORSHUTTERB(L,EN) (1)

46 SM-0040601-SC SCREWM4X0.7L=6 (8)

#02

401-47646 BCRD_CONV_COVER_ASM_L 1

48 400-98346 RETAININGWASHERM4 (2)

#02

400-01484 CONVEYORSHUTTERU(L,EN) (1)

#02

401-47187 CONVEYORSIDECOVERISL300 (1)

#02

401-47188 CONVEYORUPPERCOVERISL300 (1)

#02

400-01485 CONVEYORSHUTTERB(L,EN) (1)

53 SM-0041001-SC SCREWM4L=10 (2)

#02

SM-0040601-SC SCREWM4X0.7L=6 (18)

#02

401-47186 CONVEYORCOVERISL300 (1)

#02

400-01490 TAPE (1.5)

57 401-47192 CONVEYOR_COVER_STOPPER_200 (1)

58 E5721-729-000 LABEL (1)

- -

58.ROTARYTYPESOLDERTRANSFERUNIT

- -

REF.NO NOTE PARTNO DESCRIPTION Qty

1 401-22786 ROTARYFLUXERCABLEASM 1

2 401-22788 ROTARYFLUXERMOTORASM 1

3 HK-0436900-00 CONNECTOR 1

4 401-22909 ROTARY_FLUXER_UPPER_FOR_MECH 1

5 401-07100 BASE_PLATE (1)

6 SL-6052092-TN SCREWM5L=20 (4)

7 401-07112 FLEXIBLE_COUPLING (1)

8 401-07111 BEARING_HOLDER (1)

9 SM-6041002-TN BOLT (4)

10 401-07117 SAUCER_BASE (1)

11 401-07101 SAUCER (1)

12 SM-6030802-TN SCREW (2)

13 401-07105 LOCATING_BLOCK (1)

14 SL-6042592-TN SCREWM4L=25 (2)

15 401-07104 HINGE_BASE (1)

16 SM-6031202-TN SCREWM3X12 (1)

17 NM-6030001-SC NUTM3X0.5TYPE1 (1)

18 401-07103 LEVER (1)

19 SM-6032002-TN SCREWM3X0.5L=20 (1)

20 NM-6030001-SC NUTM3X0.5TYPE1 (1)

21 401-07110 PULL_SPRING (1)

22 401-07119 PARALLEL_PIN_M5_L20 (1)

23 401-07115 MICROMETER_HEAD (1)

24 401-07108 SPACE_COLLAR (1)

25 401-07116 KNURLED_KNOB_SCREW (1)

26 401-07102 SQUEEGEE (2)

27 SL-6031092-TN SCREW (1)

28 401-16015 FLUXER_STUD_L (4)

29 NM-6060001-SC NUTM6X1TYPE1 (4)

30 SM-8030302-TP SCREWM3X3 (1)

31 401-22908 ROTARY_FLUXER_BASE_ASM_M 1

32 401-16014 ROTARY_FLUXER_BASE (1)

33 400-94910 STCLAMPBRM (1)

34 SL-6040892-TN SCREWM4L=8 (4)

35 E1214-726-000 STCLAMP (1)

36 E1109-723-000 LOCKHOLDER (1)

37 SL-6041642-TN SCREW (1)

38 SL-4040881-SC SCREWM4L=8 (4)

39 401-16012 BASESTAND_ASM (2)

40 401-16017 BASE_STAND (1)

41 E7302-715-000 THFRONTPLATE (1)

42 E7306-705-000 PIN (1)

43 SL-6040892-TN SCREWM4L=8 (2)

44 SL-6040892-TN SCREWM4L=8 (4)

45 401-16018 STAND_SUPPORT (1)

46 SL-6030692-TN SCREWM3L=6 (2)

47 401-22733 COVER_V (1)

48 SL-6040892-TN SCREWM4L=8 (2)

49 HX-0029400-00 FIXEDBASE (2)

50 SM-4040601-SC SCREWM4X0.7L=6 (2)

51 EA-9500B01-00 CABLEBAND (3)

52 E5348-033-100 CABLEPROTECTOR106MM (0.066)

53 401-22732 SPACER_V (2)

54 401-22789 ROTARYFLUXERSWITCHASM (1)

55 SM-6030602-TN SCREWM3X6 (2)

56 E1602-723-000 MARKER (1)

57 401-24846 RATING_LABEL_ROTARY_STAMPING_WARE_M (1)

58 401-22904 ROTARY_FLUXER_UPPER_FOR_E 1

59 401-07108 SPACE_COLLAR (1)

60 401-07102 SQUEEGEE (2)

61 SL-6031092-TN SCREW (1)

62 401-07115 MICROMETER_HEAD (1)

63 SM-6032002-TN SCREWM3X0.5L=20 (1)

64 NM-6030001-SC NUTM3X0.5TYPE1 (1)

65 SM-6031202-TN SCREWM3X12 (1)

66 401-07110 PULL_SPRING (1)

67 SM-8030302-TP SCREWM3X3 (1)

68 401-07116 KNURLED_KNOB_SCREW (1)

69 401-07119 PARALLEL_PIN_M5_L20 (1)

70 SL-6042592-TN SCREWM4L=25 (2)

71 401-22724 BSAE_PLATE_V (1)

72 SL-6052092-TN SCREWM5L=20 (4)

73 401-22731 CIRCULAR_POST_V (4)

74 401-22732 SPACER_V (2)

75 SM-6030602-TN SCREWM3X6 (2)

76 NM-6060001-SC NUTM6X1TYPE1 (4)

77 401-07112 FLEXIBLE_COUPLING (1)

78 401-07111 BEARING_HOLDER (1)

79 SM-6041002-TN BOLT (4)

80 401-07117 SAUCER_BASE (1)

81 401-07101 SAUCER (1)

82 SM-6030802-TN SCREW (2)

83 401-07105 LOCATING_BLOCK (1)

84 401-07104 HINGE_BASE (1)

85 401-07103 LEVER (1)

86 401-22905 ROTARY_FLUXER_BASE_ASM_E 1

87 401-24846 RATING_LABEL_ROTARY_STAMPING_WARE_M (1)

88 SL-6040892-TN SCREWM4L=8 (2)

89 SL-4040881-SC SCREWM4L=8 (4)

90 400-94487 ST_CLAMP_BR_E (1)

91 SL-6041642-TN SCREW (1)

92 E1109-723-000 LOCKHOLDER (1)

93 E1214-726-000 STCLAMP (1)

94 401-22789 ROTARYFLUXERSWITCHASM (1)

95 E5348-033-100 CABLEPROTECTOR106MM (0.066)

96 SL-6040892-TN SCREWM4L=8 (4)

97 401-22733 COVER_V (1)

98 E1602-723-000 MARKER (1)

99 400-78576 RAIL_CAP (2)

100 401-22725 ROTARY_FLUXER_BASE_E_V (1)

101 ST-1030651-SN TAPPINGSCREWD=3L=6 (2)

102 400-77518 SLIDE_RAIL (2)

103 SM-3031052-TN SCREWM3L=10 (14)

104 SM-1031201-SC SCREWM3X0.5L=12 (2)

105 401-22726 X_STOPPER_BR_V (1)

106 400-68181 X_GUIDE_PIN_FRONT (1)

107 SL-6030592-TN SCREWM3L=5 (4)

108 400-77520 Y_STOPPER_PLATE (2)

109 400-77519 PLUNGER_PLATE (2)

110 SL-6051092-TN SCREWM5L=10 (4)

111 HX-0029400-00 FIXEDBASE (2)

112 SM-4040601-SC SCREWM4X0.7L=6 (2)

113 EA-9500B01-00 CABLEBAND (3)

114 401-22788 ROTARYFLUXERMOTORASM 1

115 CM-6004000-01 CHINAROHSLABELES 1

116 401-47175 CONNECTOR_PLATE_ROTARY_FLXR 1

117 SM-4860601-SC SCREWM2.6L=6 2

118 HK-0436900-00 CONNECTOR 1
