- - 59. IFS-NXCOMPO NENTS(1) 1 2 5 7 8 9 1 0 1 1 1 2 1 2 1 3 4 4 6 6 6 3 2 6 2 5 2 4 2 7 3 7 3 1 3 0 3 6 3 4 3 5 4 8 4 7 4 6 4 9 2 8 2 9 3 0 4 2 4 1 4 0 3 9 3 3 3 2 3 1 5 6 5 5 5 4 5 2 5 3 4 4 5 0 4 3 4 5 5 1 2 3 2 2 …

- -

REF.NO NOTE PARTNO DESCRIPTION Qty

1 401-22786 ROTARYFLUXERCABLEASM 1

2 401-22788 ROTARYFLUXERMOTORASM 1

3 HK-0436900-00 CONNECTOR 1

4 401-22909 ROTARY_FLUXER_UPPER_FOR_MECH 1

5 401-07100 BASE_PLATE (1)

6 SL-6052092-TN SCREWM5L=20 (4)

7 401-07112 FLEXIBLE_COUPLING (1)

8 401-07111 BEARING_HOLDER (1)

9 SM-6041002-TN BOLT (4)

10 401-07117 SAUCER_BASE (1)

11 401-07101 SAUCER (1)

12 SM-6030802-TN SCREW (2)

13 401-07105 LOCATING_BLOCK (1)

14 SL-6042592-TN SCREWM4L=25 (2)

15 401-07104 HINGE_BASE (1)

16 SM-6031202-TN SCREWM3X12 (1)

17 NM-6030001-SC NUTM3X0.5TYPE1 (1)

18 401-07103 LEVER (1)

19 SM-6032002-TN SCREWM3X0.5L=20 (1)

20 NM-6030001-SC NUTM3X0.5TYPE1 (1)

21 401-07110 PULL_SPRING (1)

22 401-07119 PARALLEL_PIN_M5_L20 (1)

23 401-07115 MICROMETER_HEAD (1)

24 401-07108 SPACE_COLLAR (1)

25 401-07116 KNURLED_KNOB_SCREW (1)

26 401-07102 SQUEEGEE (2)

27 SL-6031092-TN SCREW (1)

28 401-16015 FLUXER_STUD_L (4)

29 NM-6060001-SC NUTM6X1TYPE1 (4)

30 SM-8030302-TP SCREWM3X3 (1)

31 401-22908 ROTARY_FLUXER_BASE_ASM_M 1

32 401-16014 ROTARY_FLUXER_BASE (1)

33 400-94910 STCLAMPBRM (1)

34 SL-6040892-TN SCREWM4L=8 (4)

35 E1214-726-000 STCLAMP (1)

36 E1109-723-000 LOCKHOLDER (1)

37 SL-6041642-TN SCREW (1)

38 SL-4040881-SC SCREWM4L=8 (4)

39 401-16012 BASESTAND_ASM (2)

40 401-16017 BASE_STAND (1)

41 E7302-715-000 THFRONTPLATE (1)

42 E7306-705-000 PIN (1)

43 SL-6040892-TN SCREWM4L=8 (2)

44 SL-6040892-TN SCREWM4L=8 (4)

45 401-16018 STAND_SUPPORT (1)

46 SL-6030692-TN SCREWM3L=6 (2)

47 401-22733 COVER_V (1)

48 SL-6040892-TN SCREWM4L=8 (2)

49 HX-0029400-00 FIXEDBASE (2)

50 SM-4040601-SC SCREWM4X0.7L=6 (2)

51 EA-9500B01-00 CABLEBAND (3)

52 E5348-033-100 CABLEPROTECTOR106MM (0.066)

53 401-22732 SPACER_V (2)

54 401-22789 ROTARYFLUXERSWITCHASM (1)

55 SM-6030602-TN SCREWM3X6 (2)

56 E1602-723-000 MARKER (1)

57 401-24846 RATING_LABEL_ROTARY_STAMPING_WARE_M (1)

58 401-22904 ROTARY_FLUXER_UPPER_FOR_E 1

59 401-07108 SPACE_COLLAR (1)

60 401-07102 SQUEEGEE (2)

61 SL-6031092-TN SCREW (1)

62 401-07115 MICROMETER_HEAD (1)

63 SM-6032002-TN SCREWM3X0.5L=20 (1)

64 NM-6030001-SC NUTM3X0.5TYPE1 (1)

65 SM-6031202-TN SCREWM3X12 (1)

66 401-07110 PULL_SPRING (1)

67 SM-8030302-TP SCREWM3X3 (1)

68 401-07116 KNURLED_KNOB_SCREW (1)

69 401-07119 PARALLEL_PIN_M5_L20 (1)

70 SL-6042592-TN SCREWM4L=25 (2)

71 401-22724 BSAE_PLATE_V (1)

72 SL-6052092-TN SCREWM5L=20 (4)

73 401-22731 CIRCULAR_POST_V (4)

74 401-22732 SPACER_V (2)

75 SM-6030602-TN SCREWM3X6 (2)

76 NM-6060001-SC NUTM6X1TYPE1 (4)

77 401-07112 FLEXIBLE_COUPLING (1)

78 401-07111 BEARING_HOLDER (1)

79 SM-6041002-TN BOLT (4)

80 401-07117 SAUCER_BASE (1)

81 401-07101 SAUCER (1)

82 SM-6030802-TN SCREW (2)

83 401-07105 LOCATING_BLOCK (1)

84 401-07104 HINGE_BASE (1)

85 401-07103 LEVER (1)

86 401-22905 ROTARY_FLUXER_BASE_ASM_E 1

87 401-24846 RATING_LABEL_ROTARY_STAMPING_WARE_M (1)

88 SL-6040892-TN SCREWM4L=8 (2)

89 SL-4040881-SC SCREWM4L=8 (4)

90 400-94487 ST_CLAMP_BR_E (1)

91 SL-6041642-TN SCREW (1)

92 E1109-723-000 LOCKHOLDER (1)

93 E1214-726-000 STCLAMP (1)

94 401-22789 ROTARYFLUXERSWITCHASM (1)

95 E5348-033-100 CABLEPROTECTOR106MM (0.066)

96 SL-6040892-TN SCREWM4L=8 (4)

97 401-22733 COVER_V (1)

98 E1602-723-000 MARKER (1)

99 400-78576 RAIL_CAP (2)

100 401-22725 ROTARY_FLUXER_BASE_E_V (1)

101 ST-1030651-SN TAPPINGSCREWD=3L=6 (2)

102 400-77518 SLIDE_RAIL (2)

103 SM-3031052-TN SCREWM3L=10 (14)

104 SM-1031201-SC SCREWM3X0.5L=12 (2)

105 401-22726 X_STOPPER_BR_V (1)

106 400-68181 X_GUIDE_PIN_FRONT (1)

107 SL-6030592-TN SCREWM3L=5 (4)

108 400-77520 Y_STOPPER_PLATE (2)

109 400-77519 PLUNGER_PLATE (2)

110 SL-6051092-TN SCREWM5L=10 (4)

111 HX-0029400-00 FIXEDBASE (2)

112 SM-4040601-SC SCREWM4X0.7L=6 (2)

113 EA-9500B01-00 CABLEBAND (3)

114 401-22788 ROTARYFLUXERMOTORASM 1

115 CM-6004000-01 CHINAROHSLABELES 1

116 401-47175 CONNECTOR_PLATE_ROTARY_FLXR 1

117 SM-4860601-SC SCREWM2.6L=6 2

118 HK-0436900-00 CONNECTOR 1

- -

59.IFS-NXCOMPONENTS(1)

1 0

1 1

1 2

1 3

2 6

2 5

2 4

2 7

3 7

3 1

3 0

3 6

3 4

3 5

4 8

4 7

4 6

4 9

2 8

2 9

3 0

4 2

4 1

4 0

3 9

3 3

3 2

3 1

5 6

5 5

5 4

5 2

5 3

4 4

5 0

4 3

4 5

5 1

2 3

2 2

2 1

2 0

3 8

1 9

1 8

1 7

1 8

1 6

1 5

6 2

6 5

6 1

6 7

6 5

6 6

6 0

6 8

5 8

5 9

6 3

6 4

1 4

5 7

- -

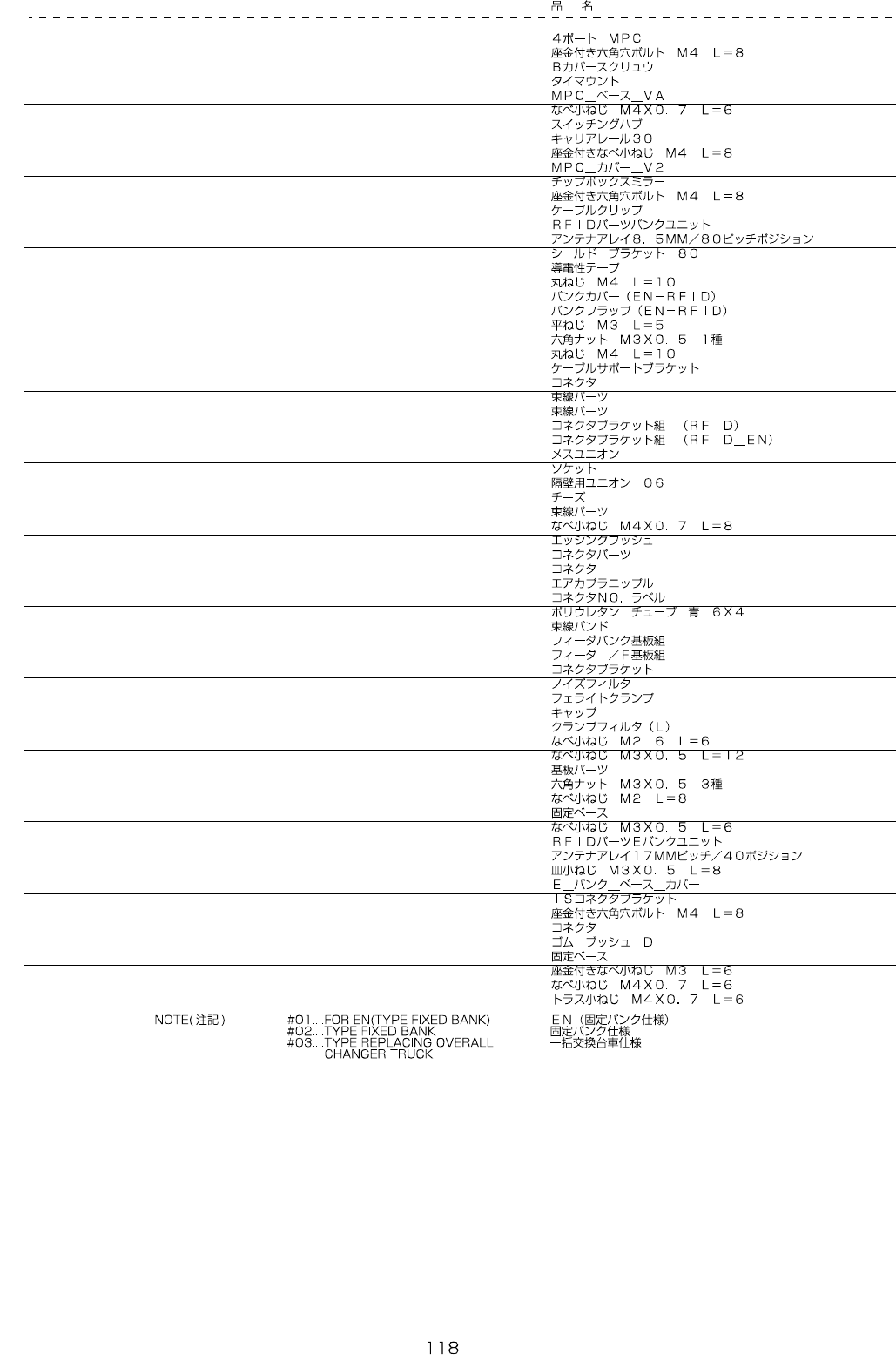

REF.NO NOTE PARTNO DESCRIPTION Qty

1 400-73032 4PORTMPC 1

2 SL-6040892-TN SCREWM4L=8 2

3 400-81751 B_COVER_SCREW 4

4 HX-0045400-00 TIEMOUNT 3

5 401-47197 MPC_BASE_VA 1

6 SM-4040601-SC SCREWM4X0.7L=6 4

7 400-73033 SWITCHINGHUB 1

8 400-71597 CAREER_RAIL_30 1

9 SL-4040891-SC SCREWM4X8 2

10 401-11857 MPC_COVER_V2 1

11 400-49414 CHIPBOXMIRROR 1

12 SL-6040892-TN SCREWM4L=8 4

13 HX-0015000-0F CABLECLAMP 1

#02

400-75525 RFID-PARTS_BANKUNIT 1

15 400-73665 ANTENNAARRAY8.5MMPITCH/80POSITION (1)

16 400-79782 SHEILDBRACKET80 (1)

17 HX-0026800-00 CONDUCTIVETAPE (1)

18 SM-3041052-TN SCREWM4L=10 (6)

#01

400-65035 BANKCOVER(EN-RFID) 1

#01

400-65036 BANKFLAP(EN-RFID) 1

#01

SM-6030552-KS SCREW 4

#01

NM-6030001-SC NUTM3X0.5TYPE1 4

#01

SM-3041052-TN SCREWM4L=10 4

#02

400-73893 CABLESUPPORTBRACKET 2

#02

HK-0651200-60 CONNECTOR 1

#02

HX-0034400-00 HARNESSPARTS 5

#02

EA-9500B01-00 CABLEBAND 5

28 400-76300 CONNECTORBRACKETASM(RFID) 1

#01

400-76301 CONNECTORBRACKETASM(RFID_EN) 1

30 PJ-3010651-06 KNIFEUNION (2)

31 E2904-700-000 SOCKET (2)

32 PJ-2300061-00 UNION06 (1)

33 PJ-3050600-04 TEE (1)

34 HX-0034400-00 HARNESSPARTS (5)

35 SM-4040801-SC SCREWM4X0.7L=8 (5)

36 HX-0009600-0A EDGINGBUSH (0.21)

#01

HK-0436900-00 CONNECTORPARTS (16)

38 HK-0651200-60 CONNECTOR (1)

39 PJ-0320090-05 NIPPLE (1)

40 E2642-721-000 CONNECTORNO.LABEL (1)

41 BT-0600400-EC URETHANETUBEBLUE6X4 (1.3)

42 EA-9500B01-00 CABLEBAND (9)

43 E8615-715-0A0 FEEDERBANKCIRCUITBOARDASM. (2)

44 E8618-721-0A0 FEEDERI/FBOARDASM. (1)

45 E2508-729-000 CONNECTORBRACKET (1)

#01

HN-0017900-0B NOISEFILTER (2)

#01

HN-0017900-0D FERRITECLAMP (4)

#01

HK-0429900-8A CAP (1)

#01

HN-0014900-00 CLAMPFILTER(L) (3)

50 SM-4860601-SC SCREWM2.6L=6 (16)

51 SM-4031201-SC SCREWM3X12 (4)

52 HX-0033500-0A SPACER (4)

53 NM-6030003-SC NUTM3X0.5TYPE3 (4)

54 SM-4020801-SC SCREWM2X8 (4)

55 HX-0029400-00 FIXEDBASE (1)

56 SM-4030601-SC SCREWM3X0.5L=6 (1)

#03

400-99093 RFID-PARTSEBANKUNIT 1

58 400-90031 ANTENNAARRAY17MMPITCH/40POSITION (1)

59 SM-1030801-SC SCREWM3L=8 (4)

60 401-38827 E_BANK_BASE_COVER (1)

61 400-99095 IS_CONN_BR (1)

62 SL-6040892-TN SCREWM4L=8 (2)

63 HK-0651200-60 CONNECTOR (1)

64 HX-0005500-0D RUBBERBUSHD (1)

65 HX-0029400-00 FIXEDBASE (2)

66 SL-4030691-SC SCREWM3L=6 (1)

67 SM-4040601-SC SCREWM4X0.7L=6 (1)

#03

SM-0040601-SC SCREWM4X0.7L=6 8
