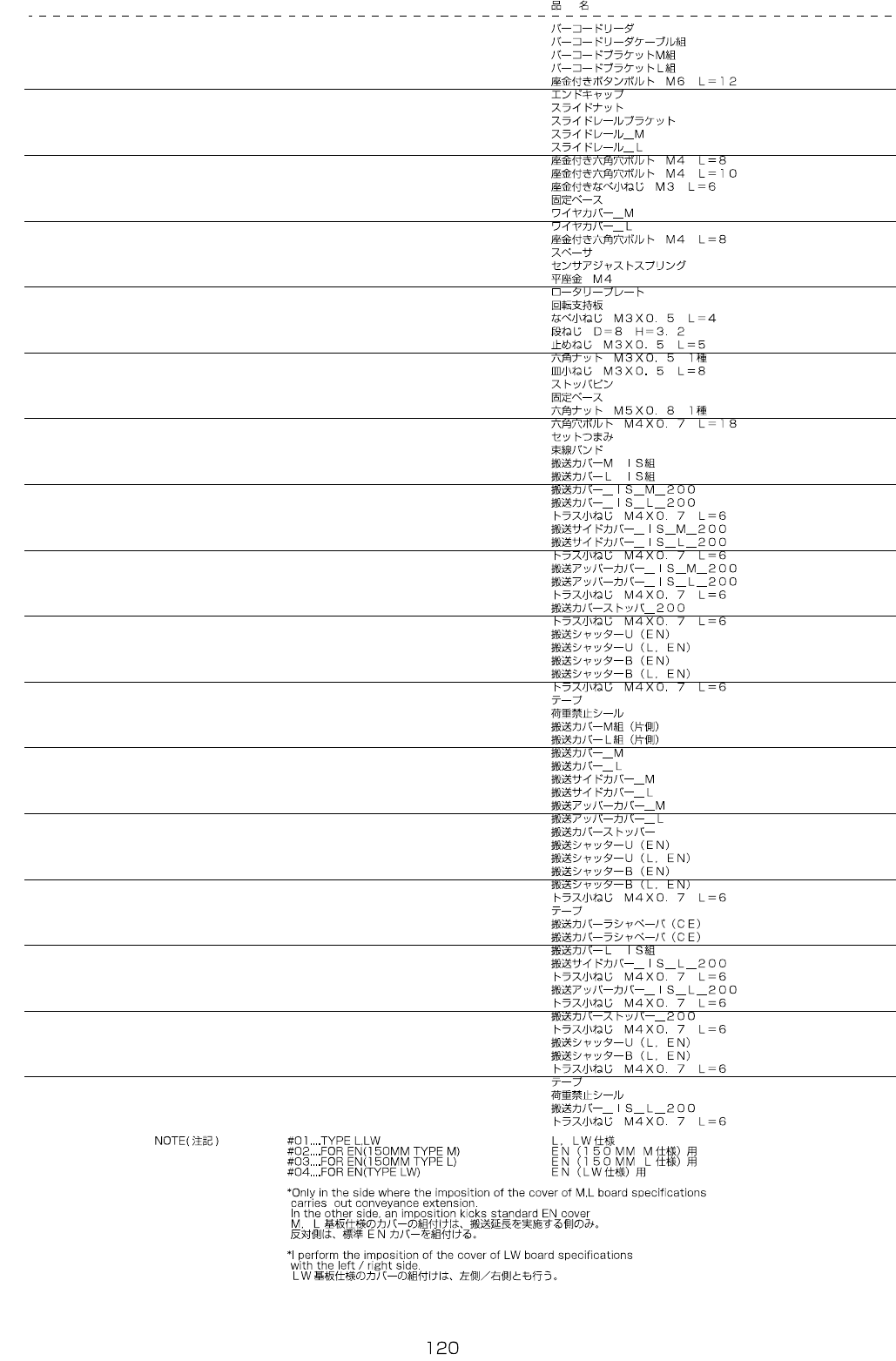

REF.NO NOTE PARTNO DESCRIPTION Qty
1 HX-0061000-00 BARCODEREADER 1
2 401-13670 BARCODEREADERCABLEASM 1
3 401-14867 BARCODEBRMASM 1
4
#01
401-14897 BARCODEBRLASM 1
5 SL-3061232-TN SCREWM6L=12 (4)
6 400-28301 ENDCAP (2)
7 400-28302 SLIDENUT (9)
8 400-99103 SLIDE_RAIL_BR (2)
9 401-11844 SLIDE_RAIL_M (1)
10
#01
401-11851 SLIDE_RAIL_L (1)
11 SL-6040892-TN SCREWM4L=8 (2)
12 SL-6041092-TN SCREWM4L=10 (4)
13 SL-4030691-SC SCREWM3L=6 (4)
14 HX-0029400-00 FIXEDBASE (4)
15 401-11845 WIRE_COVER_M (1)
16 401-11852 WIRE_COVER_L (1)
17 SL-6040892-TN SCREWM4L=8 (4)
18 400-58815 SPACER 1
19 400-00912 SENSORADJUSTSPRING 2
20 WP-0430801-SC WASHERM4 4
21 400-33068 ROTARYPLATE 1
22 400-28300 ROTARYSUPPORTPLATE 1
23 SM-4030401-SC SCREWM3X0.5L=4 1
24 SD-0800327-TP SHOULDERSCREW 1
25 SM-8030502-TP SCREWM3L=5 1
26 NM-6030001-SC NUTM3X0.5TYPE1 1
27 SM-1030801-SC SCREWM3L=8 2
28 G6025-875-000 STOPPERPIN 1
29 HX-0029400-00 FIXEDBASE 1
30 NM-6050001-SC NUTM5X0.8TYPE1 1
31 SM-6041802-TN SCREWM4X0.7L=18 2
32 G6518-880-000 SETPICK-UP 1
33 EA-9500B01-00 CABLEBAND 5
34
#02
401-47653 CONVEYORCOVERMISASM 1
35
#03
401-47655 CONVEYORCOVERLISASM 1
36
#02
401-47179 CONVEYOR_COVER_IS_M_200 (1)
37
#03
401-47180 CONVEYOR_COVER_IS_L_200 (1)
38 SM-0040601-SC SCREWM4X0.7L=6 (4)
39
#02
401-47178 CONVEYOR_SIDE_COVER_IS_M_200 (1)
40
#03
401-47181 CONVEYOR_SIDE_COVER_IS_L_200 (1)
41 SM-0040601-SC SCREWM4X0.7L=6 (4)
42
#02
401-47177 CONVEYOR_UPPER_COVER_IS_M_200 (1)
43
#03
401-47182 CONVEYOR_UPPER_COVER_IS_L_200 (1)
44 SM-0040601-SC SCREWM4X0.7L=6 (2)
45 401-47192 CONVEYOR_COVER_STOPPER_200 (1)
46 SM-0040601-SC SCREWM4X0.7L=6 (2)
47
#02
400-01480 CONVEYORSHUTTERU(EN) (1)
48
#03
400-01484 CONVEYORSHUTTERU(L,EN) (1)
49
#02
400-01481 CONVEYORSHUTTERB(EN) (1)
50
#03
400-01485 CONVEYORSHUTTERB(L,EN) (1)
51 SM-0040601-SC SCREWM4X0.7L=6 (8)
52 400-01490 TAPE (1.5)
53 E5721-729-000 LABEL (1)
54
#02
401-47654 CONVEYORCOVERMASM(ONESIDE) 1
55
#03
401-47656 CONVEYORCOVERLASM(ONESIDE) 1
56
#02
401-47164 CONVEYOR_COVER_M (1)
57
#03
401-47167 CONVEYOR_COVER_L (1)
58
#02
401-47165 CONVEYOR_SIDE_COVER_M (1)
59
#03
401-47168 CONVEYOR_SIDE_COVER_L (1)
60
#02
401-47166 CONVEYOR_UPPER_COVER_M (1)
61
#03
401-47169 CONVEYOR_UPPER_COVER_L (1)
62 401-47170 CONVEYOR_COVER_STOPPER (1)
63
#02
400-01480 CONVEYORSHUTTERU(EN) (1)
64
#03
400-01484 CONVEYORSHUTTERU(L,EN) (1)
65
#02
400-01481 CONVEYORSHUTTERB(EN) (1)
66
#03
400-01485 CONVEYORSHUTTERB(L,EN) (1)
67 SM-0040601-SC SCREWM4X0.7L=6 (20)
68 400-01490 TAPE (1.5)
69
#02
E1143-721-000 WOOLENCLOTHPAPER (1)
70
#03
E1143-721-000 WOOLENCLOTHPAPER (2)
71
#04
401-47655 CONVEYORCOVERLISASM 2
72 401-47181 CONVEYOR_SIDE_COVER_IS_L_200 (1)
73 SM-0040601-SC SCREWM4X0.7L=6 (4)
74 401-47182 CONVEYOR_UPPER_COVER_IS_L_200 (1)
75 SM-0040601-SC SCREWM4X0.7L=6 (2)
76 401-47192 CONVEYOR_COVER_STOPPER_200 (1)
77 SM-0040601-SC SCREWM4X0.7L=6 (2)
78 400-01484 CONVEYORSHUTTERU(L,EN) (1)
79 400-01485 CONVEYORSHUTTERB(L,EN) (1)
80 SM-0040601-SC SCREWM4X0.7L=6 (8)
81 400-01490 TAPE (1.5)
82 E5721-729-000 LABEL (1)
83 401-47180 CONVEYOR_COVER_IS_L_200 (1)
84 SM-0040601-SC SCREWM4X0.7L=6 (4)
- -

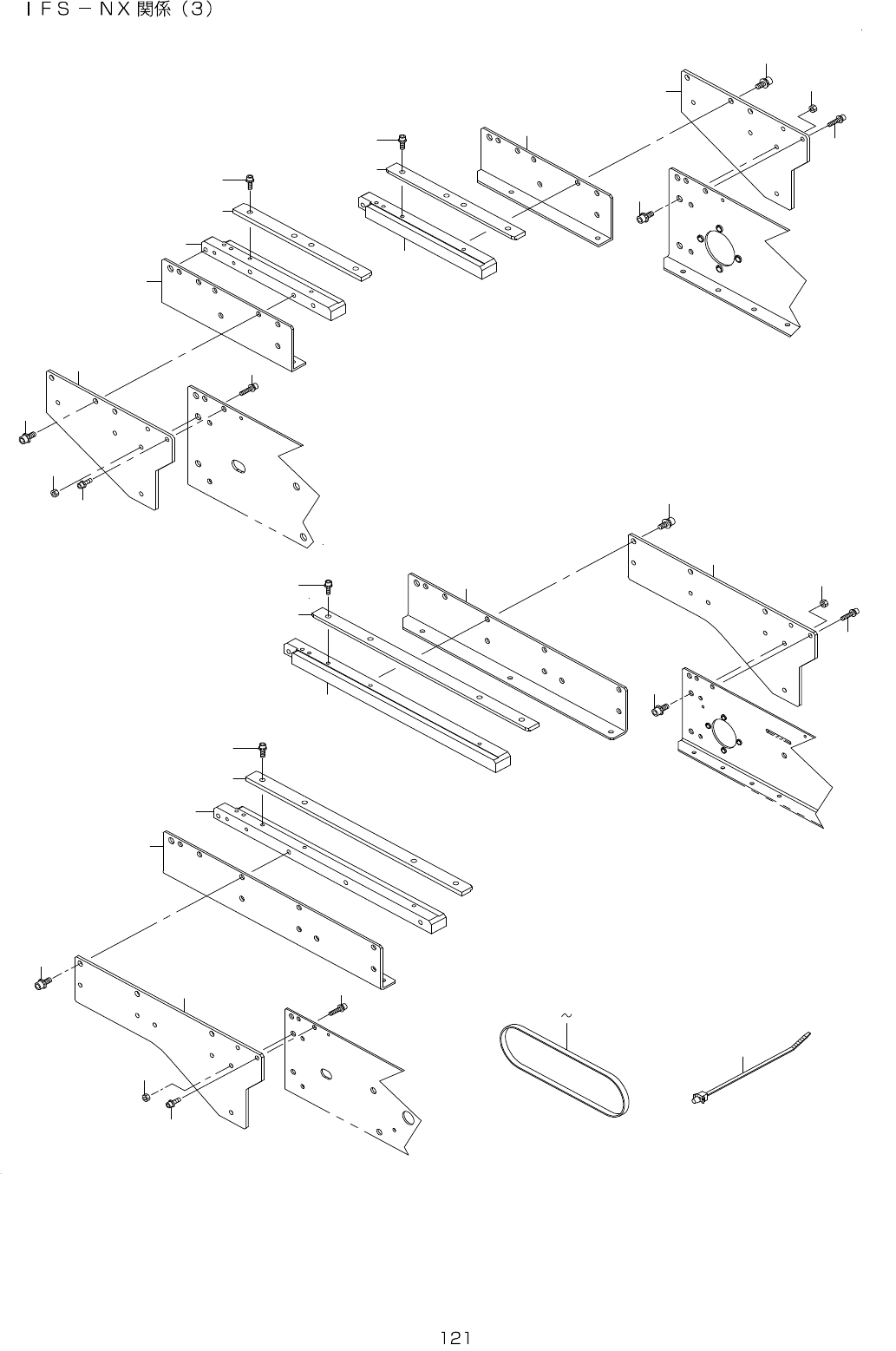

61.IFS-NXCOMPONENTS(3)
1 6
1 0
9
1 0
9
8
8
7
1 1
7
6
6
5
5
4
3
1 1
1 2 1 5
1
2
1 8
1 7
2 5
1 9
2 0
2 1
2 1
2 2
2 2
7
2 5
7
8
8
2 3
2 4
2 3
2 4
- -

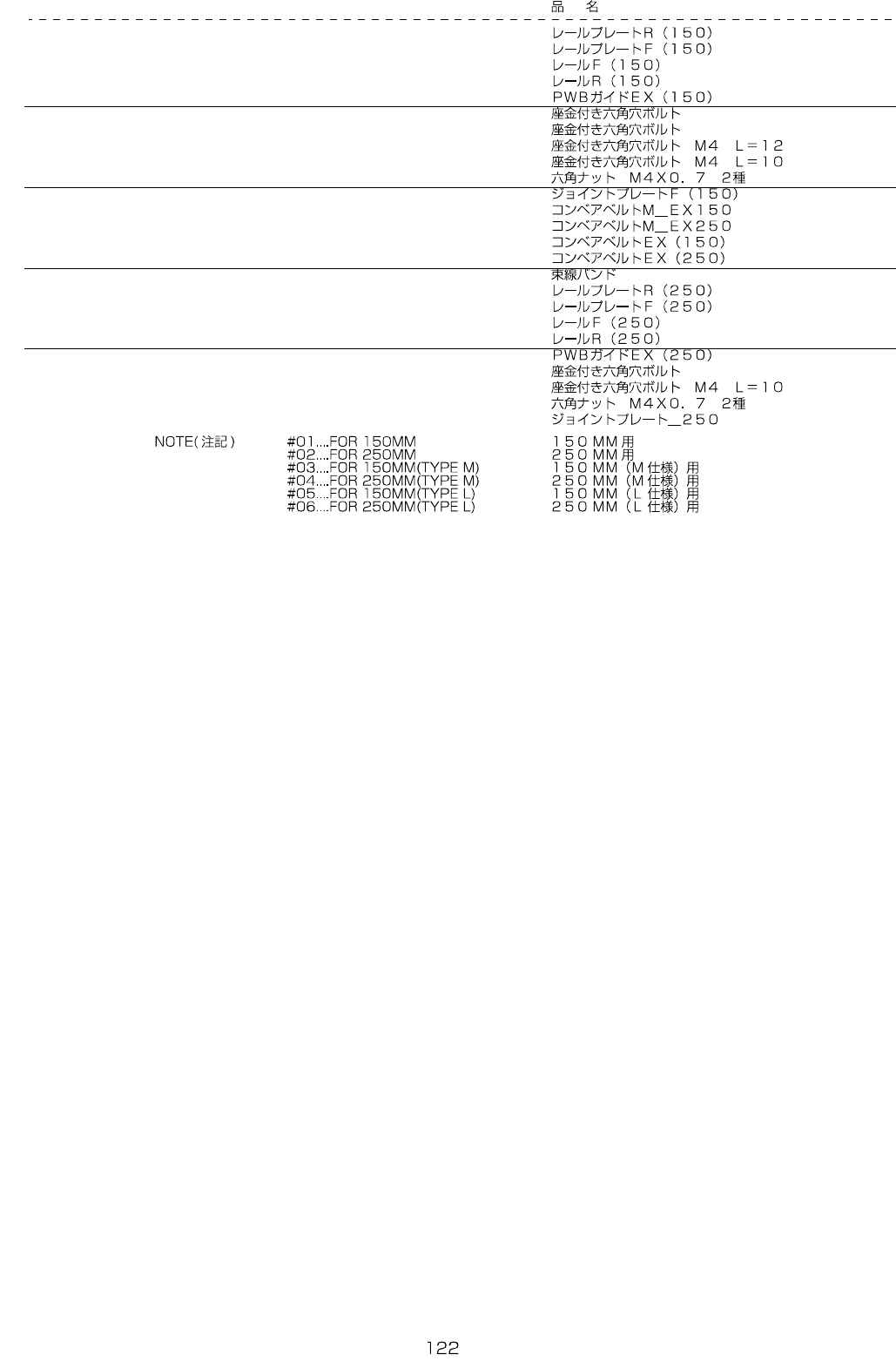

REF.NO NOTE PARTNO DESCRIPTION Qty
