- - 4. BASEFRAME ELECTRICA PPARATUSCOMPO NENTS(2) 1 4 4 1 3 1 1 2 1 8 1 7 6 7 5 4 4 4 3 3 9 4 0 1 4 1 6 1 5 1 0 1 3 1 1 3 2 3 8 8 9 5 2 5 4 5 7 5 9 5 8 6 0 5 1 5 5 6 7 6 8 4 6 4 7 4 7 4 8 6 9 5 6 6 4 6 5 6 4 6 5 5 …

100%1 / 198
- -

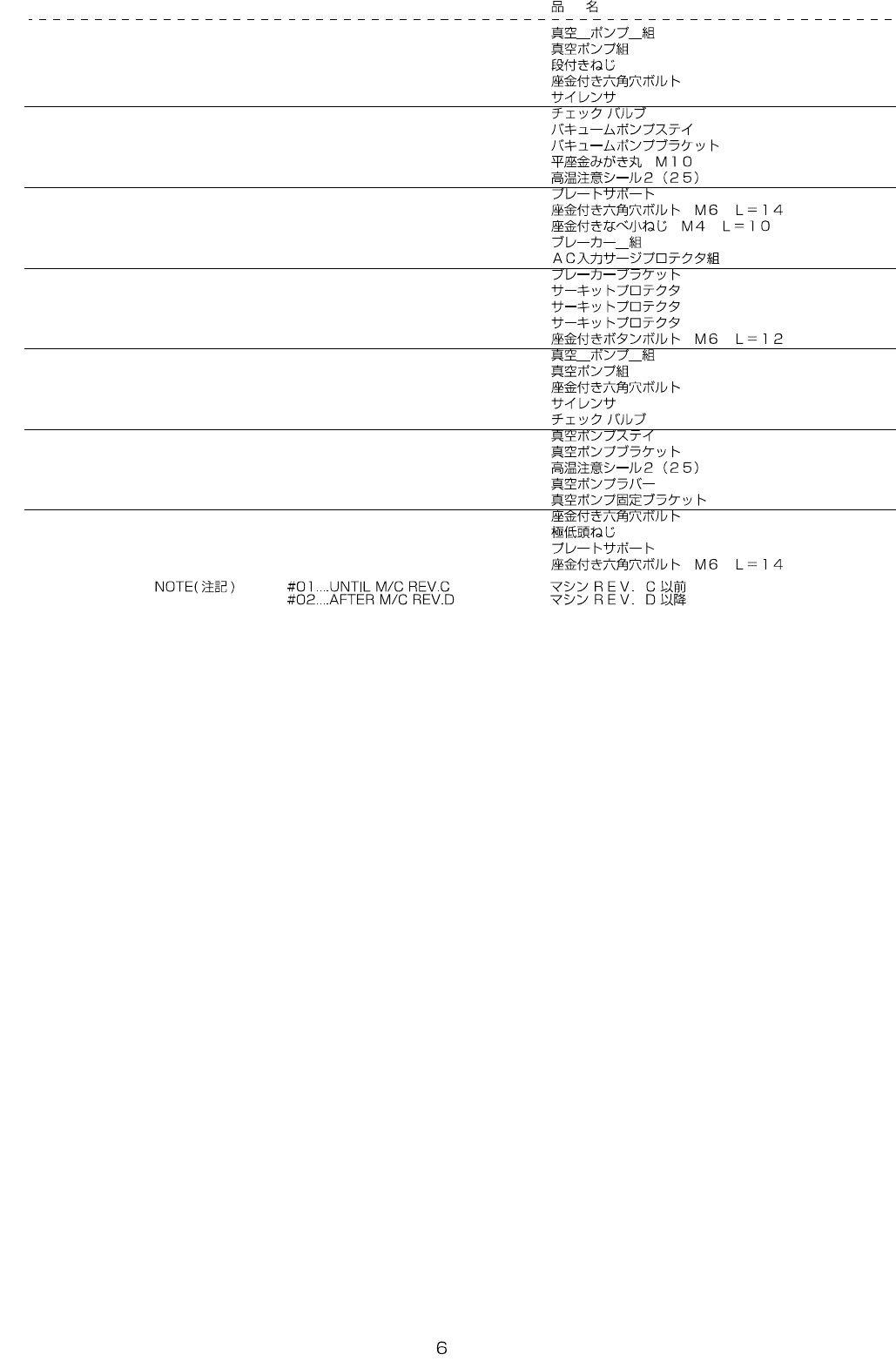

REF.NO NOTE PARTNO DESCRIPTION Qty
1
#01
401-47582 VACUUM_PUMP_ASM 1
2 401-29244 VACUUMPUMPASM (1)
3 400-38381 STEPSCREW (4)
4 SL-6040892-TN BOLT (2)
5 PX-0553020-00 SILENCER (1)
6 PV-0253010-00 CHECKVALVE (1)
7 401-47525 VP_STAY (1)
8 401-47524 VACUUM_PUMP_BR (1)
9 WP-1052001-SC WASHER10 (4)
10 CM-3003000-02 LABEL2(25) (1)
11
#01
401-47523 PLATE_SUPPORT 2
12
#01
SL-6061492-TN SCREWM6L=14 4
13 SL-4041091-SC SCREWM4L=10 1
14 401-47583 BREAKER_ASM 1
15 401-29262 ACINPUTSURGEPROTECTORASM (1)
16 401-47526 BREAKER_BR (1)
17 HA-0063300-00 CIRCUITPROTECTOR (1)
18 HA-0064400-00 CIRCUITPROTECTOR (1)
19 HA-0063400-10 CIRCUITPROTECTOR (1)
20 SL-3061232-TN SCREWM6L=12 2
21
#02
401-47582 VACUUM_PUMP_ASM 1
22 401-29244 VACUUMPUMPASM (1)
23 SL-6040892-TN BOLT (2)
24 PX-0553020-00 SILENCER (1)
25 PV-0253010-00 CHECKVALVE (1)
26 401-66450 VP_STAY (1)
27 401-66448 VP_BR (1)
28 CM-3003000-02 LABEL2(25) (1)
29 401-66451 VP_RUBBER (2)
30 401-66449 VP_FIX_BR (2)
31 SL-6040892-TN BOLT (4)
32 400-32070 LOWHEADCAPSCREW (4)
33
#02
401-47523 PLATE_SUPPORT 2
34
#02
SL-6061492-TN SCREWM6L=14 4
- -

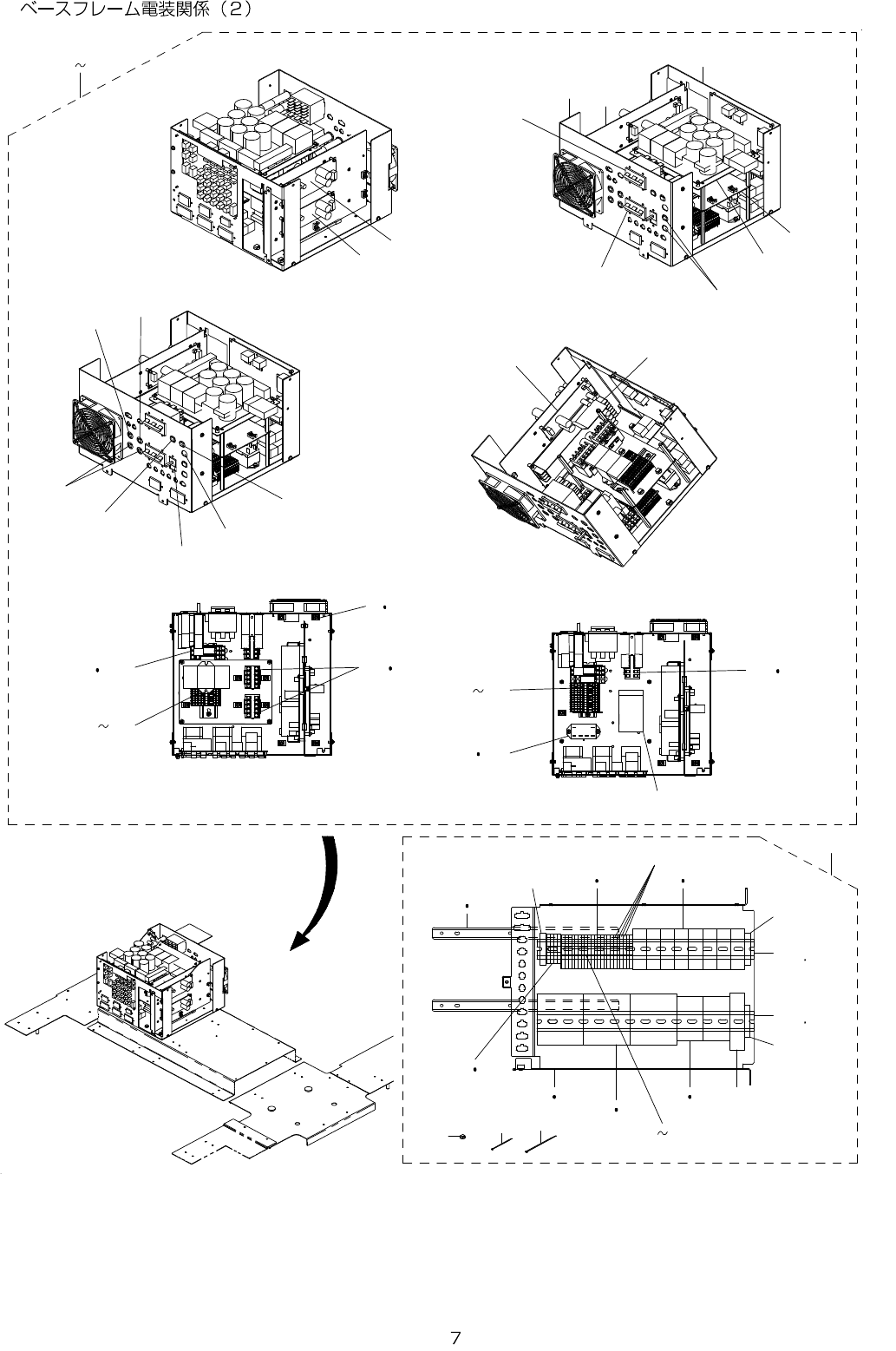

4. BASEFRAMEELECTRICAPPARATUSCOMPONENTS(2)
1 4
4 1
3 1
1 2
1 8
1 7
6
7
5
4 4
4 3
3 9
4 0
1 4
1 6
1 5
1 0
1 3
1 1
3 2 3 8
8 9
5 2 5 4
5 7
5 9
5 8
6 0
5 1 5 5
6 7 6 8
4 6 4 7
4 7 4 8 6 9
5 6
6 4 6 5
6 4 6 5
5 6
5 6 4 9 5 06 1 6 6
6 2 6 3
4 5
2 5 3 0
2 1 2 2
1 9 2 0
2 1 2 2
2 3 2 4
4 2
1 3
- -
REF.NO NOTE PARTNO DESCRIPTION Qty
1
#03
401-49489 POWERSUPPLYUNIT10ASM 1
2
#04
401-49490 POWERSUPPLYUNIT10(EN)ASM 1
3
#05
401-49556 POWERSUPPLYUNIT20ASM 1
4
#06
401-49559 POWERSUPPLYUNIT20(EN)ASM 1
5 401-47565 PSU_BRACKET (1)
6 401-08571 ZTPOWERPCBPLATE (1)
7 401-14016 RELAYPLATE (1)
8 HX-0029400-00 FIXEDBASE (17)
9 SM-4040601-SC SCREWM4X0.7L=6 (17)
10 HA-0052400-00 CIRCUITPROTECTOR (1)
11 HA-0052400-0B CIRCUITPROTECTOR (1)
12 HA-0052400-0D CIRCUITPROTECTOR (2)
13 HA-0052400-0E CIRCUITPROTECTOR (2)
14 HA-0054200-0A CIRCUITPROTECTOR (2)
15 HA-0054200-0C CIRCUITPROTECTOR (1)
16 HA-0065000-0A CIRCUITPROTECTOR (1)
17 HA-0065100-00 CIRCUITPROTECTOR (1)
18 HA-0065100-0D CIRCUITPROTECTOR (1)
19 HB-0015400-00 RELAY (1)
20 HB-0015400-10 RELAY (1)
21 HB-0012800-0C RELAY (3)
22 HB-0005800-10 RELAY (3)
23
#01
HB-0011000-00 RELAY (1)
24
#01
HB-0011000-10 RELAY (1)
25 HK-0696500-10 BLOCKTERMINAL (8)
26 HK-0693500-10 BLOCKTERMINAL (2)
27 HK-0696900-00 BLOCKTERMINAL (1)
28 HK-0691900-0B BLOCKTERMINAL (5)
29 HK-0696900-0A BLOCKTERMINAL (1)
30 HK-0696900-0B BLOCKTERMINAL (1)
31 HX-0069000-00 POWERSUPPLY (1)
32 HK-0695500-10 BLOCKTERMINAL (8)
33 HK-0695900-00 BLOCKTERMINAL (2)
34 HK-0695900-20 TERMINAL (6)
35 HK-0695900-0A BLOCKTERMINAL (1)
36
#02
HK-0695900-0B BLOCKTERMINAL (1)
37
#02
HK-0695500-10 BLOCKTERMINAL (14)
38
#02
HK-0695900-20 TERMINAL (9)
39 HX-0070800-00 POWERSUPPLY (1)
40 KX-0000003-70 POWERSUPPLY (1)
41 HX-0070200-00 POWERSUPPLY (1)
42 HA-0061900-00 MAGNETICCONTACTOR (1)
43 401-47568 PSU_MAIN_BR_CE (1)
44 401-08573 PSUSIDECOVER (1)
45 401-14534 SAFETYUNITASSY 1
46 HA-0063000-00 MAGNETICCONTACTOR (3)
47 HN-0033900-00 VARISTOR (5)
48 HA-0063200-00 MAGNETICCONTACTOR (2)
49 HB-0013900-00 RELAY (8)
50 HB-0013900-10 RELAY (8)
51 HK-0692500-10 BLOCKTERMINAL (4)
52 HK-0696900-0A BLOCKTERMINAL (1)
53 HK-0696900-0B BLOCKTERMINAL (1)
54 HK-0696900-0C BLOCKTERMINAL (1)
55 HK-0691900-00 BLOCKTERMINAL (1)
56 HK-0691900-0B BLOCKTERMINAL (3)
57 HK-0691900-40 BLOCKTERMINAL (4)
58 EA-9500B01-00 CABLEBAND (50)
59 EA-9500B02-00 CABLEBAND150 (25)
60 HX-0070600-0A MOUNTBASE (22)
61 HK-0696500-10 BLOCKTERMINAL (22)
62 401-57362 SLIDERAIL (1)
63 SM-4040801-SC SCREWM4X0.7L=8 (12)
64 401-11661 DINRAIL350 (2)
65 SL-4040891-SC SCREWM4X8 (4)
66 HK-0696900-00 BLOCKTERMINAL (1)
67 401-57364 SAFETY_UNIT_BASE (1)
68 401-57363 SAFETY_UNIT_BRACKET (1)
69 HB-0015800-00 RELAY (1)
