- - 68. EFIXEDBAN KUNITCOMPO NENTS(3) 4 5 6 0 6 1 1 5 9 5 7 4 3 4 2 4 3 5 6 4 4 4 1 5 5 4 6 4 7 5 4 5 8 6 7 7 0 6 9 6 8 7 2 6 3 6 6 6 5 6 4 2 9 2 9 2 1 1 1 4 1 3 1 2 2 8 3 2 A 3 0 B 3 4 3 3 3 1 2 9 1 9 8 9 7 6 B 5 …

100%1 / 198
- -

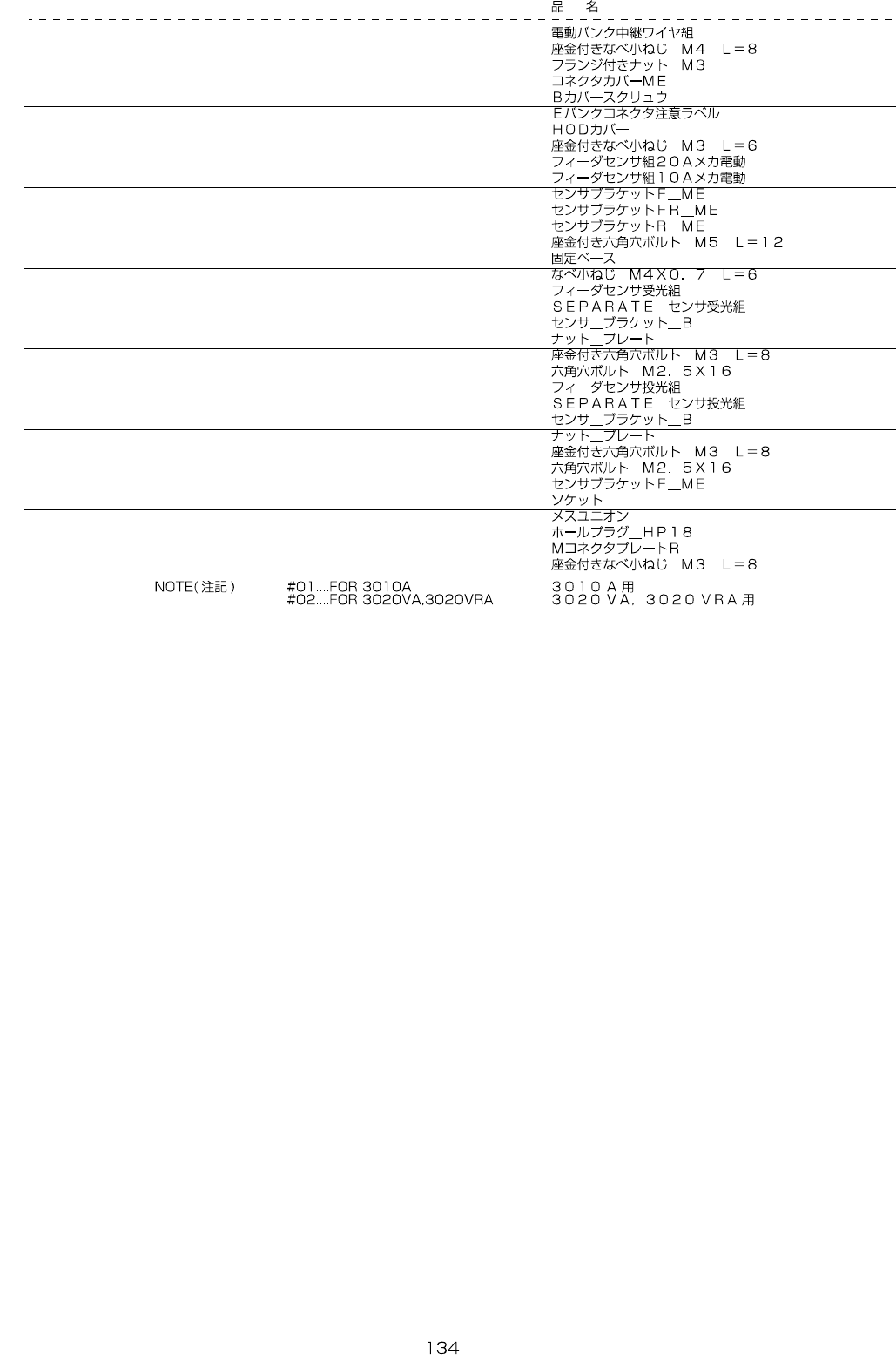

REF.NO NOTE PARTNO DESCRIPTION Qty
1 401-11734 ELECBANKRELAYWIREASM 2
2 SL-4040891-SC SCREWM4X8 4
3 NM-3034000-SF FLANGENUTM3 4
4 401-60009 CONNECTOR_COVER_ME 2
5 400-81751 B_COVER_SCREW 8
6 400-84938 E_BANK_CON_NOTICE_LABEL 2
7 401-47428 HOD_COVER 2
8 SL-4030691-SC SCREWM3L=6 4
9
#02
401-60137 FEEDER_SENS_ASM_20A_ME 1
10
#01
401-60136 FEEDER_SENS_ASM_10A_ME 1
11
#02
401-60011 SENSOR_BR_F_ME (1)
12
#02
401-60013 SENSOR_BR_FR_ME (1)
13 401-60012 SENSOR_BR_R_ME (2)
14 SL-6051292-TN SCREWM5L=12 (8)
15
#02
HX-0029400-00 FIXEDBASE (2)
16
#02
SM-4040601-SC SCREWM4X0.7L=6 (2)
17 401-60006 FEEDERSENSORRECEIVERASM (4)
18 401-29057 SEPARATESENSORRECEIVERASM (1)
19 400-93991 S_BR_B (1)
20 400-93993 NUT_PLATE (1)
21 SL-6030892-TN SCREWM3L=8 (2)
22 SM-6851602-TN SCREWM2.5X16 (2)
23 401-60007 FEEDERSENSOREMISSIONASM (4)
24 401-29058 SEPARATESENSOREMISSIONASM (1)
25 400-93991 S_BR_B (1)
26 400-93993 NUT_PLATE (1)
27 SL-6030892-TN SCREWM3L=8 (2)
28 SM-6851602-TN SCREWM2.5X16 (2)
29
#01
401-60011 SENSOR_BR_F_ME (2)
30 E2904-700-000 SOCKET 2
31 PJ-3010651-06 KNIFEUNION 2
32 400-93799 HOLE_PLUGS_HP18 2
33 401-47198 M_CONNECTOR_PLATE_R 2
34 SL-4030891-SC SCREWM3L=8 4
- -
68.EFIXEDBANKUNITCOMPONENTS(3)
4 5
6 0
6 1
1
5 9
5 7
4 3
4 2
4 3
5 6
4 4
4 1
5 5
4 6
4 7 5 4
5 8
6 7
7 06 9
6 8
7 2
6 3
6 6
6 5
6 4
2 9
2 9
2
1 1
1 4
1 3
1 2
2 8
3 2
A
3 0
B
3 4
3 3
3 1
2 9
1 9
8
9
7
6
B
5
2 7
4
2 0 2 3
2 6
2 4
2 4
1 0
1 5
1 7
1 6
1 8
8
9
7
2 5
4 0
3
7 3
3 7
3 8
A
3 9
3 5
3 5
2 7
7 1
6 2
3 6
- -
REF.NO NOTE PARTNO DESCRIPTION Qty
1 401-14162 EBANKASSY 1
2 401-10281 EBANKSUBASSY (1)
3 401-28160 E_BANK_BASE (1)
4 E2602-721-000 BANKLOCATEBUSHA (2)
5 E2609-721-000 BANKLOCATEPINA (1)
6 E2610-721-000 BANKLOCATEPINB (1)
7 NM-6080003-SC NUTM8X1.25TYPE3 (2)
8 WS-0820002-KN SPRINGWASHERM8 (2)
9 WP-0841601-SC WASHERM8 (2)
10 401-28166 MARKSTAND (1)
11 E2505-729-0A0 MARKASM. (1)
12 E2505-729-000 MARKBASE (1)
13 E2601-725-000 MARK (1)
14 SL-6041292-TN SCREWM4L=12 (2)
15 SL-6052092-TN SCREWM5L=20 (2)
16 401-03746 FIXINGPLATE (4)
17 SM-3041052-TN SCREWM4L=10 (12)
18 401-03747 FIXINGBLOCK (4)
19 SM-6041402-TN SCREWM4X0.7L=14 (12)
20 400-84713 EBANKSHIM0.02 (8)
21 400-84714 EBANKSHIM0.03 (8)
22 400-84715 EBANKSHIM0.05 (8)
23 400-84699 EBANKSHIM0.10 (12)
24 SM-8040612-TP SCREWM4L=6 (8)
25 SM-8030602-TP SCREWM3X0.5L=6 (8)
26 SM-8041852-TP SCREWM4L=18 (8)
27 SM-6040802-TN SCREWM4X0.7L=8 (16)
28 E3074-729-000 BEARINGSHIMD (2)
29 401-03748 RAILGUIDE9 (3)
30 401-03749 RAILGUIDE10 (1)
31 SM-6040802-TN SCREWM4X0.7L=8 (16)
32 400-85590 GUIDE_PLATE (41)
33 SM-3030552-TN SCREWM3L=5 (82)
34 SM-1030552-TN PLATESCREWM3L=5 (41)
35 401-28162 LOCKSHAFT (2)
36 WP-0430801-SC WASHERM4 (8)
37 SL-4030881-SC SCREWM3L=8 (8)
38 401-38827 E_BANK_BASE_COVER (1)
39 SM-0040601-SC SCREWM4X0.7L=6 (8)
40 EA-9500B02-00 CABLEBAND150 (10)
41 400-93577 FDCBRACKETASSY (1)
42 400-93591 FDCBRACKETSTAYR (1)
43 SL-6061292-TN SCREWM6L=12 (4)
44 401-28140 FDCBRACKET (1)
45 SL-6051092-TN SCREWM5L=10 (4)
46 400-93594 ETFPOSITIONLABEL(40) (1)
47 400-92647 EFIFCBL1-5ASM (1)
48 400-92648 EFIFCBL6-10ASM (1)
49 400-92649 EFIFCBL11-15ASM (1)
50 400-92650 EFIFCBL16-20ASM (1)
51 400-92651 EFIFCBL21-25ASM (1)
52 400-92652 EFIFCBL26-30ASM (1)
53 400-92653 EFIFCBL31-35ASM (1)
54 400-92654 EFIFCBL36-40ASM (1)
55 HK-0791900-00 CONNECTOR (80)
56 400-93590 FDCBRACKETSTAYL (1)
57 HX-0022300-0A BUSHING (0.14)
58 400-93578 BANKPCBBOXASSY (1)
59 HX-0035400-0E BOARDPARTS (4)
60 SL-4030691-SC SCREWM3L=6 (6)
61 401-28042 BANKPCBBASE (1)
62 HX-0067100-00 GROMMET (0.21)
63 401-87551 ELECBANK10PCBASMV2 (1)
64 HX-0067100-0A GROMMET (0.36)
65 HX-0029400-00 FIXEDBASE (6)
66 SL-4030691-SC SCREWM3L=6 (6)
67 400-93593 BANKPCBCOVER (1)
68 SL-6030892-TN SCREWM3L=8 (4)
69 EA-9500B01-00 CABLEBAND (30)
70 EA-9500B02-00 CABLEBAND150 (30)
71 401-07154 CLOSELABEL (1)
72 SL-6051092-TN SCREWM5L=10 (4)
73 HX-0029400-00 FIXEDBASE (8)
