- - 70. MREPLACING OVERALLCH ANGERTRUCKCO MPONENTS (WITHCONNECT ORBRACKET )(2) 2 1 2 0 1 9 2 2 1 2 8 9 8 1 5 1 4 1 3 1 2 1 1 1 0 9 7 6 5 3 4 1 7 2 3 1 6 1 8 2 4 2 6 2 7 2 5 2 8

- -

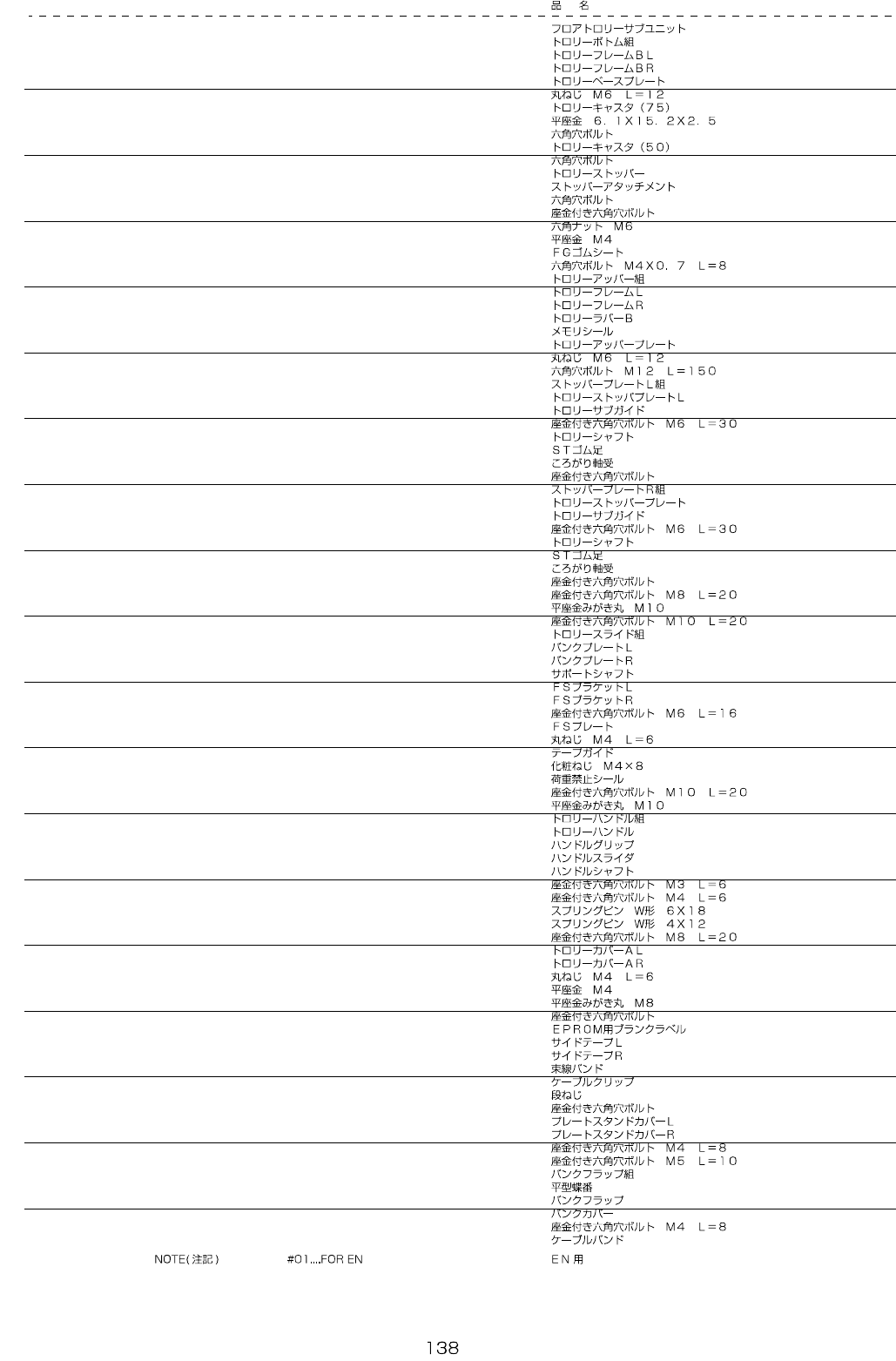

REF.NO NOTE PARTNO DESCRIPTION Qty

1 400-21958 FLOORTROLLEYSUBUNIT 1

2 400-21959 TROLLEYBOTTOMASSY (1)

3 400-21912 TROLLEYFRAMEBL (1)

4 400-21913 TROLLEYFRAMEBR (1)

5 400-21914 TROLLEYBASEPLATE (1)

6 SM-3061252-TN SCREWM6L=12 (6)

7 400-21957 TROLLEYCASTER(75) (2)

8 WP-0612516-SD WASHER6.1X15.2X2.5 (8)

9 SM-6060802-TN SCREW (8)

10 400-21956 TROLLEYCASTER(50) (2)

11 SM-6060802-TN SCREW (8)

12 E2711-721-000 TROLLEYSTOPPER (2)

13 E2710-721-000 STOPPERATTACHMENT (2)

14 SM-6060802-TN SCREW (8)

15 SL-6061242-TN BOLT (4)

16 NM-6060003-SC NUTM6 (4)

17 WP-0430801-SC WASHERM4 (2)

18 400-23476 FGGUMSHEET (1)

19 SM-6040802-TN SCREWM4X0.7L=8 (1)

20 400-21960 TROLLEYUPPERASSY (1)

21 400-58933 TROLLEYFRAMEL (1)

22 400-58934 TROLLEYFRAMER (1)

23 400-01731 TROLLEYRUBBERB (4)

24 400-01730 SCALEMARKSSEAL (2)

25 400-58935 TROLLEYUPPERPLATE (1)

26 SM-3061252-TN SCREWM6L=12 (6)

27 SM-6125052-TR SCREWM12L=150 (2)

28 400-22464 STOPPERPLATELASSY (1)

29 400-53180 TROLLEYSTOPPERPLATEL (1)

30 400-01748 TROLLEYSUBGUIDE (1)

31 SL-6063092-TN SCREWM6L=30 (1)

32 E2703-721-000 TROLLEYSHAFT (1)

33 S1021-710-000 STRUBBERFOOT (1)

34 SB-8160005-C0 BEARING (1)

35 SL-6041042-TN BOLT (4)

36 400-22465 STOPPERPLATERASSY (1)

37 400-01735 TROLLEYSTOPPERPLATE (1)

38 400-01748 TROLLEYSUBGUIDE (1)

39 SL-6063092-TN SCREWM6L=30 (1)

40 E2703-721-000 TROLLEYSHAFT (1)

41 S1021-710-000 STRUBBERFOOT (1)

42 SB-8160005-C0 BEARING (1)

43 SL-6041042-TN BOLT (4)

44 SL-6082092-TN SCREWM8L=20 (4)

45 WP-1052001-SC WASHER10 (4)

46 SL-6102042-TN SCREWM10L=20 (4)

47 400-21961 TROLLEYSLIDEASSY (1)

48 400-21916 BANKPLATEL (1)

49 400-21917 BANKPLATER (1)

50 400-23221 SUPPORTSHAFT (2)

51 400-01736 FSBRACKETL (1)

52 400-01737 FSBRACKETR (1)

53 SL-6061692-TN SCREWM6L=16 (4)

54 400-01739 FSPLATE (1)

55 SM-3040652-TN SCREWM4L=6 (4)

56 400-21918 TAPEGUIDE (1)

57 400-68308 SETSCREWM4L=8 (2)

58 E5721-729-000 LABEL (1)

59 SL-6102042-TN SCREWM10L=20 (2)

60 WP-1052001-SC WASHER10 (2)

61 400-21962 TROLLEYHANDLEASSY (2)

62 400-21920 TROLLEYHANDLE (1)

63 E2641-729-000 HANDLECLIP (1)

64 E2635-729-000 HANDLESLIDER (1)

65 400-21919 HANDLESHAFT (1)

66 SL-6030642-TN SCREWM3L=6 (1)

67 SL-6040642-TN SCREWM4L=6 (1)

68 PS-0600182-KP SPRINGPINTYPEW6X18 (1)

69 PS-0400122-KP SPRINGPINTYPEW4X12 (2)

70 SL-6082092-TN SCREWM8L=20 (4)

71 400-58936 TROLLEYCOVERAL (1)

72 400-58937 TROLLEYCOVERAR (1)

73 SM-3040652-TN SCREWM4L=6 (4)

74 WP-0430801-SC WASHERM4 (4)

75 WP-0841601-SC WASHERM8 (2)

76 SL-6081242-TN BOLT (2)

77 E4981-700-000 LABEL (1)

78 400-58938 SIDETAPEL (1)

79 400-58939 SIDETAPER (1)

80 HX-0006500-0B CABLEBAND 6

81 HX-0015000-0K CABLECLIP 1

82 400-01734 SCREW 4

83 SL-6051492-TN BOLT 4

84 E1173-725-000 PLATESTANDCOVERL 1

85 E1174-725-000 PLATESTANDCOVERR 1

86 SL-6040892-TN SCREWM4L=8 2

87 SL-6051092-TN SCREWM5L=10 2

#01

400-01749 BANKFLAPASSY 1

89 400-18388 BUTTHINGE (2)

90 400-18389 BANKFLAP (1)

#01

400-01750 BANKCOVER 1

#01

SL-6040892-TN SCREWM4L=8 4

93 HX-0067400-00 CABLEBAND 4

- -

70.MREPLACINGOVERALLCHANGERTRUCKCOMPONENTS(WITHCONNECTORBRACKET)(2)

2 1

2 0

1 9

2 2

1 2

1 5

1 4

1 3

1 2

1 1

1 0

1 7

2 3

1 6

1 8

2 4

2 6

2 7

2 5

2 8

- -

REF.NO NOTE PARTNO DESCRIPTION Qty

1 401-47461 CONNECTOR_BRACKET_ASM 1

#01

401-47462 CONNECTOR_BRACKET_ASM_(EN) 1

3 B4011-210-000 SPACER (4)

4 NM-6030003-SC NUTM3X0.5TYPE3 (4)

5 SM-4020801-SC SCREWM2X8 (4)

6 HX-0029400-00 FIXEDBASE (1)

7 SM-4030601-SC SCREWM3X0.5L=6 (1)

8 PJ-3010651-06 KNIFEUNION (2)

9 E2904-700-000 SOCKET (2)

10 PJ-2300061-00 UNION06 (1)

11 PJ-3050600-04 TEE (1)

12 PJ-0320090-05 NIPPLE (1)

13 E2642-721-000 CONNECTORNO.LABEL (1)

14 BT-0600400-EC URETHANETUBEBLUE6X4 (1.3)

15 EA-9500B01-00 CABLEBAND (4)

16 E8615-715-0A0 FEEDERBANKCIRCUITBOARDASM. (2)

17 E8618-721-0A0 FEEDERI/FBOARDASM. (1)

18 E2508-729-000 CONNECTORBRACKET (1)

#01

HN-0017900-0B NOISEFILTER (2)

#01

HN-0017900-0D FERRITECLAMP (4)

#01

HK-0429900-8A CAP (1)

#01

HN-0014900-00 CLAMPFILTER(L) (3)

23 SM-4860601-SC SCREWM2.6L=6 (16)

24 SM-4031201-SC SCREWM3X12 (4)

25 HB-0015400-10 RELAY (1)

26 HB-0015400-00 RELAY (1)

27 SM-6031402-TN SCREWM3X0.5L=8 (1)

28 401-46434 RFIDBANKCABLEASM (1)
