- - 75. CONNECTORB RACKETCOMP ONENTS(TYPE MFIXEDBANK) 1 2 3 0 3 2 3 1 3 2 1 8 3 3 2 9 2 1 2 0 1 9 2 2 8 9 8 1 5 1 4 1 3 1 2 1 1 1 0 9 7 6 5 1 7 2 3 1 6 2 4 2 8 2 6 2 7 3 4 2 5

100%1 / 198
- -
REF.NO NOTE PARTNO DESCRIPTION Qty
1 401-14551 TROLLEYSAFTYCOVER 1
2 401-10308 TROLLEYSAFTYCOVERR (1)
3 401-10307 TROLLEYSAFETYCOVERL (1)
4 401-10309 TSCOVERSD (2)
5 SL-6051092-TN SCREWM5L=10 (2)
6 400-94723 TOROLLEYCOVBR (2)
7 SL-6061092-TN SCREWM6L=10 (4)
8 SL-4040891-SC SCREWM4X8 (2)
9 CM-3002000-03 FINGERINJURYCAUTIONLABEL(31.5) (2)
10 WP-0641601-SC WASHERM6 (2)
11
#02
401-26511 TAPE_GUIDE_ASM_FIX 1
12 401-38828 TAPE_GUIDE_A (1)
13 SM-6061202-TN SCREW (2)
14 WP-0641601-SC WASHERM6 (4)
15 401-11174 TGI_POST (2)
16 401-26050 TAPE_GUIDE_B_ASM_FIX (1)
17 400-98072 SLIDE_WASHER (4)
18 WP-0451016-SP WASHER4.5X20X1 (2)
19 400-56921 SPRINGSTUD (2)
20 WP-0430801-SC WASHERM4 (2)
21 WS-0410002-KN SPRINGWASHERM4 (2)
22 NM-6040001-SC NUTM4X0.7TYPE1 (2)
23 401-11184 SLIDE_GUIDE_SP (2)
24 401-61919 TAPE_GUIDE_B (1)
25 401-26047 SHUTER_ASM (1)
26 401-38829 SHUTTER_PLATE (1)
27 401-38835 MAGNET_RUBBER_SHEET (2)
28 401-38837 UPDC_HANDLE_BR (1)
29 SM-3030552-TN SCREWM3L=5 (4)
30 SL-6030692-TN SCREWM3L=6 (2)
31 401-38507 WSHER_TM-147-1 (2)
32 401-38845 SLIDE_GUIDE_FIXED (1)
33 401-50864 GUIDE_SPACER_55 (2)
34
#02
401-11178 TAPE_GUIDE_SUP_BR_S 2
35
#02
SL-6051092-TN SCREWM5L=10 4
36
#02
SL-4040891-SC SCREWM4X8 4
37
#03
401-26505 TROLLEY_TAPE_GUIDE_ASM_REV_B 1
38 401-38828 TAPE_GUIDE_A (1)
39 WP-0641601-SC WASHERM6 (4)
40 401-11174 TGI_POST (2)
41 SM-6061202-TN SCREW
(2)
42 401-26049 TAPE_GUIDE_B_ASM_TROLLEY (1)
43 401-61919 TAPE_GUIDE_B (1)
44 401-26047 SHUTER_ASM (1)
45 401-38829 SHUTTER_PLATE (1)
46 401-38835 MAGNET_RUBBER_SHEET (2)
47 401-38837 UPDC_HANDLE_BR (1)
48 SM-3030552-TN SCREWM3L=5 (4)
49 SL-6030692-TN SCREWM3L=6 (2)
50 401-38507 WSHER_TM-147-1 (2)
51 401-26048 SLIDE_GUIDE_ASM_TROLLEY (1)
52 401-38830 SLIDE_GUIDE (1)
53 401-38838 SHUTTER_FILM (1)
54 E2732-721-000 BANKGUIDEROLLER (2)
55 WP-0641601-SC WASHERM6 (2)
56 WS-0610002-KN SPRINGWASHERM6 (2)
57 NM-6060001-SC NUTM6X1TYPE1 (2)
58 401-50864 GUIDE_SPACER_55 (2)
59 400-98072 SLIDE_WASHER (4)
60 WP-0451016-SP WASHER4.5X20X1 (2)
61 400-56921 SPRINGSTUD (2)
62 WP-0430801-SC WASHERM4 (2)
63 WS-0410002-KN SPRINGWASHERM4 (2)
64 NM-6040001-SC NUTM4X0.7TYPE1 (2)
65 401-11184 SLIDE_GUIDE_SP (2)
66
#03
400-93982 BASE_GUIDE_BR_A (1)
67
#03
400-93983 BASE_GUIDE_BR_B (1)
68
#03
SL-6062092-TN SCREWM6L=20 (2)
69
#03
SL-6061292-TN SCREWM6L=12 (8)
70
#03
401-50866 BRG_SUPPORT (2)
71
#03
E2732-721-000 BANKGUIDEROLLER (2)
72
#03
WP-0641601-SC WASHERM6 (2)
73
#03
WS-0610002-KN SPRINGWASHERM6 (2)
74
#03
NM-6060001-SC NUTM6X1TYPE1 (2)
75
#03
401-50865 GUIDE_SPACER_135 (2)
76
#03
SL-6061492-TN SCREWM6L=14 (4)
77
#03
401-52318 BASE_GUIDE_BR_CL 2
78 400-94856 THLOCKBR 2
79 SL-4030691-SC SCREWM3L=6 4
80 WP-0320501-SC WASHERM3 4
81 401-19277 ST_COVER 2
82 SL-6040892-TN SCREWM4L=8 3
83
#01
400-94878 TRASHBOXHOLDERASM 1
84 400-94848 TRASHBOXFLAME (1)
85 SL-6040892-TN SCREWM4L=8 (4)
86 400-94851 SUBCASTERBR (2)
87 SM-3040652-TN SCREWM4L=6 (4)
88 400-94860 THCASTER (2)
89 SM-3040652-TN SCREWM4L=6 (8)
90 400-94861 SLIDEBOLT 2
91 SL-4030691-SC SCREWM3L=6 8
92 HX-0029400-00 FIXEDBASE 3
93 SM-4040601-SC SCREWM4X0.7L=6 3
94 EA-9500B02-00 CABLEBAND150 3
95 NM-6040001-SC NUTM4X0.7TYPE1 1
96 WP-0430801-SC WASHERM4 1
97 WS-0410002-KN SPRINGWASHERM4 1
98 SL-6061292-TN SCREWM6L=12 4
- -
75.CONNECTORBRACKETCOMPONENTS(TYPEMFIXEDBANK)
1 2
3 0
3 2
3 1
3 2
1 8
3 3
2 9
2 1
2 01 9
2 2
8
9
8
1 5
1 4
1 3
1 2
1 1
1 0
9
7
6
5
1 7
2 3
1 6
2 4
2 8
2 6
2 7
3
4
2 5
- -

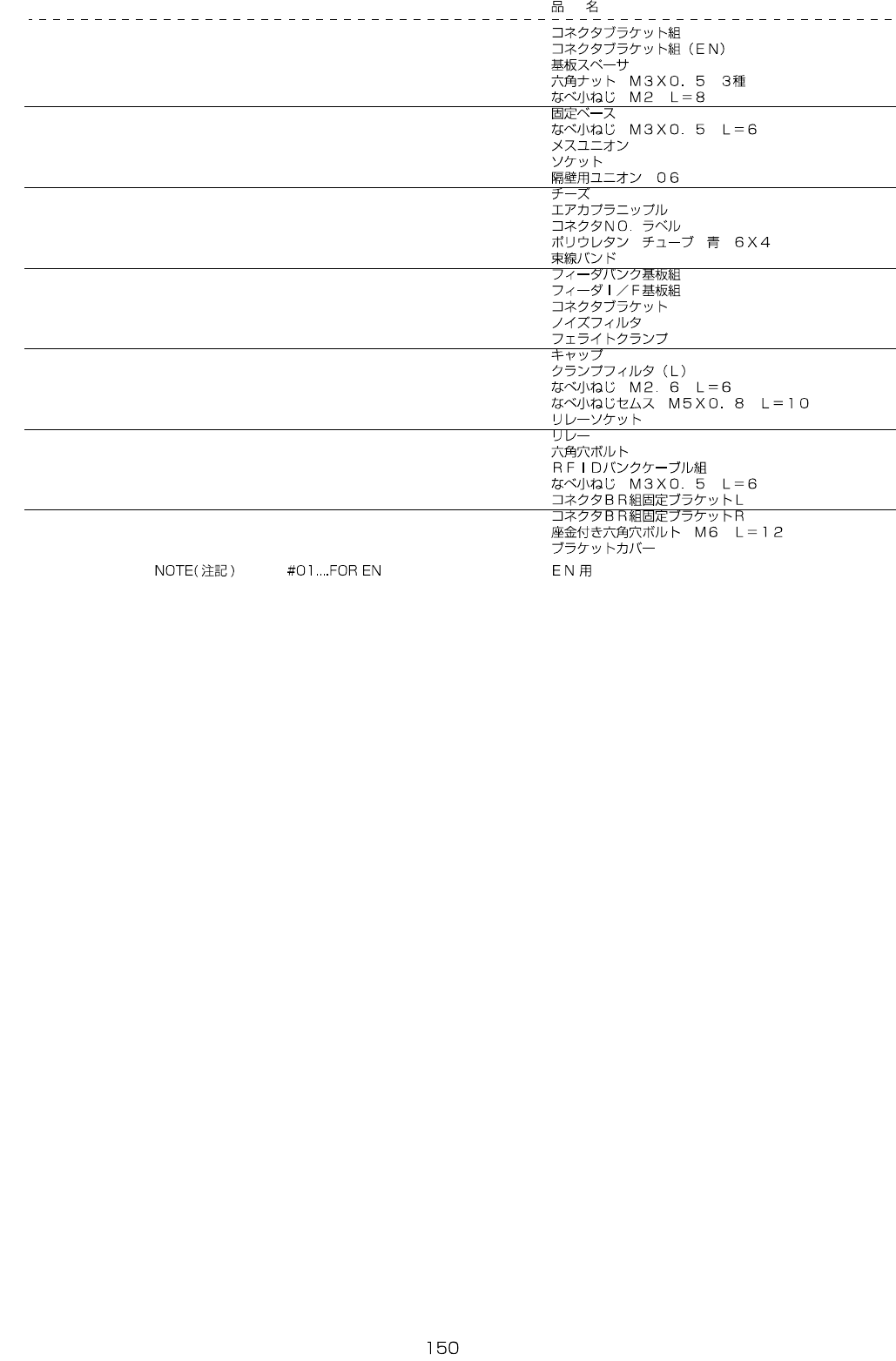

REF.NO NOTE PARTNO DESCRIPTION Qty
1 401-47461 CONNECTOR_BRACKET_ASM 1
2
#01
401-47462 CONNECTOR_BRACKET_ASM_(EN) 1
3 B4011-210-000 SPACER (4)
4 NM-6030003-SC NUTM3X0.5TYPE3 (4)
5 SM-4020801-SC SCREWM2X8 (4)
6 HX-0029400-00 FIXEDBASE (1)
7 SM-4030601-SC SCREWM3X0.5L=6 (1)
8 PJ-3010651-06 KNIFEUNION (2)
9 E2904-700-000 SOCKET (2)
10 PJ-2300061-00 UNION06 (1)
11 PJ-3050600-04 TEE (1)
12 PJ-0320090-05 NIPPLE (1)
13 E2642-721-000 CONNECTORNO.LABEL (1)
14 BT-0600400-EC URETHANETUBEBLUE6X4 (1.3)
15 EA-9500B01-00 CABLEBAND (4)
16 E8615-715-0A0 FEEDERBANKCIRCUITBOARDASM. (2)
17 E8618-721-0A0 FEEDERI/FBOARDASM. (1)
18 E2508-729-000 CONNECTORBRACKET (1)
19
#01
HN-0017900-0B NOISEFILTER (2)
20
#01
HN-0017900-0D FERRITECLAMP (4)
21
#01
HK-0429900-8A CAP (1)
22
#01
HN-0014900-00 CLAMPFILTER(L) (3)
23 SM-4860601-SC SCREWM2.6L=6 (16)
24 SL-4051091-SC SCREWM5X0.8L=10 (4)
25 HB-0015400-10 RELAY (1)
26 HB-0015400-00 RELAY (1)
27 SM-6031402-TN SCREWM3X0.5L=8 (1)
28 401-46434 RFIDBANKCABLEASM (1)
29 SM-4030601-SC SCREWM3X0.5L=6 2
30 400-94494 CONNASMFIXBRL 1
31 400-94495 CONNASMFIXBRR 1
32 SL-6061292-TN SCREWM6L=12 4
33 E2737-721-000 BRACKETCOVER 1
