- - 78. CUTTERUNITCOMP ONENTS(CHANG ERBANK)(2) 1 8 4 2 3 2 4 2 3 4 0 4 0 5 1 4 6 5 2 5 3 5 2 4 0 4 4 4 3 4 2 4 1 2 5 3 5 2 8 3 4 3 3 3 2 3 1 3 0 2 9 2 7 2 6 2 2 2 2 2 2 2 2 2 0 2 1 2 1 2 1 2 1 2 0 2 0 2 0 1 9 1 7 …

- -

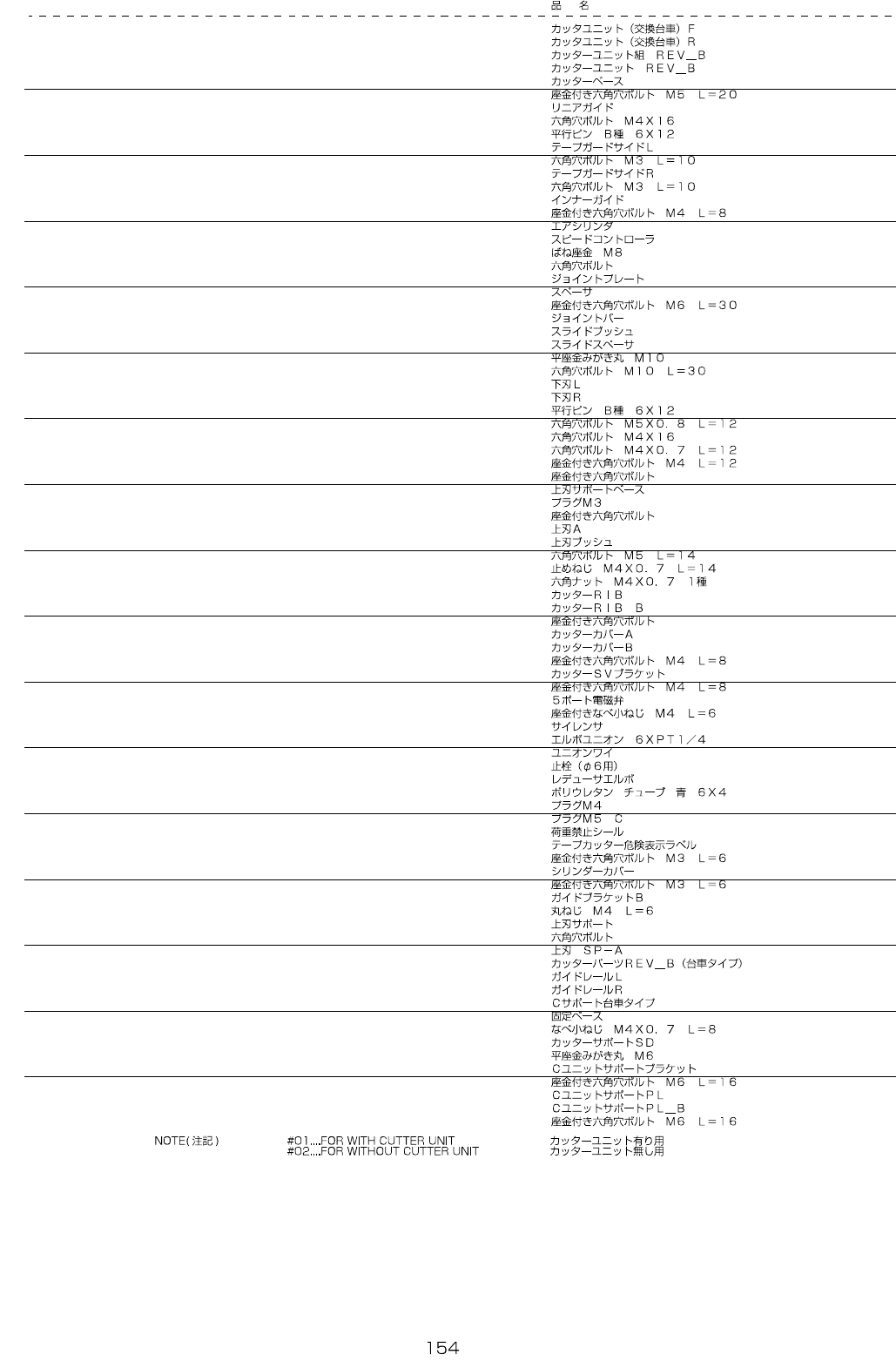

REF.NO NOTE PARTNO DESCRIPTION Qty

#01

401-47477 CUTTERUNIT(TROLLEY_TYPE)_F 1

#02

401-47478 CUTTERUNIT(TROLLEY_TYPE)_R 1

3 401-38824 CUTTER_UNIT_ASM_REV_B (1)

4 401-38852 CUTTERUNIT_REV_B (1)

5 401-14002 CUTTERBASE (1)

6 SL-6052092-TN SCREWM5L=20 (2)

7 400-84693 LINEARGUIDE (2)

8 SM-6041602-TN SCREWM4X16 (4)

9 PH-0600120-C0 PARALLELPINTYPEB6X12 (6)

10 401-38799 TAPE_GUARD_SIDE_L (1)

11 SM-6031002-TN SCREWM3L=10 (2)

12 401-38800 TAPE_GUARD_SIDE_R (1)

13 SM-6031002-TN SCREWM3L=10 (2)

14 401-38834 INNER_GUIDE (1)

15 SL-6040892-TN SCREWM4L=8 (4)

16 PA-6305001-A0 AIRCYLINDER (2)

17 PC-0152030-00 SPEEDCONTROLLER (4)

18 WS-0820002-KN SPRINGWASHERM8 (4)

19 SM-6085002-TN SCREW (4)

20 401-10230 JOINTPLATE (2)

21 401-10316 SPACER (4)

22 SL-6063092-TN SCREWM6L=30 (4)

23 401-50918 JOINT_BAR (1)

24 400-84691 SLIDEBUSH (2)

25 400-84690 SLIDESPACER (4)

26 WP-1052001-SC WASHER10 (4)

27 SM-6103002-TN SCREWM10L=30 (2)

28 401-10232 BOTTOMBLADEL (1)

29 401-10242 BOTTOMBLADER (1)

30 PH-0600120-C0 PARALLELPINTYPEB6X12 (4)

31 SM-6051202-TN SCREWM5X0.8L=12 (8)

32 SM-6041602-TN SCREWM4X16 (4)

33 SM-6041202-TN SCREWM4X0.7L=12 (4)

34 SL-6041292-TN SCREWM4L=12 (4)

35 SL-6043092-TN BOLT (6)

36 401-38814 UPPER_BLADE_SUPPORT_BASE (5)

37 401-38842 PLUG_M3 (2)

38 SL-6053092-TN SCREW (10)

39 401-10231 UPPERBLADEA (1)

40 E6109-700-000 UPPERBLADEBUSH (5)

41 SM-6051402-TN SCREWM5L=14 (5)

42 SM-8041402-TP SCREWM4X0.7L=14 (10)

43 NM-6040001-SC NUTM4X0.7TYPE1 (10)

44 401-38808 CUTTER_RIB (1)

45 401-13937 CUTTERRIBB (2)

46 SL-6043592-TN SCREW (5)

47 401-50107 CUTTER_COVER_A (1)

48 401-38805 CUTTER_COVER_B (1)

49 SL-6040892-TN SCREWM4L=8 (7)

50 401-38809 CUTTER_SV_BR (1)

51 SL-6040892-TN SCREWM4L=8 (2)

52 400-93977 5PORTSOLENOIDVALVE (1)

53 SL-4040691-SC SCREWM4L=6 (2)

54 PX-0551040-00 SILENCER (4)

55 PJ-3040652-01 ELBOWUNION6XPT1/4 (3)

56 PJ-3080600-03 UNIONY (3)

57 PX-9500010-00 PLUG6 (4)

58 PJ-3040600-01 REDUCERELBOW (1)

59 BT-0600400-EC URETHANETUBEBLUE6X4 (3)

60 401-38843 PLUG_M4 (2)

61 401-38851 PLUG_M5_C (8)

62 E5721-729-000 LABEL (1)

63 400-92716 TAPECUTTERDANGERLABEL (1)

64 SL-6030692-TN SCREWM3L=6 (2)

65 401-38807 CYLINDER_COVER (1)

66 SL-6030692-TN SCREWM3L=6 (8)

67 401-38802 GUIDE_BR_B (1)

68 SM-3040652-TN SCREWM4L=6 (5)

69 401-38815 UP_BLADE_SUPPORT (5)

70 SM-6051602-TN SCREW (10)

71 E6110-700-000 UP_BLADESP-A (10)

72 401-26508 CUTTER_PARTS_REV_B(TROLLEY_TYPE) (1)

73 401-38822 GUIDE_RAIL_L (1)

74 401-38823 GUIDE_RAIL_R (1)

75 401-14591 C_SUP_TROLLEY_TYPE (1)

76 HX-0029400-00 FIXEDBASE (1)

77 SM-4040801-SC SCREWM4X0.7L=8 (1)

78 401-10299 CUTTER_SUPPORT_SD (4)

79 WP-0641601-SC WASHERM6 (4)

80 401-10765 C_UNIT_SUP_BR (2)

81 SL-6061692-TN SCREWM6L=16 (4)

82 401-10767 C_UNIT_SUP_PL (1)

83 401-38848 C_UNIT_SUP_PL_B (1)

84 SL-6061692-TN SCREWM6L=16 (8)

- -

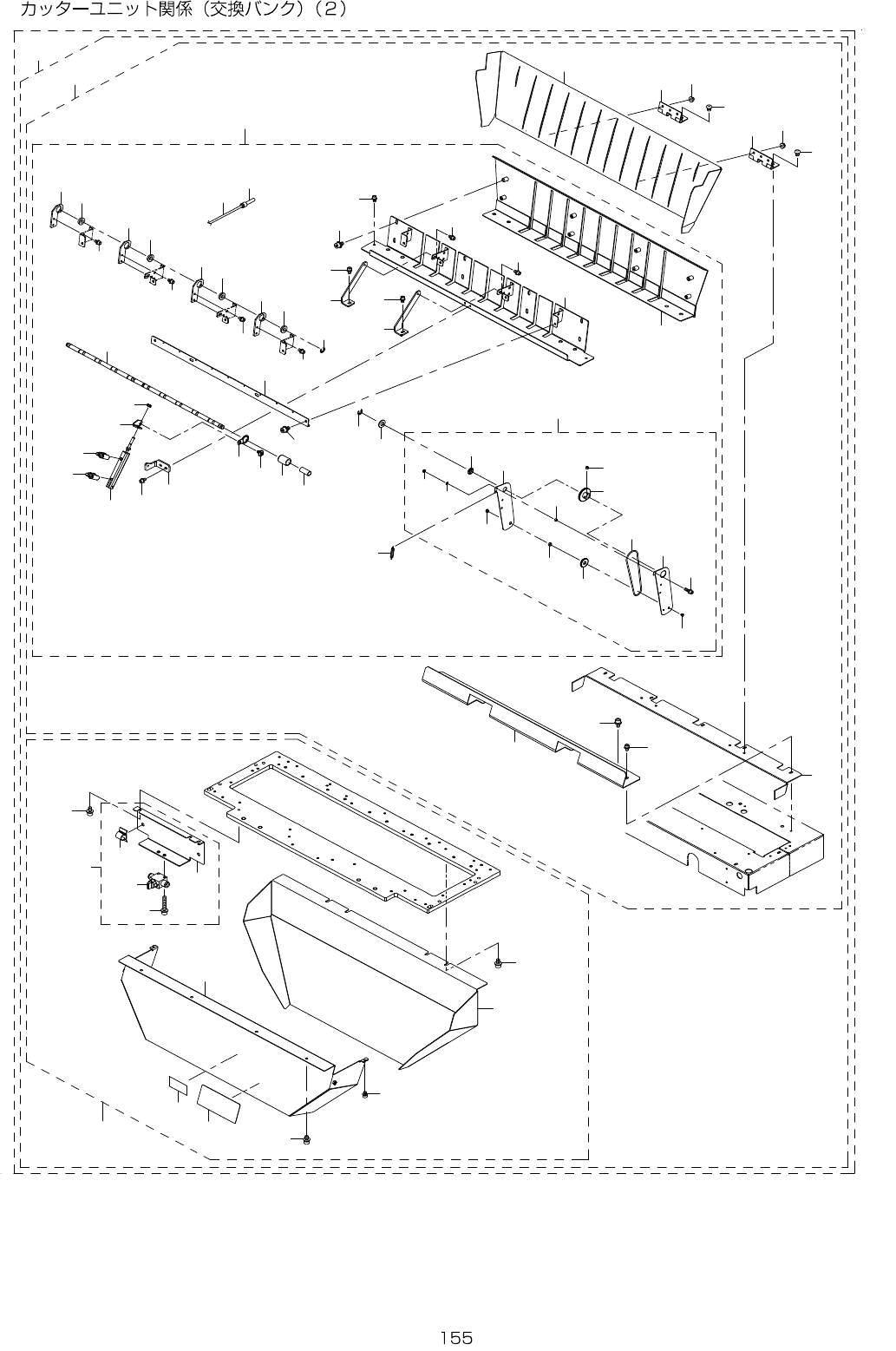

78.CUTTERUNITCOMPONENTS(CHANGERBANK)(2)

1 8

4 2

2 4

2 3

4 0

5 1

4 6

5 2

5 3

5 2

4 0

4 4

4 3

4 2

4 1

2 5

3 5

2 8

3 4

3 3

3 2

3 1

3 0

2 9

2 7

2 6

2 2

2 0

2 1

2 0

1 9

1 7

1 6

1 5

1 1

1 4

1 3

1 2

1 0

4 7

5 0

4 9

5 4

6 1

6 0

5 7

5 6

6 2

4 5

3 6

3 8

3 9

3 7

4 0

4 4

4 8

5 3

4 6

5 8

5 9

5 5

6 6

6 4

6 5

6 7

6 3

- -

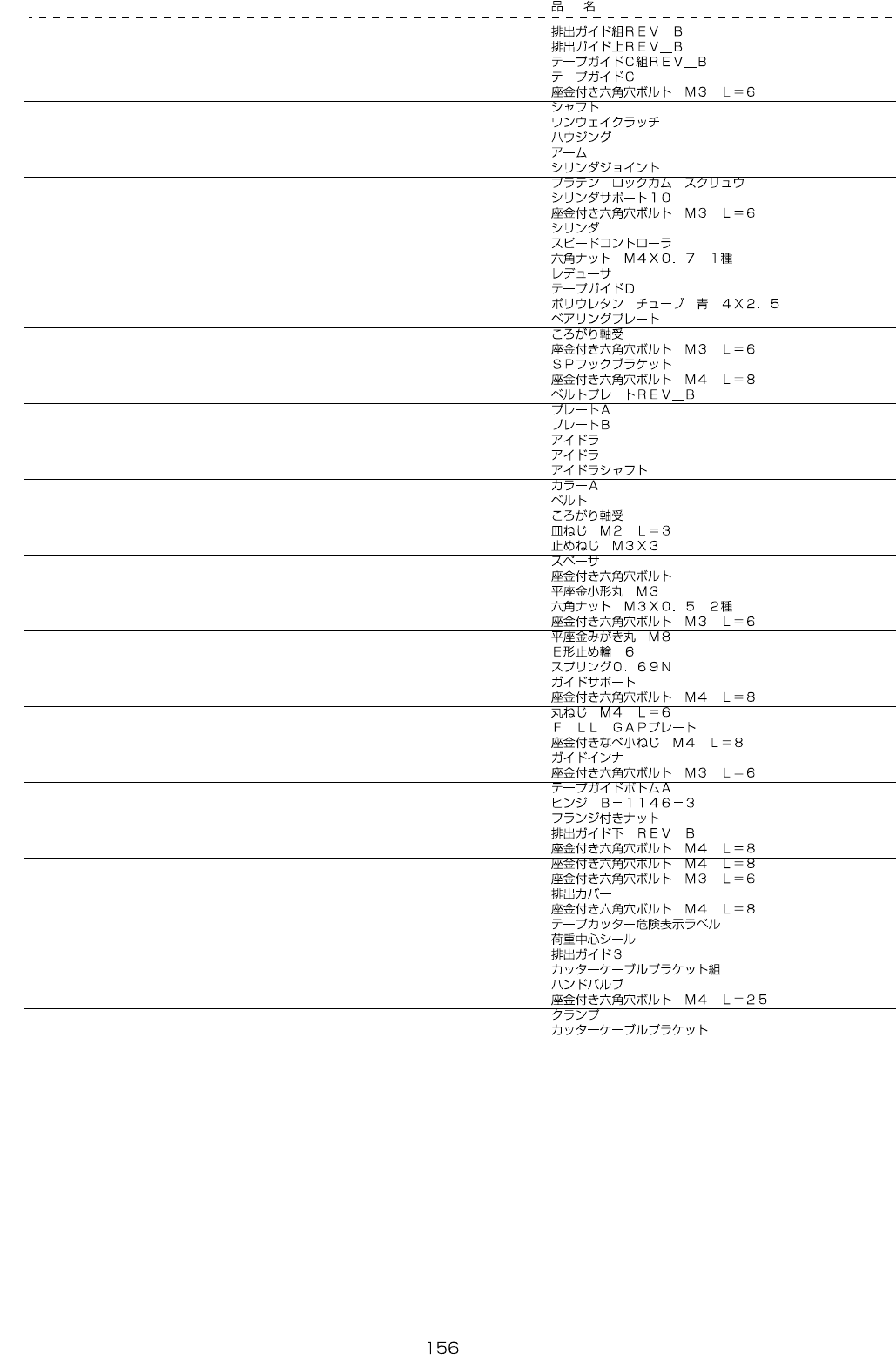

REF.NO NOTE PARTNO DESCRIPTION Qty

1 401-26506 DISCHARGE_GUIDE_ASM_REV_B 1

2 401-38858 DISCHARGE_GUIDE_UPPER_REV_B (1)

3 401-25970 TAPE_GUIDE_C_ASM_REV_B (1)

4 401-38839 TAPE_GUIDE_C (1)

5 SL-6030692-TN SCREWM3L=6 (7)

6 401-38813 SHAFT (1)

7 401-17450 ONEWAYCLUTCH (1)

8 401-17433 HUSING (1)

9 401-17434 ARM (1)

10 401-17436 CYLJOINT (1)

11 E1038-871-000 PLATENLOCKCAMSCREW (1)

12 401-38820 CYL_SUP_10 (1)

13 SL-6030692-TN SCREWM3L=6 (2)

14 401-17440 CYLINDER (1)

15 PC-0105190-00 SPEEDCONTROLLER (2)

16 NM-6040001-SC NUTM4X0.7TYPE1 (1)

17 PJ-3010400-04 REDUCER (2)

18 401-38816 TAPE_GUIDE_D (1)

19 BT-0400251-EA URETHANETUBEBLUE4X2.5 (0.4)

20 401-17435 BRGPLATE (4)

21 SB-1080007-00 BEARING (4)

22 SL-6030692-TN SCREWM3L=6 (8)

23 401-38811 SP_HOOK_BR (1)

24 SL-6040892-TN SCREWM4L=8 (4)

25 401-26507 BELT_PLATE_ASM_REV_B (9)

26 401-38817 PLATE_A (1)

27 401-38818 PLATE_B (1)

28 401-38812 IDLER (1)

29 401-17446 IDLER (1)

30 401-17447 IDLERSHAFT (1)

31 401-17448 COLLARA (1)

32 401-38819 BELT (1)

33 SB-1040005-00 BEARING (1)

34 SM-1020301-SN SCREW (1)

35 SM-8030302-TP SCREWM3X3 (2)

36 401-25967 SPACER (1)

37 SL-6031092-TN SCREW (1)

38 WP-0320500-SC WASHERM3 (1)

39 NM-6030002-SC NUTM3X0.5TYPE2 (1)

40 SL-6030692-TN SCREWM3L=6 (4)

41 WP-0841601-SC WASHERM8 (9)

42 RE-0600000-K0 E-RING6 (13)

43 400-94891 SPRING0.69N (9)

44 401-38810 GUIDE_SUP (2)

45 SL-6040892-TN SCREWM4L=8 (8)

46 SM-3040652-TN SCREWM4L=6 (4)

47 401-46779 FILL_GAP_PLATE (1)

48 SL-4040891-SC SCREWM4X8 (4)

49 401-38803 GUIDE_INNER (1)

50 SL-6030692-TN SCREWM3L=6 (5)

51 401-38806 TAPE_GUIDE_BOTTOM_A (1)

52 400-94843 HINGEB-1146-3 (2)

53 NM-3040510-SL FLANGENUT (4)

54 401-26044 DISCHARGE_GUIDE_LOWER_REV_B (1)

55 SL-6040892-TN SCREWM4L=8 (2)

56 SL-6040892-TN SCREWM4L=8 (4)

57 SL-6030692-TN SCREWM3L=6 (2)

58 401-38849 DISCHARGE_COVER (1)

59 SL-6040892-TN SCREWM4L=8 (4)

60 400-92716 TAPECUTTERDANGERLABEL (1)

61 168-70206 GRAVITYSEAL (1)

62 401-14008 DISCHARGEGUIDE3 (1)

63 401-26516 CUTTER_CABLE_BR_ASM (1)

64 PV-0100060-00 HANDVALVE (1)

65 SL-6042592-TN SCREWM4L=25 (2)

66 HX-0002400-0D CLAMP (2)

67 401-38821 CUTTER_CABLE_BR (1)
