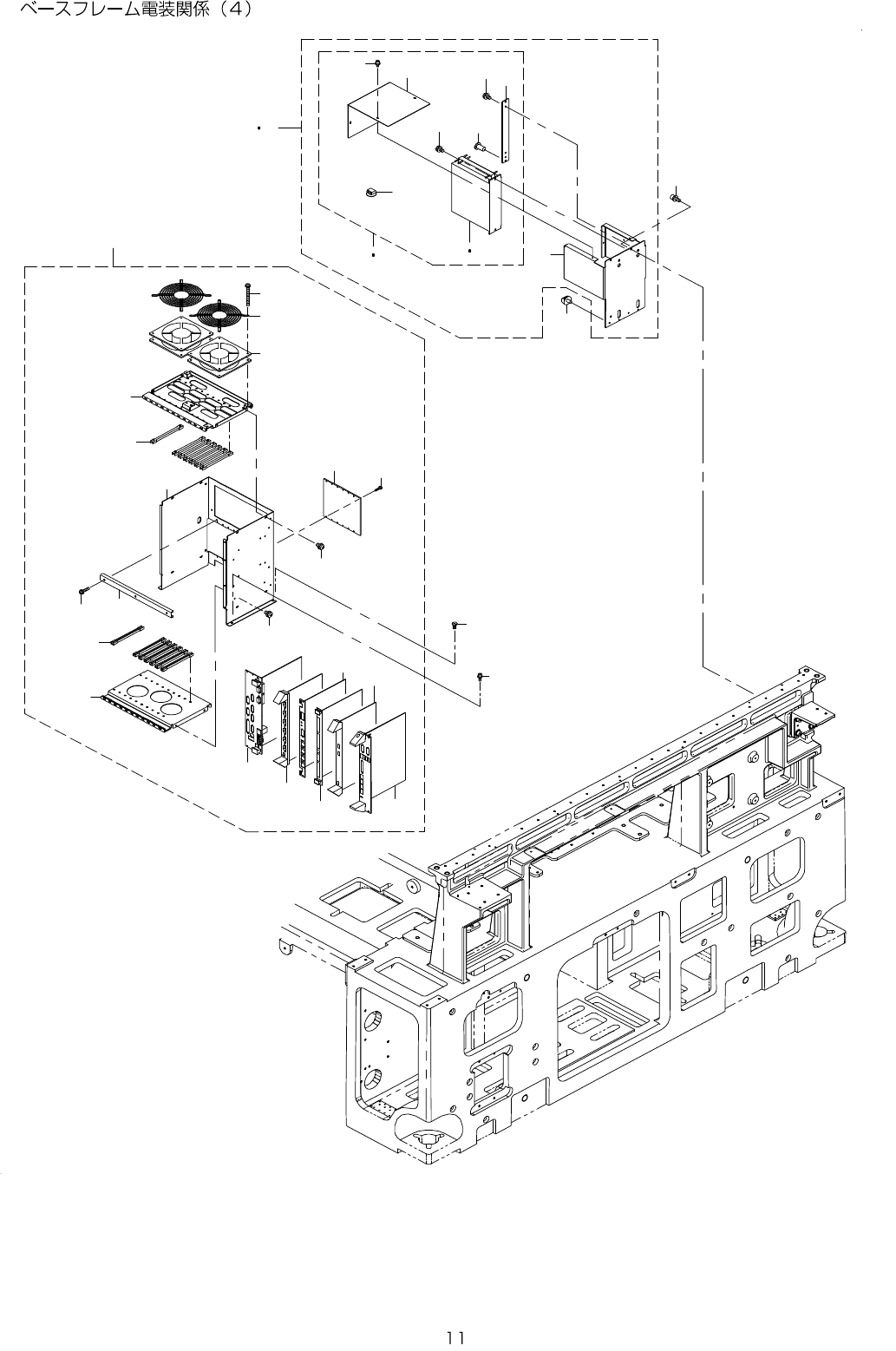

- - 6. BASEFRAME ELECTRICA PPARATUSCOMPO NENTS(4) 8 1 2 3 1 3 1 6 4 5 1 2 1 1 1 0 6 7 9 1 7 3 7 2 5 2 3 2 2 2 1 2 6 3 2 1 5 2 0 3 0 3 5 3 4 2 9 2 8 2 7 2 4 2 5 1 4 3 3 2 4 3 1 1 8 3 6 1 9

- -

REF.NO NOTE PARTNO DESCRIPTION Qty

1 401-47581 DUCT_ASSY 1

2 400-77404 DUCT30_60_200 (7)

3 SL-4040891-SC SCREWM4X8 (14)

4 400-32368 DUCT40_60_125 (3)

5 SL-4040891-SC SCREWM4X8 (6)

6 400-94478 DUCT30_60_450 (3)

7 SL-4040891-SC SCREWM4X8 (6)

8 400-94479 DUCT30_60_200 (4)

9 SL-4040891-SC SCREWM4X8 (8)

10 401-47523 PLATE_SUPPORT 2

11 SL-6061492-TN SCREWM6L=14 4

12 401-47528 DRIVER_BASE 1

13 SL-6040892-TN SCREWM4L=8 2

14 SD-0640246-SP HINGESCREWD=6.35H=2.4 4

15 SL-6040892-TN SCREWM4L=8 2

#01

HN-0015500-00 CORE 3

#01

SL-6041092-TN SCREWM4L=10 6

18 401-47588 Y_DRIVER_UNIT 1

19 401-47527 DRIVER_BR (2)

20 401-29654 YAXISDRIVER (2)

21 SL-4051691-SC SCREWM5L=16 (6)

22 401-47589 X_DRIVER_UNIT 1

23 401-47662 X_MOTOR_DRV_PLATE (1)

24 401-29652 XAXISDRIVER (1)

25 SL-4051691-SC SCREWM5L=16 (3)

26 401-47663 X_MOTOR_DRV_BRACKET (1)

27 SL-6051492-TN BOLT (2)

28 SL-6041092-TN SCREWM4L=10 4

- -

6. BASEFRAMEELECTRICAPPARATUSCOMPONENTS(4)

1 2

1 3

1 6

4 5

1 2

1 1

1 0

6 7

1 7

3 7

2 5

2 3

2 2

2 1

2 6

3 2

1 5

2 0

3 0

3 5

3 4

2 9

2 8

2 7

2 4

2 5

1 4

3 3

2 4

3 1

1 8

3 6

1 9

- -

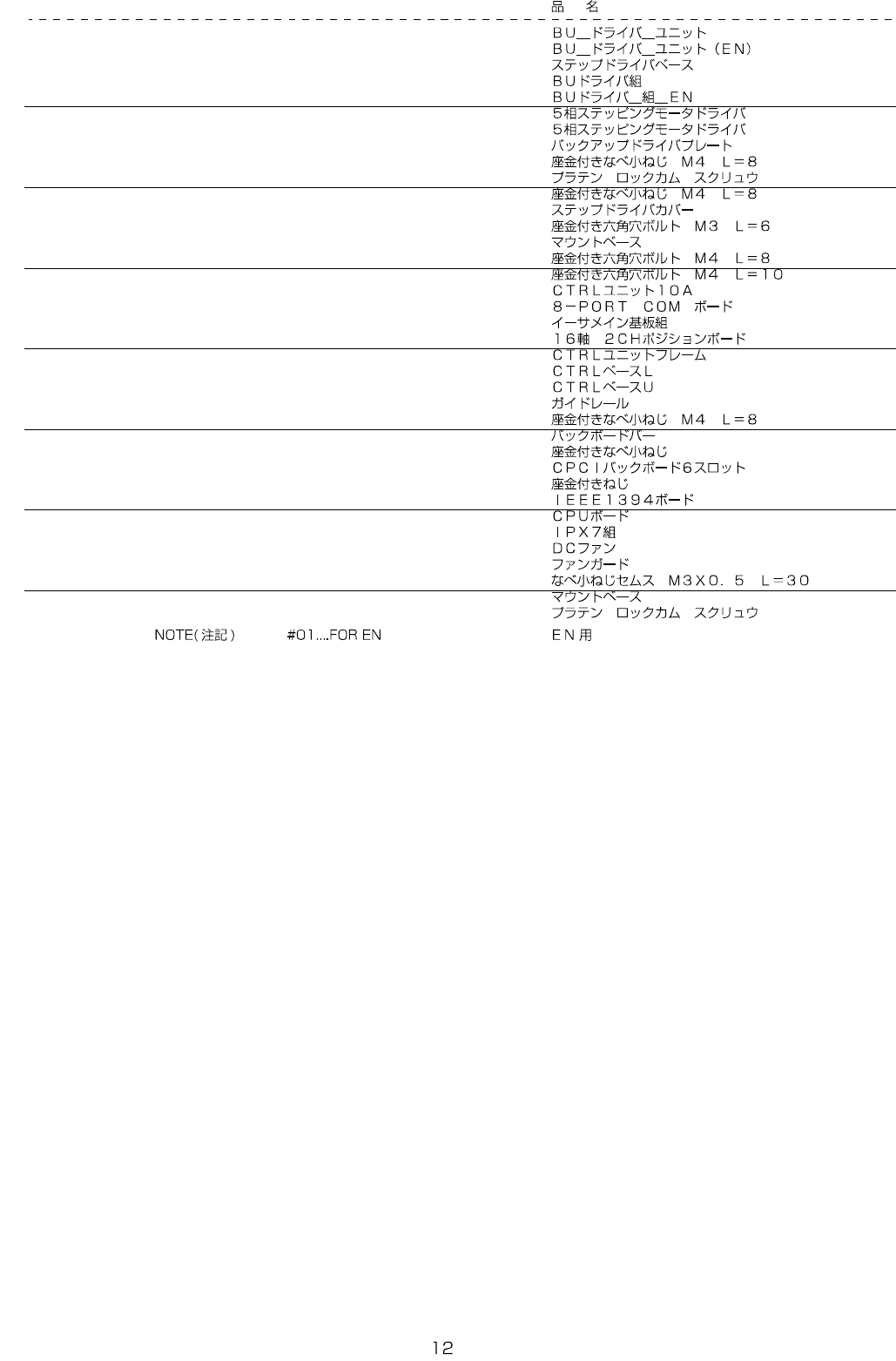

REF.NO NOTE PARTNO DESCRIPTION Qty

1 401-47620 BU_DRIVER_UNIT 1

#01

401-47590 BU_DRIVER_UNIT(EN) 1

3 401-47551 STEP_DRV_BASE (1)

4 401-13995 BUDRIVERASSY (1)

#01

401-49708 BUDRIVERASSYEN (1)

6 HX-0042000-00 5PHASESTEPDRIVER (1)

#01

HX-0068900-00 5PHASESTEPDRIVER (1)

8 400-00534 BACKUPDRIVPLATE (1)

9 SL-4040891-SC SCREWM4X8 (3)

10 E1038-871-000 PLATENLOCKCAMSCREW (1)

11 SL-4040891-SC SCREWM4X8 (2)

12 401-47552 STEP_DRV_COVER (1)

13 SL-6030692-TN SCREWM3L=6 (4)

14 HX-0070600-0A MOUNTBASE (3)

15 SL-6040892-TN SCREWM4L=8 4

16 SL-6041092-TN SCREWM4L=10 3

17 401-49597 CTRLUNIT10A 1

18 401-35433 8-PORTCOMBOARD (4)

19 401-49647 ETHER-MAINPCBASM (1)

20 400-44540 16AXIS2CHSERVOCONTROLLER (1)

21 401-47546 CTRL_UNIT_FRAME (1)

22 401-47545 CTRL_BASE_L (1)

23 401-47544 CTRL_BASE_U (1)

24 HX-0002600-00 GUIDERAIL (14)

25 SL-4040891-SC SCREWM4X8 (8)

26 400-47087 BACK_BOAD_BAR (1)

27 SL-4031491-SC SCREWM3X14 (3)

28 401-29625 CPCIBACKBOARD6SLOT (1)

29 SL-4851091-SC SCREW (16)

30 401-50021 IEEE1394BOARD (1)

31 401-23242 CPUBOARD (1)

32 400-71300 IPX7ASM (1)

33 401-33768 DCFAN (2)

34 HM-0003300-30 FANGUARD (2)

35 SL-4033091-SC SCREWM3L=30 (4)

36 HX-0070600-0A MOUNTBASE 4

37 E1038-871-000 PLATENLOCKCAMSCREW 2
