- - 89. SYSTEMDIAG RAM(5) 5 4 3 2 1 6 7 8 9 1 0 H E A D
- -
REF.NO NOTE PARTNO DESCRIPTION Qty
1 401-29046 SIDESENSORCABLEASM 1
2 401-46364 LEFTSENSORCABLEASM 1
3 401-35828 LRWAITCOUTSENSORASM 1
4 401-10054 WAITSENSORCABLEASM 1
5 401-29042 AWC/BUORGSENSORCABLEASM 1
6 401-46362 BUORGSENSORCABLEASM 1
7 401-10065 STOPSENSORASM 1
8 401-46432 ST/COSENSORCABLEASM 1
9 401-46363 RIGHTSENSORCABLEASM 1
10 401-29058 SEPARATESENSOREMISSIONASM 1
11 401-46361 BUPIN(EMIS)CABLEASM 1
12 400-92574 BULOCKSENSORASM 1
13 401-10058 BULOCKSENSORCABLEASM 1
14 401-29057 SEPARATESENSORRECEIVERASM 1
15 401-46365 BUPIN(RCV)CABLEASM 1
16 401-29042 AWC/BUORGSENSORCABLEASM 1
17 401-46366 AWCORGSENSORCABLEASM 1
18 400-02147 VCSOPSENSORASM 1
19 401-09803 S_VCSSENSORCABLEASM 1
20 400-02146 VCSSTSENSORASM 1
21 400-02148 VCSSVCABLEASM 1
22 401-08595 S-BOTTOM-LIGHTPCBASM 1
23 401-09802 S_VCSLIGHTCABLEASM 1
24 401-09805 S_BACKLIGHTCABLEASM 1
25 401-09804 S_SIDELIGHTCABLEASM 1
26 400-66576 COAXIALLIGHTPCBASM 1
27 401-08607 S-LIGHT_CTRLPCBASM 1
28 401-09801 S_VCSLEDPOWERCABLEASM 1
29 401-13632 LIGHTCONTROLPOWERASM 1
30 400-66577 BACKLIGHTPCBASM 1
31 401-08603 S-SIDE-LIGHTPCBASM 1
32 400-71300 IPX7ASM 1
33 401-09806 CAMERATRIGCABLEASM 1
34 E9623-721-000 PORTRAITMONITORCABLE
1
35 401-13633 VCSCAMERASTCABLEASM 1
36 401-13634 VCSCAMERAOPCABLEASM 1
37 401-09797 XENCODEROUTPUTCABLEASM 1
38 400-71669 VCSCAMERA 1
39 401-29652 XAXISDRIVER 1
40 400-71668 LENZESTD 1
41 400-71667 LENZEOPT 1
42 400-92631 BASE-IOSENSORRLYCABLEASM 1
43 400-71680 BASEIOPCBASM 1
44 400-92630 BASE-IOPOWERRLYCABLEASM 1
45 401-10018 BASE-IOPOWERCABLEASM 1
46 400-92628 BASE-IOMTR1-3RLYCABLEASM 1
47 401-46443 MT1-3PULSECABLEASM 1
48 HM-0013200-00 MOTORDRIVER 1
49 HX-0042000-00 5PHASESTEPDRIVER 1
50 HX-0068900-00 5PHASESTEPDRIVER 1
51 401-46429 BASE-IOMTR4-5RLYCABLEASM 1
52 400-92629 BASE-IOMTR4-5RLYCABLEASM 1
53 401-10030 BUDRIVECABLEASM 1
54
#01
401-10031 BUDRIVECABLEASM(EN) 1
55 401-46430 BASE-IOENCRLYCABLEASM 1
56 401-10037 AWCDRIVECABLEASM 1
57
#01
401-10038 AWCDRIVECABLEASM(EN) 1
58 400-92633 BASE-IOSOLRLYCABLEASM 1
59 401-10044 SVCABLEASM 1
60 401-10045 SVWIREASM 1
61 401-10047 SMEMAINCABLEASM 1
62 401-10048 SMEMAOUTCABLEASM 1
63 400-92632 BASE-IOSENS-FXRLYCABLEASM 1
64 401-13660 FLUXERRELAYCABLEASM 1
65 400-99908 FLUXERBASERELAYCABLEASM 1
66 400-99909 FLUXERBASERELAYCABLEASM 1
67 400-42180 FLUXERCYLINDERUNITASM 1
68 400-97610 FLUXERCYLINDERBANKUNITASM 1
69 400-92624 BASE-IOAN-INRLYCABLEASM 1
70 401-13658 LOADCELLANAROGCABLEASM 1
71 401-46378 LOADCELLCTRLCABLEASM 1
72 400-32128 LOADCELLAMPLIFIER 1
73 400-31620 LOADCELLASM 1
74 401-46442 IN-MOTORCABLEASM 1
75 400-48074 CENTERMOTORASM 1
76 401-46444 MOTORDRIVERPOWERCABLEASM 1
77 401-46445 CENT/OUTMOTORCABLEASM 1
78 401-10019 BUDRVPOWERCABLEASM 1
79
#01
401-10020 BUDRVPOWERCABLEASM(EN) 1
80 401-10032 BUMOTORCABLEASM 1
81
#01
401-10033 BUMOTORCABLEASM(EN) 1
82
#01
401-10046 SVWIREASM(EN) 1
83 400-48076 BACKUPMOTORASM 1
84 401-10034 BUDRVFGCABLEASM 1
85
#01
401-10035 BUDRVFGCABLEASM(EN) 1
86 401-10036 BUENCCABLEASM 1
87 401-10043 AWCENCCABLEASM 1
88 E9433-729-0A0 BUENC 1
89 400-48077 AWCMOTORASM 1
90 401-10021 AWCDRVPOWERCABLEASM 1
91
#01
401-10022 AWCDRVPOWERCABLEASM(EN) 1
92 401-10039 AWCMOTORCABLEASM 1
93 401-10040 AWCMOTORCABLEASM(EN) 1
94 401-10041 AWCDRVFGCABLEASM 1
95
#01
401-10042 AWCDRVFGCABLEASM(EN) 1
96 400-48077 AWCMOTORASM 1
97 401-13657 LOADCELLAMPPOWERCABLEASM 1
98 401-09801 S_VCSLEDPOWERCABLEASM 1
99 401-13632 LIGHTCONTROLPOWERASM 1
100 401-13671 CVSPOWERCABLEASM 1
101 401-46379 CVSCOMCABLEASM 1
102 400-95117 CVSPCBASM 1
103 401-01188 CVSPROBECABLEASM 1
104 401-03180 CVSCONTACTCABLE(+)ASM 1
105 401-05380 CVSCONTACTCABLE(-)ASM 1
106
#02
401-49489 POWERSUPPLYUNIT10ASM 1
107
#03
401-49490 POWERSUPPLYUNIT10(EN)ASM 1
108
#04
401-45556 POWERSUPPLYUNIT20ASM 1
109
#05
401-49559 POWERSUPPLYUNIT20(EN)ASM 1
110 401-23242 CPUBOARD 1
111 400-44522 USBRELAYCABLE 1
112 401-49405 ENVIRONMENTSYSTEMASM10VA(HR6) 1
113 HW-0018100-80 LANCABLE 1
114 400-48031 PANELLINKCABLE1M 1
115 400-48031 PANELLINKCABLE1M 1
116 401-41856 USBCABLE1MA-A 1
117 401-23194 USBKEYBOARDSPASM 1
118 401-22816 USBCABLE2M 1
119 401-48260 USBCABLE3M 1
120 401-06795 S-XYRELAYPCBASM 1
121 401-29654 YAXISDRIVER 1
122 400-97424 COPLAPOWERCABLEASM 1
123 401-13695 COPLANARITYENCODERCABLEASM 1
124 400-97422 COPLANARITYSENSOR 1
125 401-23242 CPUBOARD 1
126 401-02830 LANCABLE(CAT6) 1
127 401-32154 COPLAMONITORSWITCHINGBOARD 1
128 400-03321 ICZTRMBUNIT 1
129 401-97864 SUPERIMPOSEBOARD 1
130 401-41515 USBSELECTPCBASM 1
131 401-46371 MONITORSWITCHCOMCABLEASM 1
132 401-58158 15INCHLCDMONITOR 1
133
#01
401-48287 MONITORFGWIREASM 1
134 401-46375 F-232CCABLEASM 1
135 401-29642 DVICABLEL2.5M 1
136 401-35794 F_LCD40146379CABLEASM 1
137 401-46376 R-232CCABLEASM 1
138 400-48032 PANELLINKCABLE4.5M 1
139 401-35795 R_LCD40146379CABLEASM 1
140 401-38946 SIORELAYCABLEASM 1
141 401-39308 SCANNERADAPTERCABLE 1
142
#01
401-29307 TB1-FXAMPWIREASM(EN) 1
143 401-39312 BARCODEREADER 1
144 401-35433 8-PORTCOMBOARD 1
145 401-39311 SCANNERPOWERADAPTERCABLE 1
146 401-13670 BARCODEREADERCABLEASM 1
147 401-46438 ATX232CCABLEASM 1
148 401-46425 ATXHDCABLEASM 1
149 401-46346 ATXPSU 1
150 401-35975 SUPERIMPOSEBOARDPOWERCABLEASM 1
151 HX-0061000-00 BARCODEREADER 1
152 401-46377 TOUCHPANEL232CCABLEASM 1
153 401-46360 SBCABLEASM 1
154 401-46394 BASE-IOSPWRCABLEASM 1
155 401-60224 COPLASSDASM(WIN7) 1
156
#06
401-73481 USBREPEATERCABLE 1
157
#06
401-73482 USBBARCORDREADERCABLE(4M) 1
158
#06
EZ-1458644-11 READERBARCODE 1
- -
89.SYSTEMDIAGRAM(5)
5
4
3
2
1 6
7
8
9
1 0
H E A D
- -

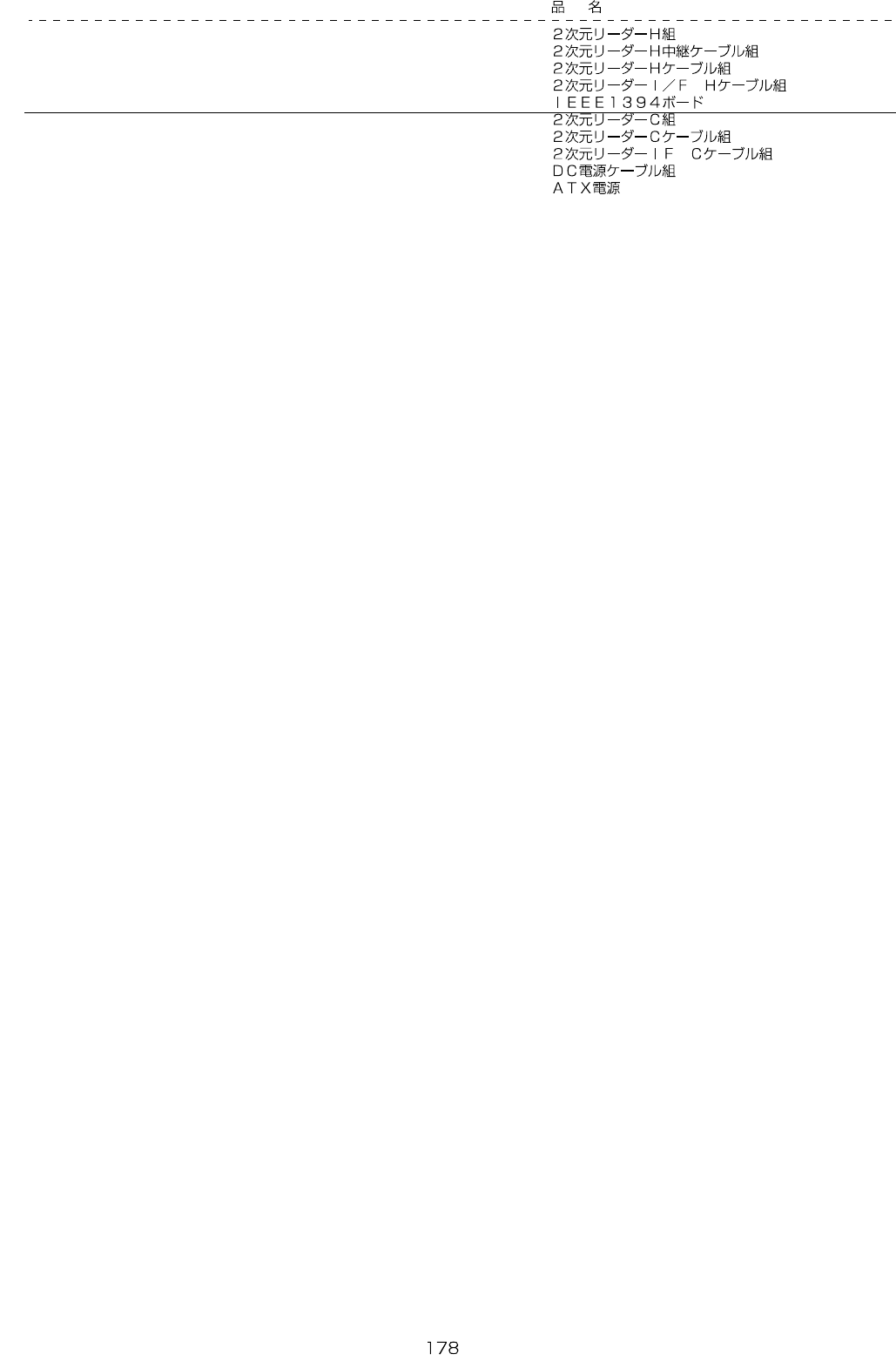

REF.NO NOTE PARTNO DESCRIPTION Qty
1 401-22793 2DREADERHASM 1
2 401-22795 2DREADERHRELAYCABLEASM 1
3 401-22796 2DREADERHCABLEASM 1
4 401-22798 2DREADERI/FHCABLEASM 1
5 400-48003 IEEE1394BOARD 1
6 401-22794 2DREADERCASM 1
7 401-22797 2DREADERCCABLEASM 1
8 401-22799 2DREADERI/FCCABLEASM 1
9 401-22800 DCPOWERCABLEASM 1
10 401-46346 ATXPSU 1
