KE-3010A_KE-3020VA_KE-3020VRA-Rev15 - 第187页

- - REF.NO NOTE PARTNO DESCRIPTION Qty 1 401-29650 4AXISINTEGRALTYPETAXISD RIVER 1 2 401-49540 ENCODERCABLEASM 1 3 #01 401-05810 LNC62 1 4 #02 400-89198 LNC61 1 5 #01 401-02158 EPV62 1 6 #02 400…

- -

90.SYSTEMDIAGRAM(6)

1 1 1

1 0

1 4

1 2

1 8

1 7

2 0

3 4 5 6

1 1

1 3

1 6

1 9

1 5

- -

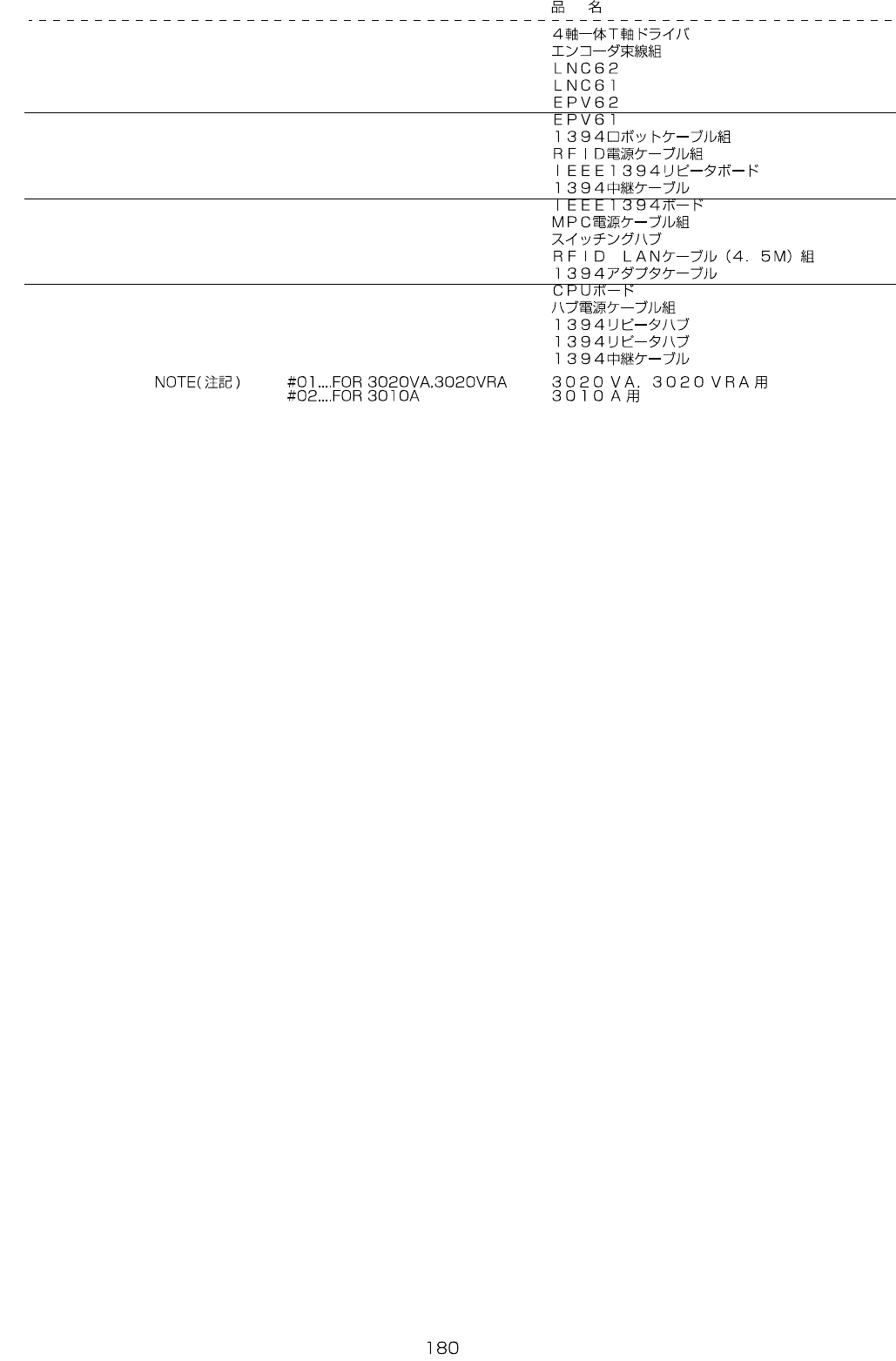

REF.NO NOTE PARTNO DESCRIPTION Qty

1 401-29650 4AXISINTEGRALTYPETAXISDRIVER 1

2 401-49540 ENCODERCABLEASM 1

#01

401-05810 LNC62 1

#02

400-89198 LNC61 1

#01

401-02158 EPV62 1

#02

400-89197 EPV61 1

7 400-44517 1394ROBOTCABLEASM 1

8 401-13663 RFIDPWRCABLEASM 1

9 400-48078 IEEE1394REPEATERBOARD 1

10 401-13617 1394RELAYCABLEASM 1

11 401-50021 IEEE1394BOARD 1

12 400-72814 MPCPOWERCABLEASM 1

13 400-73033 SWITCHINGHUB 1

14 400-73738 RFIDLANCABLE(4.5M)ASM 1

15 401-02157 1394ADAPTERCABLE 1

16 401-23242 CPUBOARD 1

17 401-22790 HUBPWRCABLEASM 1

18 401-41912 1394REPEATERHUB 1

19 400-89211 1394REPEATERHUB 1

20 400-89213 1394RELAYCABLEASM 1

- -

91.SYSTEMDIAGRAM(7)

2 3 2 3
