KE-3010A_KE-3020VA_KE-3020VRA-Rev15 - 第21页

- - REF.NO NOTE PARTNO DESCRIPTION Qty 1 401-47585 ATX_UN IT 1 2 401-47586 ATX_PSU_UNIT (1) 3 401-46346 ATXPSU (1) 4 401-47572 ATX_BR (1) 5 SL-4030581-SC C OMBINATIONSCREWM3X5 (2) 6 SL-6040892-TN …

100%1 / 198
- -

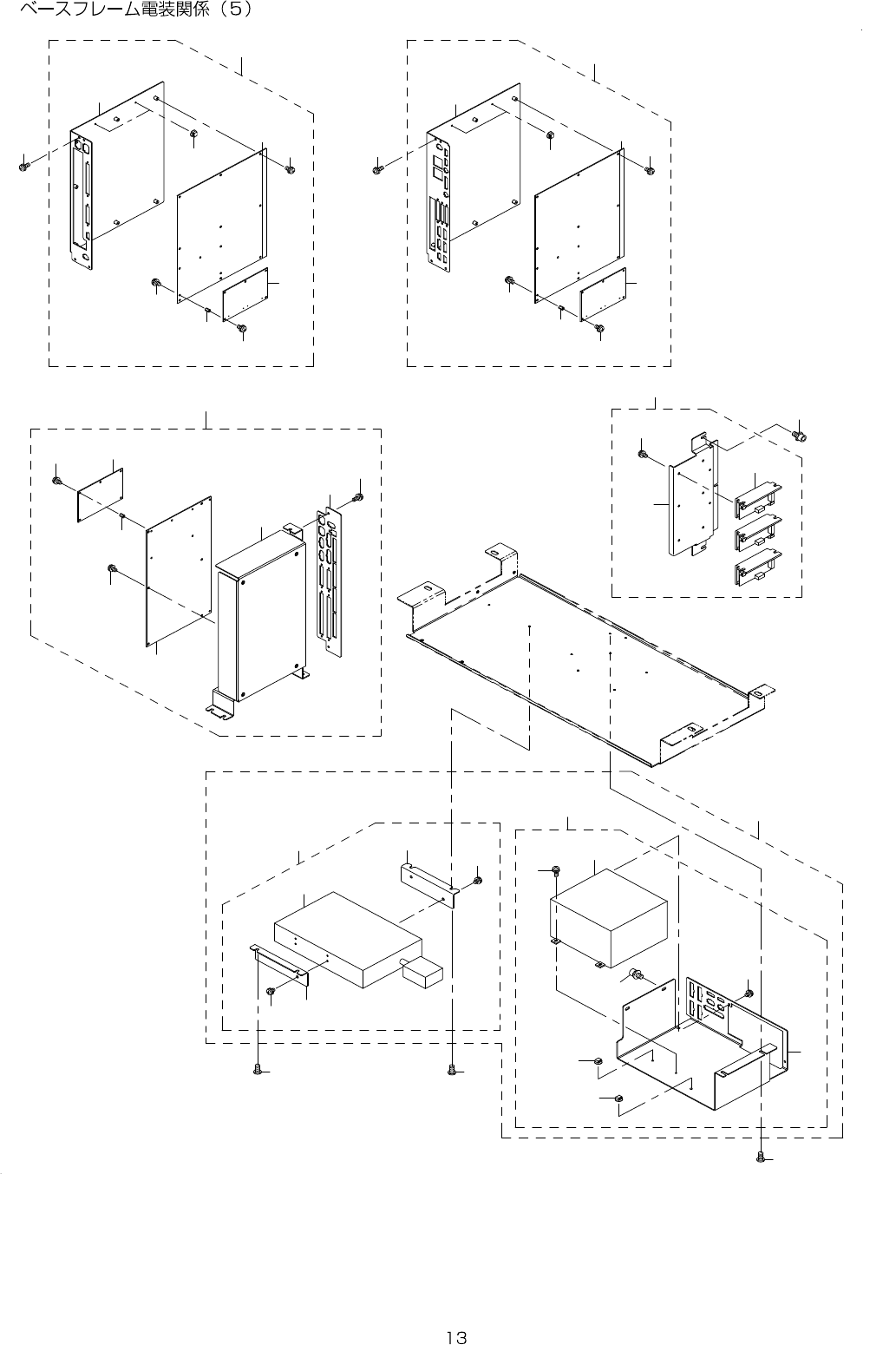

7. BASEFRAMEELECTRICAPPARATUSCOMPONENTS(5)
3 6
4 1
3 7
3 9
4 0
3 8
3 7
4 3
4 2
3 4 2 5
2 8
2 8
2 6
2 8
1 5
2 4
2 2
2 3
2 9
1 6
3 0
3 0
3 5
3 0
3 3
3 2
1 7
1 9
1
2
9
1 4
1 3
1 2
1 2
1 1
1 1
1 0
6
3
8
7
4
5
1 3
7
2 0
1 8
2 1
2 7
3 1
- -

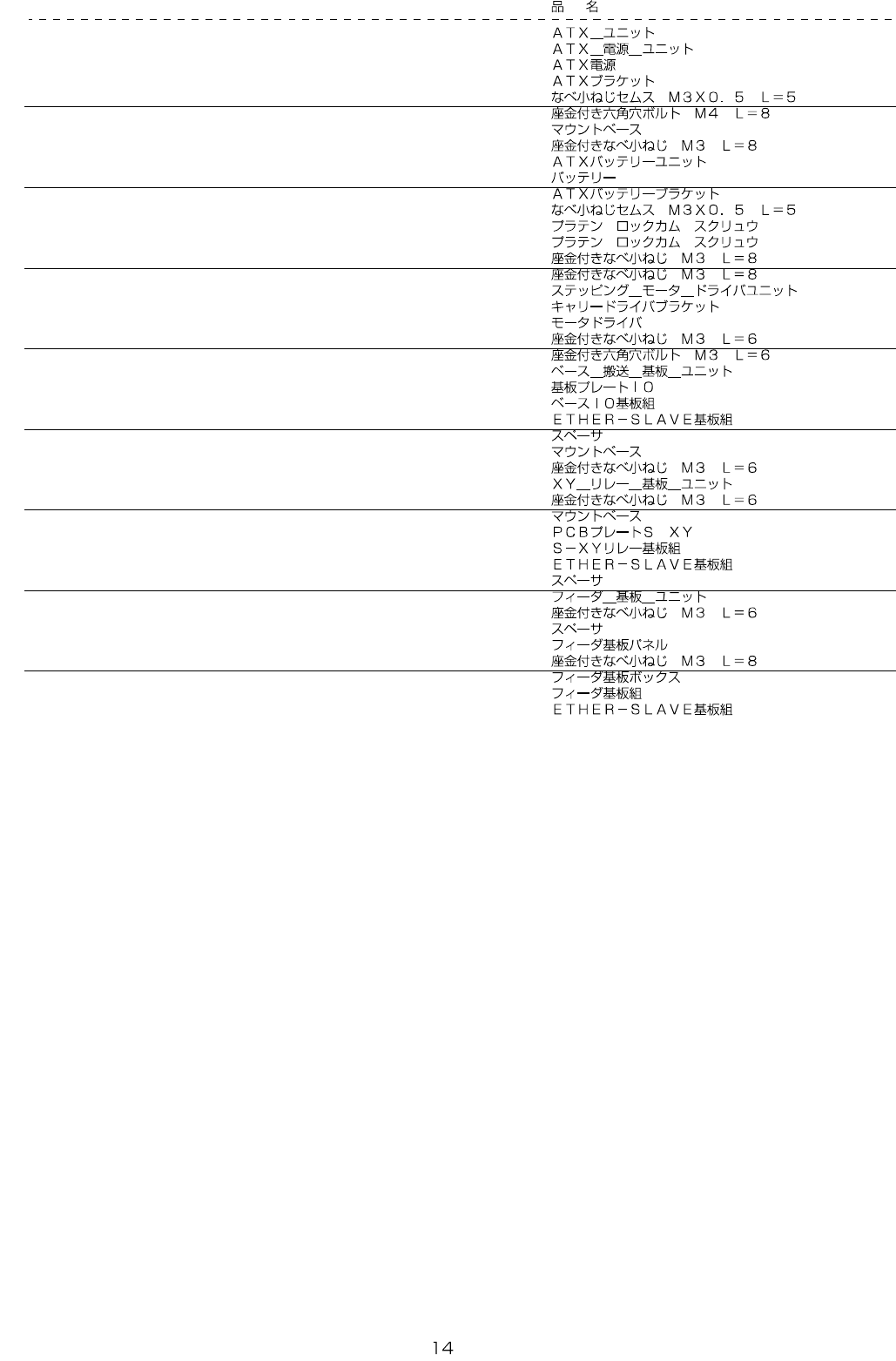

REF.NO NOTE PARTNO DESCRIPTION Qty
1 401-47585 ATX_UNIT 1
2 401-47586 ATX_PSU_UNIT (1)
3 401-46346 ATXPSU (1)
4 401-47572 ATX_BR (1)
5 SL-4030581-SC COMBINATIONSCREWM3X5 (2)
6 SL-6040892-TN SCREWM4L=8 (2)
7 HX-0070600-0A MOUNTBASE (2)
8 SL-4030891-SC SCREWM3L=8 (2)
9 401-47587 ATX_BATTERY_UNIT (1)
10 401-46347 BATTERY (1)
11 401-47559 ATX_BATTERY_BR (2)
12 SL-4030581-SC COMBINATIONSCREWM3X5 (8)
13 E1038-871-000 PLATENLOCKCAMSCREW 2
14 E1038-871-000 PLATENLOCKCAMSCREW 2
15 SL-4030891-SC SCREWM3L=8 4
16 SL-4030891-SC SCREWM3L=8 4
17 401-47591 STP_MOTOR_DRIVER_UNIT 1
18 401-47573 CARRY_DRV_BR (1)
19 HM-0013200-00 MOTORDRIVER (3)
20 SL-4030691-SC SCREWM3L=6 (6)
21 SL-6030692-TN SCREWM3L=6 2
22 401-47598 BASE_CARRY_PCB_UNIT 1
23 401-47562 PCB_PLATE_IO (1)
24 400-71680 BASEIOPCBASM (1)
25 400-47557 ETHER-SLAVEPCBASM (1)
26 HX-0041800-0C SPACER (4)
27 HX-0070600-0A MOUNTBASE (3)
28 SL-4030691-SC SCREWM3L=6 (17)
29 401-47599 XY_RELAY_PCB_UNIT 1
30 SL-4030691-SC SCREWM3L=6 (17)
31 HX-0070600-0A MOUNTBASE (3)
32 401-47561 PCB_PLATE_S_XY (1)
33 401-06795 S-XYRELAYPCBASM (1)
34 400-47557 ETHER-SLAVEPCBASM (1)
35 HX-0041800-0C SPACER (4)
36 401-47617 FEEDER_PCB_UNIT 1
37 SL-4030691-SC SCREWM3L=6 (14)
38 HX-0041800-0C SPACER (4)
39 401-47547 FEEDER_PCB_PANEL (1)
40 SL-4030891-SC SCREWM3L=8 (2)
41 401-47560 FEEDER_PCB_BOX (1)
42 400-47560 FEEDERPCBASM (1)
43 400-47557 ETHER-SLAVEPCBASM (1)
- -

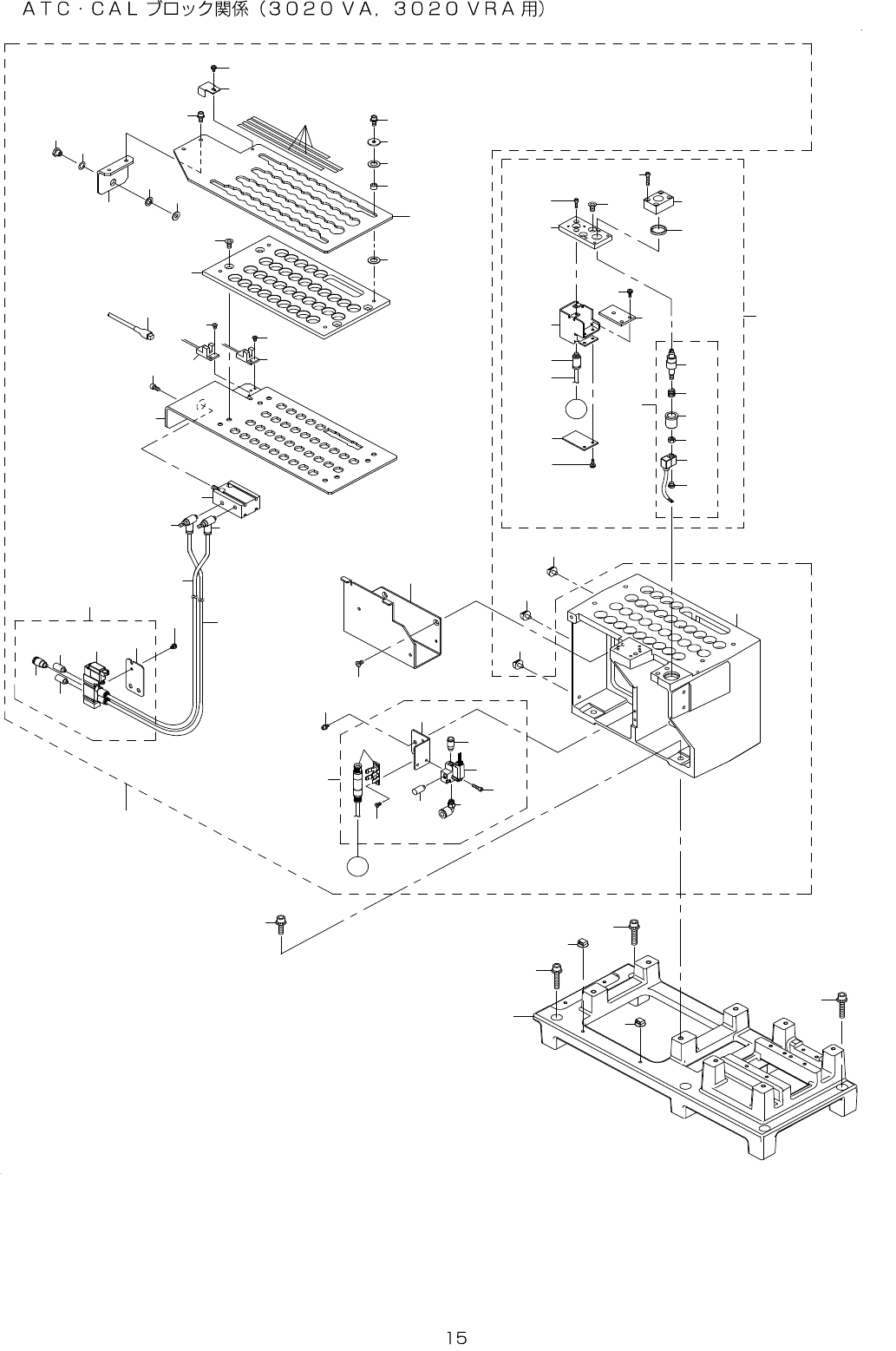

8. ATC&CALBLOCKCOMPONENTS(FOR3020VA,3020VRA)
