- - 9. ATC&CALBL OCKCOMPONEN TS(FOR3010A) 5 1 5 5 5 0 6 1 6 3 A 5 9 6 7 5 2 5 3 5 4 5 7 5 8 6 6 6 5 6 4 6 0 6 2 4 9 4 6 5 1 8 4 8 1 9 4 3 1 5 4 7 4 4 5 4 4 4 2 4 9 4 1 4 1 3 9 4 0 3 1 3 2 3 4 3 3 2 0 1 9 1 7 1…

100%1 / 198
- -
REF.NO NOTE PARTNO DESCRIPTION Qty
1 401-06035 BASE_BRIGE 1
2 HX-0070600-0A MOUNTBASE 5
3 SL-6062092-TN SCREWM6L=20 4
4 SL-6064092-TN SCREW 6
5 401-46936 ATC_20VA_ASSY 1
6 SL-6030692-TN SCREWM3L=6 (2)
7 400-45972 ATCBASE(80) (1)
8 SL-4030691-SC SCREWM3L=6 (2)
9 SM-6040802-TN SCREWM4X0.7L=8 (2)
10 PC-0105080-00 SPEEDCONTROLLER (2)
11 401-46937 ATC_SV_20VA_ASM (1)
12 PV-1505380-00 5-PORTSOLENOIDVALVE (1)
13 PX-0505010-00 SILENCER (2)
14 PJ-2100061-00 HALFUNION (1)
15 401-28203 ATC_SV_BRKT (1)
16 400-92510 ATCSVCABLEASM (1)
17 400-45973 ATCPLATE (1)
18 400-45974 SLIDEBASE (1)
19 SM-1051452-TN PLATESCREWM5L=14 (4)
20 400-45975 GUIDESPACER (4)
21 400-45976 SLIDEPLATE (1)
22 E3404-700-000 THRUSTWASHER (8)
23 WP-0451016-SP WASHER4.5X20X1 (4)
24 401-46938 CAL_VALVE_20VA_ASM (1)
25 PV-1305410-00 3-PORTSOLENOIDVALVE (1)
26 PX-0505010-00 SILENCER (1)
27 PJ-3010405-05 HALFUNION (1)
28 SM-6031202-TN SCREWM3X12 (2)
29 401-46942 CAL_VALVE_BRKT (1)
30 PF-0100030-A0 AIRSUCTIONFILTER (1)
31 SM-1030601-SC SCREWM3L=6 (2)
32 PJ-3040605-02 ELBOWUNION6XM5 (1)
33 400-45978 SENSORDOG (1)
34 SL-4030691-SC SCREWM3L=6 (1)
35 400-01286 ATCSPACERRUBBER (1)
36 B2107-816-000 WASHER (1)
37 GLA-02335000 CLAMPWASHER (1)
38 E3528-729-000 ATCJOINT (1)
39 401-29062 PHOTOMICROSENSORASM (1)
40 401-29062 PHOTOMICROSENSORASM (1)
41 SM-4030501-SC SCREWM3X0.5L=5 (4)
42 400-42709 AIRCYLINDER (1)
43 BT-0400251-EA URETHANETUBEBLUE4X2.5 (0.8)
44 400-45983 ATCLABEL (1)
45 401-46941 CHIP_BOX_HANGER (1)
46 SM-1040852-TP DISHSCREW (2)
47 SL-6041092-TN SCREWM4L=10 (4)
48 400-45977 SLIDERANGLE (1)
49 SL-6041092-TN SCREWM4L=10 (2)
50 401-32367 CAL_BLOCK_3020V_ASM 1
51 401-32365 NOZZLECALPIECEASM (1)
52 L203E-121-000 NOZZLECALPIECEOUTERSP (1)
53 L203E-021-000 NOZZLECALPIECEOUTER (1)
54 NM-6050001-SC NUTM5X0.8TYPE1 (1)
55 401-22811 CAL-VCUMSENSASM (1)
56 PJ-0205000-02 PLUG (1)
57 400-45979 NOZZLECALPIECE (1)
58 400-07376 CALBLOCKPCBASM (1)
59 SL-4030891-SC SCREWM3L=8 (2)
60 PJ-3010405-05 HALFUNION (1)
61 400-45995 CALPIECEBASE (1)
62 400-45996 CALPIECERING (1)
63 SM-6031602-TN SCREWM3L=16 (4)
64 L202E-421-000 CALPLATE (1)
65 SM-1051452-TN PLATESCREWM5L=14 (2)
66 BT-0400251-EB URETHANEHOSE,BLACK (0.3)
67 L202E-521-000 CALSIDECOVER (1)
68 SM-6030602-TN SCREWM3X6 (2)
69 L202E-621-000 CALDIFFUSER (1)
70 SL-4030691-SC SCREWM3L=6 (2)
- -
9. ATC&CALBLOCKCOMPONENTS(FOR3010A)
5 1
5 5
5 0
6 1
6 3
A
5 9
6 7
5 2
5 3
5 4
5 7
5 8
6 6
6 5
6 4
6 0
6 2
4 9
4 6
5
1 8
4 8
1 9
4 3
1 5
4 7
4
4 5
4 4
4 2
4 9
4 1
4 1
3 9
4 0
3 1
3 2
3 4
3 3
2 0
1 9
1 7
1 4
1 6
3 8
3 7
3 6
3 5
3 0
2 1
5 6
2 7
2 8
8
2 6
A
2 4
2 2
2 3
2 5
1 1
1 1
1 2
1 0
6
1 3
9
4 3
1
3
3
3
2
2
2
7
2
2
2 9
- -

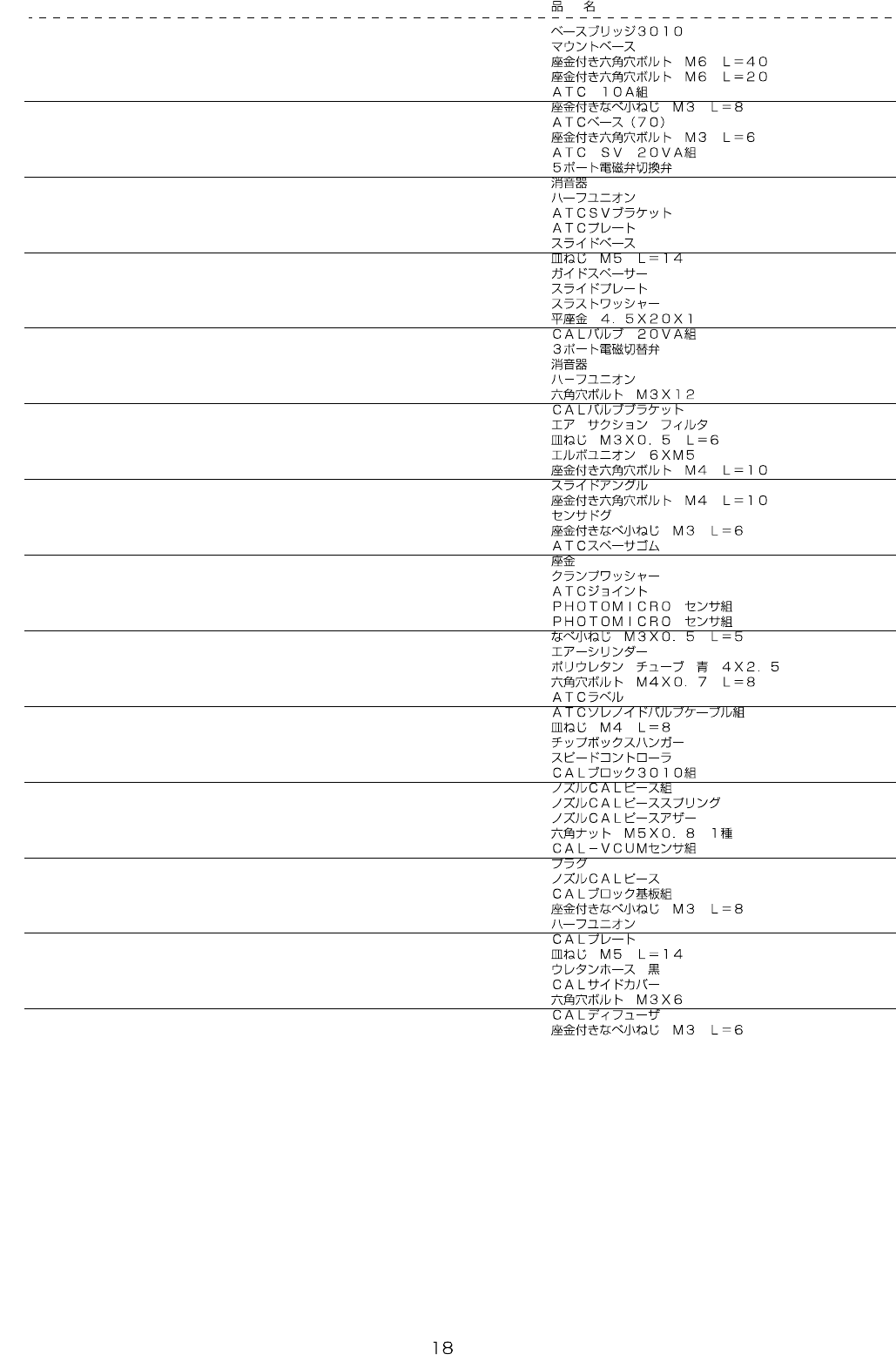

REF.NO NOTE PARTNO DESCRIPTION Qty
1 401-08815 BASEBRIDGE3010 1
2 HX-0070600-0A MOUNTBASE 5
3 SL-6064092-TN SCREW 6
4 SL-6062092-TN SCREWM6L=20 4
5 401-46940 ATC_10A_ASSY 1
6 SL-4030891-SC SCREWM3L=8 (1)
7 400-45971 ATCBASE(70) (1)
8 SL-6030692-TN SCREWM3L=6 (2)
9 401-46937 ATC_SV_20VA_ASM (1)
10 PV-1505380-00 5-PORTSOLENOIDVALVE (1)
11 PX-0505010-00 SILENCER (2)
12 PJ-2100061-00 HALFUNION (1)
13 401-28203 ATC_SV_BRKT (1)
14 400-45973 ATCPLATE (1)
15 400-45974 SLIDEBASE (1)
16 SM-1051452-TN PLATESCREWM5L=14 (4)
17 400-45975 GUIDESPACER (4)
18 400-45976 SLIDEPLATE (1)
19 E3404-700-000 THRUSTWASHER (8)
20 WP-0451016-SP WASHER4.5X20X1 (4)
21 401-46938 CAL_VALVE_20VA_ASM (1)
22 PV-1305410-00 3-PORTSOLENOIDVALVE (1)
23 PX-0505010-00 SILENCER (1)
24 PJ-3010405-05 HALFUNION (1)
25 SM-6031202-TN SCREWM3X12 (2)
26 401-46942 CAL_VALVE_BRKT (1)
27 PF-0100030-A0 AIRSUCTIONFILTER (1)
28 SM-1030601-SC SCREWM3L=6 (2)
29 PJ-3040605-02 ELBOWUNION6XM5 (1)
30 SL-6041092-TN SCREWM4L=10 (4)
31 400-45977 SLIDERANGLE (1)
32 SL-6041092-TN SCREWM4L=10 (2)
33 400-45978 SENSORDOG (1)
34 SL-4030691-SC SCREWM3L=6 (1)
35 400-01286 ATCSPACERRUBBER (1)
36 B2107-816-000 WASHER (1)
37 GLA-02335000 CLAMPWASHER (1)
38 E3528-729-000 ATCJOINT (1)
39 401-29062 PHOTOMICROSENSORASM (1)
40 401-29062 PHOTOMICROSENSORASM (1)
41 SM-4030501-SC SCREWM3X0.5L=5 (4)
42 400-42709 AIRCYLINDER (1)
43 BT-0400251-EA URETHANETUBEBLUE4X2.5 (0.8)
44 SM-6040802-TN SCREWM4X0.7L=8 (2)
45 400-45983 ATCLABEL (1)
46 400-92510 ATCSVCABLEASM (1)
47 SM-1040852-TP DISHSCREW (2)
48 400-45980 CHIPBOXHANGER (1)
49 PC-0105080-00 SPEEDCONTROLLER (2)
50 401-32366 CAL_BLOCK_3010_ASM 1
51 401-32365 NOZZLECALPIECEASM (1)
52 L203E-121-000 NOZZLECALPIECEOUTERSP (1)
53 L203E-021-000 NOZZLECALPIECEOUTER (1)
54 NM-6050001-SC NUTM5X0.8TYPE1 (1)
55 401-22811 CAL-VCUMSENSASM (1)
56 PJ-0205000-02 PLUG (1)
57 400-45979 NOZZLECALPIECE (1)
58 400-07376 CALBLOCKPCBASM (1)
59 SL-4030891-SC SCREWM3L=8 (2)
60 PJ-3010405-05 HALFUNION (1)
61 400-45994 CALPLATE (1)
62 SM-1051452-TN PLATESCREWM5L=14 (2)
63 BT-0400251-EB URETHANEHOSE,BLACK (0.3)
64 L202E-521-000 CALSIDECOVER (1)
65 SM-6030602-TN SCREWM3X6 (2)
66 L202E-621-000 CALDIFFUSER (1)
67 SL-4030691-SC SCREWM3L=6 (2)
