- - 14. COVERCOM PONENTS(4)

100%1 / 198
- -

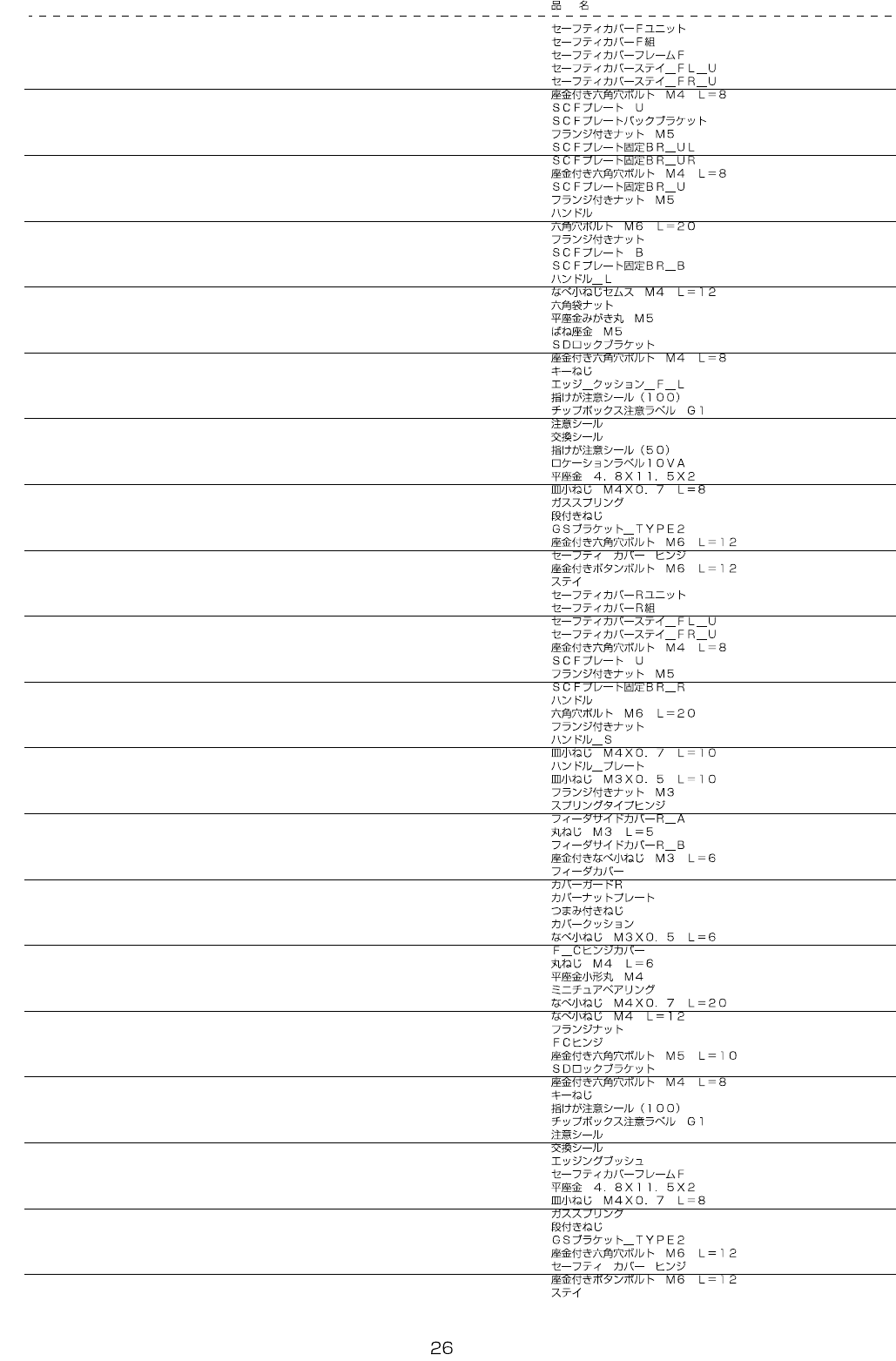

REF.NO NOTE PARTNO DESCRIPTION Qty
1 401-47269 SAFETY_COVER_F_UNIT 1
2 401-47279 SAFETY_COVER_F_ASM (1)
3 401-47152 SAFETY_COVER_FRAME_F (1)
4 401-47153 SAFETY_COVER_STAY_FL_U (1)
5 401-47154 SAFETY_COVER_STAY_FR_U (1)
6 SL-6040892-TN SCREWM4L=8 (8)
7 401-34615 SCF_PLATE_U (1)
8 401-34624 SCF_PLATE_BACK_BR (1)
9 NM-3050610-SF FLANGENUTM5 (10)
10 401-47155 SCF_PLATE_FIXED_BR_UL (1)
11 401-47156 SCF_PLATE_FIXED_BR_UR (1)
12 SL-6040892-TN SCREWM4L=8 (2)
13 401-47157 SCF_PLATE_FIXED_BR_U (1)
14 NM-3050610-SF FLANGENUTM5 (5)
15 401-22998 HANDLE (1)
16 SM-9062003-SC SCREWM6L=20 (2)
17 NM-3060810-SF NUTM6 (2)
18 401-34623 SCF_PLATE_B (1)
19 401-47158 SCF_PLATE_FIXED_BR_B (1)
20 401-13967 HANDLE_L (1)
21 SL-4041291-SC SCREWM4L=12 (2)
22 NM-7050032-SC NUTM5 (4)
23 WP-0531001-SC WASHERM5 (4)
24 WS-0510002-KN SPRINGWASHERM5 (4)
25 401-34618 SD_LOCK_BRACKET (1)
26 SL-6040892-TN SCREWM4L=8 (2)
27 400-80490 KEY_SCREW (2)
28 401-14319 EDGE_CUSHION_F_L (1)
29 CM-3002000-06 FINGERINJURYCAUTIONLABEL(100) (1)
30 400-51621 CHIPBOXNOTICELABELG1 (1)
31 400-79329 CAUTIONSEAL (1)
32 400-79330 EXCHANGESEAL (1)
33 CM-3002000-04 LABEL(50) (1)
34 401-47721 LOCATION_LABEL_10VA (1)
35 WP-0482016-SC PLAINWASHER4.8X11.5X2 (2)
36 SM-1040801-SC SCREWM4X0.7L=8 (4)
37 401-22999 GAS_SPRING (2)
38 400-38381 STEPSCREW (4)
39 401-51272 GS_BRACKET_TYPE2 (2)
40 SL-6061292-TN SCREWM6L=12 (4)
41 L128E-421-000 SAFETYCOVERHINGE (2)
42 SL-3061232-TN SCREWM6L=12 (8)
43 400-77321 STAY (1)
44 401-47270 SAFETY_COVER_R_UNIT 1
45 401-47280 SAFETY_COVER_R_ASM (1)
46 401-47153 SAFETY_COVER_STAY_FL_U (1)
47 401-47154 SAFETY_COVER_STAY_FR_U (1)
48 SL-6040892-TN SCREWM4L=8 (10)
49 401-34615 SCF_PLATE_U (1)
50 NM-3050610-SF FLANGENUTM5 (10)
51 401-47159 SCF_PLATE_FIXED_BR_R (1)
52 401-22998 HANDLE (1)
53 SM-9062003-SC SCREWM6L=20 (2)
54 NM-3060810-SF NUTM6 (2)
55 401-13968 HANDLE_S (1)
56 SM-1041001-SC SCREWM4X0.7L=10 (2)
57 401-13965 HANDLE_PLATE (1)
58 SM-1031001-SC SCREWM3X0.5L=10 (2)
59 NM-3034000-SF FLANGENUTM3 (2)
60 401-13966 SPRING_TYPE_HINGE (1)
61 401-47160 FEEDER_SIDE_COVER_R_A (1)
62 SM-3030552-TN SCREWM3L=5 (2)
63 401-47161 FEEDER_SIDE_COVER_R_B (1)
64 SL-4030691-SC SCREWM3L=6 (2)
65 401-47162 FEEDER_COVER (1)
66 400-55159 COVERGUARDR (1)
67 400-55160 COVERNUTPLATE (1)
68 400-93798 LAURETTE_SCREW (2)
69 400-49671 COVERCUSHION (2)
70 SM-4030601-SC SCREWM3X0.5L=6 (2)
71 401-47163 F_C_HINGE_COVER (1)
72 SM-3040652-TN SCREWM4L=6 (3)
73 WP-0430800-SC WASHERM4 (2)
74 SB-1040001-00 BEARING (4)
75 SM-4042001-SC SCREWM4X20 (1)
76 SM-4041201-SC SCREWM4L=12 (1)
77 NM-3040520-SF FLANGENUTM4 (2)
78 E1196-725-000 FCHINGE (2)
79 SL-6051092-TN SCREWM5L=10 (8)
80 401-34618 SD_LOCK_BRACKET (1)
81 SL-6040892-TN SCREWM4L=8 (2)
82 400-80490 KEY_SCREW (2)
83 CM-3002000-06 FINGERINJURYCAUTIONLABEL(100) (1)
84 400-51621 CHIPBOXNOTICELABELG1 (1)
85 400-79329 CAUTIONSEAL (1)
86 400-79330 EXCHANGESEAL (1)
87 HX-0009600-00 EDGINGBUSH (0.765)
88 401-47152 SAFETY_COVER_FRAME_F (1)
89 WP-0482016-SC PLAINWASHER4.8X11.5X2 (2)
90 SM-1040801-SC SCREWM4X0.7L=8 (4)
91 401-22999 GAS_SPRING (2)
92 400-38381 STEPSCREW (4)
93 401-51272 GS_BRACKET_TYPE2 (2)
94 SL-6061292-TN SCREWM6L=12 (4)
95 L128E-421-000 SAFETYCOVERHINGE (2)
96 SL-3061232-TN SCREWM6L=12 (8)
97 400-77321 STAY (1)
- -

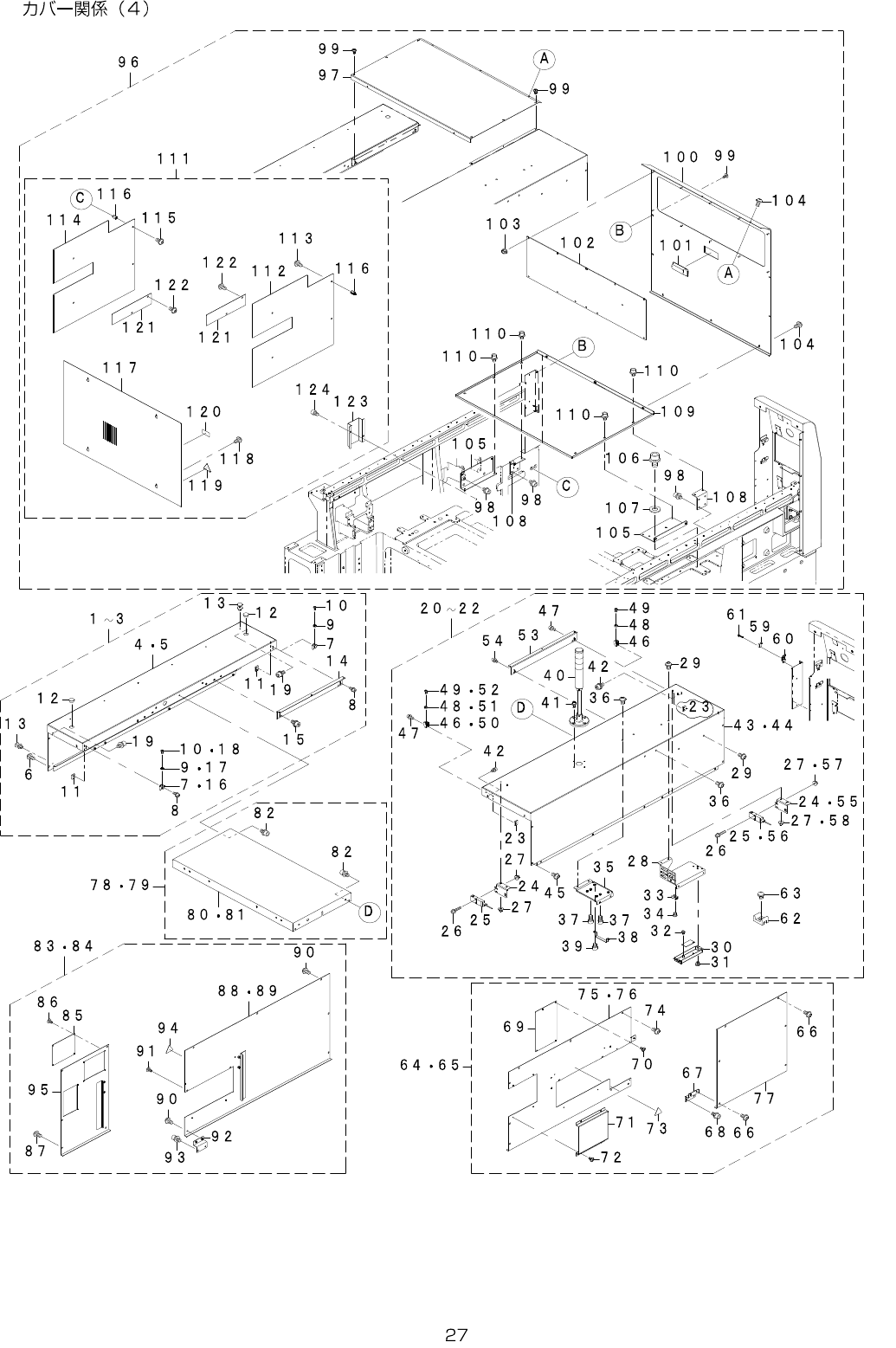

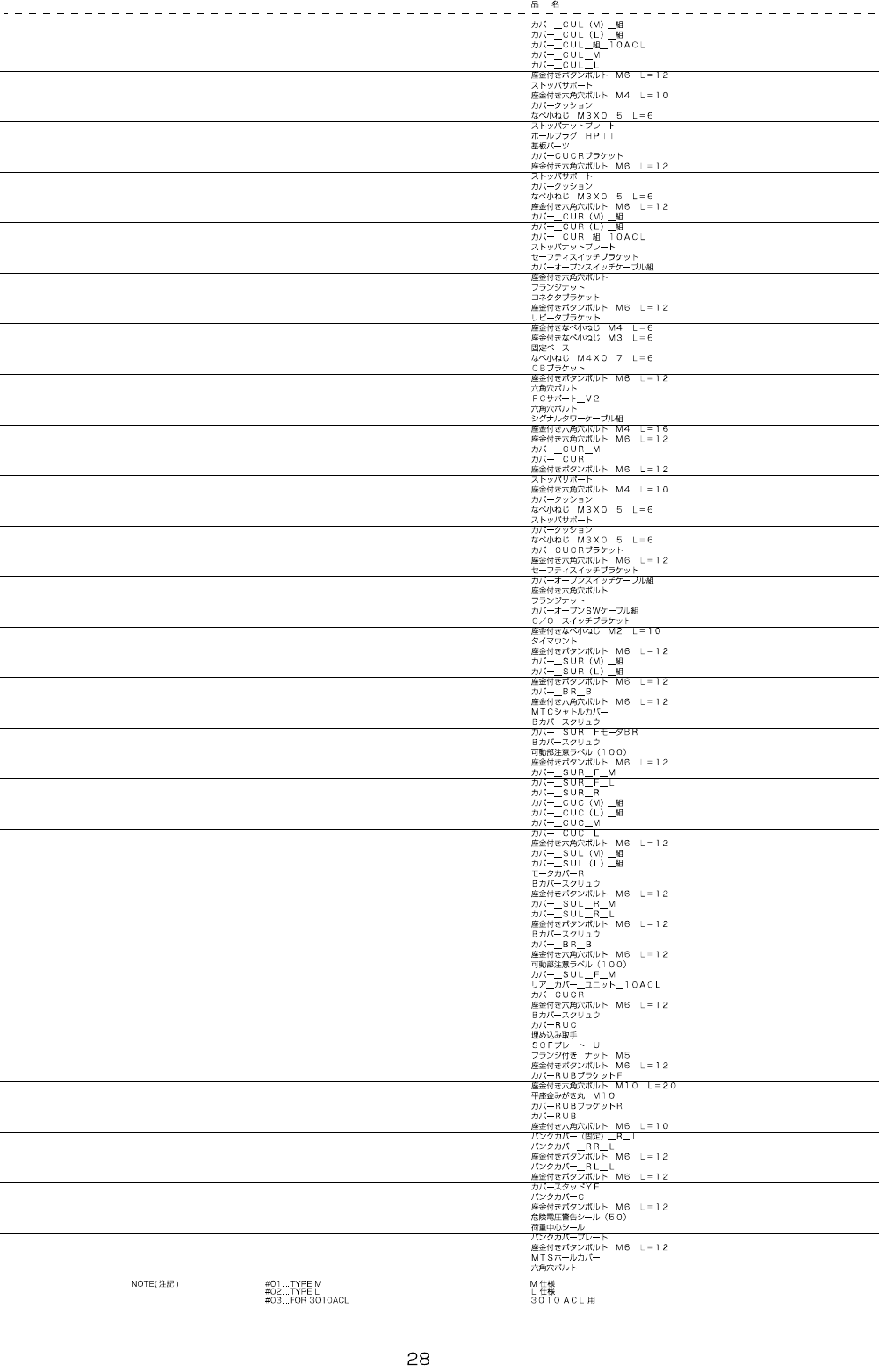

14.COVERCOMPONENTS(4)
- -
REF.NO NOTE PARTNO DESCRIPTION Qty
1
#01
401-47259 COVER_CUL(M)_ASM 1
2
#02
401-47260 COVER_CUL(L)_ASM 1
3
#03
401-58871 COVER_CUL_ASM_10ACL 1
4
#01
401-47140 COVER_CUL_M (1)
5
#02
401-47141 COVER_CUL_L (1)
6 SL-3061232-TN SCREWM6L=12 (4)
7 400-01464 STOPPERSUPPORT (2)
8 SL-6041092-TN SCREWM4L=10 (4)
9 400-49671 COVERCUSHION (2)
10 SM-4030601-SC SCREWM3X0.5L=6 (2)
11 401-47221 STOPPER_NUT_PLATE (2)
