- - REF.NO NOTE PARTNO DESCRIPTION Qty 1 #01 401-47259 COVER_CUL(M)_ASM 1 2 #02 401-47260 COVER_CU L(L)_ASM 1 3 #03 401-58871 COVER_CUL_AS M_10ACL 1 4 #01 401-47140 COVER_CUL_M (1) 5 #02 401-47141 COV…
- -
14.COVERCOMPONENTS(4)
- -
REF.NO NOTE PARTNO DESCRIPTION Qty
1
#01
401-47259 COVER_CUL(M)_ASM 1
2
#02
401-47260 COVER_CUL(L)_ASM 1
3
#03
401-58871 COVER_CUL_ASM_10ACL 1
4
#01
401-47140 COVER_CUL_M (1)
5
#02
401-47141 COVER_CUL_L (1)
6 SL-3061232-TN SCREWM6L=12 (4)
7 400-01464 STOPPERSUPPORT (2)
8 SL-6041092-TN SCREWM4L=10 (4)
9 400-49671 COVERCUSHION (2)
10 SM-4030601-SC SCREWM3X0.5L=6 (2)
11 401-47221 STOPPER_NUT_PLATE (2)
12 400-93708 HOLE_PLUGS_HP11 (2)
13 HX-0009400-0D NYLONRIVET (10)
14
#03
401-58855 COVER_CUCR_BR (1)
15
#03
SL-6061292-TN SCREWM6L=12 (1)
16
#03
400-01464 STOPPERSUPPORT (1)
17
#03
400-49671 COVERCUSHION (1)
18
#03
SM-4030601-SC SCREWM3X0.5L=6 (1)
19 SL-6061292-TN SCREWM6L=12 (4)
20
#01
401-47261 COVER_CUR(M)_ASM 1
21
#02
401-47262 COVER_CUR(L)_ASM 1
22
#03
401-58872 COVER_CUR_ASM_10ACL 1
23 401-47221 STOPPER_NUT_PLATE (2)
24 400-01453 SAFETYSWITCHBRACKET (2)
25 400-02254 COVEROPENSWCABLEASM (2)
26 SL-6042042-TN SCREW (4)
27 NM-3040520-SF FLANGENUTM4 (8)
28 401-47577 CONNECTOR_BR (1)
29 SL-3061232-TN SCREWM6L=12 (4)
30 400-46586 REPEATERBRACKET (1)
31 SL-4040691-SC SCREWM4L=6 (4)
32 SL-4030691-SC SCREWM3L=6 (2)
33 HX-0029400-00 FIXEDBASE (2)
34 SM-4040601-SC SCREWM4X0.7L=6 (2)
35 401-46928 CB_BRACKET (1)
36 SL-3061232-TN SCREWM6L=12 (4)
37 SM-6061202-TN SCREW (4)
38 401-10219 FC_SUPPORT_Y_V2 (1)
39 SM-6060802-TN SCREW (2)
40 401-29009 SIGNALTOWERCABLEASM (1)
41 SL-6041692-TN SCREW (4)
42 SL-6061292-TN SCREWM6L=12 (4)
43
#01
401-47131 COVER_CUR_M (1)
44
#02
401-47132 COVER_CUR_L (1)
45 SL-3061232-TN SCREWM6L=12 (4)
46 400-01464 STOPPERSUPPORT (2)
47 SL-6041092-TN SCREWM4L=10 (4)
48 400-49671 COVERCUSHION (2)
49 SM-4030601-SC SCREWM3X0.5L=6 (2)
50
#03
400-01464 STOPPERSUPPORT (1)
51
#03
400-49671 COVERCUSHION (1)
52
#03
SM-4030601-SC SCREWM3X0.5L=6 (1)
53
#03
401-58855 COVER_CUCR_BR (1)
54
#03
SL-6061292-TN SCREWM6L=12 (1)
55
#03
400-01453 SAFETYSWITCHBRACKET (1)
56
#03
400-02254 COVEROPENSWCABLEASM (1)
57
#03
SL-6042042-TN SCREW (2)
58
#03
NM-3040520-SF FLANGENUTM4 (4)
59
#03
401-58866 COVEROPENSWCABLEASM (1)
60
#03
E1310-727-000 C/OSWITCHBR (1)
61
#03
SL-4021091-SC SCREWM2L=10 (2)
62
#03
HX-0055700-00 TIEMOUNT (1)
63
#03
SL-3061232-TN SCREWM6L=12 (1)
64
#01
401-47267 COVER_SUR(M)_ASM 1
65
#02
401-47268 COVER_SUR(L)_ASM 1
66 SL-3061232-TN SCREWM6L=12 (1)
67 401-47149 COVER_BR_B (1)
68 SL-6061292-TN SCREWM6L=12 (1)
69 401-47150 MTC_SHUTTLE_COVER (1)
70 400-81751 B_COVER_SCREW (1)
71 401-47151 COVER_SUR_F_MOTOR_BR (1)
72 400-81751 B_COVER_SCREW (1)
73 CM-3009000-06 WATCH_YOUR_HANDS_LABEL(100) (1)
74 SL-3061232-TN SCREWM6L=12 (1)
75
#01
401-47146 COVER_SUR_F_M (1)
76
#02
401-47147 COVER_SUR_F_L (1)
77 401-47148 COVER_SUR_R (1)
78
#01
401-47263 COVER_CUC(M)_ASM 1
79
#02
401-47264 COVER_CUC(L)_ASM 1
80
#01
401-47129 COVER_CUC_M (1)
81
#02
401-47130 COVER_CUC_L (1)
82 SL-6061292-TN SCREWM6L=12 (1)
83
#01
401-47265 COVER_SUL(M)_ASM 1
84
#02
401-47266 COVER_SUL(L)_ASM 1
85 401-36850 MOTOR_COVER_R (1)
86 400-81751 B_COVER_SCREW (1)
87 SL-3061232-TN SCREWM6L=12 (1)
88
#01
401-47144 COVER_SUL_R_M (1)
89
#02
401-47145 COVER_SUL_R_L (1)
90 SL-3061232-TN SCREWM6L=12 (1)
91 400-81751 B_COVER_SCREW (1)
92 401-47149 COVER_BR_B (1)
93 SL-6061292-TN SCREWM6L=12 (1)
94 CM-3009000-06 WATCH_YOUR_HANDS_LABEL(100) (1)
95 401-47143 COVER_SUL_F_M (1)
96
#03
401-58873 REAR_COVER_UNIT_10ACL 1
97 401-58854 COVER_CUCR (1)
98 SL-6061292-TN SCREWM6L=12 (8)
99 400-81751 B_COVER_SCREW (10)
100 401-58852 COVER_RUC (1)
101 400-69189 EMBEDDEDPULLS (1)
102 401-34615 SCF_PLATE_U (1)
103 NM-3050610-SF FLANGENUTM5 (10)
104 SL-3061232-TN SCREWM6L=12 (6)
105 401-58857 COVER_RUB_BR_F (2)
106 SL-6102042-TN SCREWM10L=20 (2)
107 WP-1052001-SC WASHER10 (2)
108 401-58858 COVER_RUB_BR_R (2)
109 401-58856 COVER_RUB (1)
110 SL-6061092-TN SCREWM6L=10 (6)
111 401-47110 BANK_COVER(FIXED)_R_L (1)
112 401-47099 BANK_COVER_RR_L (1)
113 SL-3061232-TN SCREWM6L=12 (4)
114 401-47098 BANK_COVER_RL_L (1)
115 SL-3061232-TN SCREWM6L=12 (4)
116 400-01512 COVERSTUDYF (4)
117 401-47085 BANK_COVER_C (1)
118 SL-3061232-TN SCREWM6L=12 (4)
119 CM-3001000-04 VOLTAGEWARNINGLABEL(50) (1)
120 168-70206 GRAVITYSEAL (1)
121 401-47095 BANK_COVER_PLATE (2)
122 SL-3061232-TN SCREWM6L=12 (4)
123 401-58862 MTS_HOLE_COVER (1)
124 SM-6060802-TN SCREW (2)
- -

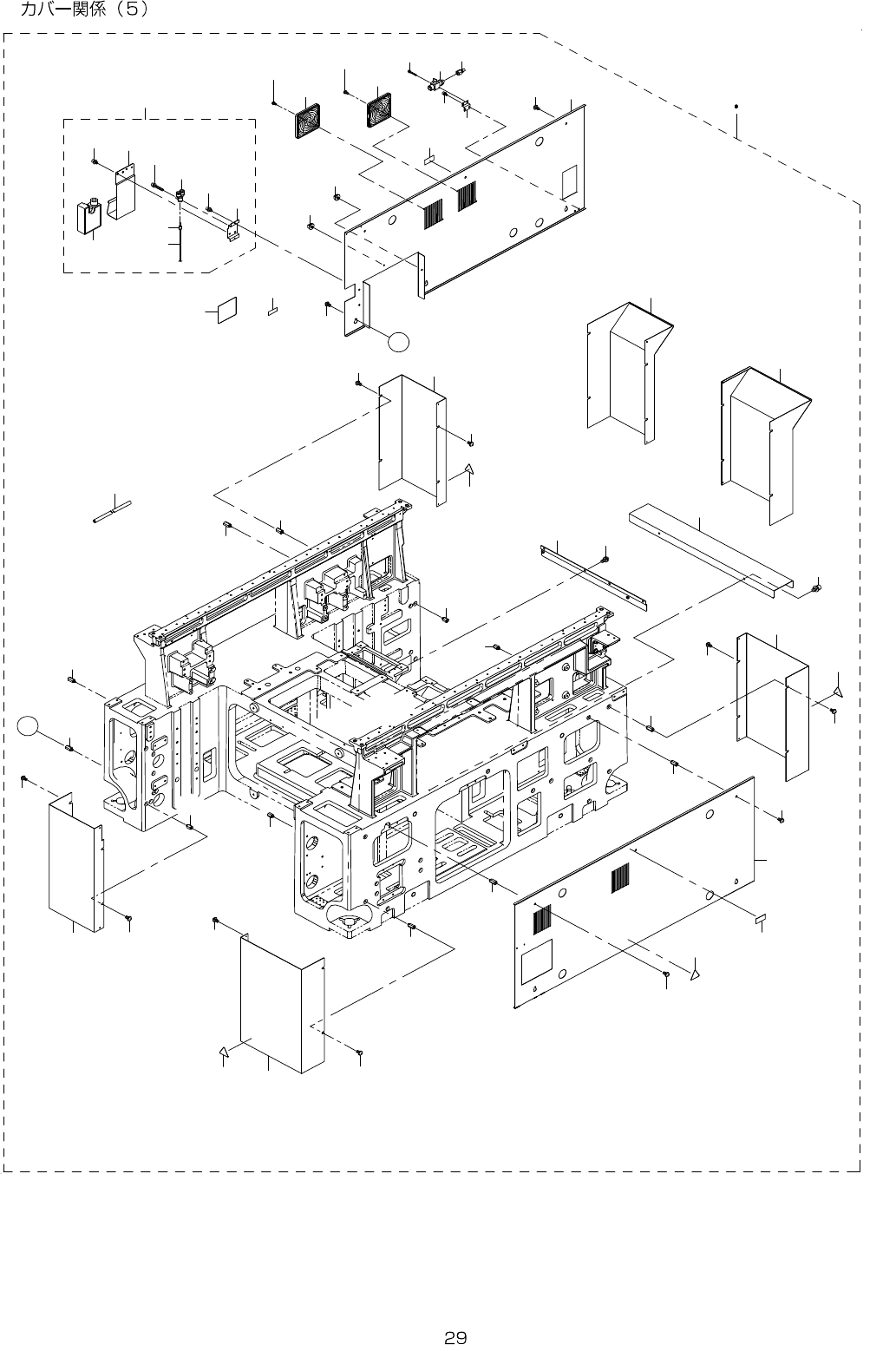

15.COVERCOMPONENTS(5)
3 4
5
3 7
3 8
3 8
3 5
3 9
4 0
3 6
4 2
4 1
1 1
1 0
9
8
7
6
5
3
1 2
3 1
3 1
2 9
2 6
2 6
2 4
2 0
1 7
1 7
1 6
1 5
1 5
1 3
4
1 1
1 4
1 4
A
A
1 8
1 9
2 1
2 1
2 3
2 2
2 7
2 8
3 3
3 2
4 3
4 5
4 4
4 7
4 6
4 5
4 6
4 6
4 6
2 5
3 0
4
4 9
5 1
4 8
5 0
1 2
5 2
1 2
5 2
