- - 16. COVERCOM PONENTS(6) 1 9 2 0 1 5 1 6 4 3 4 4 1 3 4 7 4 8 5 0 9 8 5 5 5 6 1 3 1 4 1 9 2 0 1 0 1 2 4 6 1 9 2 0 1 9 2 0 1 9 2 0 1 7 1 8 1 5 1 6 1 9 2 0 1 0 1 2 7 9 4 6 1 7 1 8 1 9 2 0 1 9 2 0 7 9 2 5 9 2 9 4 8 9 4…

100%1 / 198
- -

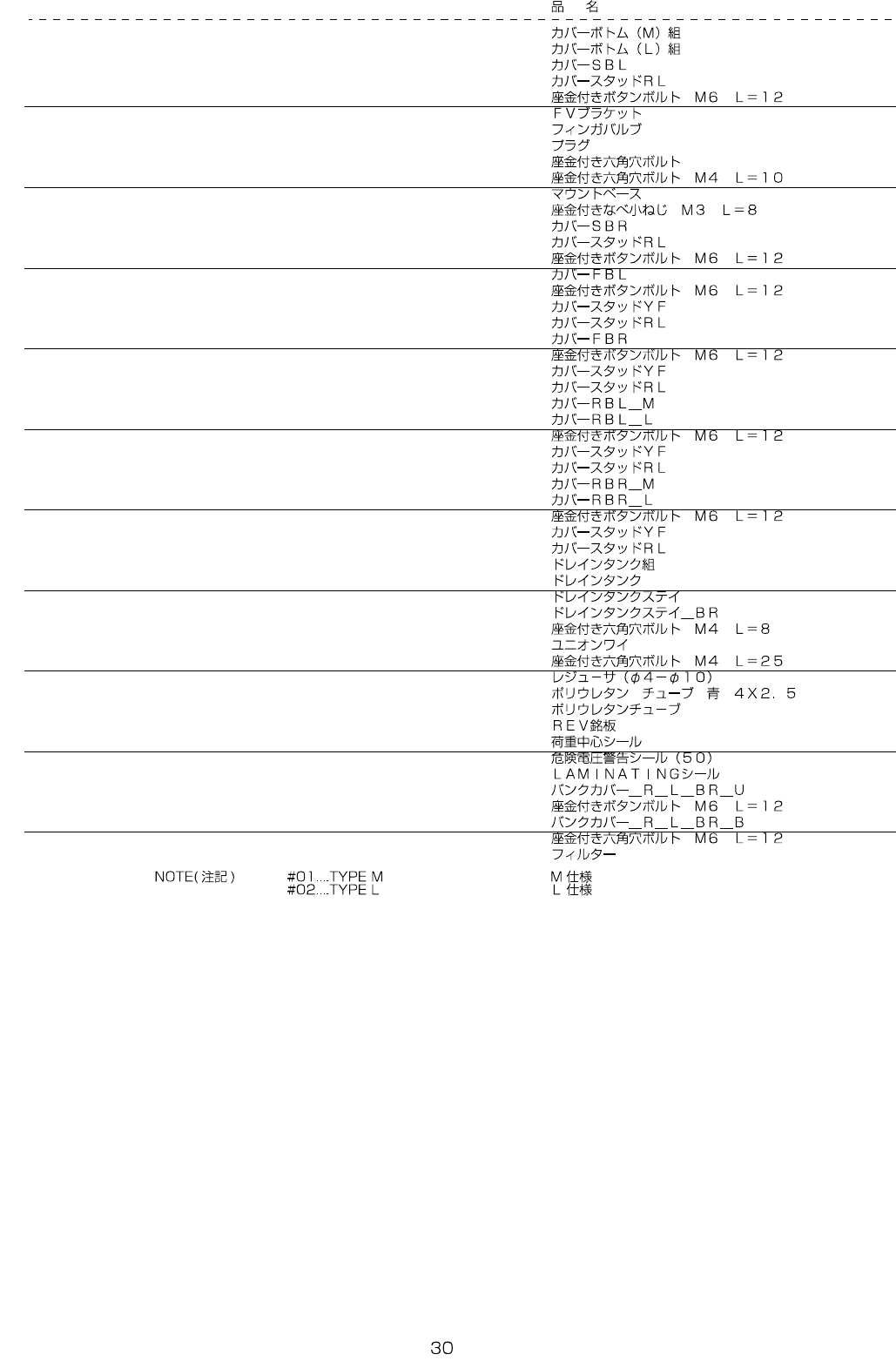

REF.NO NOTE PARTNO DESCRIPTION Qty
1
#01
401-47219 COVER_BOTTOM(M)_ASM 1
2
#02
401-47220 COVER_BOTTOM(L)_ASM 1
3 401-47105 COVER_SBL (1)
4 400-01510 COVERSTUDRL (6)
5 SL-3061232-TN SCREWM6L=12 (6)
6 400-00550 FVBRACKET (1)
7 PV-0152120-00 FINGERVALVE (1)
8 PJ-0252000-03 PLUG (1)
9 SL-6032542-TN SCREW (2)
10 SL-6041092-TN SCREWM4L=10 (2)
11 HX-0070600-0A MOUNTBASE (2)
12 SL-4030891-SC SCREWM3L=8 (4)
13 401-47107 COVER_SBR (1)
14 400-01510 COVERSTUDRL (5)
15 SL-3061232-TN SCREWM6L=12 (5)
16 401-47082 COVER_FBL (1)
17 SL-3061232-TN SCREWM6L=12 (4)
18 400-01512 COVERSTUDYF (2)
19 400-01510 COVERSTUDRL (2)
20 401-47083 COVER_FBR (1)
21 SL-3061232-TN SCREWM6L=12 (4)
22 400-01512 COVERSTUDYF (2)
23 400-01510 COVERSTUDRL (2)
24
#01
401-47084 COVER_RBL_M (1)
25
#02
401-47100 COVER_RBL_L (1)
26 SL-3061232-TN SCREWM6L=12 (4)
27 400-01512 COVERSTUDYF (2)
28 400-01510 COVERSTUDRL (2)
29
#01
401-47106 COVER_RBR_M (1)
30
#02
401-47101 COVER_RBR_L (1)
31 SL-3061232-TN SCREWM6L=12 (4)
32 400-01512 COVERSTUDYF (2)
33 400-01510 COVERSTUDRL (2)
34 400-93785 ASM_DRAIN_TANK (1)
35 400-16815 DRAINTANK (1)
36 400-16814 DRAINTANKSTAY (1)
37 400-93721 DT_STAY_BR (1)
38 SL-6040892-TN SCREWM4L=8 (4)
39 PJ-3081000-01 UNIONY (1)
40 SL-6042592-TN SCREWM4L=25 (1)
41 PJ-3090400-03 REDUCER4-10 (1)
42 BT-0400251-EA URETHANETUBEBLUE4X2.5 (0.16)
43 BT-1000651-EB POLYURETHANETUBE (1.7)
44 E9635-455-000 REVISIONSEAL (1)
45 168-70206 GRAVITYSEAL (2)
46 CM-3001000-04 VOLTAGEWARNINGLABEL(50) (4)
47 401-11970 LAMINATING_SEAL (1)
48
#02
401-11839 BANK_COVER_R_L_BR_U (1)
49
#02
SL-3061232-TN SCREWM6L=12 (4)
50
#02
401-47104 BANK_COVER_R_L_BR_B (1)
51
#02
SL-6061292-TN SCREWM6L=12 (2)
52 HM-0010100-10 FILTER (2)
- -

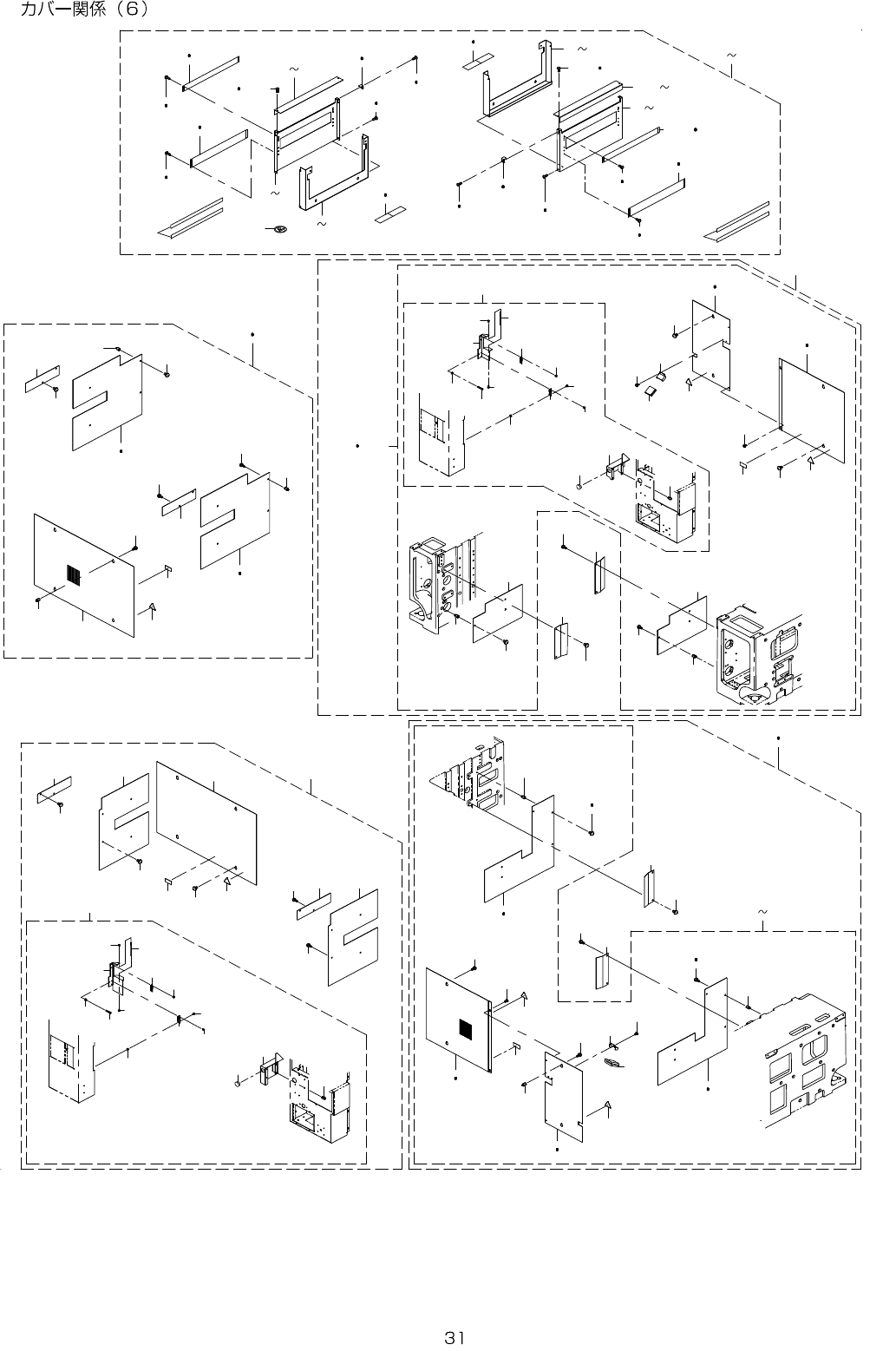

16.COVERCOMPONENTS(6)
1 9 2 0
1 5 1 6
4 3 4 4
1 3
4 7 4 8
5 0
9 8
5 5 5 6
1 3 1 4
1 9 2 0
1 0 1 2
4 6
1 9 2 0
1 9 2 0
1 9 2 0
1 7 1 8
1 5 1 6
1 9 2 0
1 0 1 2
7 9
4 6
1 7 1 8
1 9 2 0
1 9 2 0
7 9
2 5
9 2
9 4
8 9
4 2
2 8
2 8
2 7
2 6
4 1
4 2
4 2
9 8
4 2
8 8
1 9 2 0
1 3 1 4
9 6
9 7
9 9
9 9
1 0 0 1 0 1
1 0 4
9 8
1 0 2 1 0 3
9 8
1 0 5
1 0 5
1 0 6
8 7
9 0
9 1
9 1
9 2
9 2
9 2
9 3
9 2
9 3
9 5
1 1 1
1 1 0
8 6
8 4 8 5
1 1 0
1 1 1
7 3 7 4
6 5
6 5
8 1
8 2
8 2
8 1
6 3 6 4
6 3 6 4
6 9
6 6 6 7
7 7 7 8
6 8
6 8
7 0
7 1
7 1
7 2
5 7 5 8
5 9 6 1
7 5 7 6
4 2
3 0
2 9
4 0
4 0
4 0
3 1
3 4
3 2
4 0
3 2
3 9
3 9
3 8
3 3
4 0
3 7
3 5
3 6
4 6
5 2
4 5
4 6
4 9
4 6
4 6
5 1
4 6
5 2
5 4
5 3
1 9 2 0
2 2
8 3
2 1
2 1
2 3 2 4
2 3 2 4
1 0 7
1 0 8
1 0 9
7 9
8 0
6 2
- -
REF.NO NOTE PARTNO DESCRIPTION Qty
1
#01
401-47271 CONVEYOR_COVER_M_ASM 1
2
#02
401-47272 CONVEYOR_COVER_L_ASM 1
3
#03
401-47020 CONVEYOR_COVER_LW_ASM 1
4
#01
401-47164 CONVEYOR_COVER_M (2)
5
#02
401-47167 CONVEYOR_COVER_L (2)
6
#03
401-47189 CONVEYOR_COVER_L_200 (2)
7
#01
401-47165 CONVEYOR_SIDE_COVER_M (2)
8
#02
401-47168 CONVEYOR_SIDE_COVER_L (2)
9
#03
401-47190 CONVEYOR_SIDE_COVER_L_200 (2)
10
#01
401-47166 CONVEYOR_UPPER_COVER_M (2)
11
#02
401-47169 CONVEYOR_UPPER_COVER_L (2)
12
#03
401-47191 CONVEYOR_UPPER_COVER_L_200 (2)
13 401-47170 CONVEYOR_COVER_STOPPER (2)
14
#03
401-47192 CONVEYOR_COVER_STOPPER_200 (2)
15
#01
400-01480 CONVEYORSHUTTERU(EN) (2)
16 400-01484 CONVEYORSHUTTERU(L,EN) (2)
17
#01
400-01481 CONVEYORSHUTTERB(EN) (2)
18 400-01485 CONVEYORSHUTTERB(L,EN) (2)
19 SM-0040601-SC SCREWM4X0.7L=6 (38)
20
#03
SM-0040601-SC SCREWM4X0.7L=6 (40)
21 400-01490 TAPE (2.8)
22
#03
E5721-729-000 LABEL (2)
23
#13
E1143-721-000 WOOLENCLOTHPAPER (4)
24 E1143-721-000 WOOLENCLOTHPAPER (2)
25
#04
401-47108 BANK_COVER(FIXED)_F 1
26 401-47094 BANK_COVER_FR (1)
27 401-47215 BANK_COVER_C_F (1)
28 401-47095 BANK_COVER_PLATE (2)
29 CM-3001000-04 VOLTAGEWARNINGLABEL(50) (1)
30 168-70206 GRAVITYSEAL (1)
31 401-47216 FEEDER_SIDE_COVER_F_ASM(F_BANK) (1)
32 NM-6030001-SC NUTM3X0.5TYPE1 (5)
33 401-14298 GUARD_COVER_POLE (1)
34 SM-6031602-TN SCREWM3L=16 (1)
35 401-47171 FEEDER_SIDE_COVER_FR_F (1)
36 SL-6040892-TN SCREWM4L=8 (4)
37 HX-0032600-0B BUSH (1)
38 401-47173 GUARD_COVER_B_L_F (1)
39 401-13966 SPRING_TYPE_HINGE (2)
40 SM-3030552-TN SCREWM3L=5 (10)
41 401-47093 BANK_COVER_FL (1)
42 SL-3061232-TN SCREWM6L=12 (16)
43
#05
401-47109 BANK_COVER(FIXED)_R_M 5
44
#06
401-47110 BANK_COVER(FIXED)_R_L 1
45 400-01512 COVERSTUDYF (2)
46 SL-3061232-TN SCREWM6L=12 (16)
47
#05
401-47097 BANK_COVER_RL_M (1)
48
#06
401-47098 BANK_COVER_RL_L (1)
49 400-01512 COVERSTUDYF (2)
50 401-47085 BANK_COVER_C (1)
51 400-01512 COVERSTUDYF (1)
52 401-47095 BANK_COVER_PLATE (2)
53 CM-3001000-04 VOLTAGEWARNINGLABEL(50) (1)
54 168-70206 GRAVITYSEAL (1)
55
#05
401-47096 BANK_COVER_RR_M (1)
56
#06
401-47099 BANK_COVER_RR_L (1)
57
#07
401-47114 BANK_COVER(M_TORROLY)_R_M 1
58
#08
401-47116 BANK_COVER(M_TORROLY)_R_L 1
59
#09
401-47113 BANK_COVER(E_TORROLY)_R_M (1)
60
#10
401-47115 BANK_COVER(E_TORROLY)_R_L (1)
61
#14
401-61089 BANK_COVER(ME_TORROLY)_R_L (1)
62
#14
400-80833 SPONGE (0.5)
63
#09
SL-3061232-TN SCREWM6L=12 (8)
64
#10
SL-3061232-TN SCREWM6L=12 (10)
65 400-01512 COVERSTUDYF (4)
66 401-47088 T_BANK_COVER_CL (1)
67
#14
401-60583 T_BANK_COVER_CL (1)
68 SL-3061232-TN SCREWM6L=12 (4)
69 400-81751 B_COVER_SCREW (2)
70 400-01512 COVERSTUDYF (1)
71 CM-3001000-04 VOLTAGEWARNINGLABEL(50) (2)
72 168-70206 GRAVITYSEAL (1)
73
#09
401-47091 T_BANK_COVER_RR_M (1)
74
#10
401-47103 T_BANK_COVER_RR_L (1)
75
#09
401-47090 T_BANK_COVER_RL_M (1)
76
#10
401-47102 T_BANK_COVER_RL_L (1)
77 401-47089 T_BANK_COVER_CR (1)
78
#14
401-60582 T_BANK_COVER_CR (1)
79
#14
401-61169 CHIP_COVER (1)
80
#14
400-81751 B_COVER_SCREW (2)
81 401-47092 BOTTOM_HOLE_COVER (2)
82 SL-3061232-TN SCREWM6L=12 (4)
83
#11
401-47112 BANK_COVER(M_TORROLY)_F 1
84
#12
401-47111 BANK_COVER(E_TORROLY)_F (1)
85
#14
401-61088 BANK_COVER(ME_TORROLY)_F (1)
86 401-47218 FEEDER_SIDE_COVER_F_ASM(T_BANK) (1)
87 401-47172 FEEDER_SIDE_COVER_FR_NSO (1)
88 SL-6040892-TN SCREWM4L=8 (4)
89 HX-0032600-0B BUSH (1)
90 401-47174 GUARD_COVER_B_L_T (1)
91 401-13966 SPRING_TYPE_HINGE (2)
92 SM-3030552-TN SCREWM3L=5 (10)
93 NM-6030001-SC NUTM3X0.5TYPE1 (5)
94 401-14298 GUARD_COVER_POLE (1)
95 SM-6031602-TN SCREWM3L=16 (1)
96 401-47086 T_BANK_COVER_FL (1)
97 401-47087 T_BANK_COVER_FR (1)
98 SL-3061232-TN SCREWM6L=12 (10)
99 400-01512 COVERSTUDYF (2)
100 401-47217 T_BANK_COVER_CL_F (1)
101
#14
401-60584 T_BANK_COVER_CL_F (1)
102 401-47089 T_BANK_COVER_CR (1)
103
#14
401-60582 T_BANK_COVER_CR (1)
104 400-81751 B_COVER_SCREW (2)
105 CM-3001000-04 VOLTAGEWARNINGLABEL(50) (2)
106 168-70206 GRAVITYSEAL (1)
107
#14
401-61169 CHIP_COVER (1)
108
#14
400-81751 B_COVER_SCREW (2)
109
#14
400-80833 SPONGE (0.5)
110 401-47092 BOTTOM_HOLE_COVER (2)
111 SL-3061232-TN SCREWM6L=12 (4)
