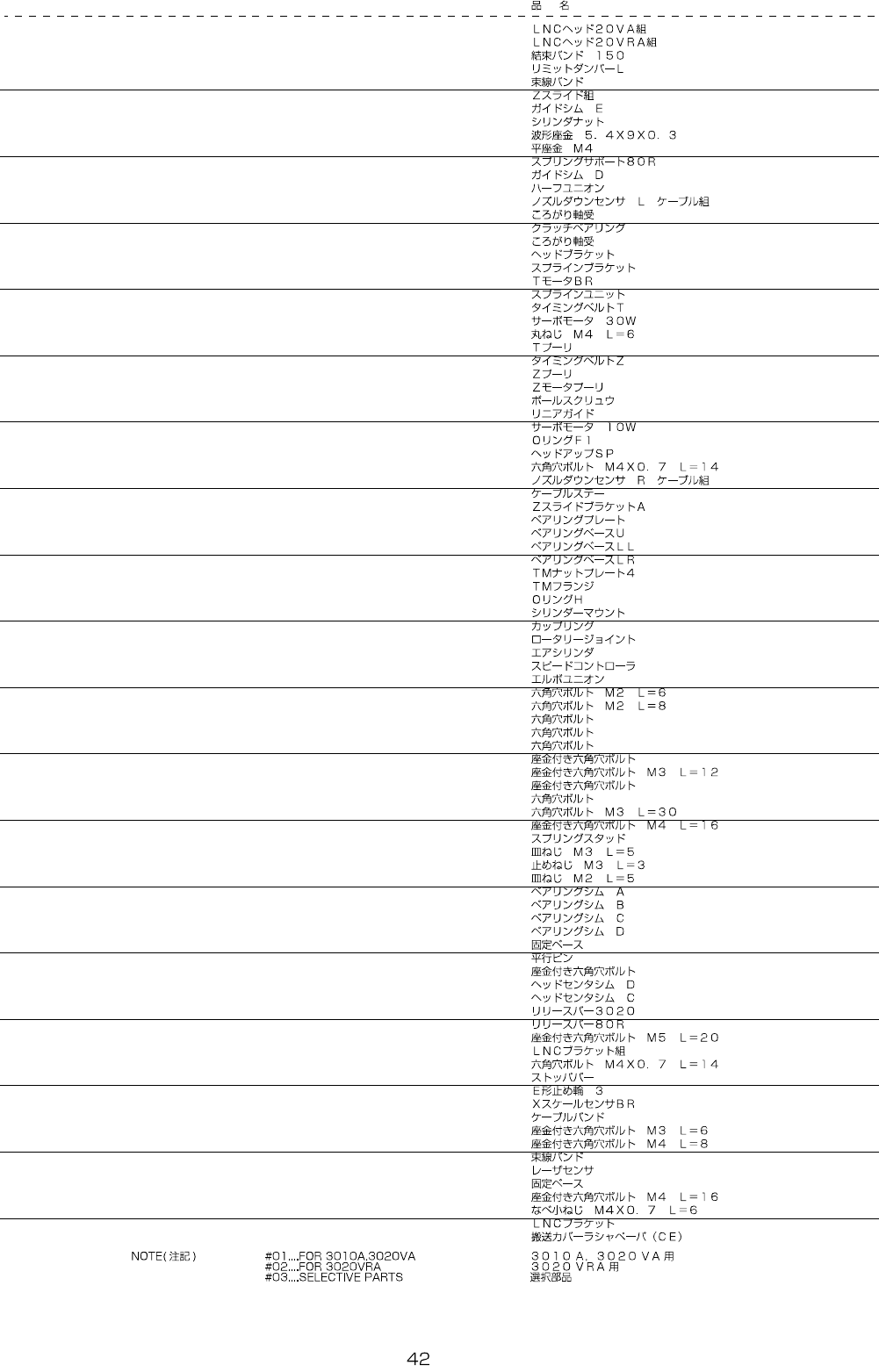

21.HEADCOMPONENTS(1)
- -
REF.NO NOTE PARTNO DESCRIPTION Qty
1
#01
401-49677 LNCHEAD20VAASSY 1
2
#02
401-47057 LNCHEAD20VRAASSY 1
3 EA-9500B02-00 CABLEBAND150 (4)
4 E3005-729-000 LIMITDAMPERL (2)
5 EA-9500B01-00 CABLEBAND (5)
6 400-53293 ZSLIDEASM (6)
7 E3029-729-000 GUIDESHIME (3)
8 400-54879 CYLINDERNUT (2)
9 WZ-0541510-KP WAVEDWASHER5.4X9.0X0.3 (2)
10 WP-0430801-SC WASHERM4 (2)
11 400-80369 SPSUPPROT80R (1)
12 E3028-729-000 GUIDESHIMD (3)
13 PJ-2105041-00 HALFUNION (6)
14 400-92495 NOZZLEDOWNSENSLASM (1)
15 SB-1060020-00 BEARING (6)
16 SB-1060004-00 CLUTCHBEARING (12)
17 SB-1080016-00 BEARING (12)
18 400-46051 HEADBRACKET (1)
19 400-46052 SPLINEBRACKET (1)
20 400-71804 TMOTORBR (1)
21 400-63959 SPLINEUNIT (6)
22 400-46521 TIMINGBELTT (6)
23 401-49143 SERVOMOTOR30W (6)
24 SM-3040652-TN SCREWM4L=6 (2)
25 400-46516 TPULLEY (6)
26 400-46522 TIMINGBELTZ (6)
27 400-01123 ZPULLEY (6)
28 400-01124 ZMOTORPULLEY (6)
29 400-44583 BALLSCREW (6)
30 400-44585 LINEARGUIDE (6)
31 401-46452 SERVOMOTOR10W (6)
32 400-46058 ORINGF1 (6)
33 400-58386 HEADUPSP (2)
34 SM-6041402-TN SCREWM4X0.7L=14 (2)
35 401-13701 NOZZLEDOWNSENSRASM (1)
36 400-90401 CABLESTAY (1)
37 400-46631 ZSLIDEBRACKETA (6)
38 400-46056 BEARINGPLATE (12)
39 400-46048 BEARINGBASEU (6)
40 400-46049 BEARINGBASELL (3)
41 400-46050 BEARINGBASELR (3)
42 400-72868 TMNUTPLATE4 (6)
43 400-71805 TMFRANGE (6)
44 400-46060 ORINGH (6)
45 400-46070 CYLINDERMOUNT (2)
46 400-46515 COUPRING (6)
47 400-46525 ROTARYJOINT (6)
48 400-46524 AIRCYLINDER (2)
49 PC-0105080-00 SPEEDCONTROLLER (2)
50 PJ-3040405-04 ELBOWUNION (2)
51 SM-6020602-TN SCREWM2L=6 (48)
52 SM-6020802-TN SCREWM2L=8 (54)
53 SM-6051602-TN SCREW (8)
54 SM-6041002-TN BOLT (4)
55 SM-6030802-TN SCREW (12)
56 SL-6030842-TN SCREWM3L=8 (24)
57 SL-6031292-TN SCREWM3L=12 (12)
58 SL-6031692-TN SCREW (18)
59 SM-6031602-TN SCREWM3L=16 (24)
60 SM-6033002-TN SCREWM3L=30 (4)
61 SL-6041692-TN SCREWM4L=16 (4)
62 400-56921 SPRINGSTUD (2)
63 SM-1030552-TN PLATESCREWM3L=5 (54)
64 SM-8030312-TP SCREWM3L=3 (60)
65 SM-1020501-SC SCREW (12)
66
#03
E3071-729-000 BEARINGSHIMA (6)
67
#03
E3072-729-000 BEARINGSHIMB (6)
68
#03
E3073-729-000 BEARINGSHIMC (6)
69
#03
E3074-729-000 BEARINGSHIMD (6)
70 HX-0029400-00 FIXEDBASE (9)
71 PH-0400122-C0 PIN (6)
72 SL-6041492-TN SCREW (2)
73 E3047-729-000 HAEDCENTERSHIMD (3)
74 E3021-721-000 HAEDCENTERSHIMC (3)
75
#01
400-71570 RELEASEBAR3020 (1)
76
#02
400-80370 RELEASEBAR80R (1)
77 SL-6052092-TN SCREWM5L=20 6
78 400-49066 LNCBRACKETASM 1
79 SM-6041402-TN SCREWM4X0.7L=14 (2)
80 400-46527 STOPPERBAR (1)
81 RE-0300000-K0 E-RING3 (2)
82 400-46547 XSCALESENSORBR (1)
83 400-46548 CABLEBAND (1)
84 SL-6030692-TN SCREWM3L=6 (2)
85 SL-6040892-TN SCREWM4L=8 (2)
86 EA-9500B01-00 CABLEBAND (3)
87 400-45547 LNC60 (1)
88 HX-0029400-00 FIXEDBASE (3)
89 SL-6041692-TN SCREWM4L=16 (1)
90 SM-4040601-SC SCREWM4X0.7L=6 (3)
91 400-46069 LNCBRACKET (1)
92 E1143-721-000 WOOLENCLOTHPAPER (1)
- -

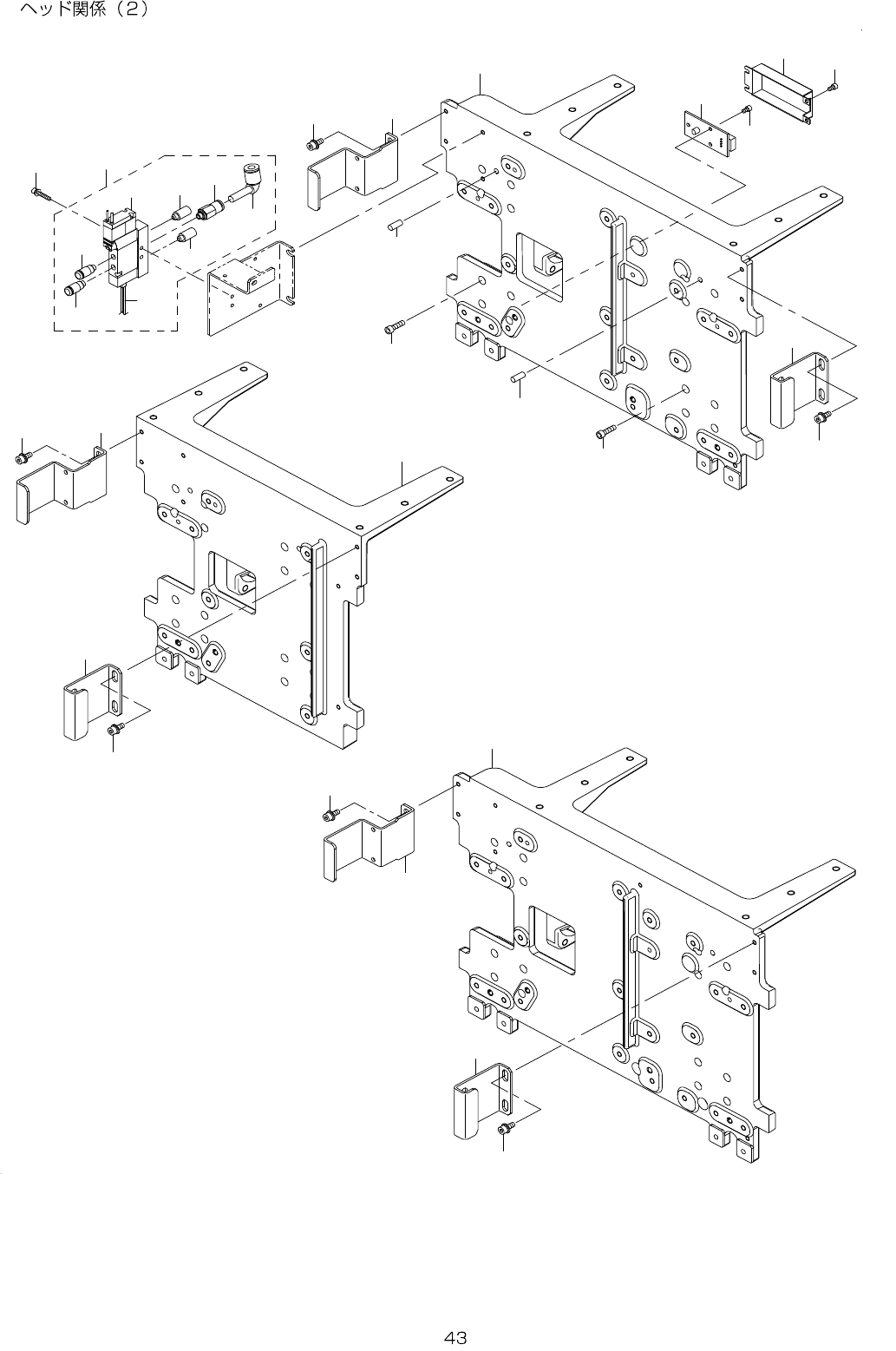

22.HEADCOMPONENTS(2)
1 3
3
8
7
7
5
6
4
3
2
4
1
1 1
1 1
1 4
1 6
1 7
1 9
1 9
1 0
1 5
1 7
1 8
2 0
9
1 2
2 5
2 4
1 2
2 3
2 3
2 1
2 2
